Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

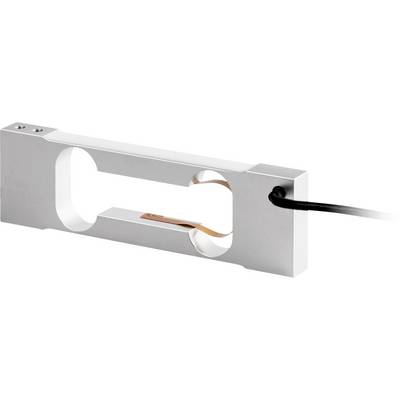

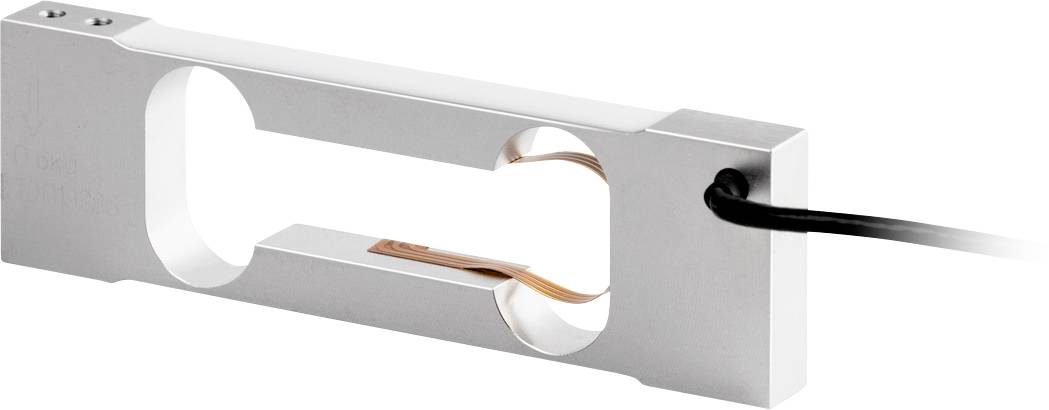

Single-point load cell CP-P4
- Single-point load cells made of anodized aluminum
Technical specifications
- Product type
Load cell
- Dim
(W x H x D) 110 x 10 x 33 mm
- Calibratable
No
- Weighing plate
Aluminium
- Height
10 mm
- Depth
33 mm
- Width
110 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
User & Safety Instructions
User & Safety Instructions 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Information
Information 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Conformity certificate
Conformity certificate 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Conformity certificate 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Conformity certificate 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Conformity certificate 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Conformity certificate 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Conformity certificate 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Conformity certificate 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Conformity certificate 2104274 Sauter CP 300-0P4 CP 300-0P4 Single-point load cell CP-P4
Description
CE and RoHS compliant
Accuracy class L
Dust and splash-water protection IP65 (according to EN 60529)
Anodised aluminum
Suitable for price-calculating scales, table scales, platform scales, etc.
Maximum platform size 200×200 mm
4-wire connection
Nominal value 0.9 mV/V.
This text is machine translated.
Accuracy class L
Dust and splash-water protection IP65 (according to EN 60529)
Anodised aluminum
Suitable for price-calculating scales, table scales, platform scales, etc.
Maximum platform size 200×200 mm
4-wire connection
Nominal value 0.9 mV/V.
This text is machine translated.
Hints
Nominal load 300 g
