Buy Sauter CP 400-3P2 CP 400-3P2 Single-point load cell CP-P2

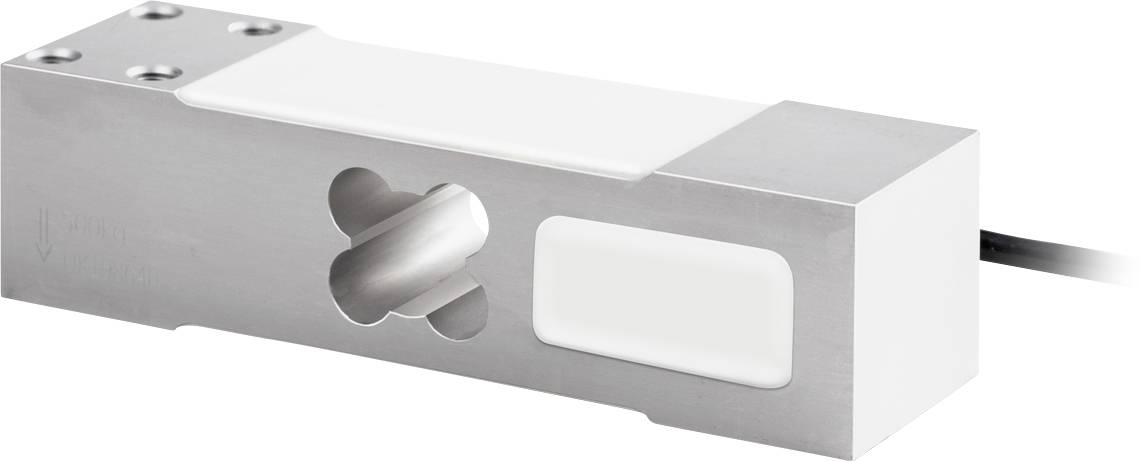

Single metal cell force sensor, rectangular, with cable connection, commonly used for measuring weight or pressure in industrial applications.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Single-point load cell CP-P2

Aluminum single-point load cell

Technical specifications

Product type: Load cell

Dim: (W x H x D) 150 x 40 x 44 mm

Calibratable: No

Weighing plate: Aluminium

Height: 40 mm

Depth: 44 mm

Width: 150 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104303 Sauter CP 400-3P2 CP 400-3P2 Single-point load cell CP-P2

User & Safety Instructions

User & Safety Instructions 2104303 Sauter CP 400-3P2 CP 400-3P2 Single-point load cell CP-P2

Information

Information 2104303 Sauter CP 400-3P2 CP 400-3P2 Single-point load cell CP-P2

Conformity certificate

Conformity certificate 2104303 Sauter CP 400-3P2 CP 400-3P2 Single-point load cell CP-P2

Description

Accuracy according to OIML R60 C3
Dust and splash-water protection IP65 (according to EN 60529)
Aluminum alloy, anodized
Suitable for price-calculating scales, table scales, platform scales, etc.
Maximum platform size 100–300 kg: 400×400 mm
Maximum platform size 400–500 kg: 450×450 mm
Nominal value 2 mV/V.
Note: Version according to OIML R60 C4 or C5 on request

This text is machine translated.
