Sauter CP 50-2-3P1 Load cell CP 50-2-3P1, nominal load 50 kg, cable length approx. 2 m.
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

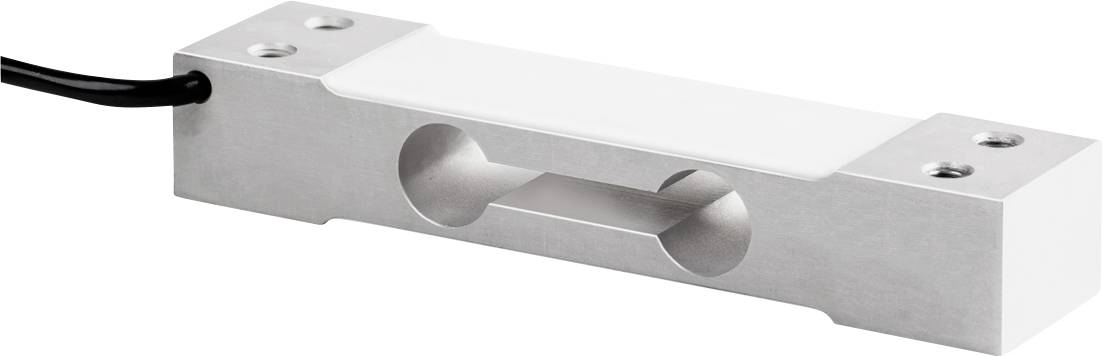

Load cell CP 50-2-3P1, nominal load 50 kg, cable length approx. 2 m.
- Single-point load cell made of anodized aluminum with extra long cable
Technical specifications
- Weight: 0.25 kg
- Product type
Load cell
- Dim
(W x H x D) 130 x 22 x 30 mm
- Calibratable
No
- Weighing plate
Aluminium
- Height
22 mm
- Depth
30 mm
- Width
130 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3061379 Sauter CP 50-2-3P1 Load cell CP 50-2-3P1, nominal load 50 kg, cable length approx. 2 m.
User & Safety Instructions
User & Safety Instructions 3061379 Sauter CP 50-2-3P1 Load cell CP 50-2-3P1, nominal load 50 kg, cable length approx. 2 m.
Information
Information 3061379 Sauter CP 50-2-3P1 Load cell CP 50-2-3P1, nominal load 50 kg, cable length approx. 2 m.
Description
The standard 2 m cable length allows single point weighing applications with greater distance between platform and evaluation unit; CE and RoHS compliant; suitable for price-calculated scales, table scales, platform scales, etc.; maximum platform size 250×350 mm;
This text is machine translated.
This text is machine translated.
Hints
Note: Version according to OIML R60 C4 or C5 on request;
