Buy Sauter CP 50-3P3 CP 50-3P3 Single-point load cell CP-P3

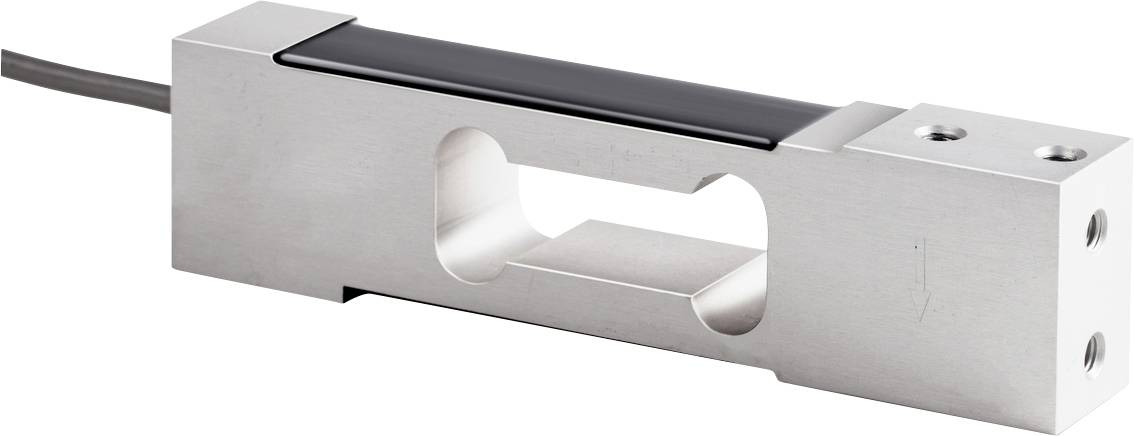

A silver metal weighing cell with a black insert and cable connection, used for weight measurement in industrial applications.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Single-point load cell CP-P3

Single-point load cells made of anodized aluminum

Technical specifications

Product type: Load cell

Dim: (W x H x D) 150 x 40 x 25.4 mm

Calibratable: No

Weighing plate: Aluminium

Height: 40 mm

Depth: 25.4 mm

Width: 150 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104333 Sauter CP 50-3P3 CP 50-3P3 Single-point load cell CP-P3

User & Safety Instructions

User & Safety Instructions 2104333 Sauter CP 50-3P3 CP 50-3P3 Single-point load cell CP-P3

Information

Information 2104333 Sauter CP 50-3P3 CP 50-3P3 Single-point load cell CP-P3

Conformity certificate

Conformity certificate 2104333 Sauter CP 50-3P3 CP 50-3P3 Single-point load cell CP-P3

Description

Accuracy according to OIML R60 C3
CE and RoHS compliant
Dust and splash-water protection IP65 (according to EN 60529)
Suitable for price-calculating scales, table scales, platform scales, etc.
Maximum platform size 350×400 mm
4-wire connection
Nominal value 2 mV/V.
Note: Version according to OIML R60 C4 on request
