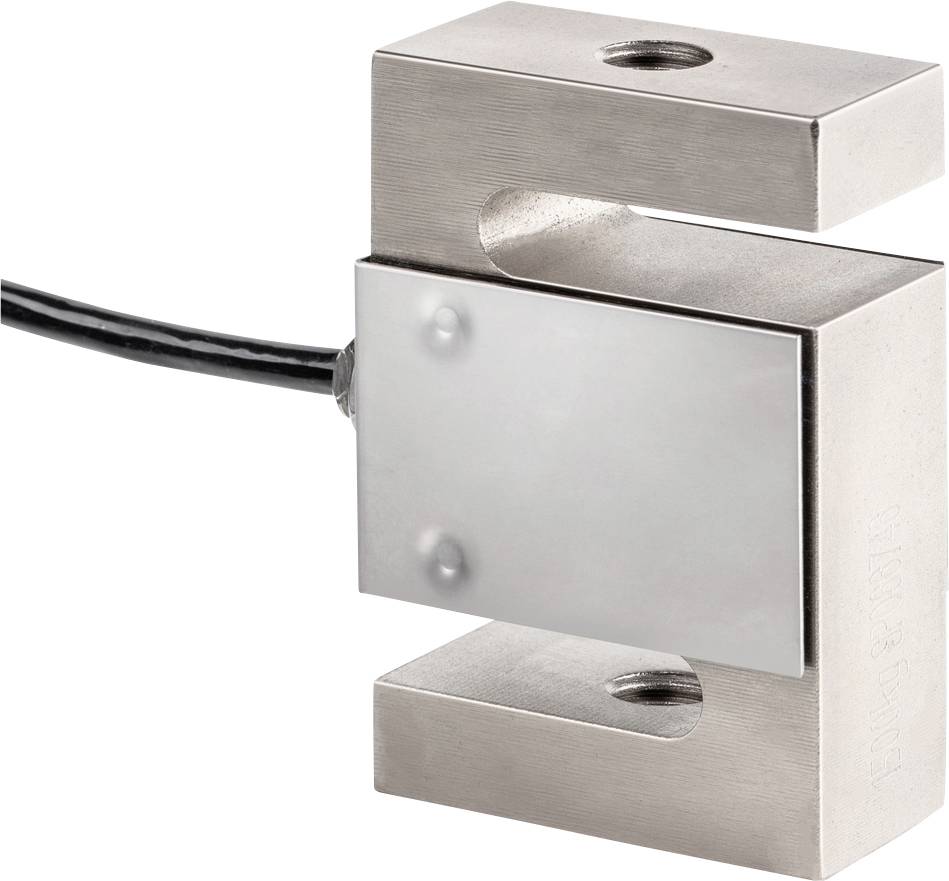

Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
"S" MEASURING CELL CS-P1
- 4-conductor "S" measuring cells for force and ground measurement
Technical specifications
- Product type
Load cell/force gauge
- Dim
(W x H x D) 76.2 x 27.2 x 101.6 mm
- Calibratable
No
- Weighing plate
Steel
- Height
27.2 mm
- Depth
101.6 mm
- Width
76.2 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
User & Safety Instructions
User & Safety Instructions 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Information
Information 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Conformity certificate
Conformity certificate 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Conformity certificate 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Conformity certificate 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Conformity certificate 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Conformity certificate 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Conformity certificate 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Conformity certificate 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Conformity certificate 2104268 Sauter CS 2000-3P1 CS 2000-3P1 "S" MEASURING CELL CS-P1
Description
Accuracy according to OIML R60 C3 class C3
Dust and splash-water protection IP67 (according to EN 60529), hermetically sealed
Nickel-plated steel;- Application area: For tensile and compressive force measurements
Suitable for hanging scales, funnel scales and other weighing devices as well as force measurements and test benches
4-wire connection
Note: EX version and accuracy class C4 on request
Nominal value 2 mV/V.
This text is machine translated.
Dust and splash-water protection IP67 (according to EN 60529), hermetically sealed
Nickel-plated steel;- Application area: For tensile and compressive force measurements
Suitable for hanging scales, funnel scales and other weighing devices as well as force measurements and test benches
4-wire connection
Note: EX version and accuracy class C4 on request
Nominal value 2 mV/V.
This text is machine translated.
Hints
Rated load 2 tons
