Buy Sauter CS 20000-3P1 CS 20000-3P1 "S" MEASURING CELL CS-P1

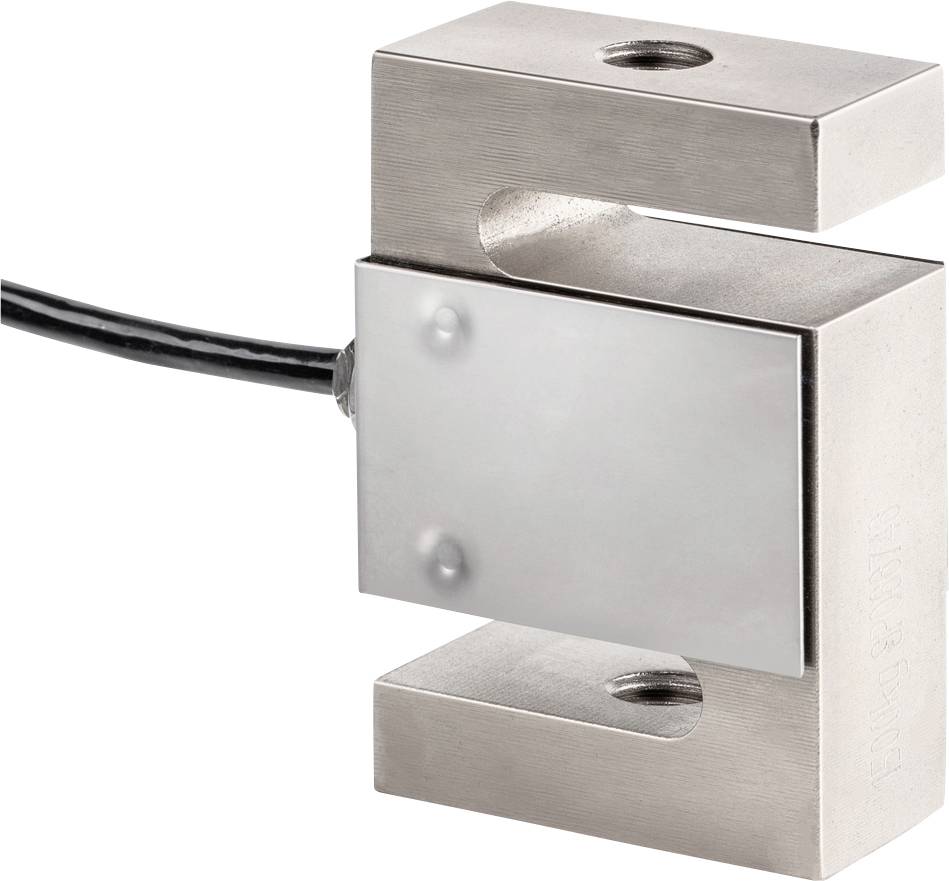

A metal sensor in an S-shape with a black cable, used for measuring forces or weight in industrial applications.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

"S" MEASURING CELL CS-P1

4-conductor "S" measuring cells for force and ground measurement

Technical specifications

Product type: Load cell/force gauge

Dim: (W x H x D) 160 x 60 x 200 mm

Calibratable: No

Height: 60 mm

Depth: 200 mm

Width: 160 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104350 Sauter CS 20000-3P1 CS 20000-3P1 "S" MEASURING CELL CS-P1

User & Safety Instructions

User & Safety Instructions 2104350 Sauter CS 20000-3P1 CS 20000-3P1 "S" MEASURING CELL CS-P1

Information

Information 2104350 Sauter CS 20000-3P1 CS 20000-3P1 "S" MEASURING CELL CS-P1

Conformity certificate

Conformity certificate 2104350 Sauter CS 20000-3P1 CS 20000-3P1 "S" MEASURING CELL CS-P1

Description

Accuracy according to OIML R60 C3 class C3
Dust and splash-water protection IP67 (according to EN 60529), hermetically sealed
Nickel-plated steel;- Application area: For tensile and compressive force measurements
Suitable for hanging scales, funnel scales and other weighing devices as well as force measurements and test benches
4-wire connection
Note: EX version and accuracy class C4 on request
Nominal value 2 mV/V.

This text is machine translated.
