Buy Sauter CS 7500-3P1 CS 7500-3P1 "S" MEASURING CELL CS-P1

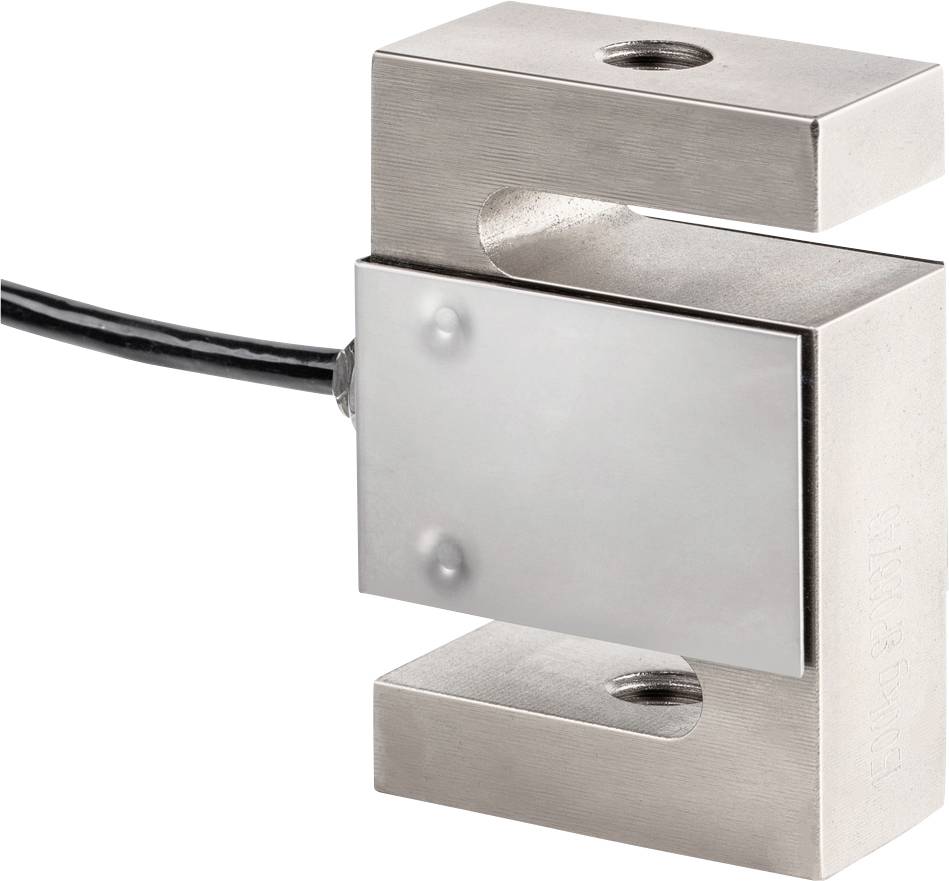

A metallic S-shaped load cell with cable for weight measurements and industrial applications.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

"S" MEASURING CELL CS-P1

4-conductor "S" measuring cells for force and ground measurement

Technical specifications

Product type: Load cell/force gauge

Dim: (W x H x D) 125 x 50 x 175 mm

Calibratable: No

Height: 50 mm

Depth: 175 mm

Width: 125 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2108065 Sauter CS 7500-3P1 CS 7500-3P1 "S" MEASURING CELL CS-P1

User & Safety Instructions

User & Safety Instructions 2108065 Sauter CS 7500-3P1 CS 7500-3P1 "S" MEASURING CELL CS-P1

Information

Information 2108065 Sauter CS 7500-3P1 CS 7500-3P1 "S" MEASURING CELL CS-P1

Conformity certificate

Conformity certificate 2108065 Sauter CS 7500-3P1 CS 7500-3P1 "S" MEASURING CELL CS-P1

Description

Accuracy according to OIML R60 C3 class C3
Dust and splash-water protection IP67 (according to EN 60529), hermetically sealed
Nickel-plated steel;- Application area: For tensile and compressive force measurements
Suitable for hanging scales, funnel scales and other weighing devices as well as force measurements and test benches
4-wire connection
Note: EX version and accuracy class C4 on request
Nominal value 2 mV/V.
