Buy Sauter CT 2500-3P1 CT 2500-3P1 Shear bar measuring cell CT-P1/CT-P2

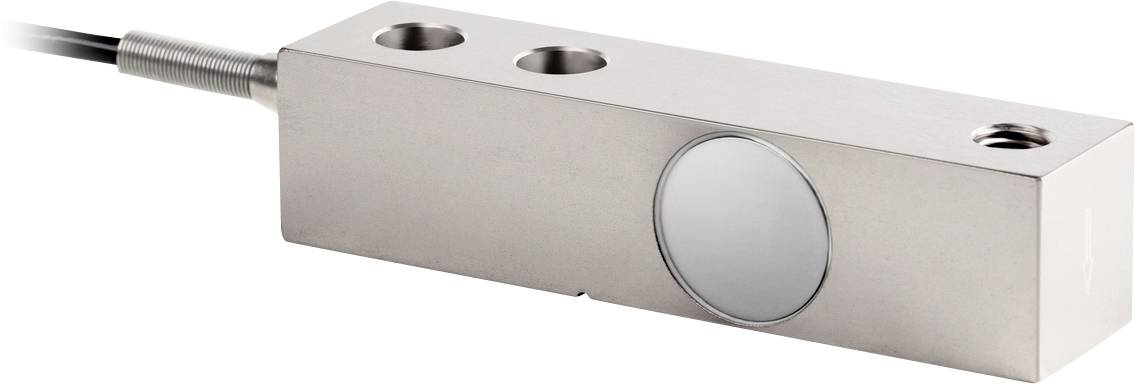

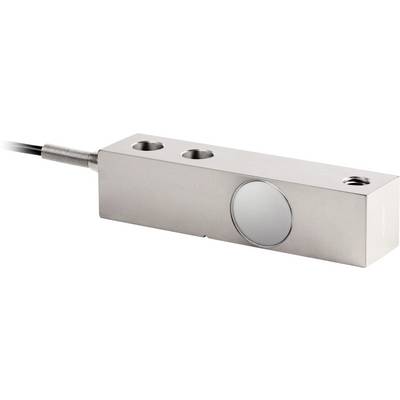

A rectangular metal sensor with a cable. The sensor has three holes on the top surface and a circular area on its side.

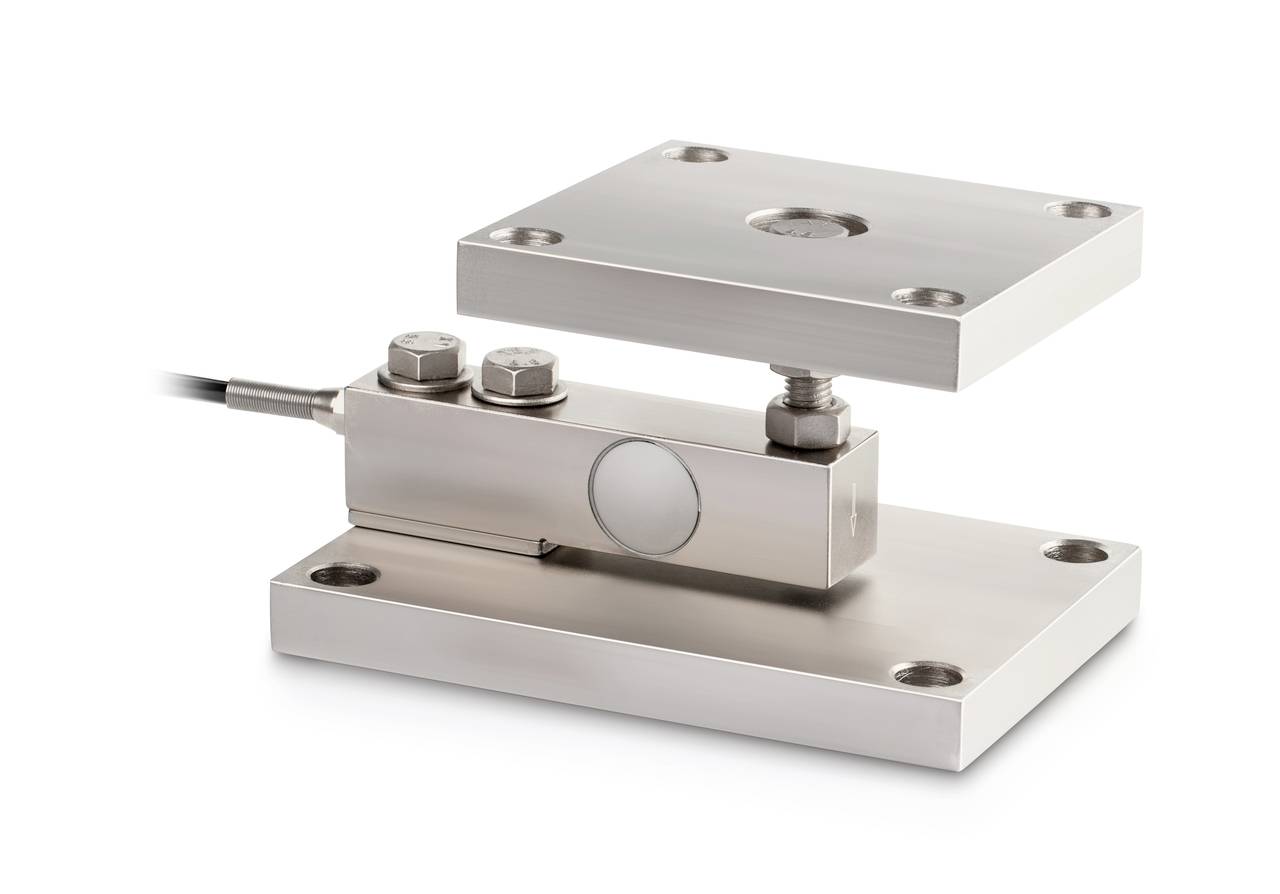

A metal weighing cell consisting of a rectangular base and an upper plate, connected by a sensor, with a cable connection.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Shear bar measuring cell CT-P1/CT-P2

Measuring cells made of stainless steel

Technical specifications

Product type: Load cell

Dim: (W x H x D) 171.5 x 38.1 x 40 mm

Calibratable: No

Height: 38.1 mm

Depth: 40 mm

Width: 171.5 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104264 Sauter CT 2500-3P1 CT 2500-3P1 Shear bar measuring cell CT-P1/CT-P2

User & Safety Instructions

User & Safety Instructions 2104264 Sauter CT 2500-3P1 CT 2500-3P1 Shear bar measuring cell CT-P1/CT-P2

Information

Information 2104264 Sauter CT 2500-3P1 CT 2500-3P1 Shear bar measuring cell CT-P1/CT-P2

Conformity certificate

Conformity certificate 2104264 Sauter CT 2500-3P1 CT 2500-3P1 Shear bar measuring cell CT-P1/CT-P2

Description

Accuracy according to OIML R60 C3
CE and RoHS compliant
Dust and splash-water protection IP67 (according to EN 60529), hermetically sealed
Nickel-plated steel
Application area: Mass and pressure force measurements under harsh environmental conditions
Suitable for platform scales, funnel scales, weighing scales embedded in the floor and other weighing equipment
4-wire connection
Nominal value: 3 mV/V.
Note: Ex version, 6-conductor connection and accuracy class C4 or C5 on request
