Buy Sauter CT 500-3P2 CT 500-3P2 Shear bar measuring cell CT-P1/CT-P2

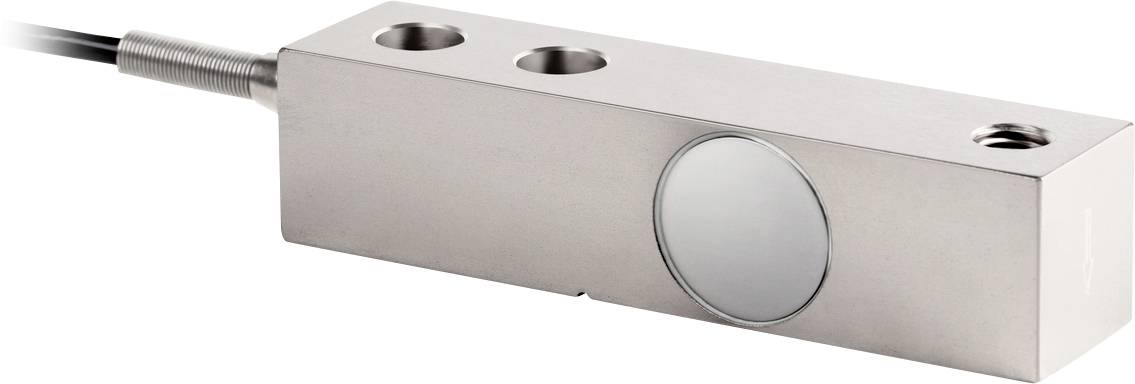

Rectangular metal body with cable connection, featuring two screw holes on top, potentially a type of sensor or measuring device.

Industrial scale with rectangular metal platform and underlying sensor; connection cable on the left side. Ideal for precise weight measurement.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Shear bar measuring cell CT-P1/CT-P2

Measuring cells made of stainless steel

Technical specifications

Product type: Load cell

Dim: (W x H x D) 130 x 31.8 x 34 mm

Calibratable: No

Height: 31.8 mm

Depth: 34 mm

Width: 130 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2108054 Sauter CT 500-3P2 CT 500-3P2 Shear bar measuring cell CT-P1/CT-P2

User & Safety Instructions

User & Safety Instructions 2108054 Sauter CT 500-3P2 CT 500-3P2 Shear bar measuring cell CT-P1/CT-P2

Information

Information 2108054 Sauter CT 500-3P2 CT 500-3P2 Shear bar measuring cell CT-P1/CT-P2

Conformity certificate

Conformity certificate 2108054 Sauter CT 500-3P2 CT 500-3P2 Shear bar measuring cell CT-P1/CT-P2

Description

Accuracy according to OIML R60 C3
CE and RoHS compliant;- Dust and splash water protection IP67 (EN 60529), hermetically sealed
Nickel-plated steel
Application area: Mass and pressure force measurements under harsh environmental conditions
Suitable for platform scales, funnel scales, weighing scales embedded in the floor and other weighing equipment
4-wire connection
Nominal value: 3 mV/V.
Note: EX version, 6-conductor connection and accuracy class C4 or C5 on request
