Name: Sauter CT 7500-3Q1 CT 7500-3Q1 Shear bar measuring cell CT-Q1
Brand: Sauter
SKU: 2104256

Highlights & Details

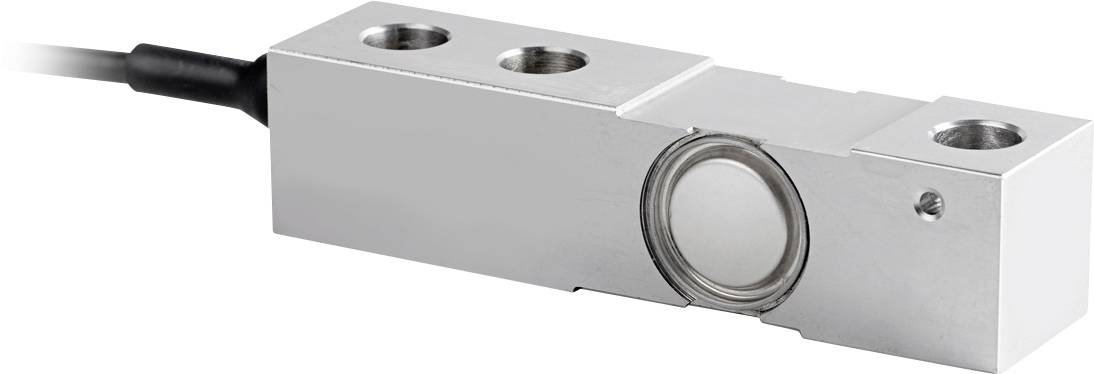

Shear bar measuring cell CT-Q1

Stainless steel shear bar measuring cells with IP69K protection

Technical specifications

Product type: Load cell

Dim: (W x H x D) 222 x 60 x 51 mm

Calibratable: No

Weighing plate: Non-corrosive steel

Height: 60 mm

Depth: 51 mm

Width: 222 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104256 Sauter CT 7500-3Q1 CT 7500-3Q1 Shear bar measuring cell CT-Q1

User & Safety Instructions

User & Safety Instructions 2104256 Sauter CT 7500-3Q1 CT 7500-3Q1 Shear bar measuring cell CT-Q1

Information

Information 2104256 Sauter CT 7500-3Q1 CT 7500-3Q1 Shear bar measuring cell CT-Q1

Conformity certificate

Conformity certificate 2104256 Sauter CT 7500-3Q1 CT 7500-3Q1 Shear bar measuring cell CT-Q1

Description

Accuracy according to OIML R60 C3
CE and RoHS compliant
Dust and splash-water protection IP68/IP69K (according to EN 60529), hermetically sealed
Stainless steel
Application area: Mass and pressure force measurements under harsh environmental conditions
Suitable for platform scales, funnel scales, weighing scales embedded in the floor and other weighing equipment
6-wire connection
Nominal value 2 mV/V.
Note: Ex version on request
