Buy Sauter FA 100 Force gauge 100 N (max.) Manufacturer's standards (no certificate)

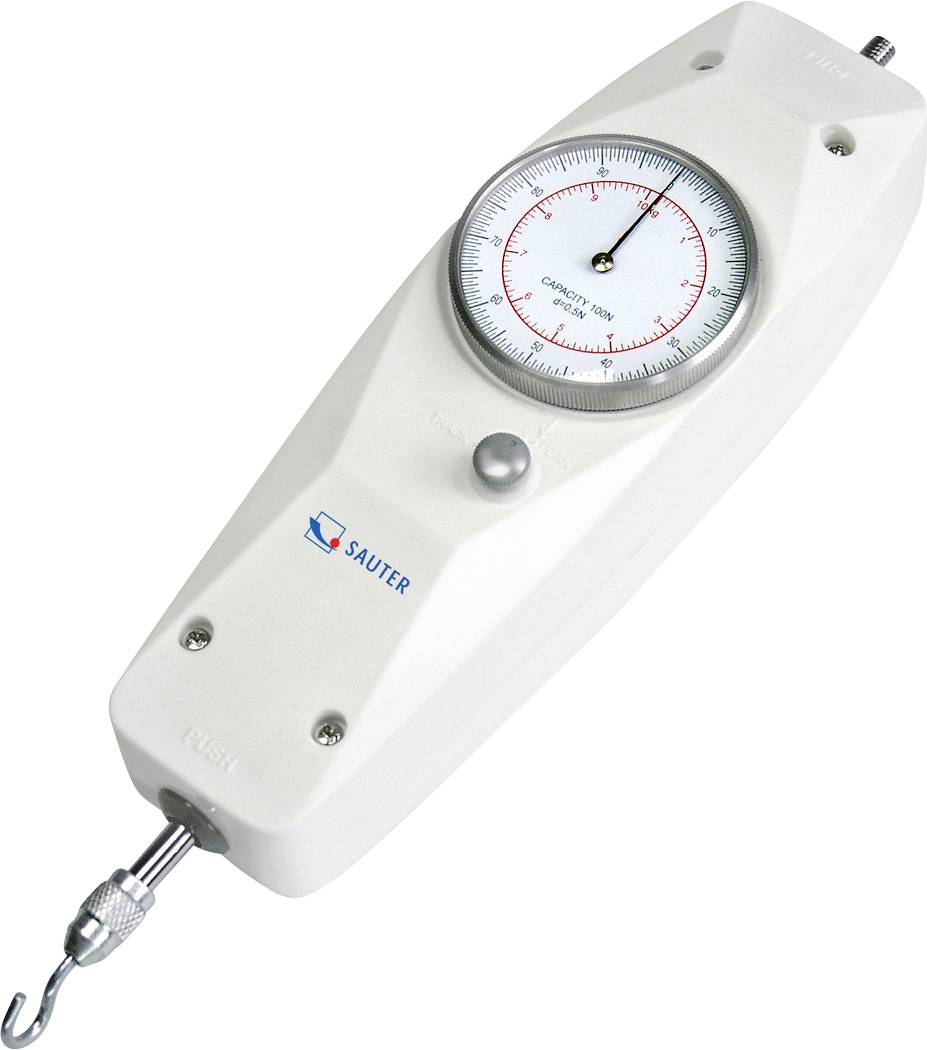

A Sauter analogue force measuring device with a dial display measuring forces in Newtons. A hook is attached to the bottom of the device.

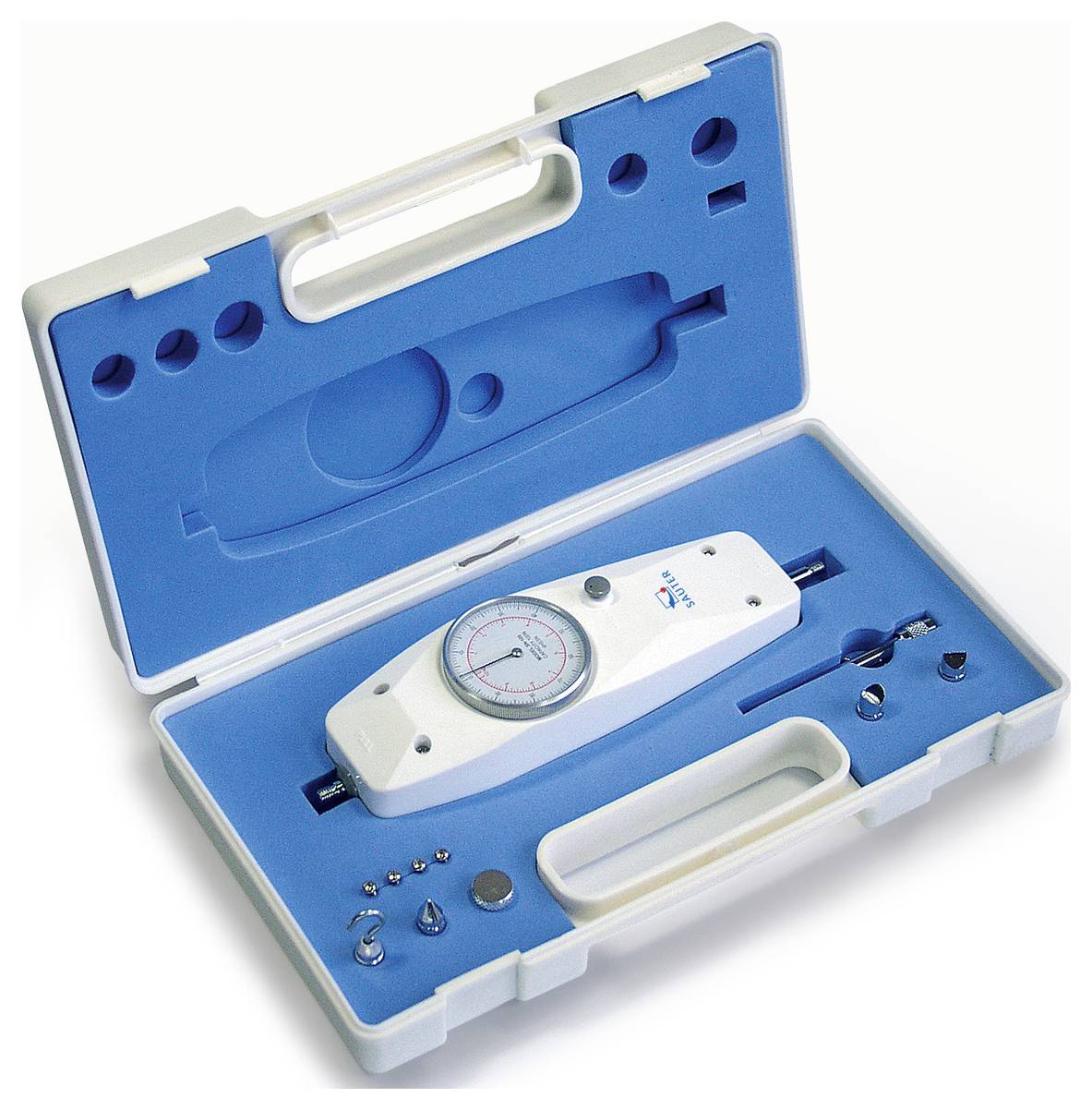

Digital dynamometer in blue case, used for measuring force. Contains small attachments and a tension gauge with a dial.<br><br>(Note: The text is already in standard British English and does not require significant modification.)

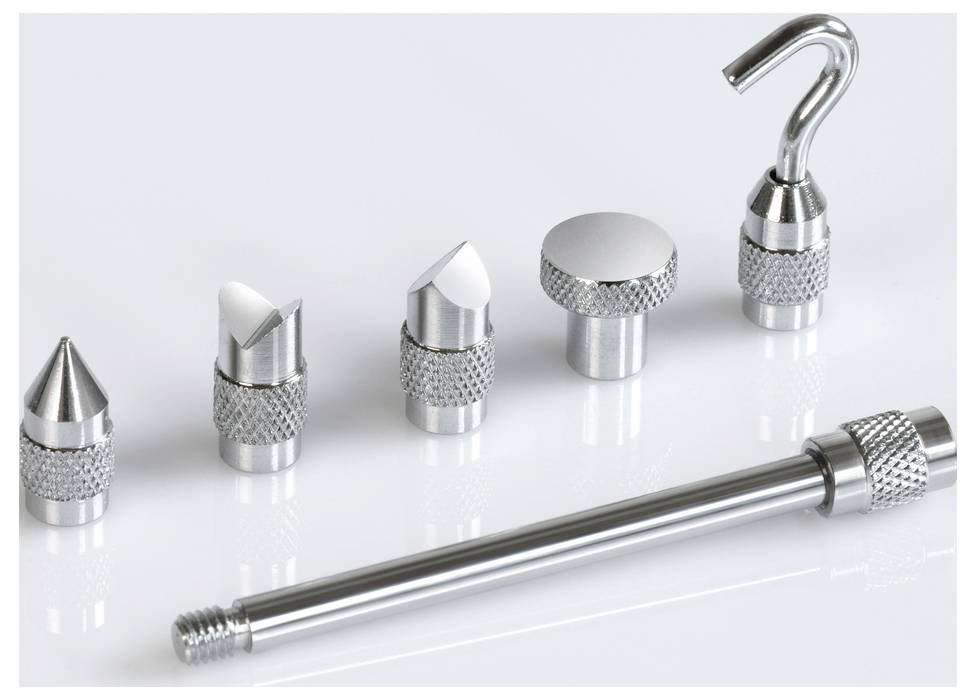

'Five differently shaped stainless steel spray nozzles and a long metal handle on a white background.'

1/3

Datasheet (PDF)

Fast track dispatch on Tue, 29 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 201.67 / piece)

€ 201.67

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Mechanical force measuring device FA 100

Mechanical display
For tensile and compression tests, with peak hold

Technical specifications

Product type: Force gauge

Force reading range (max.): 100 N

: Manufacturer's standards (no certificate)

Dim: (W x H x D) 60 x 50 x 230 mm

Weight: 560 g

Force reading range: 100 N (max.)

Width: 60 mm

Height: 50 mm

Depth: 230 mm

Resolution: 0.5 N

Accuracy (details): 1 %

Documents & Downloads

Datasheet

Datasheet 123908 Sauter FA 100 Force gauge 100 N (max.) Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 123908 Sauter FA 100 Force gauge 100 N (max.) Manufacturer's standards (no certificate)

Description

Mechanical Force Gauge for train and compression tests, with peak detection. TrackMode: By hand can be read off the measured force continuously. Peak mode: The maximum force within a trial can be held.Tare function: measuring object holder or Tara receptacles can be eliminated by taring. Measurements: Implementation by hand or by attaching the FA on a test bench.
