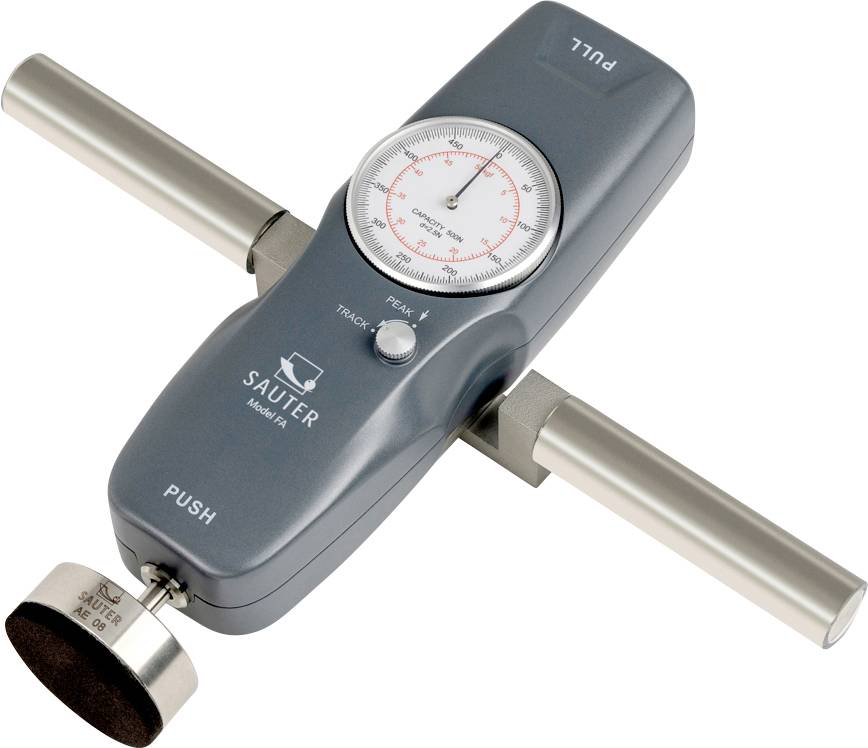

A gray manual force gauge with a circular dial and two silver handles is used for measuring push and pull forces.

A gray manual force gauge with a circular dial and two silver handles is used for measuring push and pull forces.

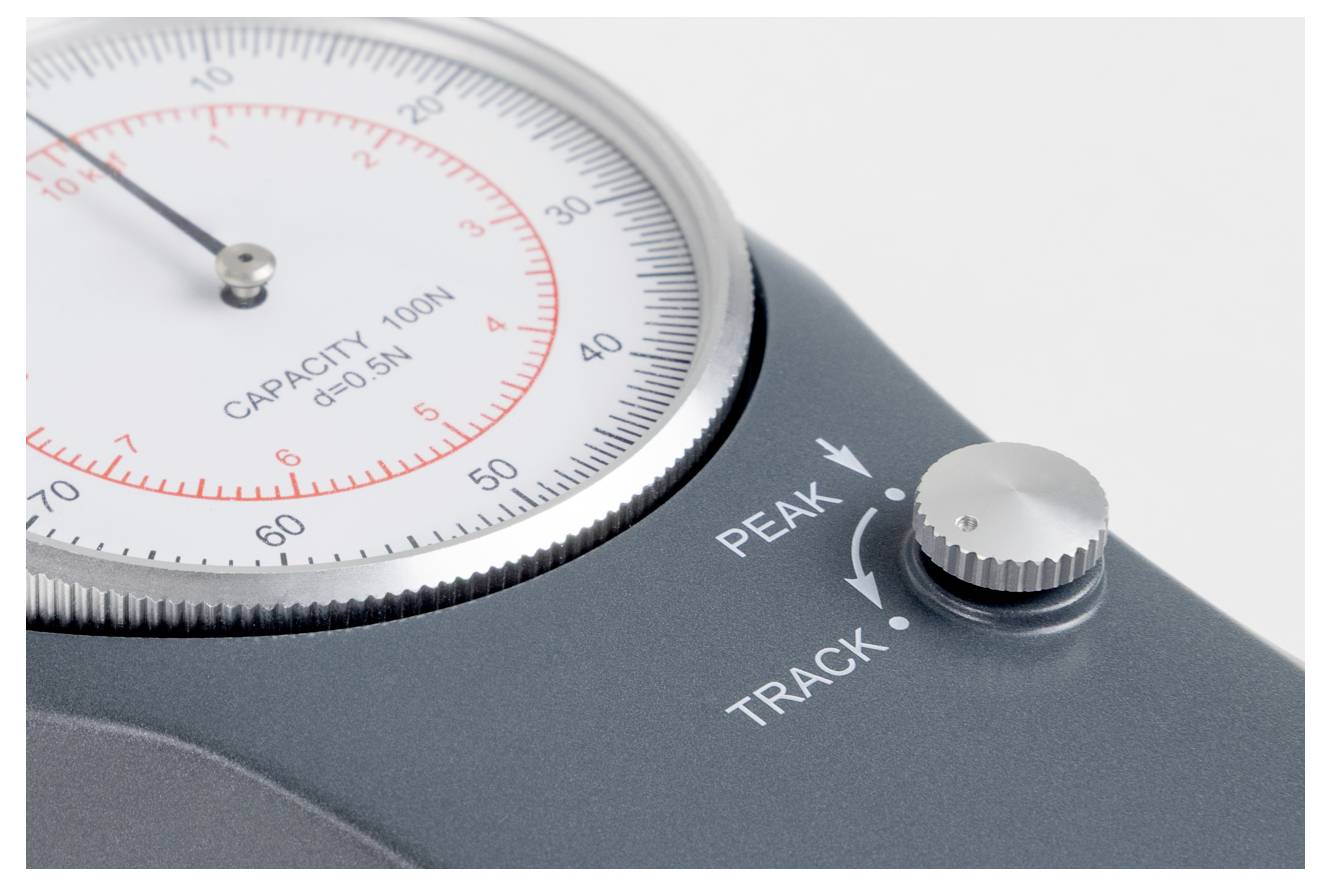

A close-up image of a mechanical dial gauge showing a capacity of 100N. The gauge has a knob labeled 'PEAK' and 'TRACK'.

A close-up of a dial gauge with a circular scale marked in red numbers measuring up to 100N, featuring a 'PEAK' and 'TRACK' switch.

A close-up of a gauge displaying a dial with 'CAPACITY 100N' marked, showing measurements. A knob is labeled 'PEAK' and 'TRACK'.

A close-up of a dial gauge on a device, showing measurements with a knob labeled 'Peak' and 'Track', indicating measurement modes.

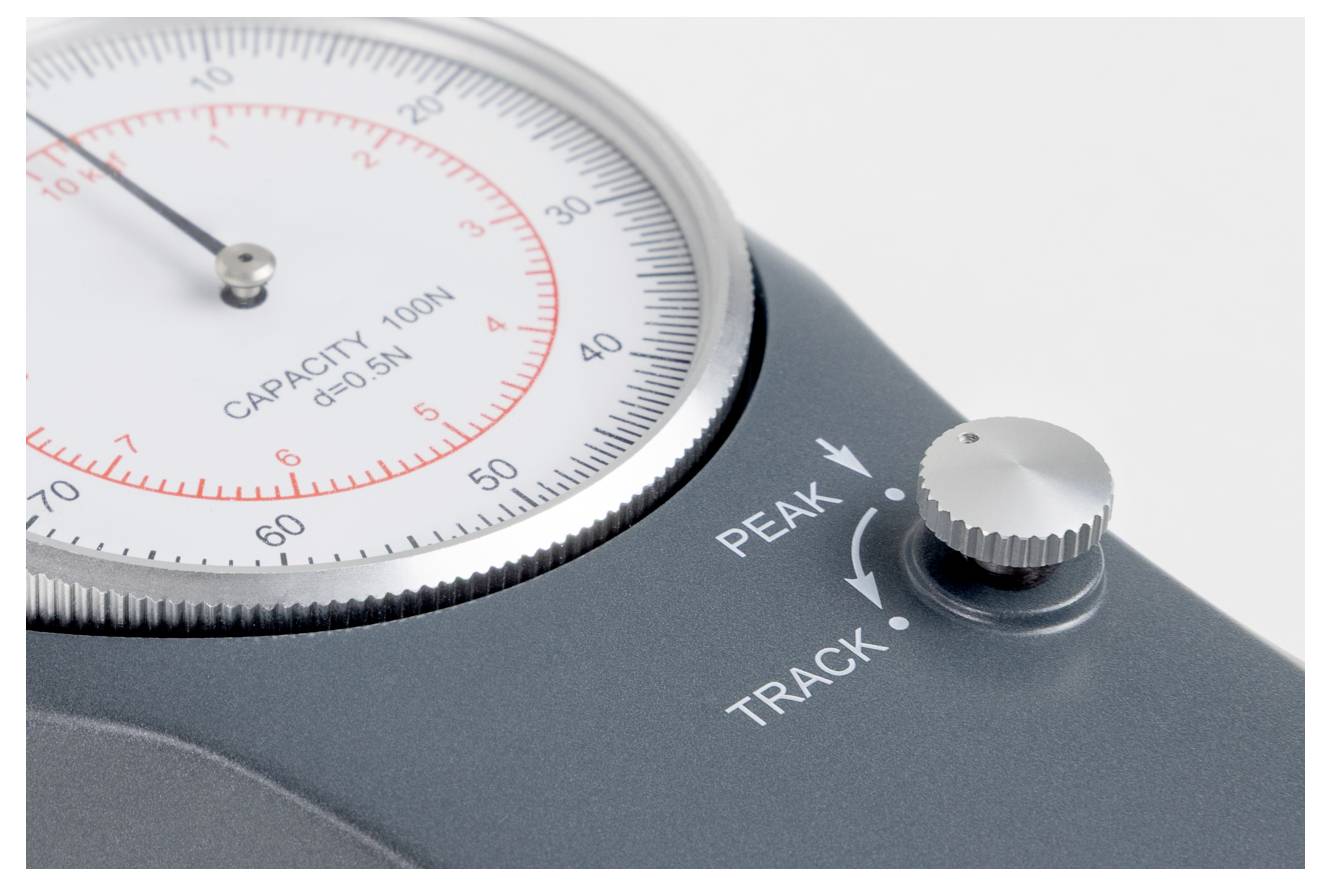

A close-up of an analog force gauge showing a measurement scale from 0 to 100N, a knob with 'PEAK' and 'TRACK' settings, and a silver gear.

A close-up of a dial gauge showing measurement range in newtons with a 'PEAK' and 'TRACK' switch nearby on the device.

1/7

Sauter

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Grave stone tester Sauter FA 500G-2026e

Mechanical tombstone tester (tip tester)
This text is machine translated.

Technical specifications

Product type: Gravestone tester

Dim: (W x H x D) 233 x 53 x 66 mm

Content: 1 pc(s)

Width: 233 mm

Height: 53 mm

: Manufacturer's standards (no certificate)

Depth: 66 mm

Enclosure material: Aluminium

Series: FA

Tolerance: 1.00 %

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3702148 Sauter FA 500G Gravestone tester

User & Safety Instructions

User & Safety Instructions 3702148 Sauter FA 500G Gravestone tester

Description

Features

For testing the stability of tombstones according to VSG 4.7
Pressure plate with foam rubber attachment
Stainless steel handle with rubber coating for safe handling
Due to the mechanical measuring system, no electrical power supply is necessary
Real-power display with maximum force function via drag indicator
For tensile and compressive measurements
Sturdy aluminum housing to protect the mechanical system in case of impacts or falls
Modern, functional design
Dual scale: Newton and kg can be read in parallel
Rotating graduated dial for easy zero reset of the device
Display has been reset at the touch of a button
Included in the delivery:
- 1× FA 500
- 1× AE 08
- 1× AFH 04 ;
