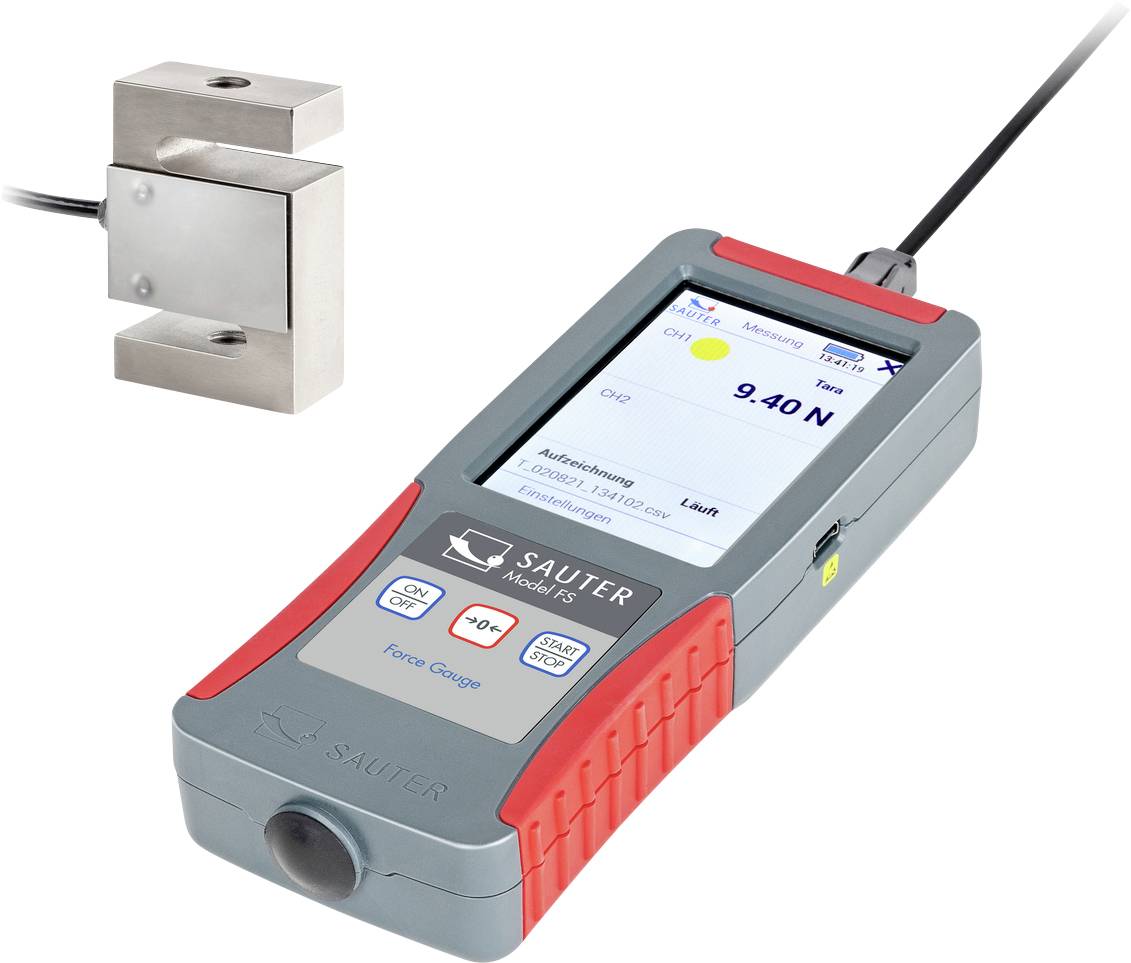

Sauter FS 2-5KSP1 Force gauge 5000 N (max.) Manufacturer's standards (no certificate)

Premium force meter FS 2; measurement of forces in different train or pressure directions possible with only one measuring instrument; 3.5" touch screen; standard version with 2 measuring channels for external force sensors (can be subsequently expanded from 2 to 4); the specific data of an external sensor are stored directly in the plug; adjustable SI units: Kg, N, kN, MN, MN, Nm, kNm, mNm; track function for continuous measurement; peak measurement; tolerance function; internal device memory (16 GB); USB interface for data transmission and power supply as standard; two-point adjustment with weights or numeric adjustment possible; supplied in high-quality and robust system case (systainer® T-LOC) including power supply unit and USB cable type C; 4-conductor "S" measurement cell made of nickel-plated steel for force and mass measurement CS 500-3P1; accuracy class according to OIML C3; nominal value: 2 mV/V; dust and splash-water protection IP67 (according to EN 60529), hermetically sealed; application area: for traction and pressure measurements;
