Sauter Hardness test station
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

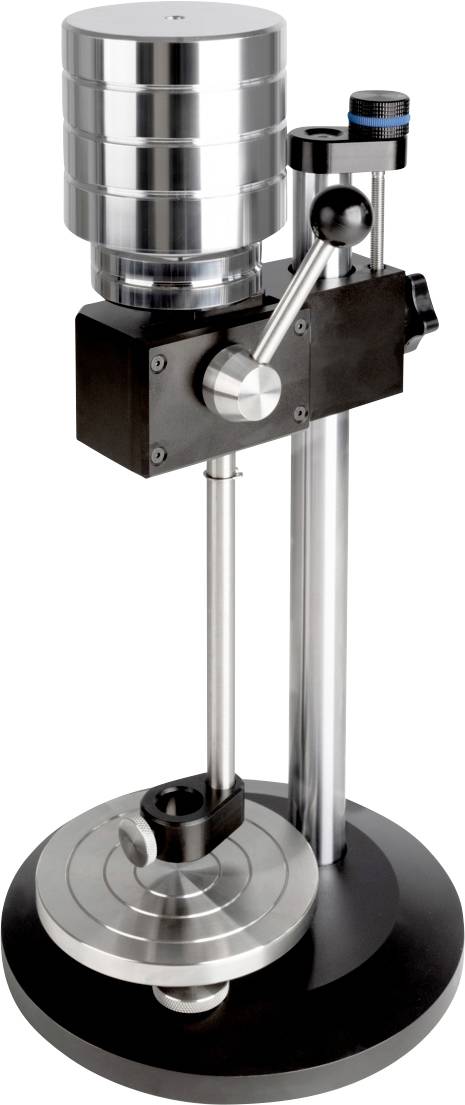

Manual Shore testing bench Sauter TI-HED
- Test stand for reproducible hardness tests Shore A and D.
- This text is machine translated.
Technical specifications
- Product type
Hardness test station
- Dim
(W x H x D) 200 x 470 x 200 mm
- Content
1 pc(s)
- Width
200 mm
- Height
470 mm
Manufacturer's standards (no certificate)
- Depth
200 mm
- Enclosure material
Steel
- Series
TI
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3702093 Sauter Hardness test station
User & Safety Instructions
User & Safety Instructions 3702093 Sauter Hardness test station
Information
Information 3702093 Sauter Hardness test station
Description
Features
- High-quality test stand for the Shore hardness testing of plastics in industry and laboratory

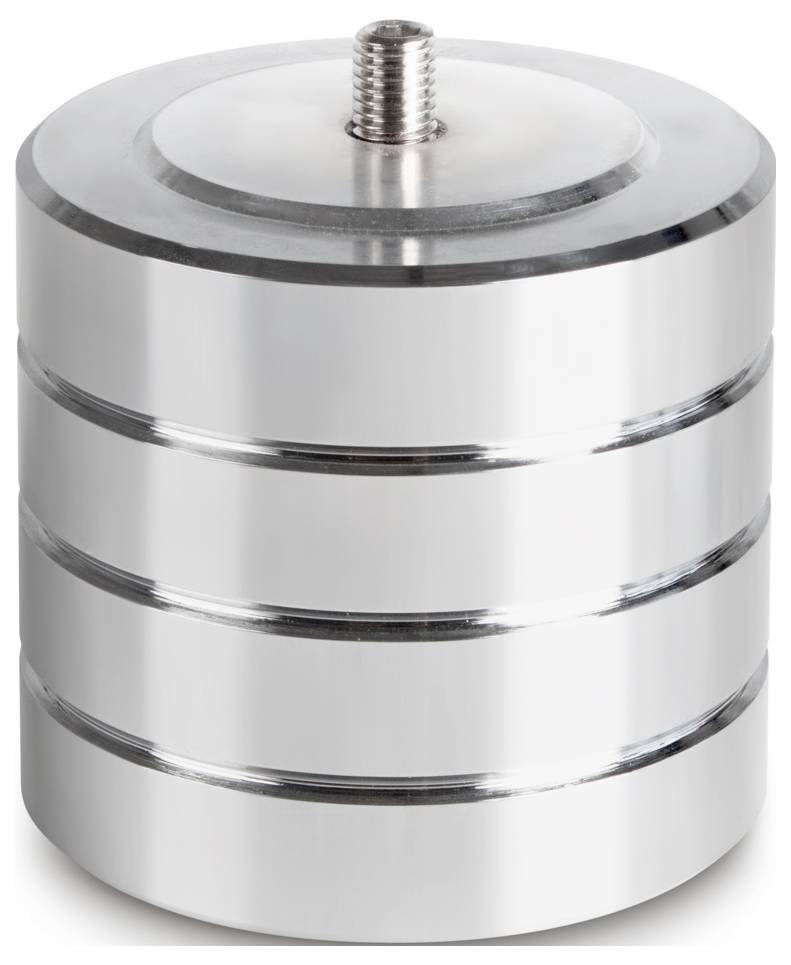

- A test stand for two hardness scales: Only the additional weight TI-HE has to be screwed onto the TI-HEA test stand so that it is suitable for Shore D hardness tests as well, see accessories
- Steel plate, level for exact measurements
- Leveling device: For the precise alignment of the base plate made of steel, e.g. for inhomogeneous test objects
- Mechanical design: Robust design enables precise measurement movements
- The accuracy of the measurement result is higher with this test stand than with a hand measurement
- Simple handling allows repeatable results of measurement:
- Operation:1. The hardness tester Sauter HED is mounted in a hanging position. The test bench can be aligned under the Shore hardness tester using 2 screw mechanisms 3. The test object is placed on the round test table directly below the measuring tip of the hardness tester. 4 By pressing down on the lever, the test weight is released, which then presses the probe tip into the test object with its weight
- Hardness meter not included;
