Sauter HEA 100 Hardness tester Shore
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

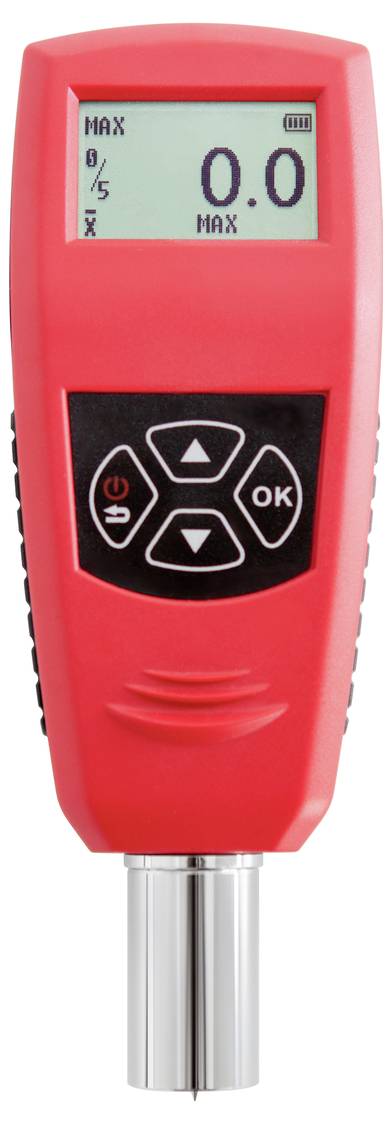

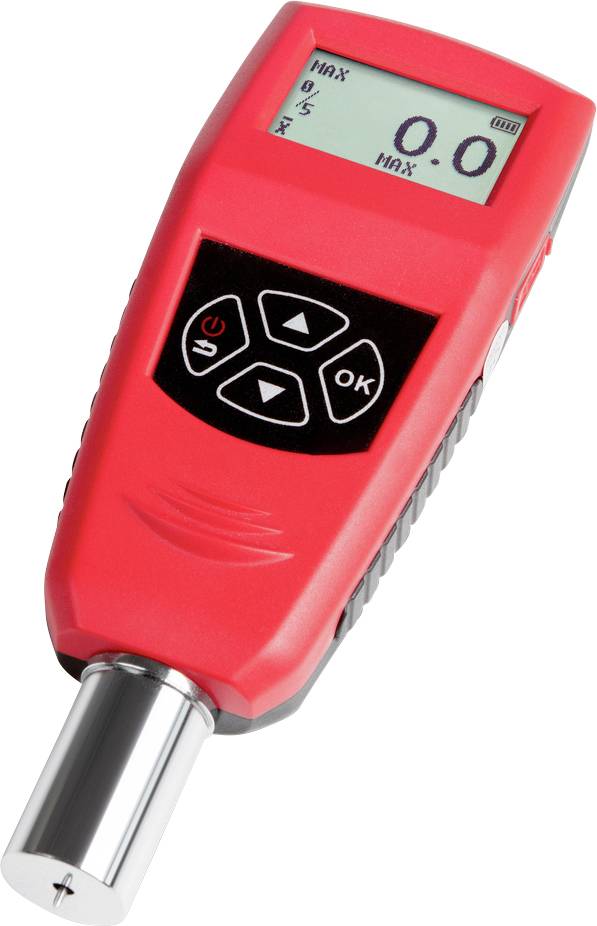

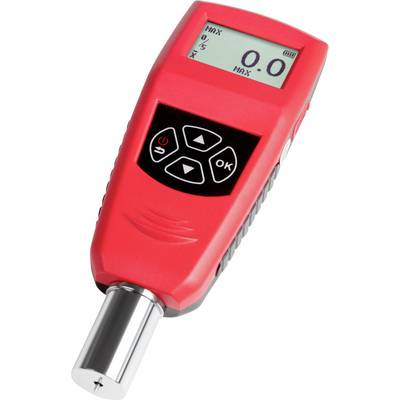

Digital Shore hardness tester HEA 100, hardness scale Shore A, measuring range 100 HA, reading ability 0.1 HA
- Shore hardness tester with extensive functions
Technical specifications
- Material housing: Plastic

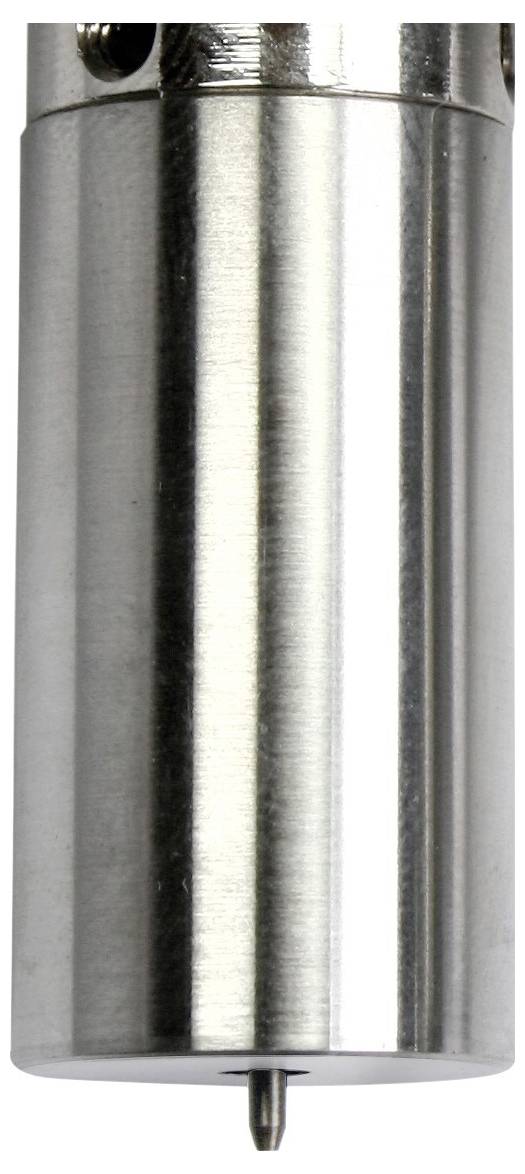

- 18 mm diameter probe
- Test force Hardness measurement 10 N
- Shore measurement range max. 100 HA
- Readability Shore 0.1 HA
- Product type
Hardness tester
- Display type
Digital (LCD)
- Dim
(Ø x H) 18 mm x 29 mm
- Weight
170
- Operating voltage
5
- Content
1 pc(s)
- Measuring type
Shore
- Width
50 mm
- Height
29 mm
- Length
153 mm
- (Ø)
18 mm
- Interfaces
USB
Manufacturer's standards (no certificate)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3061444 Sauter HEA 100 Hardness tester Shore
User & Safety Instructions
User & Safety Instructions 3061444 Sauter HEA 100 Hardness tester Shore
Information
Information 3061444 Sauter HEA 100 Hardness tester Shore
Description

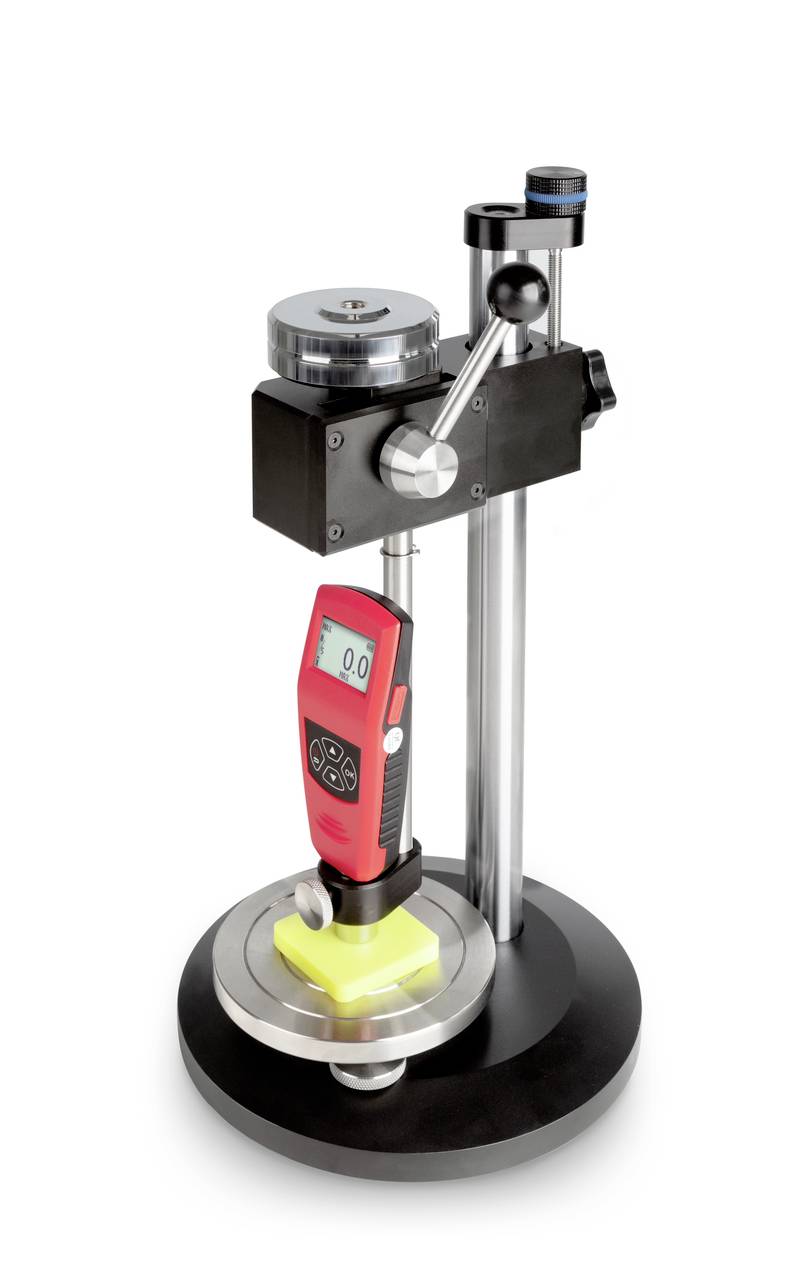

For determining the hardness of plastics by penetration measurement; Shore A: Rubber, elastomers, neoprene, silicone, Vinyl, soft plastics, felt, leather and similar materials; various measurement modes: average value, maximum value, time lapse; alarm limit value function, That applies to Exceeding the specified limits triggers an acoustic and optical signal; input of the workpiece number possible; setting the measurement time from 0 to 99 seconds; recommended for internal comparative measurements; mountable on the Sauter TI-HEA test stand for improving the measurement result; large display with backlight; battery level indicator; USB data interface standard; supplied in a rugged carrying case;
This text is machine translated.
This text is machine translated.

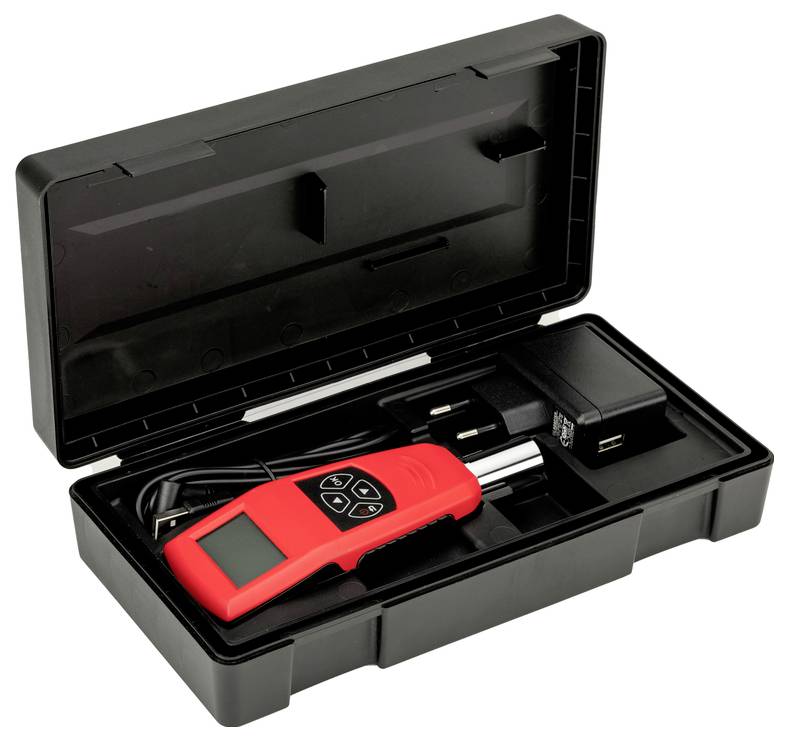

Scope of delivery
- Mains adaptor included
