Buy Sauter HK-DB Hardness tester Leeb 170 - 960 HL

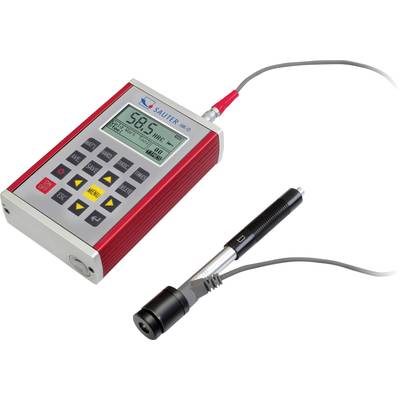

A digital measuring device with a display showing '50.5 HRC' and control buttons. A connected sensor is visible on the side.

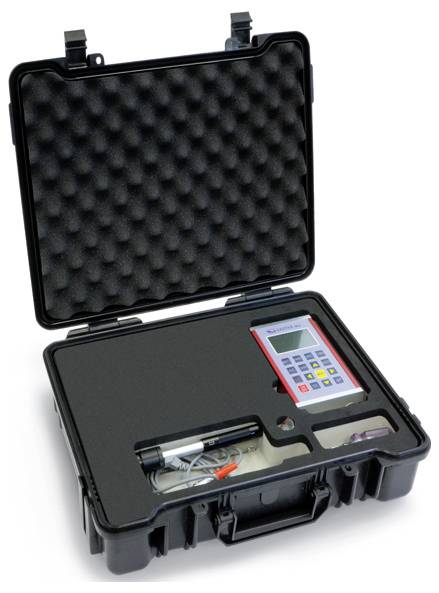

Briefcase with foam inserts that securely hold electronic devices and accessories, including a handheld scanner and a control panel.

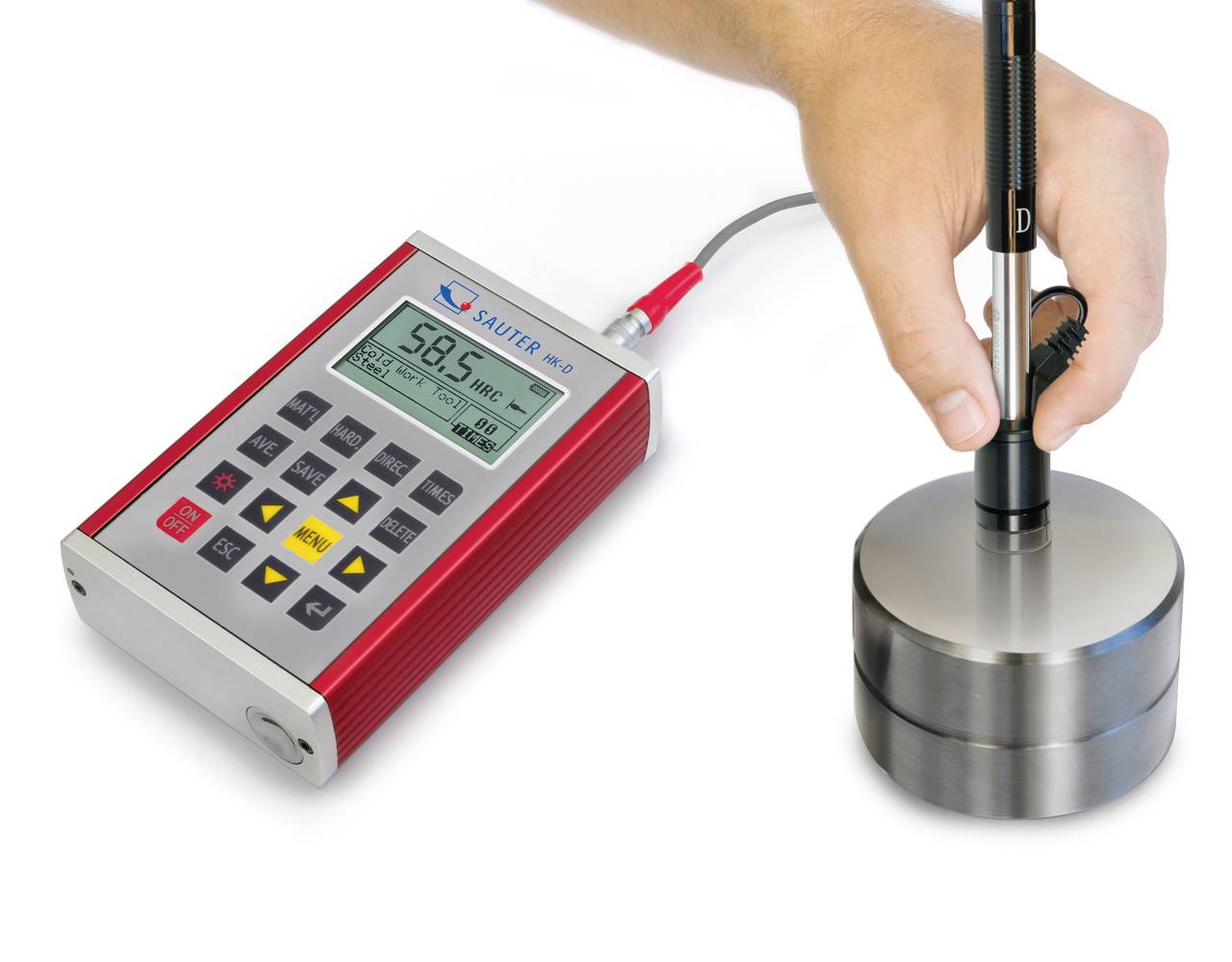

Measuring device is used to test the hardness of a metal piece. A hand is holding a sensor on a round metal block.

1/3

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,558.82 / piece)

€ 1,558.82

plus VAT.

Report legal concerns

Highlights & Details

Mobile Leeb-Harteprufgerat HK-DB

Measures all metallic samples (less than 3 kg, thickness less than 8 mm)

Technical specifications

Readability [D]: 1 HL
Precision: ±1% at 800 HLD
The thinnest measurable material thickness: 8 mm.

Product type: Hardness tester

Reading range: 170 - 960 HL

Display type: Digital (LCD)

Dim: (L x W x H) 132 x 31 x 82 mm

Weight: 450 g

Features: + data logger

Content: 1 pc(s)

Calibration service: 961-131

Measuring type: Leeb

Width: 31 mm

Height: 82 mm

Length: 132 mm

Interfaces: USB

: Manufacturer's standards (no certificate)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1676537 Sauter HK-DB Hardness tester Leeb 170 - 960 HL

User & Safety Instructions

User & Safety Instructions 1676537 Sauter HK-DB Hardness tester Leeb 170 - 960 HL

Information

Information 1676537 Sauter HK-DB Hardness tester Leeb 170 - 960 HL

Description

The SAUTER HK-DB, compared to stationary table top equipment and hardness testers with internal sensor a highest level of mobility and flexibility in the use and tests in all test directions (360°) by means of an automatic compensation function.

This text is machine translated.

Features

External rebound sensor as standard (type D)
USB interface

Scope of delivery

2 × 1.5 V AA battery

Hints

Hard Comparison block is not included in the delivery
