Buy Sauter JCT 100 Paint meter 2000 µm (max)

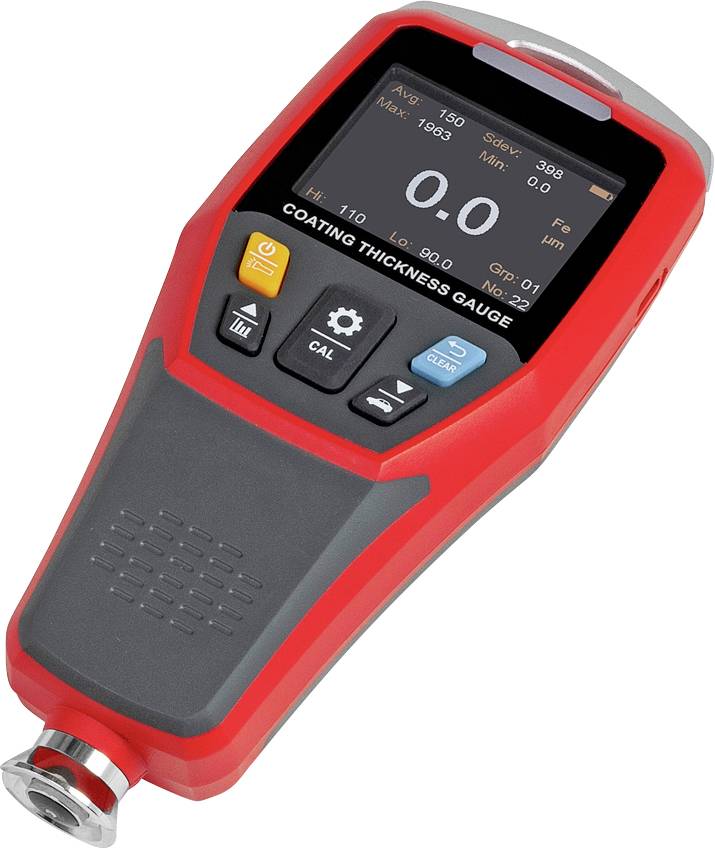

A red measuring device for determining coating thickness with a digital screen displaying measurement data.

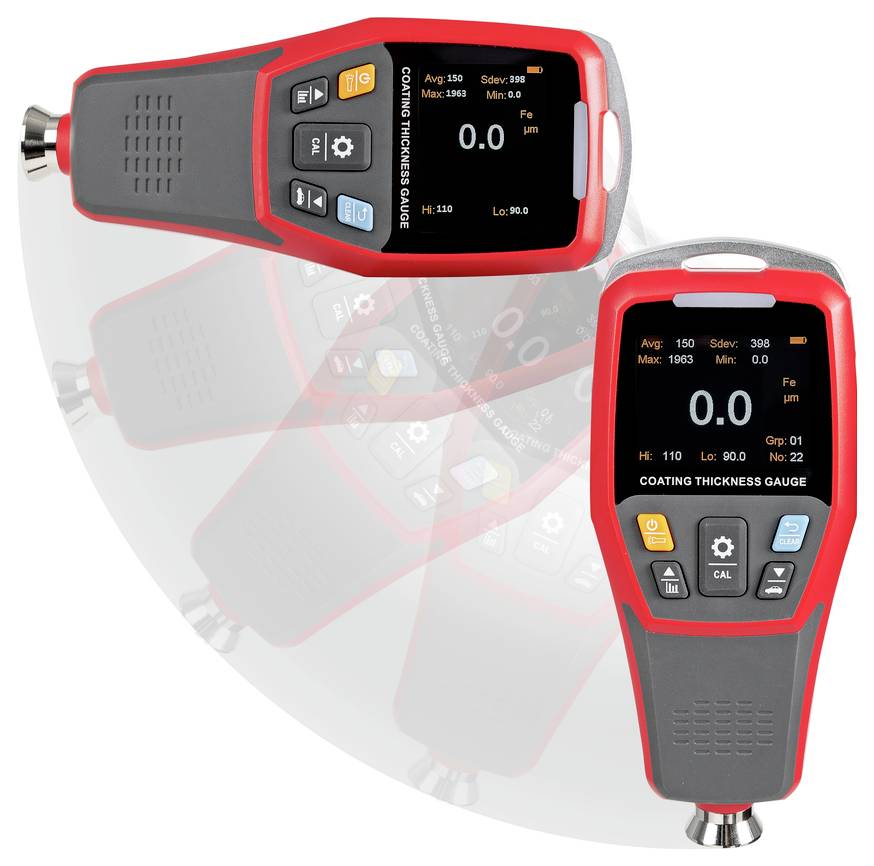

A digital measuring instrument for determining coating thickness with a display that shows measurement values in micrometres.

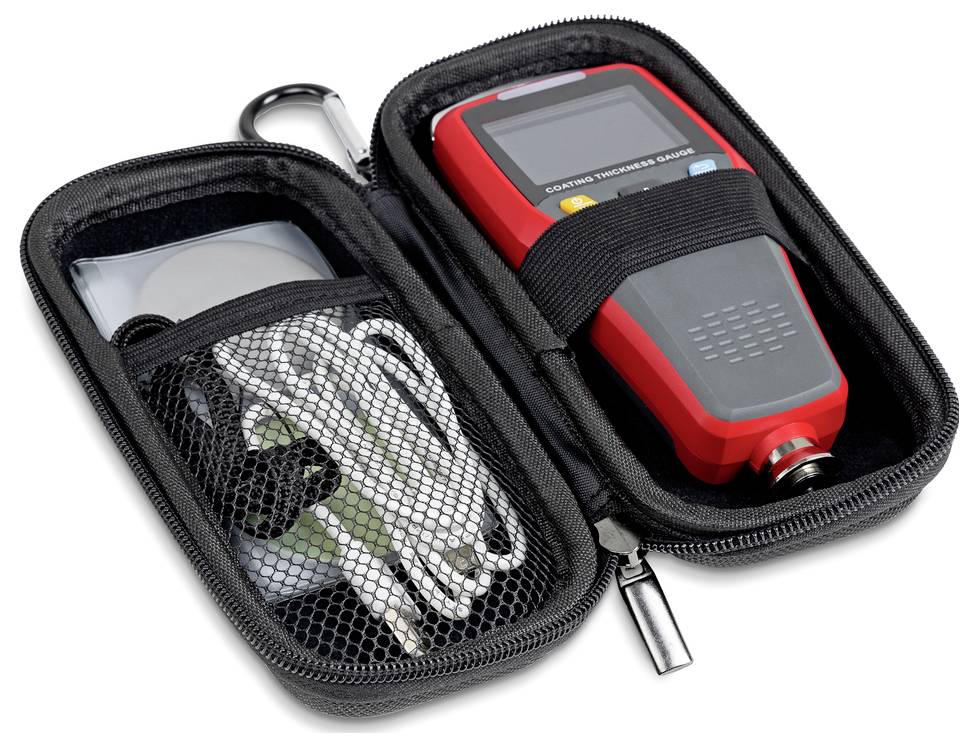

A coating thickness measuring device in an open zippered case. It contains cables and additional accessories.

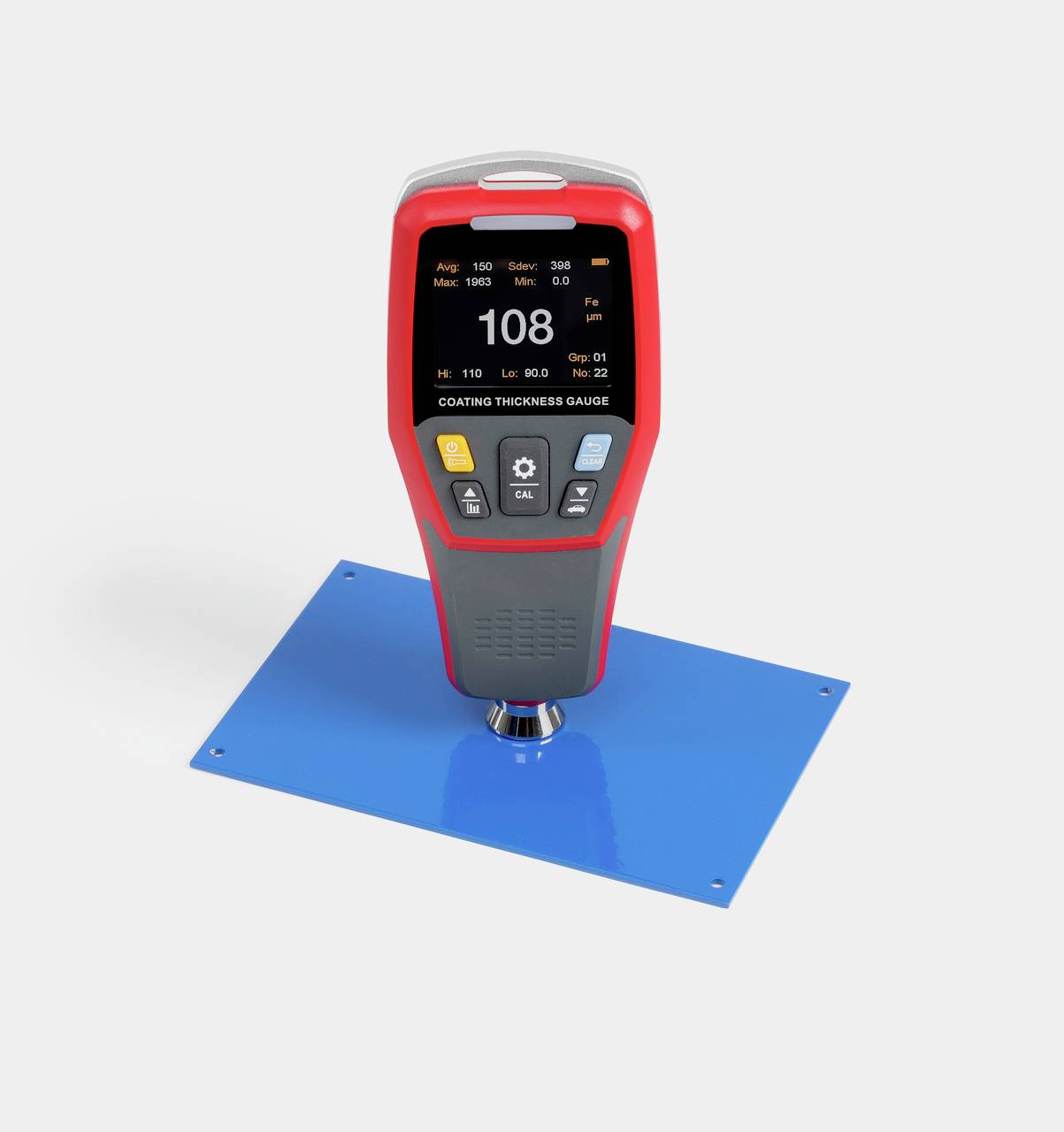

A red coating thickness measuring device on a blue metal plate displays '108' on the screen.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digital layer thickness measuring device JCT 100, max 2000 µm, readability 0.1 µm

Layer thickness measuring device of the new generation

Technical specifications

Readability 0.1 µm
Interface: USB

Product type: Paint meter

Reading range: 2000 µm (max)

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 65 x 35 x 152 mm

Weight: 200 g

Display: Graphical
LCD

Content: 1 pc(s)

Reading range (max.): 2000 µm

Reading range (min.): 0.1

Width: 35 mm

Height: 152 mm

Length: 65 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3061481 Sauter JCT 100 Paint meter 2000 µm (max)

User & Safety Instructions

User & Safety Instructions 3061481 Sauter JCT 100 Paint meter 2000 µm (max)

Information

Information 3061481 Sauter JCT 100 Paint meter 2000 µm (max)

Description

Precisely determines the thickness of color or paint layers on iron and non-iron base materials; combination of magnetic and eddy current measuring method enables particularly high precision and flexibility. The base material is automatically detected; stable and reliable performance as well as non-destructive measurement; measurement range up to 2000 µm; wear-free sensor thanks to the latest technologies; single and two-point calibration; single and multiple measurement for good/bad evaluation. The tri-color LED display shows the current value attribute (green: Qualified, red: Below the limit, yellow: Above the limit); the display rotates automatically and makes it easier for the user to read the measured values from different angles; alternatively, it can be manually locked; multiple functions include auto mode, voice transmission, Bluetooth app and LED flashlight; Includes Bluetooth app for communication and application; main fields of application: layer thickness measurement on metals in industry and research, for example in the automotive industry, metal processing, painting and inspection; supplied in a practical box;
