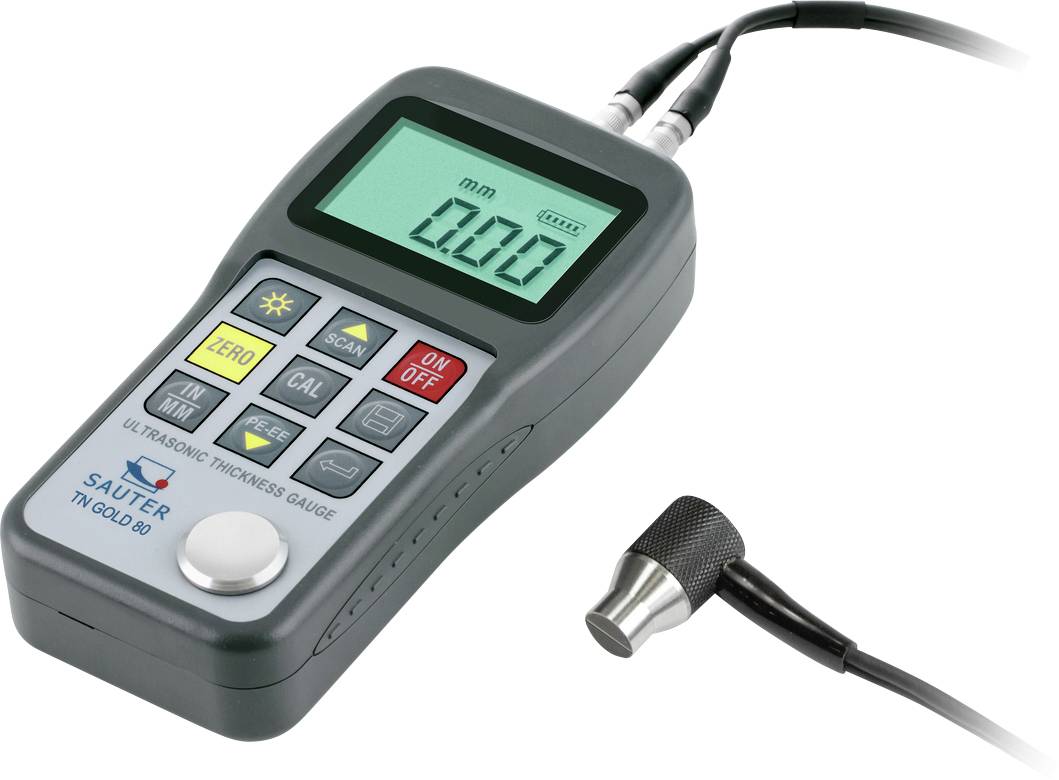

Sauter TN GOLD 80 Paint meter 0.75 - 80 mm

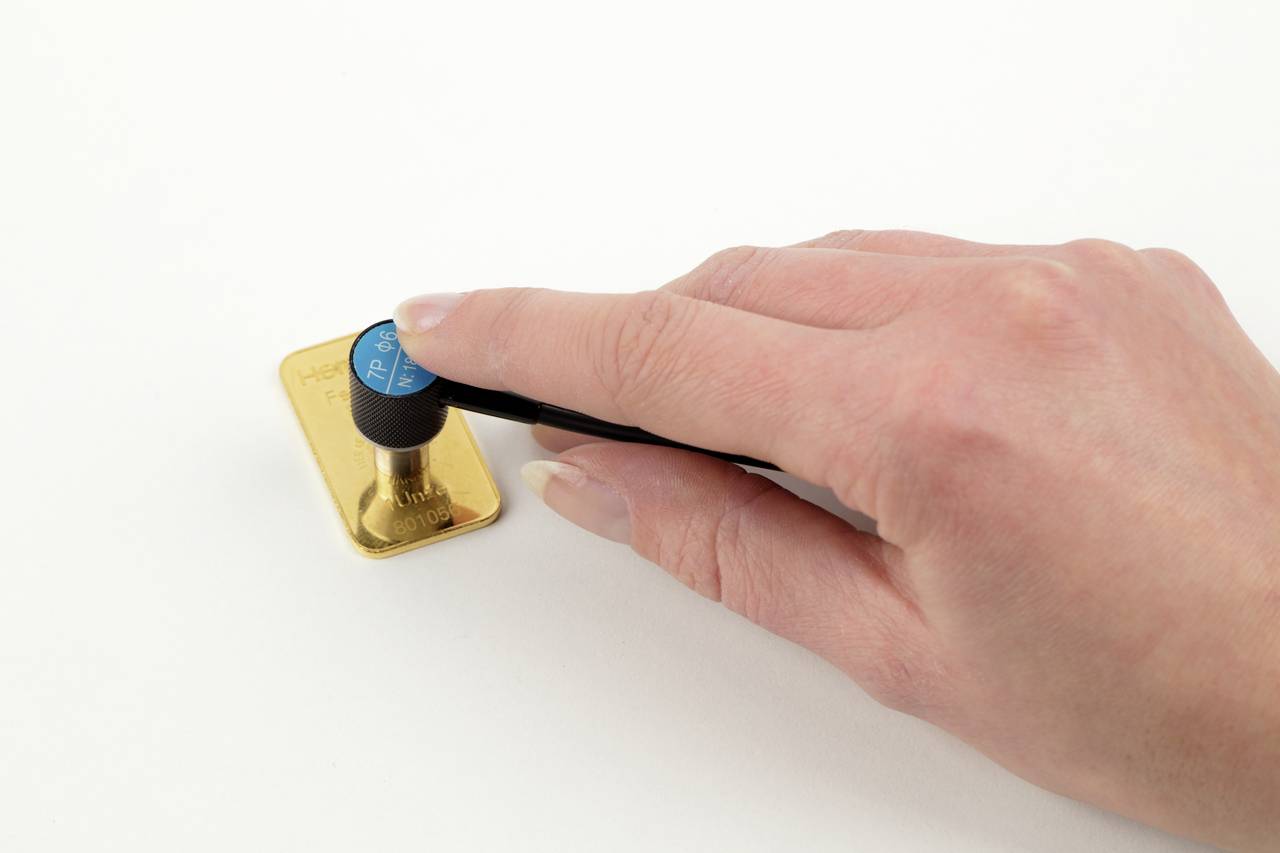

With the TN GOLD 80 it can be determined whether gold bars or gold coins are real or whether they contain incorrect cores; the instrument measures the thickness of gold bars or gold coins via ultrasound; procedure: Ultrasonic waves are introduced into the test object via a sensor. The shafts pass through the test object, are reflected on the opposite surface and picked up again by the sensor. The resulting measurement is compared with the material thickness traditionally measured using a sliding caliper. Due to the measured value output, the wrong cores (figure: Grey) such as tungsten, lead, etc. can be easily detected, because here the ultrasonic behavior is different from that in pure gold; selectable units: Mm

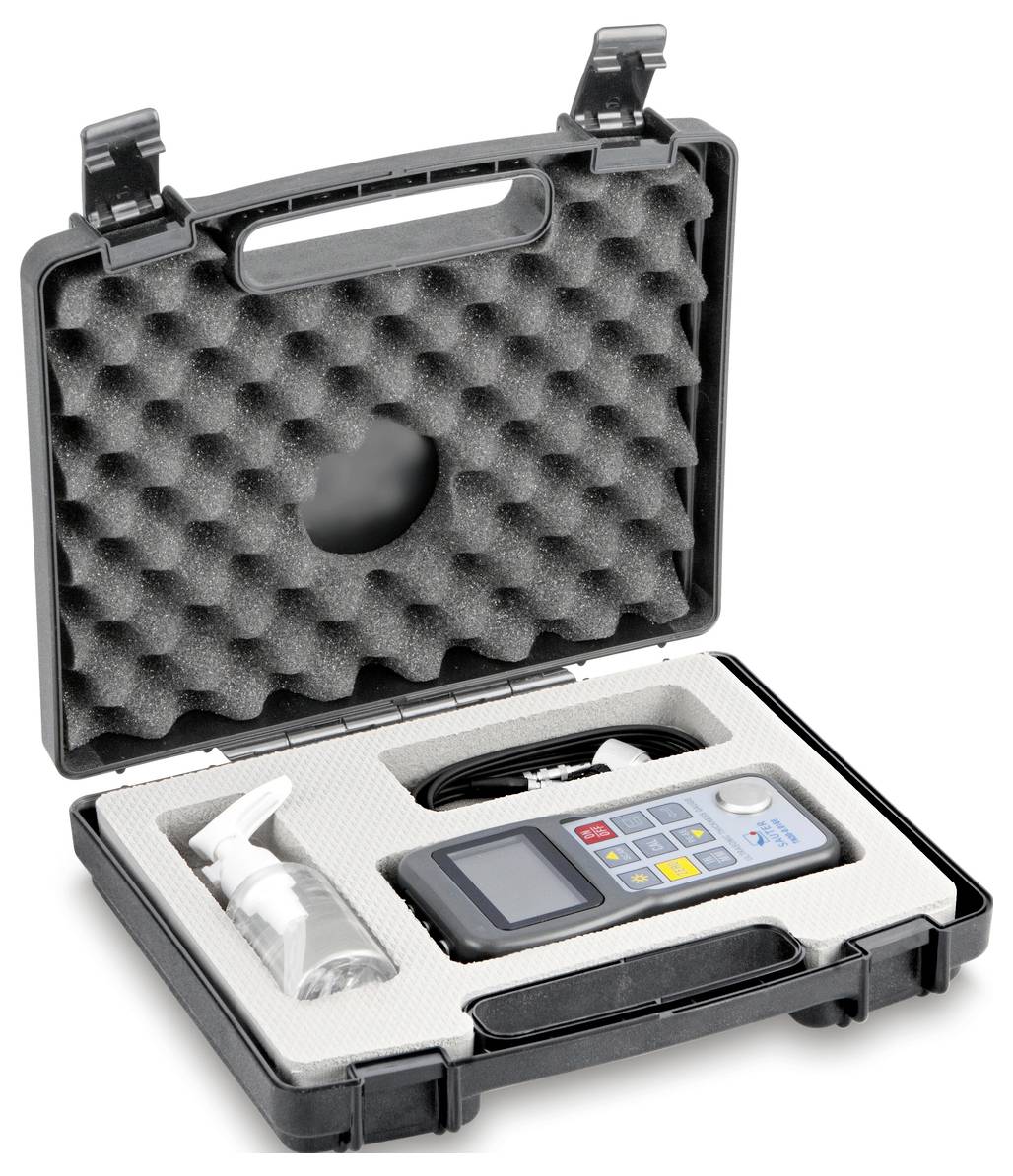

Inch; The sound speed for different precious metal alloys can be calculated by software Sauter SSG (included). This can be used to determine whether coins or bars contain incorrect cores or whether they are made of the same material. Compatible with the following operating systems: Windows® 7/8/10; Known admixtures in the tested gold piece – e.g. copper or silver – are compensated by the software; in addition, the software determines the value of the gold piece; It is a test procedure that measures the whole bar or coin in a non-destructive way and thus provides maximum safety; internal data storage for up to 20 files (with up to 100 individual values per file); zero plate for adjustment included; scope of delivery: operating instructions, batteries, external measuring head (Ø 6 mm) and ultrasonic contact gel; Supplied in sturdy carrying case.
