Sauter Torque tester DA 1-4
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

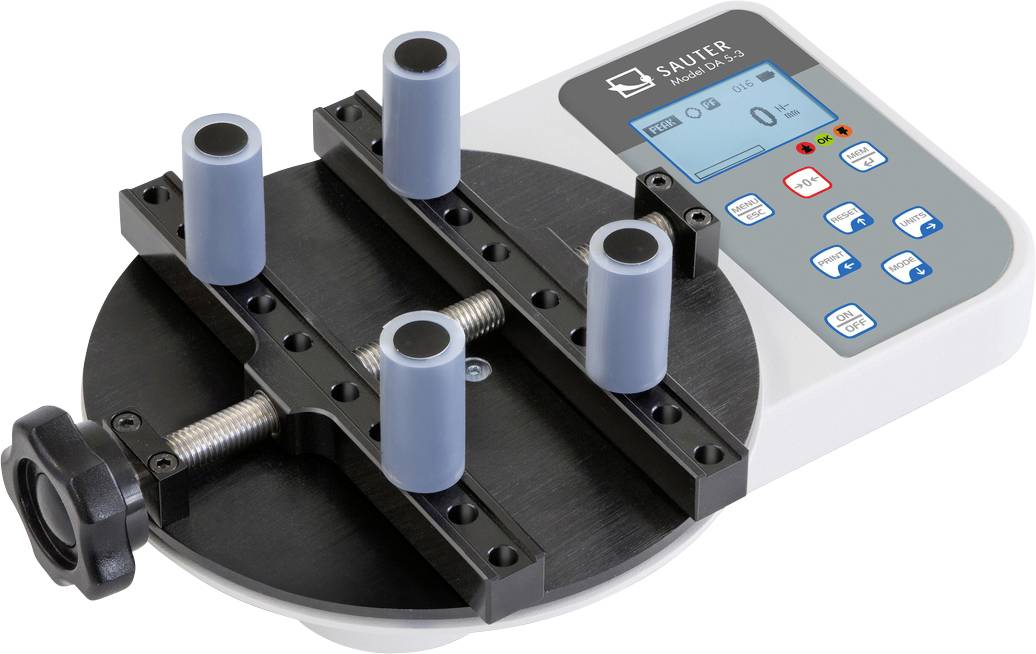

Torque measuring device as 1-4
- Measuring range 0.0002 - 1 Nm
- Optimized for bottles and packaging with rotary locks
- Quick-Pin System for quick reconfiguration
Technical specifications
- Measuring range torque: 0.0002 - 1 Nm
- Product type
Torque tester
- Suitable for
Bottles, jars
- Accuracy
+/- 0.5% of [Max]
- Weight
3 kg
- Calibration service
961-120
Manufacturer's standards (no certificate)
- Width
200 mm
- Height
50 mm
- Length
100 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1552020 Sauter Torque tester DA 1-4
User & Safety Instructions
User & Safety Instructions 1552020 Sauter Torque tester DA 1-4
Information
Information 1552020 Sauter Torque tester DA 1-4
Description

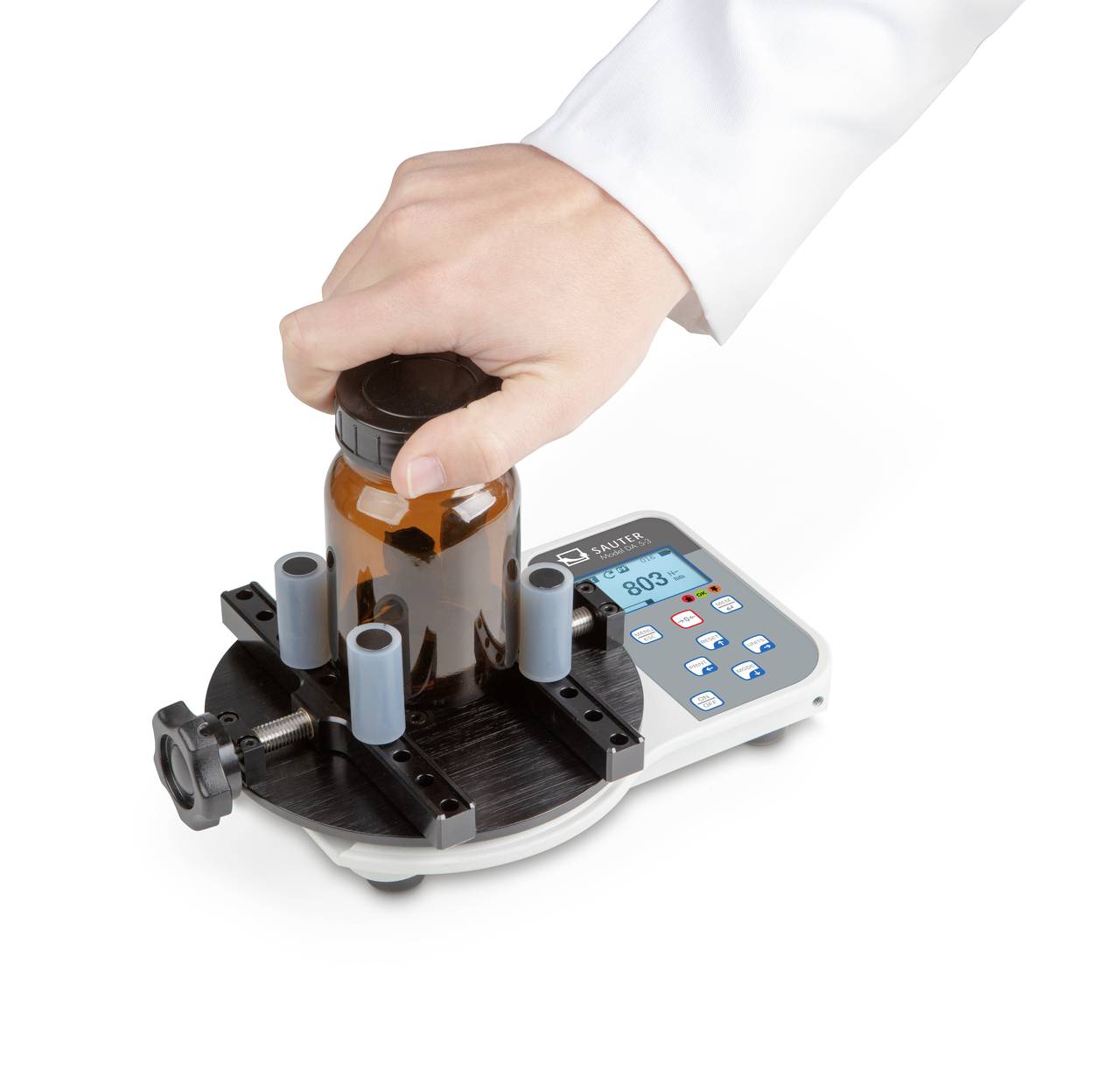

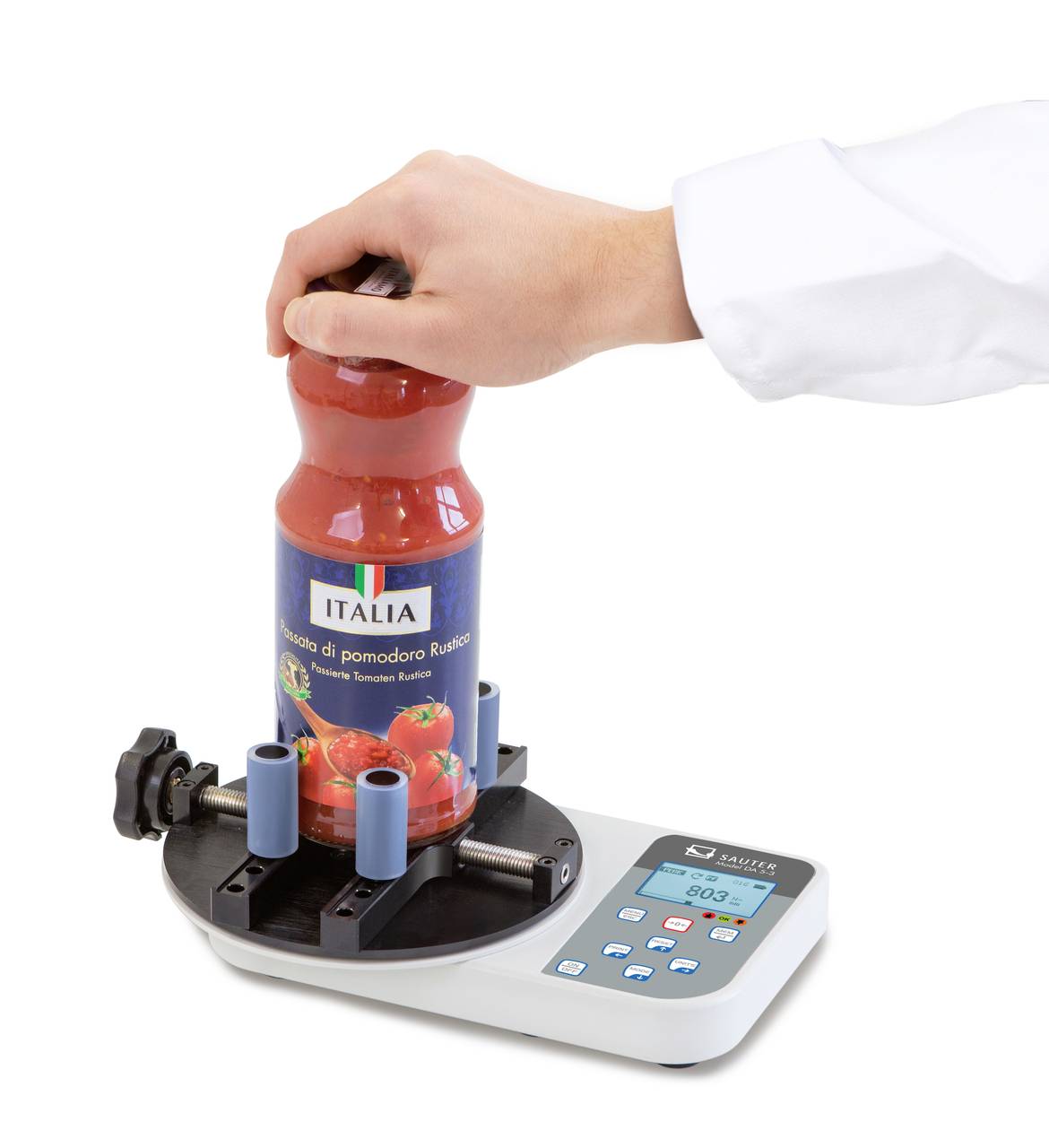

Optimized for torque testing of bottles and other packaging with rotary locks.
This text is machine translated.
This text is machine translated.
Features
- Quick-Pin System: the four bottle holders (holder), the time-saving plugged, instead of screwed. This allows a faster reconfiguration to other bottle sizes
- Metal housing for permanent use in rugged ambient conditions
- Capacity display: an increasing light strip shows the remaining measurement range

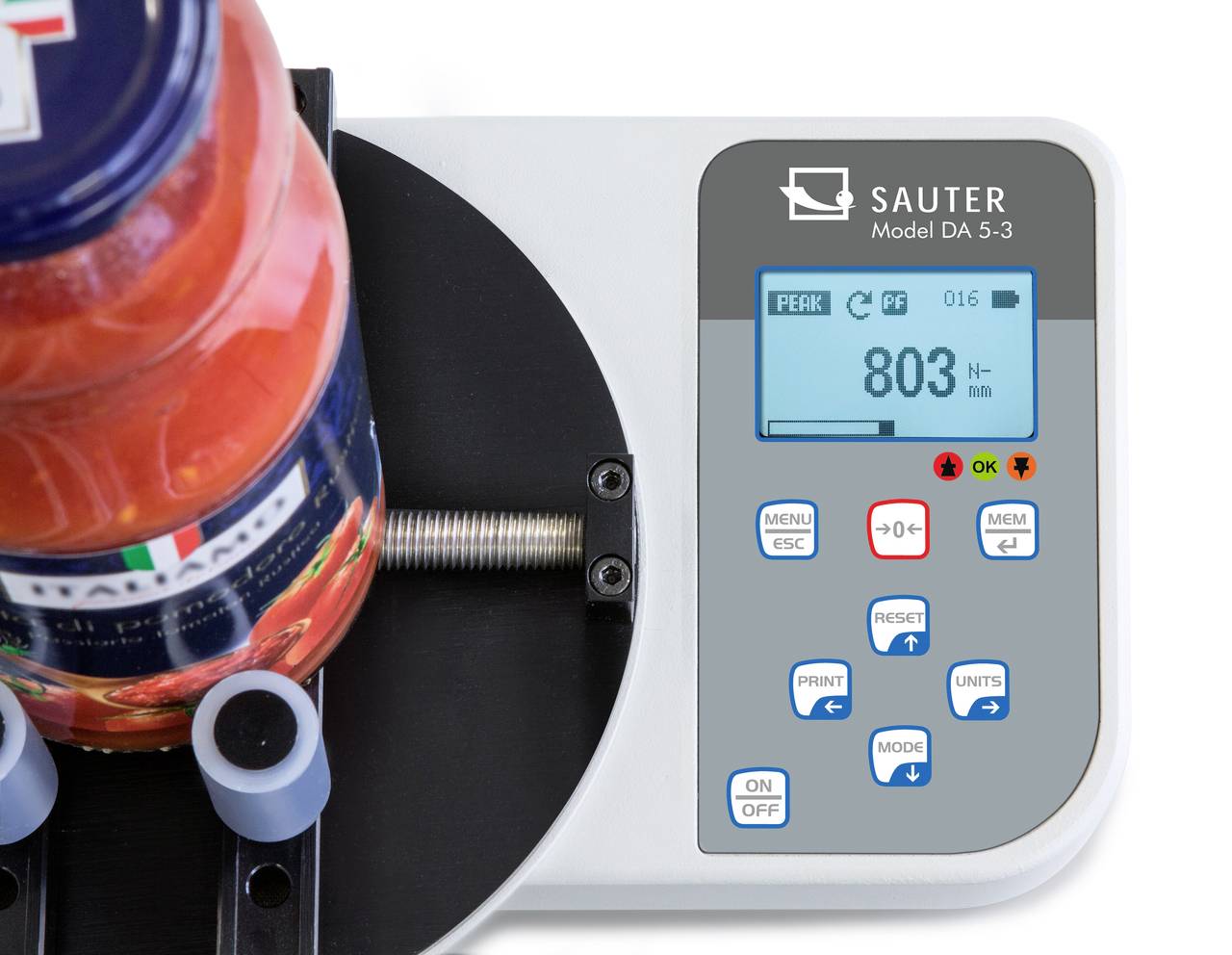

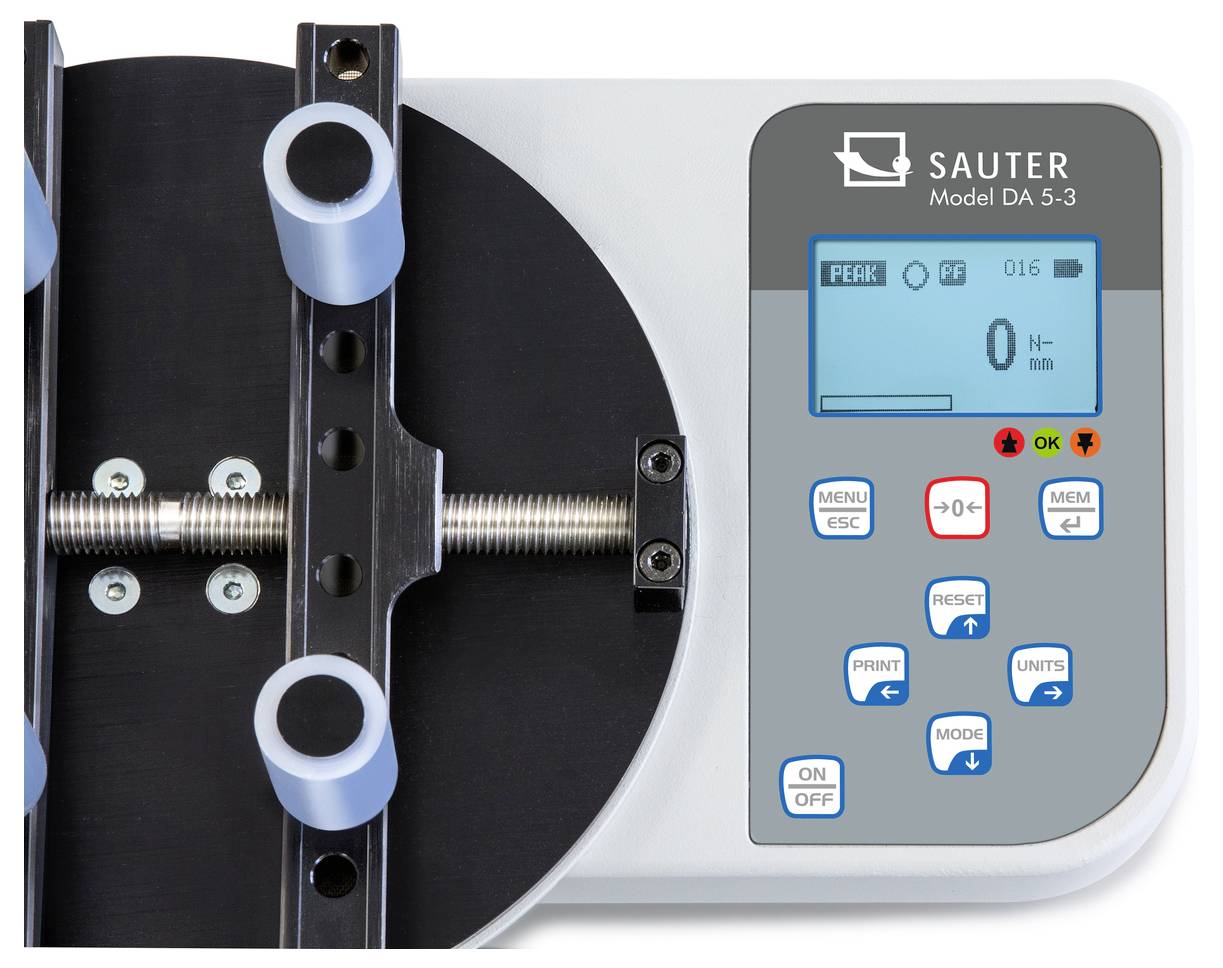

- Backlit graphical LCD display
- Rubber feet with anti-skid function

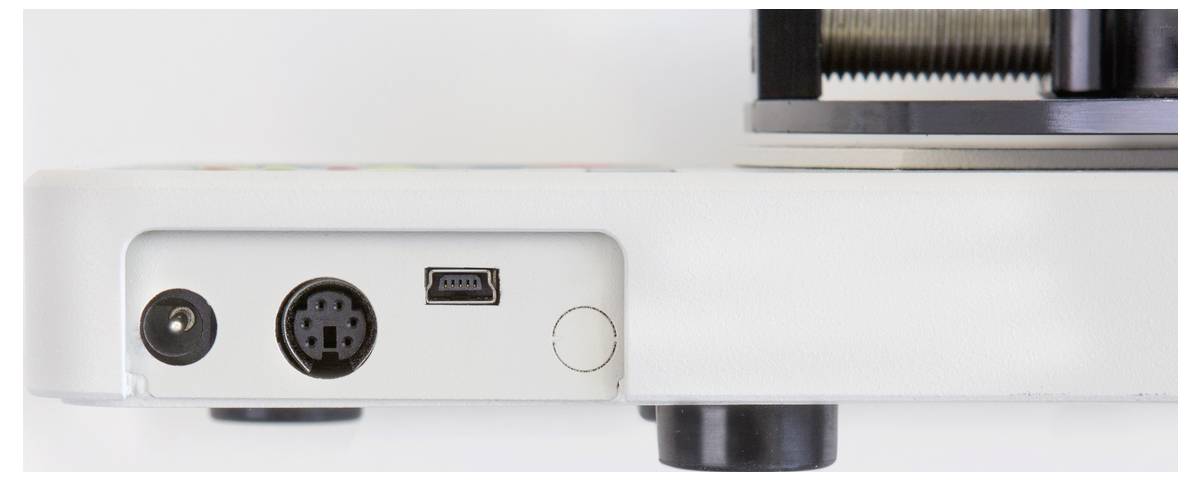

- Internal data memory stores up to 500 measured data. Memory contents can be transferred to the PC via the optional software
- Peak Hold function for capturing the peak value
- Can be used in both directions of rotation
- Limit value function programming of max/min, in tensile and compressive direction, with output of an acoustic and optical signal. Ideal mode for efficient and error-free testing of serial parts
- AUTO-OFF-function for battery protection.
Scope of delivery

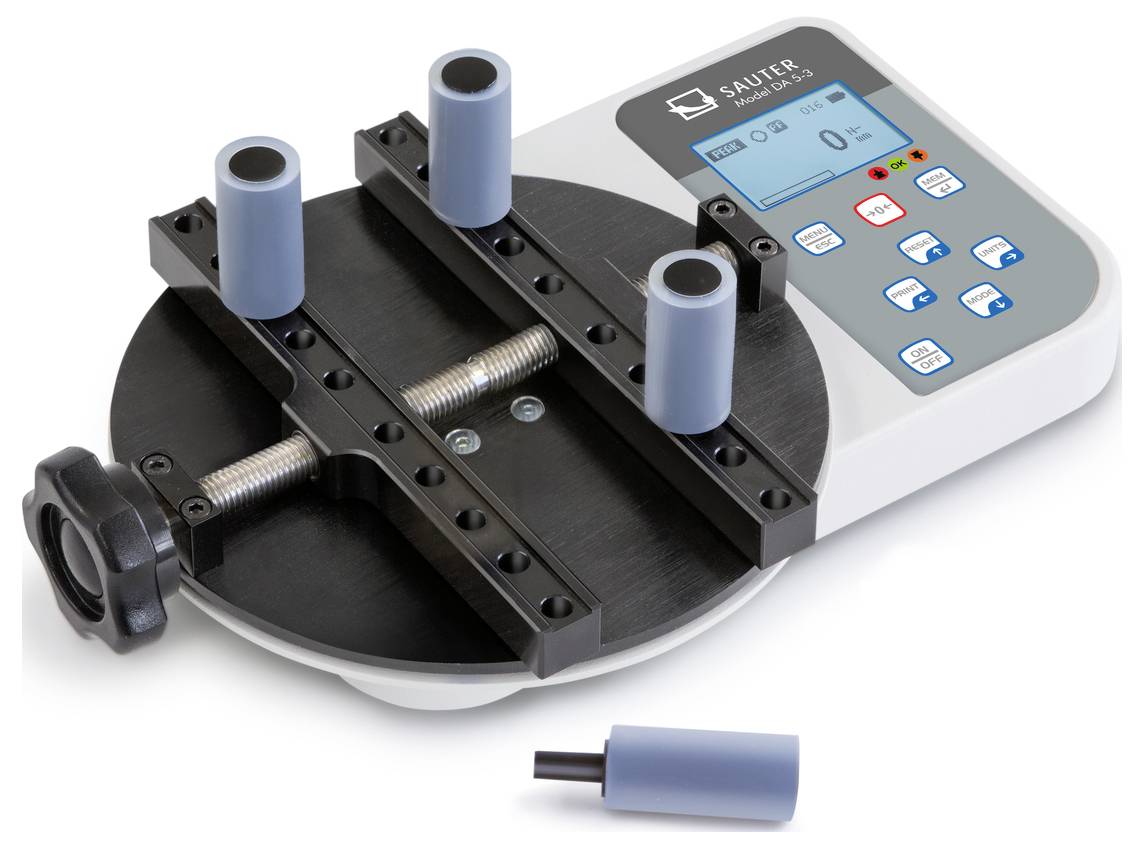

- Four Quick pins (bottle holders) with rubber coat

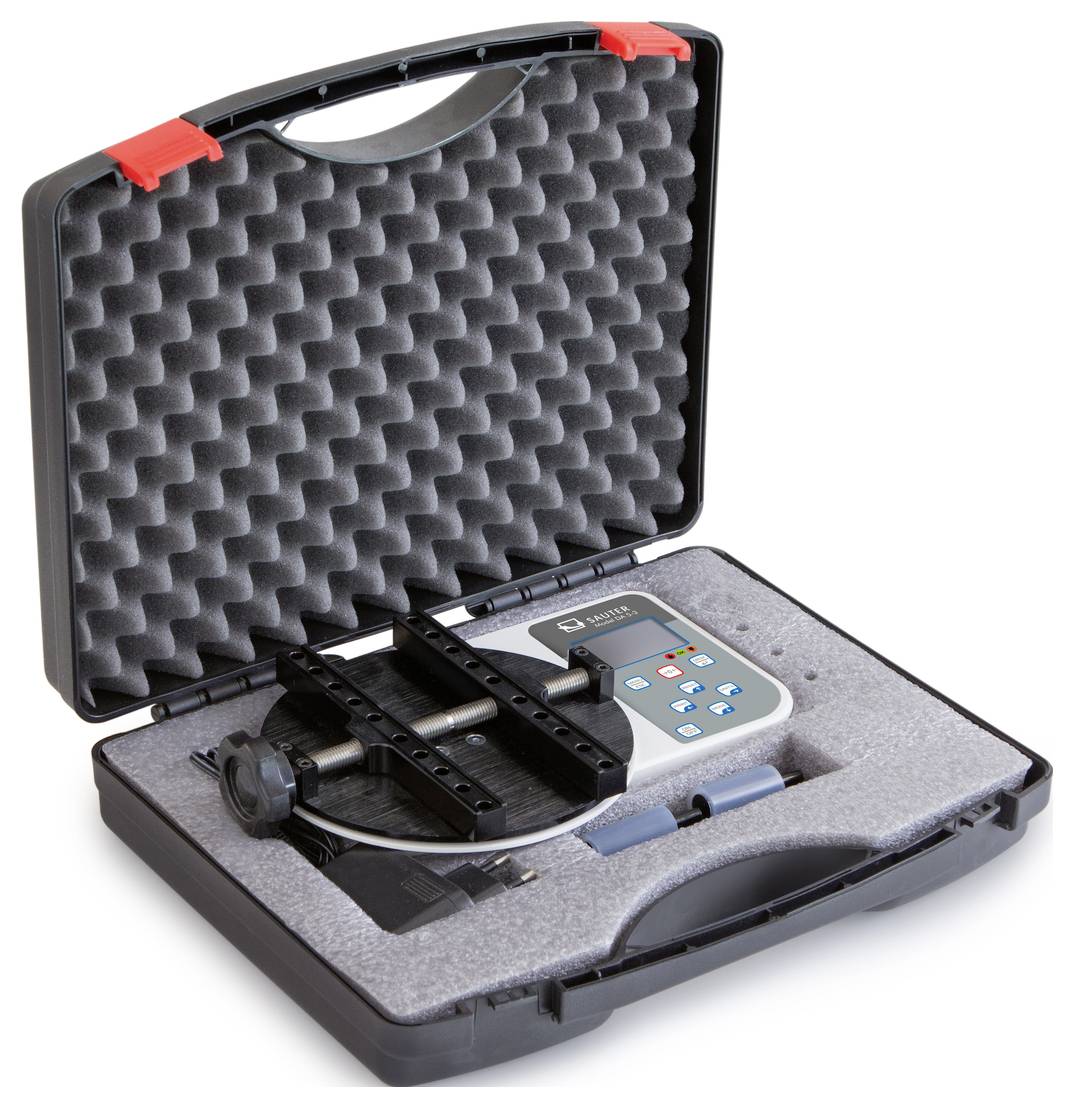

- Sturdy carrying case.
