Buy Sauter Torque tester DB 0.5-4

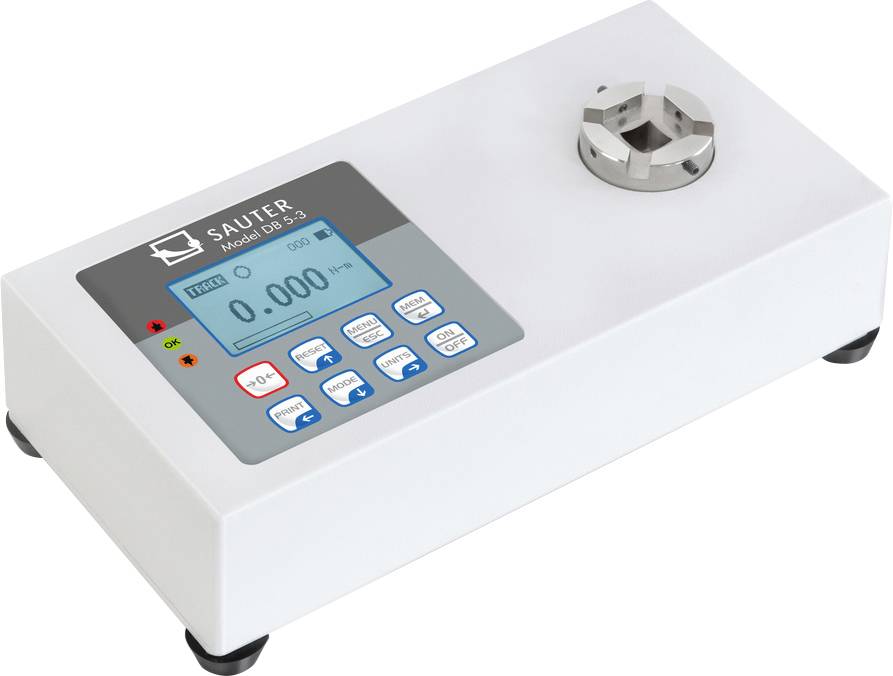

A digital torque measuring device with display indicator, various control buttons and a measurement mount located top right.

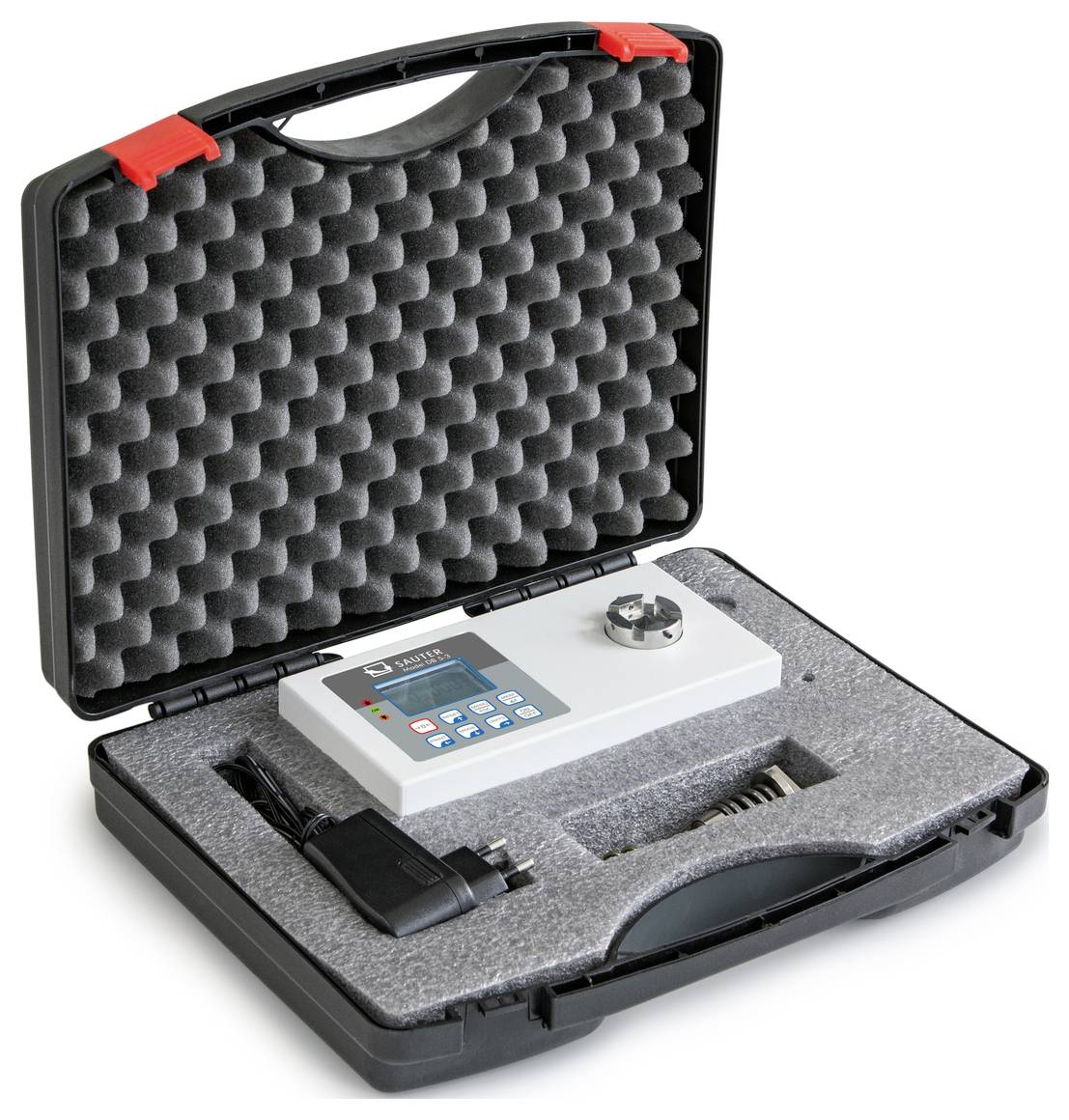

An open black case with foam lining contains a digital measuring device, a charger, and several accessories.

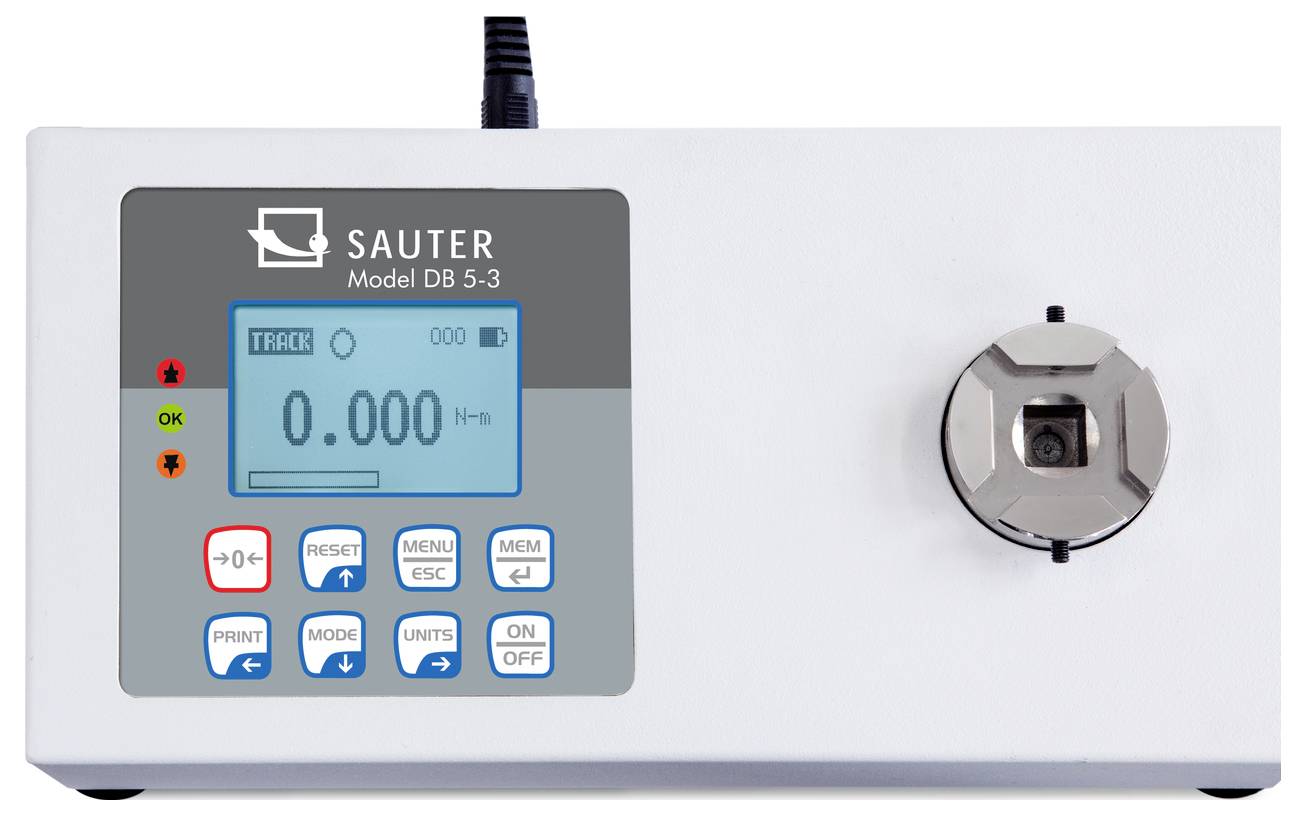

A digital torque measuring device, Model Sauter DB 5-3, with a display showing a zero measurement and control buttons underneath.

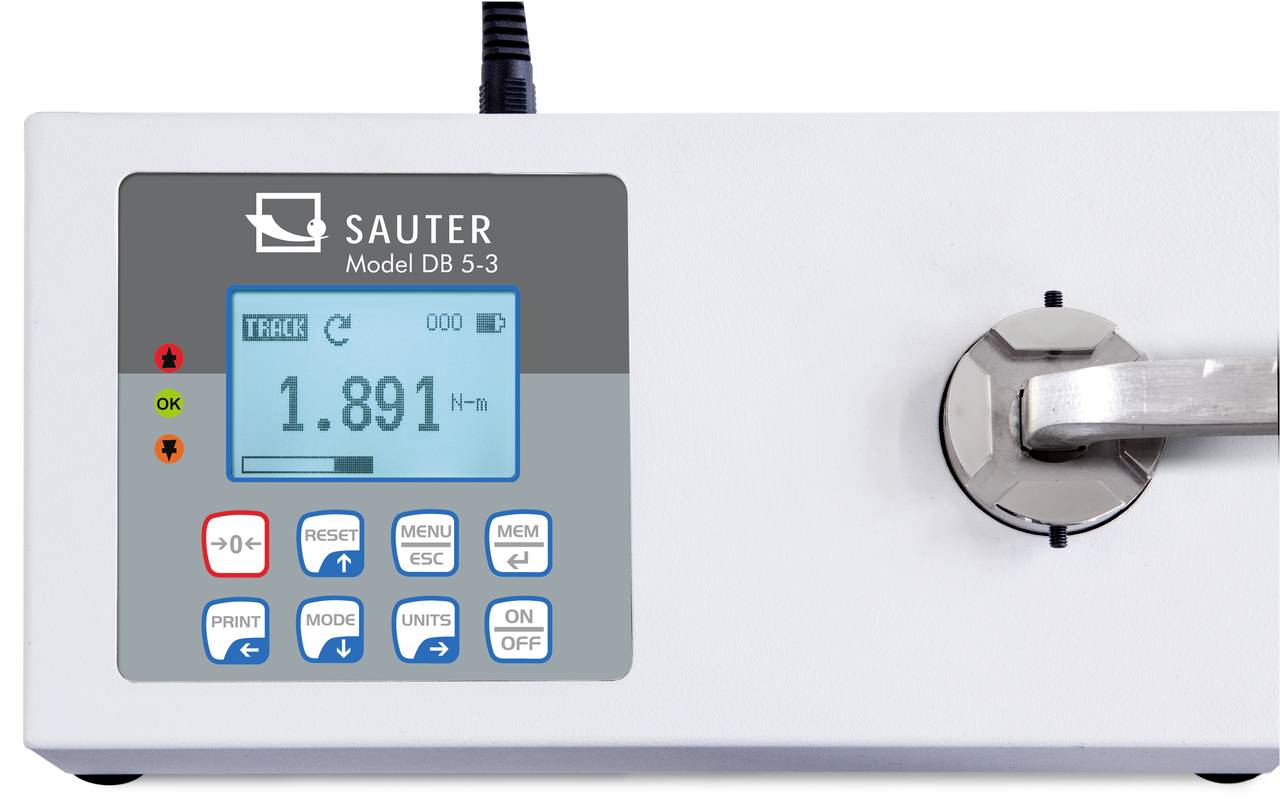

A torque measuring device, Model DB 5-3 by Sauter, displays a value of 1.891 Nm on a digital display.

Digital torque measuring device Sauter Model DB 5-3 with display indicator, showing 2,801 N·m. Buttons for Reset, Mode, Units, On/Off.

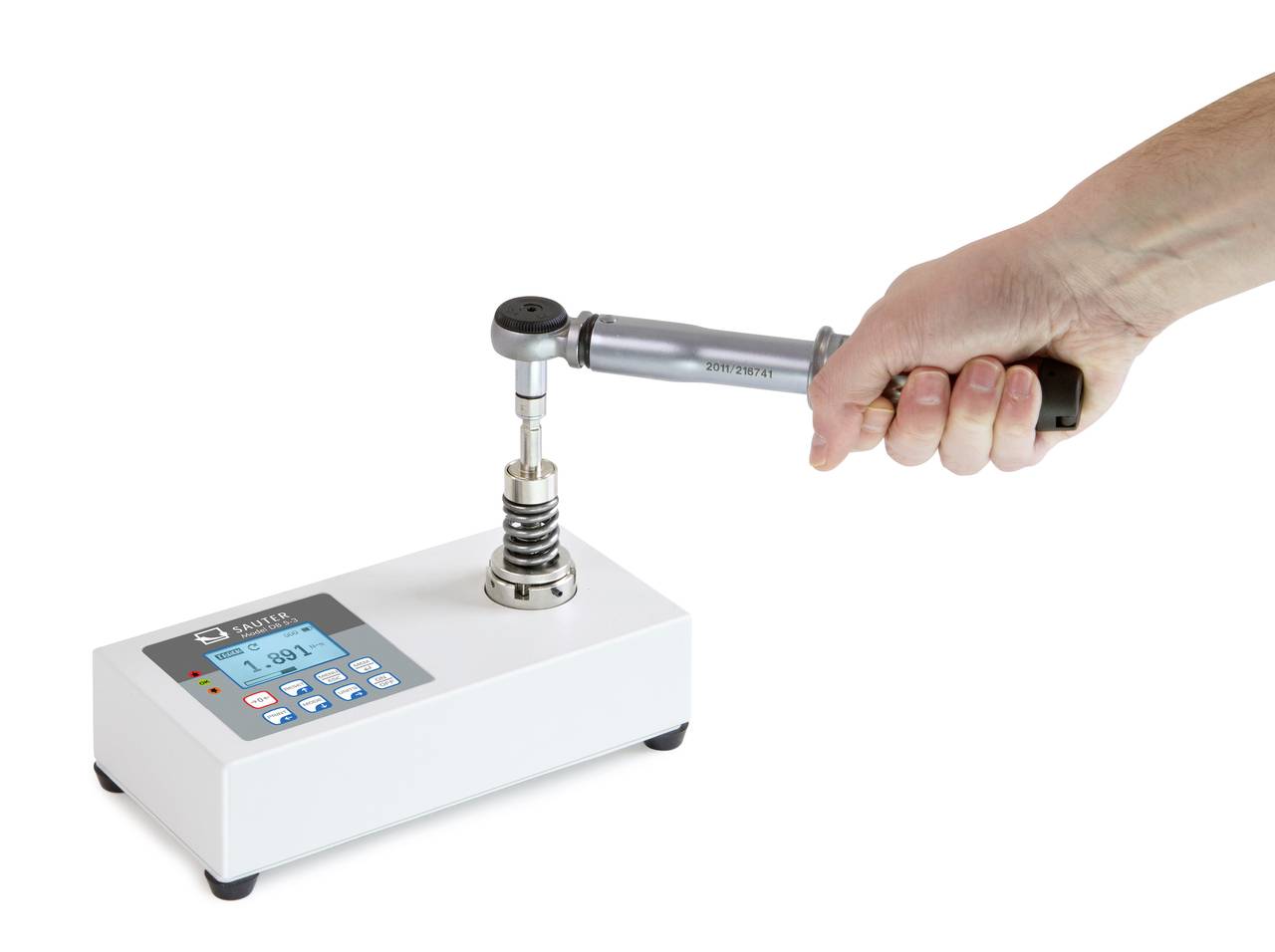

A hand operates a torque tool on a testing device. The display shows measurements for checking accuracy.

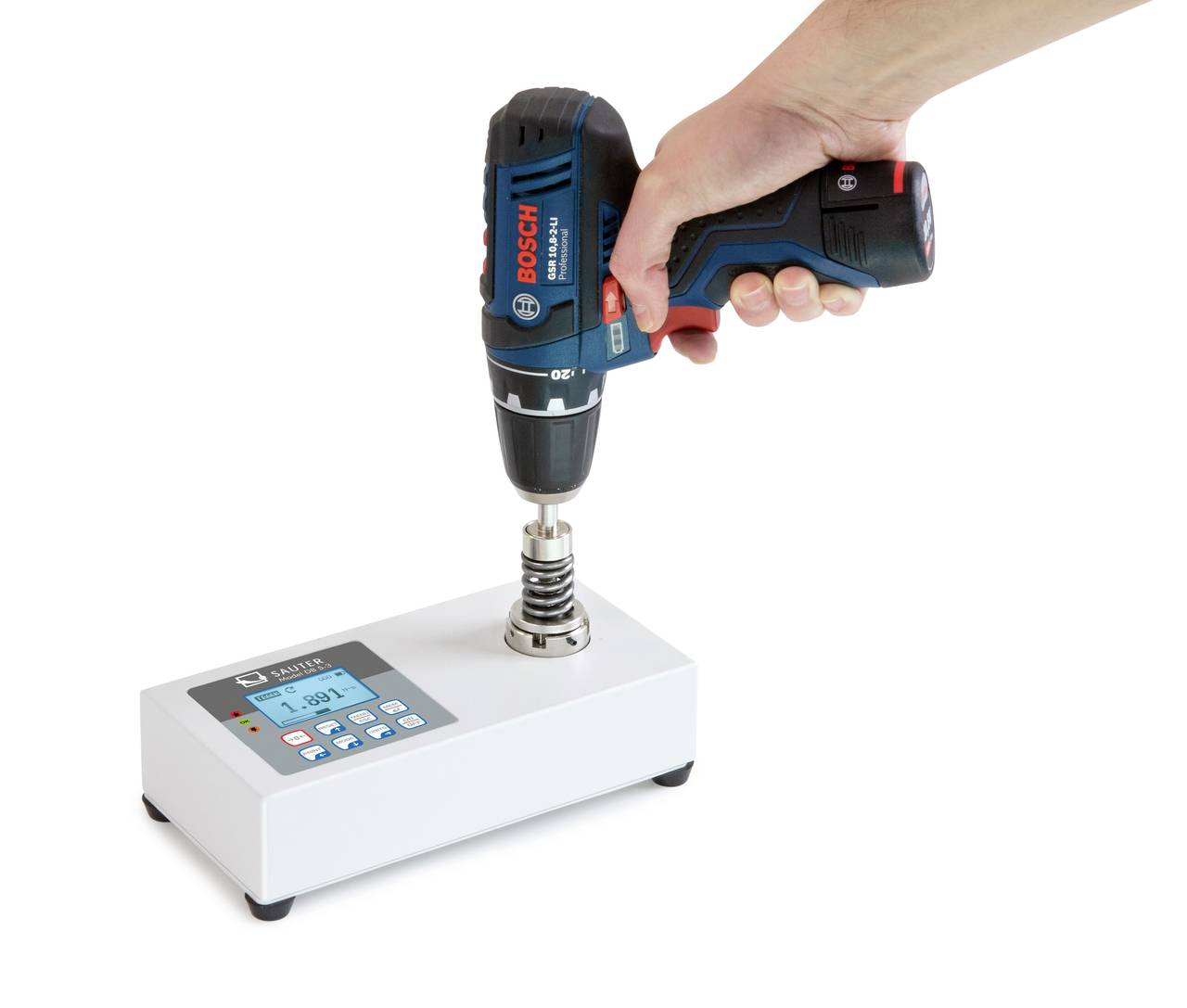

A hand is holding a power drill attached to a white measuring device in a vertical position.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Torque device DB 0.5-4

Measuring range 0.0001 to 0.5 Nm
For torque wrench, Electric Hand screwdriver and cordless screwdriver.
With rotary transducer system for dynamic testing of electrical screwdrivers.

Technical specifications

Measuring range torque: 0.0001 to 0.5 Nm

Product type: Torque tester

Suitable for: tools

Accuracy: +/- 0.5% of [Max]

Weight: 3 kg

Calibration service: 961-120

: Manufacturer's standards (no certificate)

Width: 25 cm

Height: 10 cm

Length: 16 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1552024 Sauter Torque tester DB 0.5-4

User & Safety Instructions

User & Safety Instructions 1552024 Sauter Torque tester DB 0.5-4

Information

Information 1552024 Sauter Torque tester DB 0.5-4

Description

Comfortable Torque testing tools. Ideally suited to torque wrench, Electric Hand screwdriver and cordless screwdriver.

This text is machine translated.

Features

Heavy duty metal casing
Capacity display: an increasing light strip shows the remaining measurement range
Backlit graphical LCD display
Rubber feet with anti-skid function in SAUTER DB 0.5-4 to DB 10-3
Stable mounting plate for solid mounting at SAUTER DB20-3 to DB50-2
Internal data memory stores up to 500 measured data. Memory contents can be transferred to the PC via the optional software
Peak Hold function for capturing the peak value
Can be used in both directions of rotation
Limit value function programming of max/min, in tensile and compressive direction, with output of an acoustic and optical signal. Ideal mode for efficient and error-free testing of serial parts
AUTO-OFF-function for battery protection.
