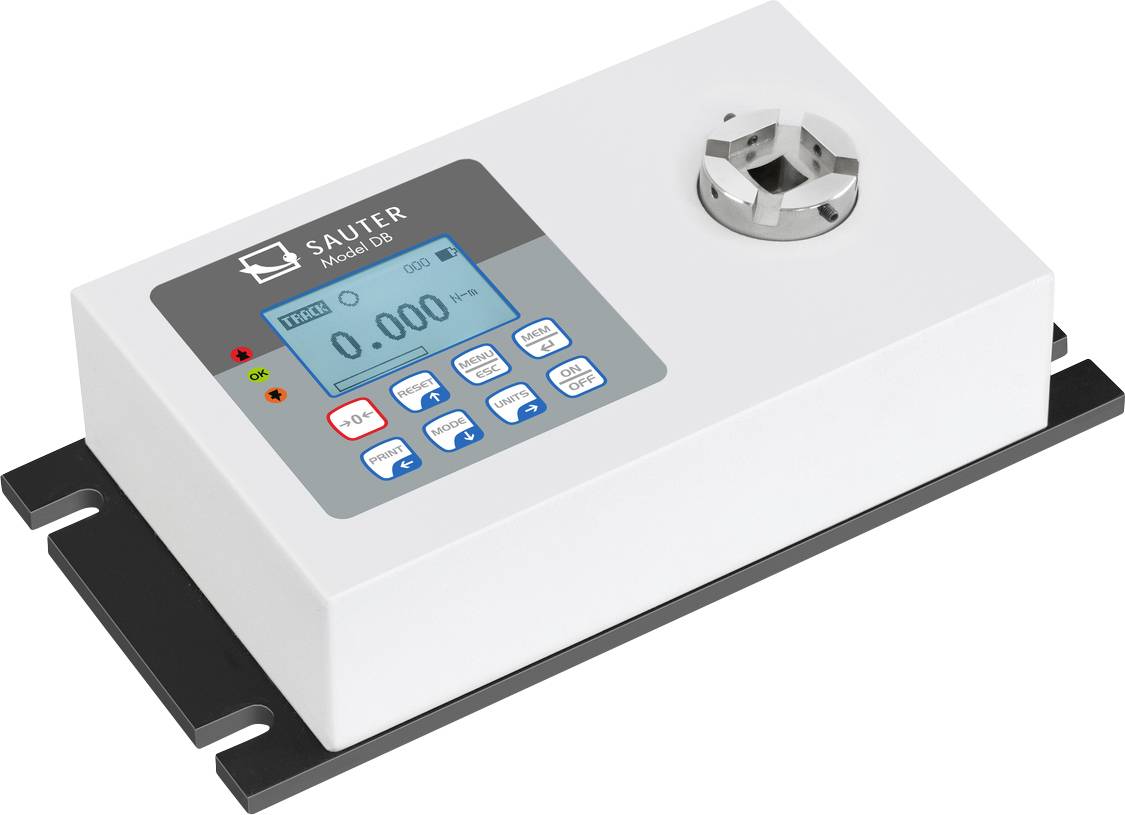

'Digital force measurement display by Sauter Model DB with LCD screen, control buttons and unit in Newtons.'

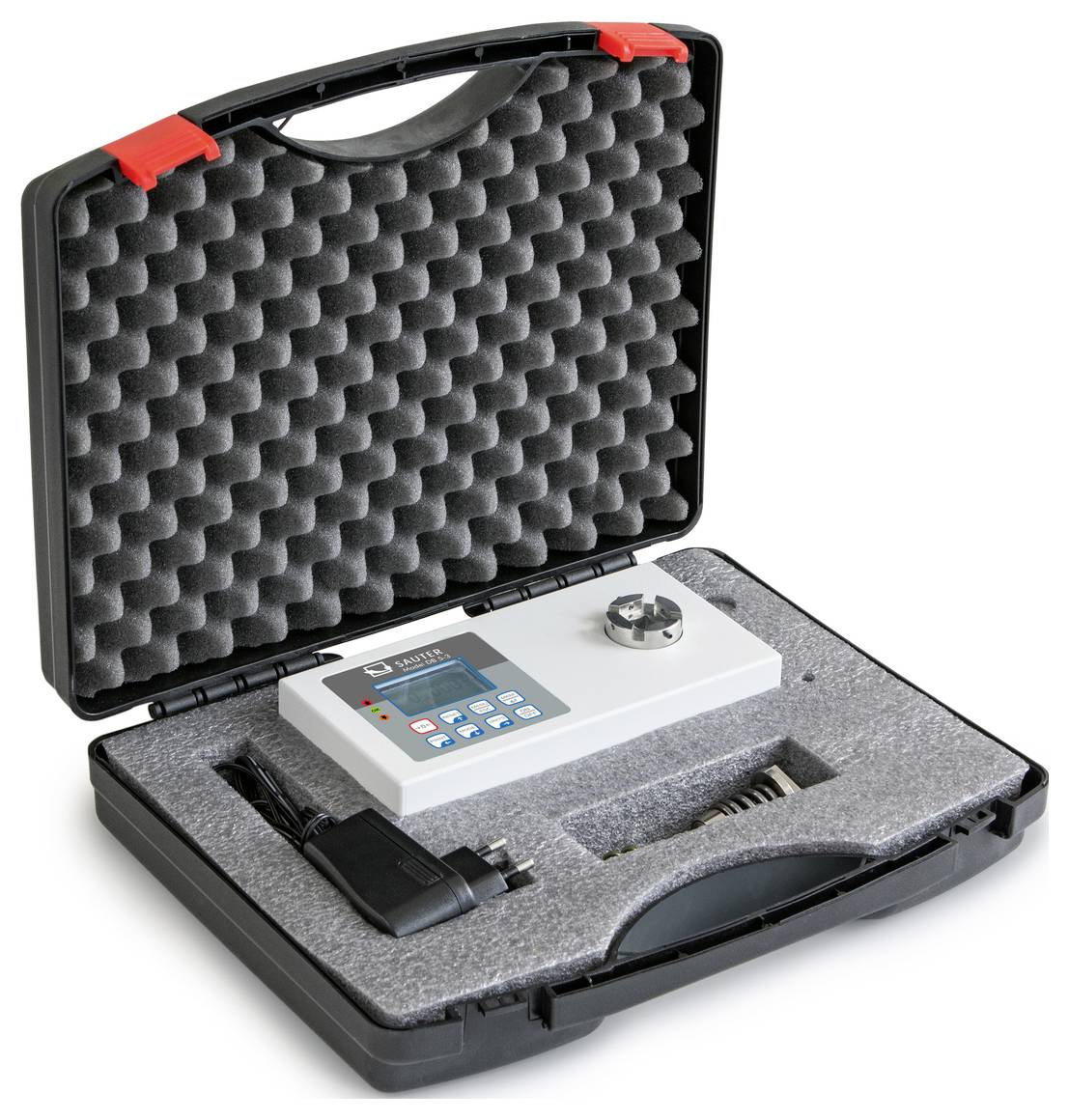

An open suitcase with foam lining contains a digital measuring device with buttons, a charger, and cables.

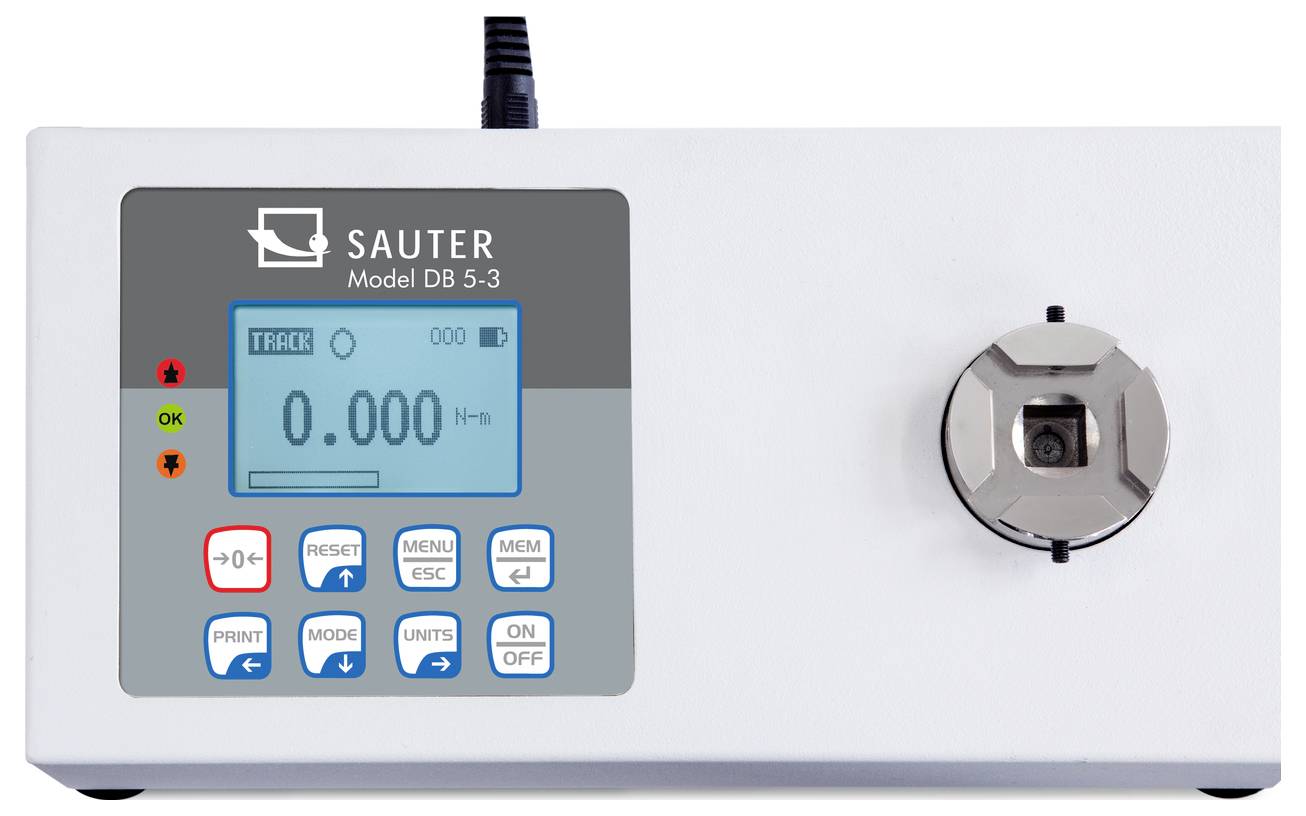

The image shows a Sauter measuring device, Model DB 5-3. It has a digital display and operating buttons, along with a mounting bracket on the right.

Digital torque measuring device displays value '1,891 N·m'. A metal arm assembly is mounted on the right. Model 'Sauter DB 5-3'.

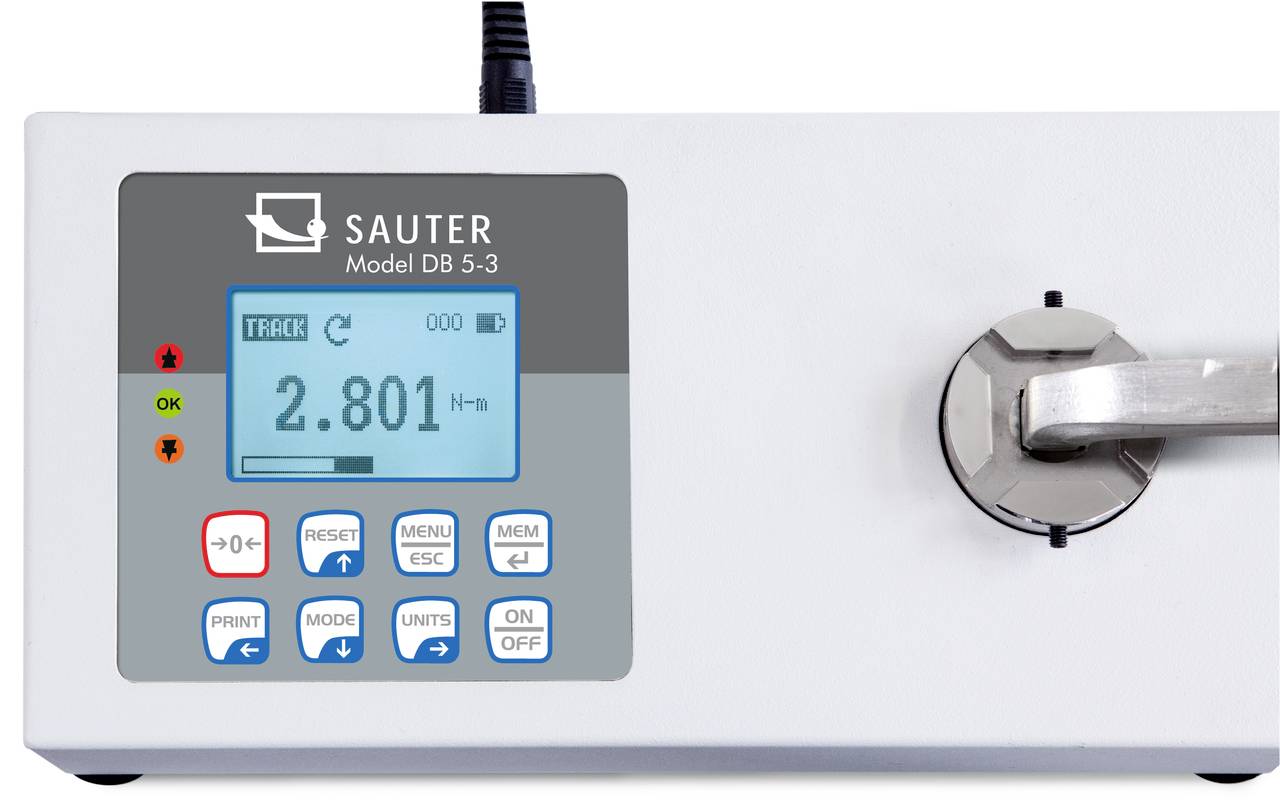

A force measuring device shows a reading of 2.801 N. The display has buttons for settings such as 'MODE', 'RESET' and 'PRINT'.

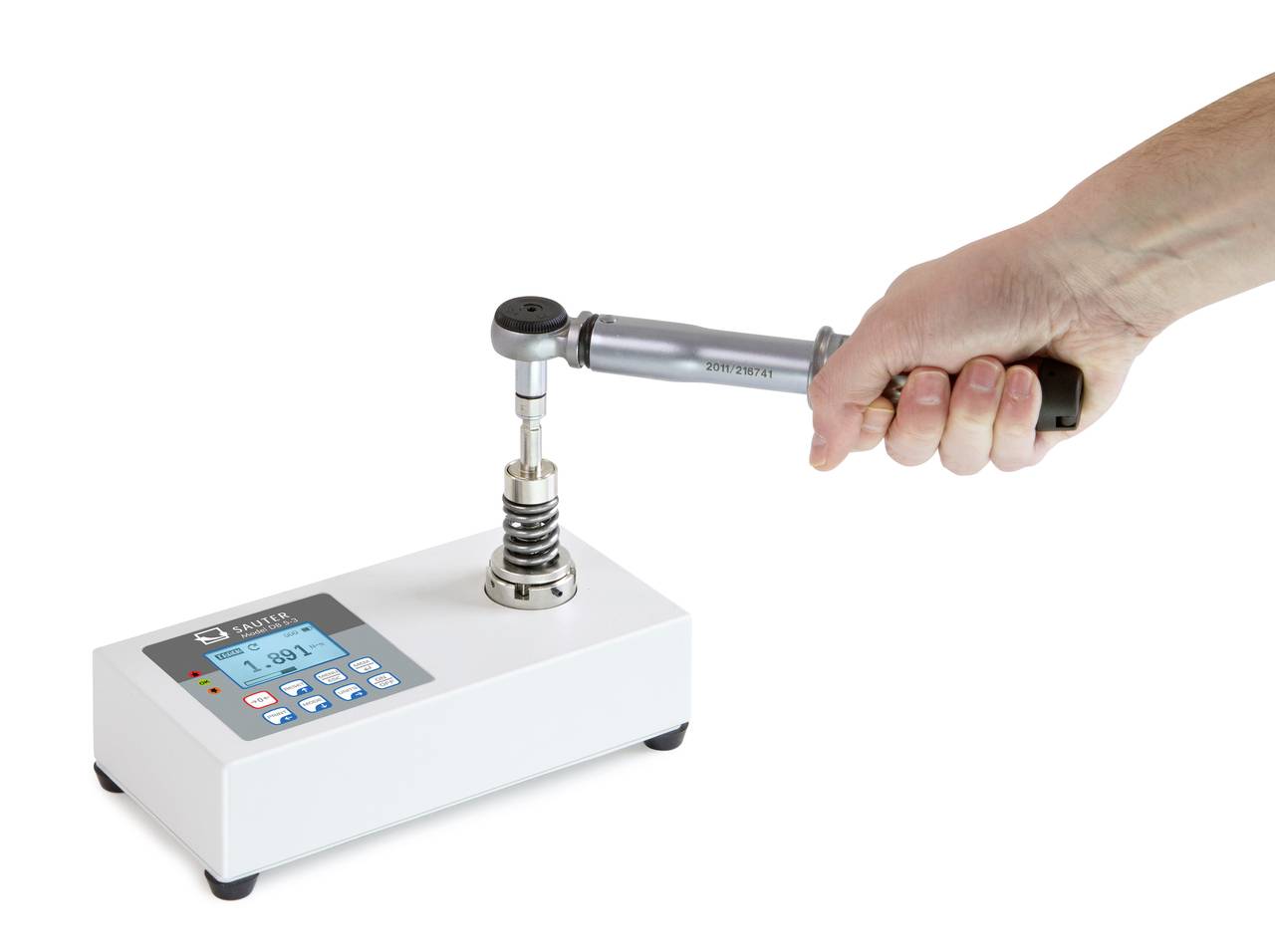

A person is testing a torque tool with a digital testing device. The display shows "19.91".

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Torque device DB20-3

Measurement range 0.005 - 20 Nm
For torque wrench, Electric Hand screwdriver and cordless screwdriver.

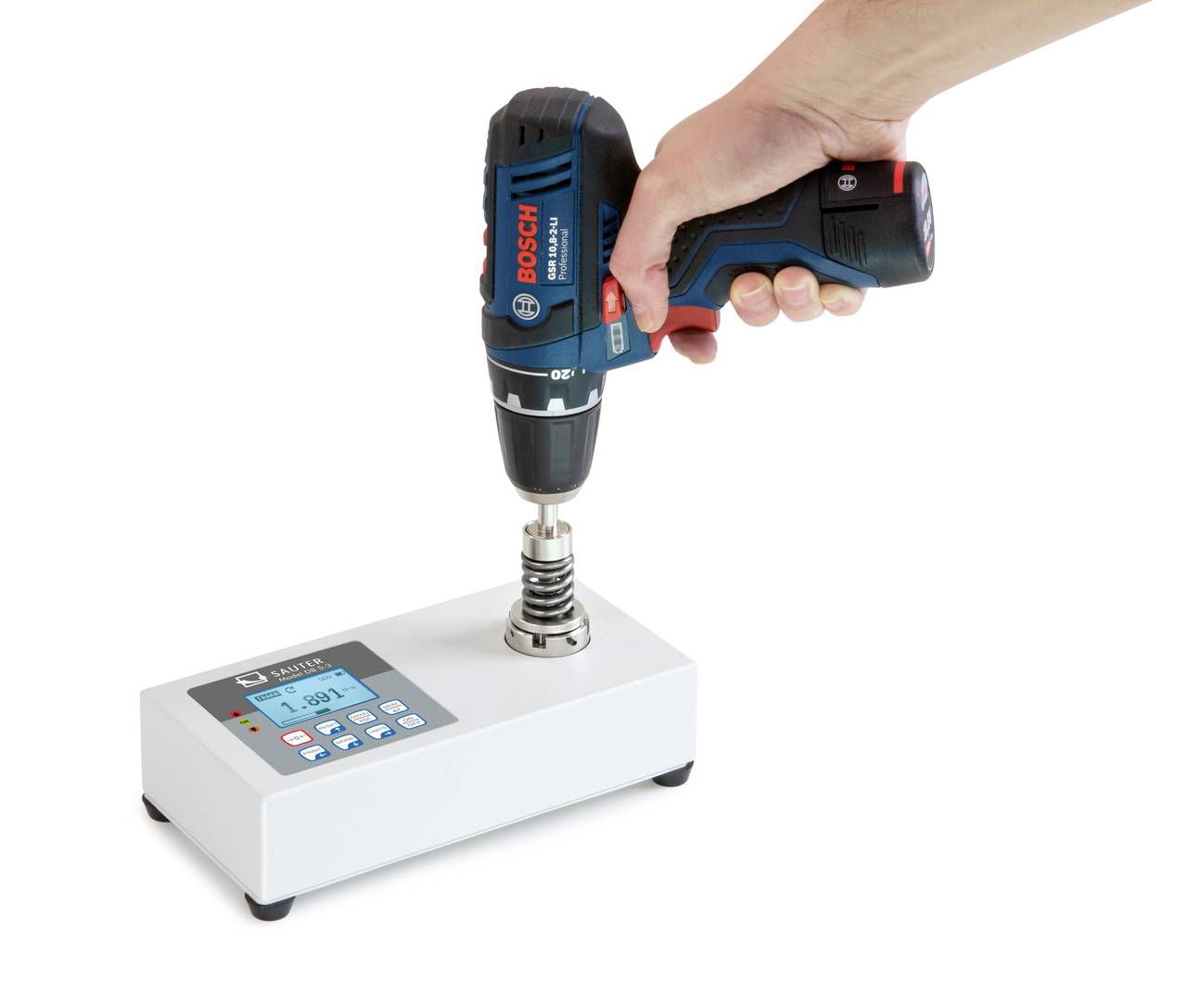

With rotary transducer system for dynamic testing of electrical screwdrivers.

Technical specifications

Measuring range torque: 0,005 - 20 Nm

Product type: Torque tester

Suitable for: tools

Accuracy: +/- 0.5% of [Max]

Weight: 3 kg

Calibration service: 961-120

: Manufacturer's standards (no certificate)

Width: 25 cm

Height: 10 cm

Length: 16 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1552028 Sauter Torque tester DB 20-3 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1552028 Sauter Torque tester DB 20-3 1 pc(s)

Information

Information 1552028 Sauter Torque tester DB 20-3 1 pc(s)

Description

Comfortable Torque testing tools. Ideally suited to torque wrench, Electric Hand screwdriver and cordless screwdriver.

This text is machine translated.

Features

Heavy duty metal casing
Capacity display: an increasing light strip shows the remaining measurement range
Backlit graphical LCD display
Rubber feet with anti-skid function in SAUTER DB 0.5-4 to DB 10-3
Stable mounting plate for solid mounting at SAUTER DB20-3 to DB50-2
Internal data memory stores up to 500 measured data. Memory contents can be transferred to the PC via the optional software
Peak Hold function for capturing the peak value
Can be used in both directions of rotation
Limit value function programming of max/min, in tensile and compressive direction, with output of an acoustic and optical signal. Ideal mode for efficient and error-free testing of serial parts
AUTO-OFF-function for battery protection.
