Buy Sauter Torque tester DB 200-2

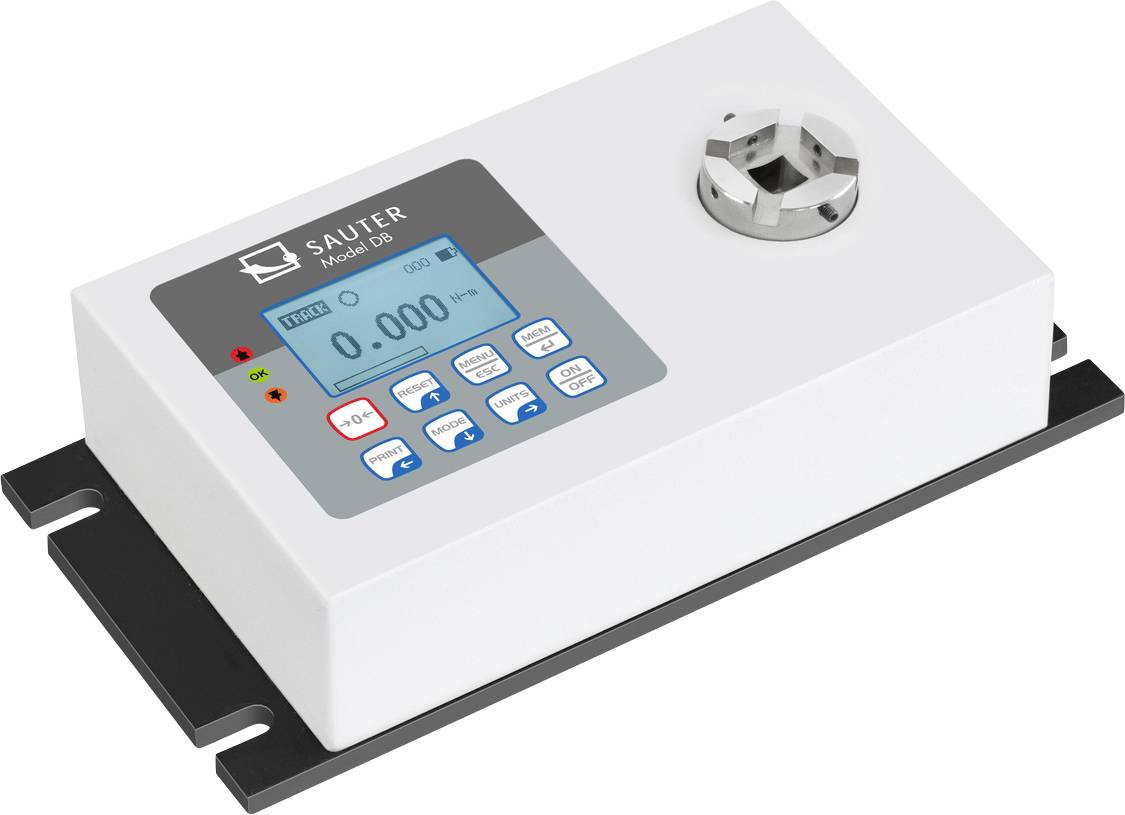

Digital torque measuring device with digital display, calibration buttons and a radial holder for securing tools.

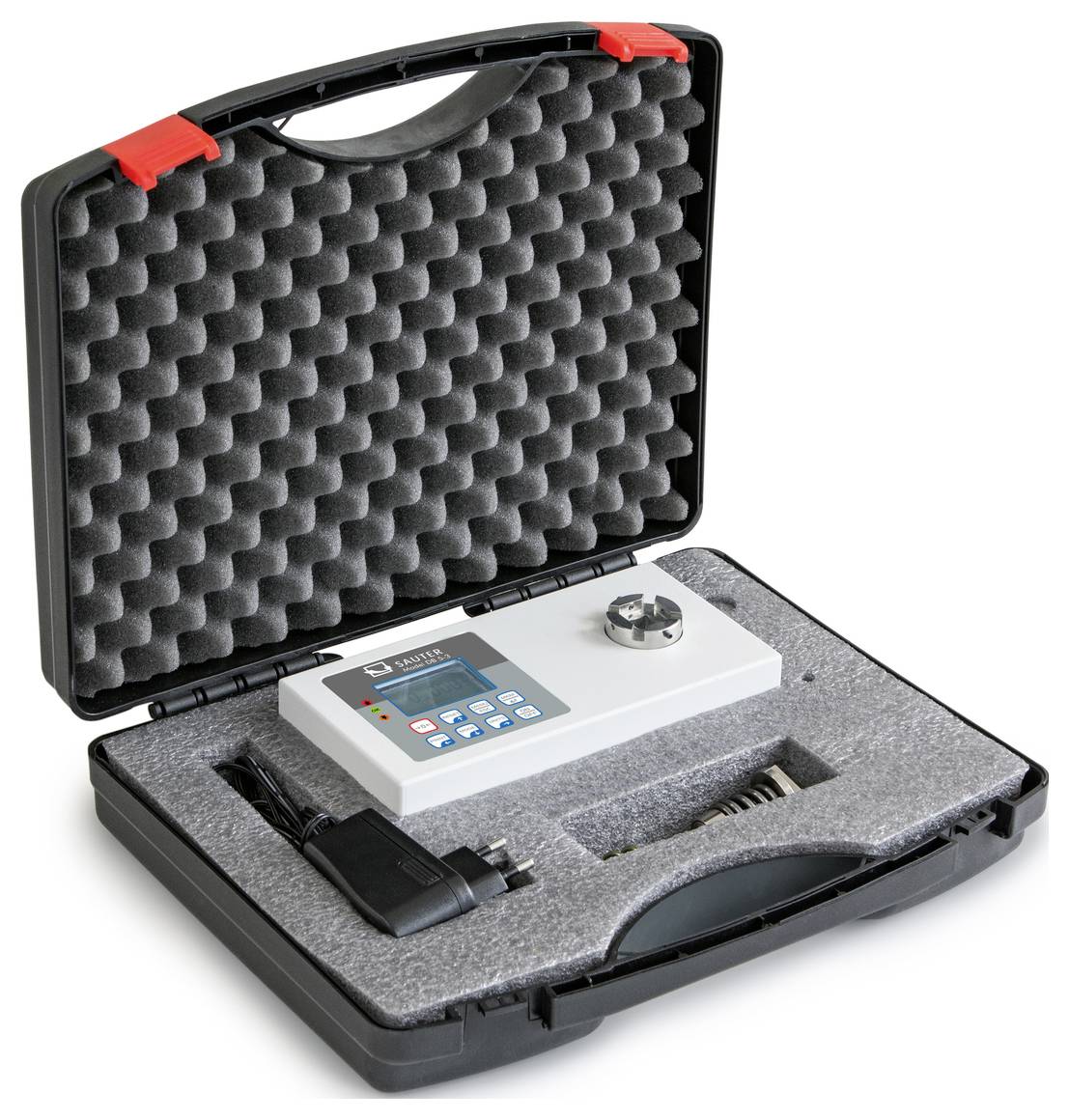

Open black suitcase with grey foam interior. Contains an electronic measuring device, power supply, and accessory parts.

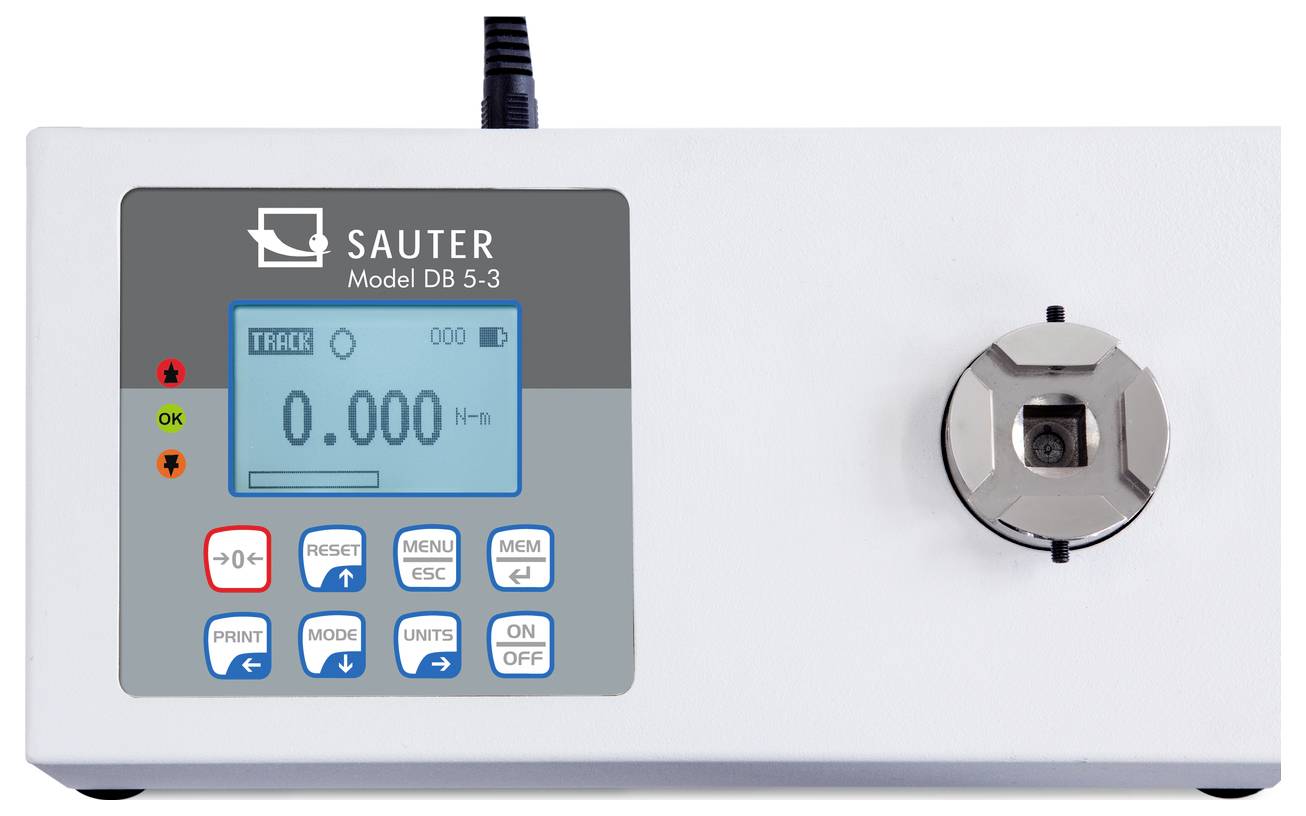

White Sauter device with digital display, Model DB 5-3. Keypad with various functions on the left, measuring device on the right.

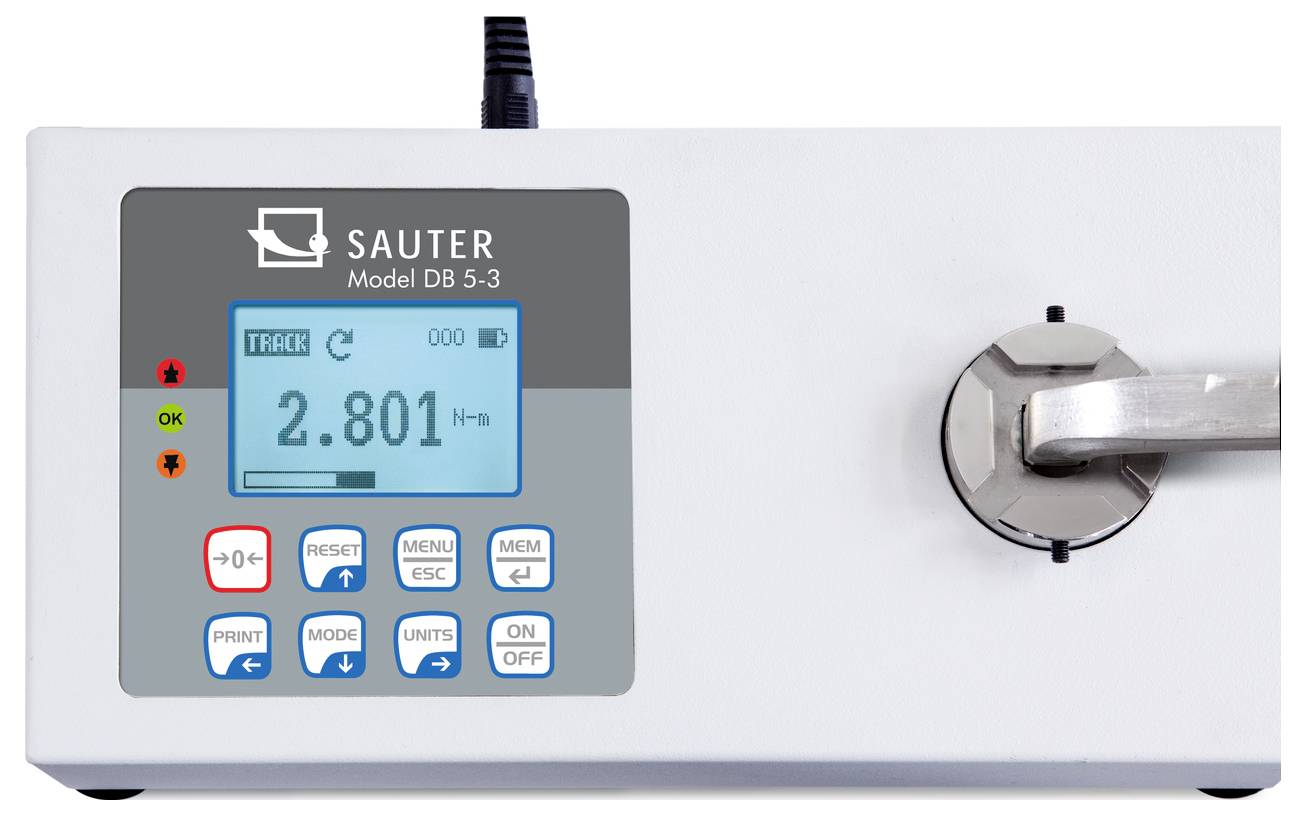

Device for torque measurement with display, showing '2,801 N·m'. Buttons for mode, reset, print and settings.

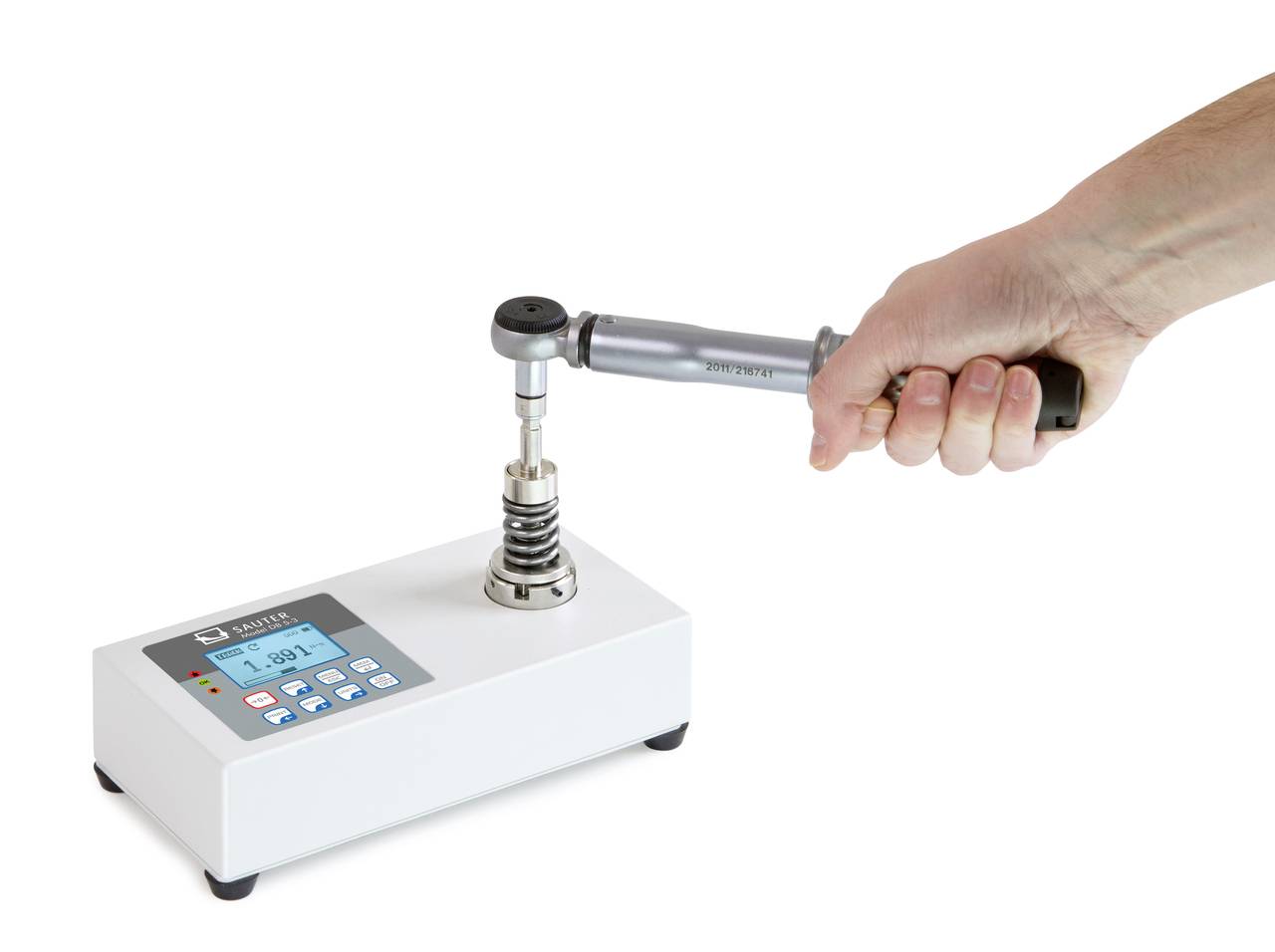

'A hand is using a torque tool for calibration on a digital measuring device with display indication.'

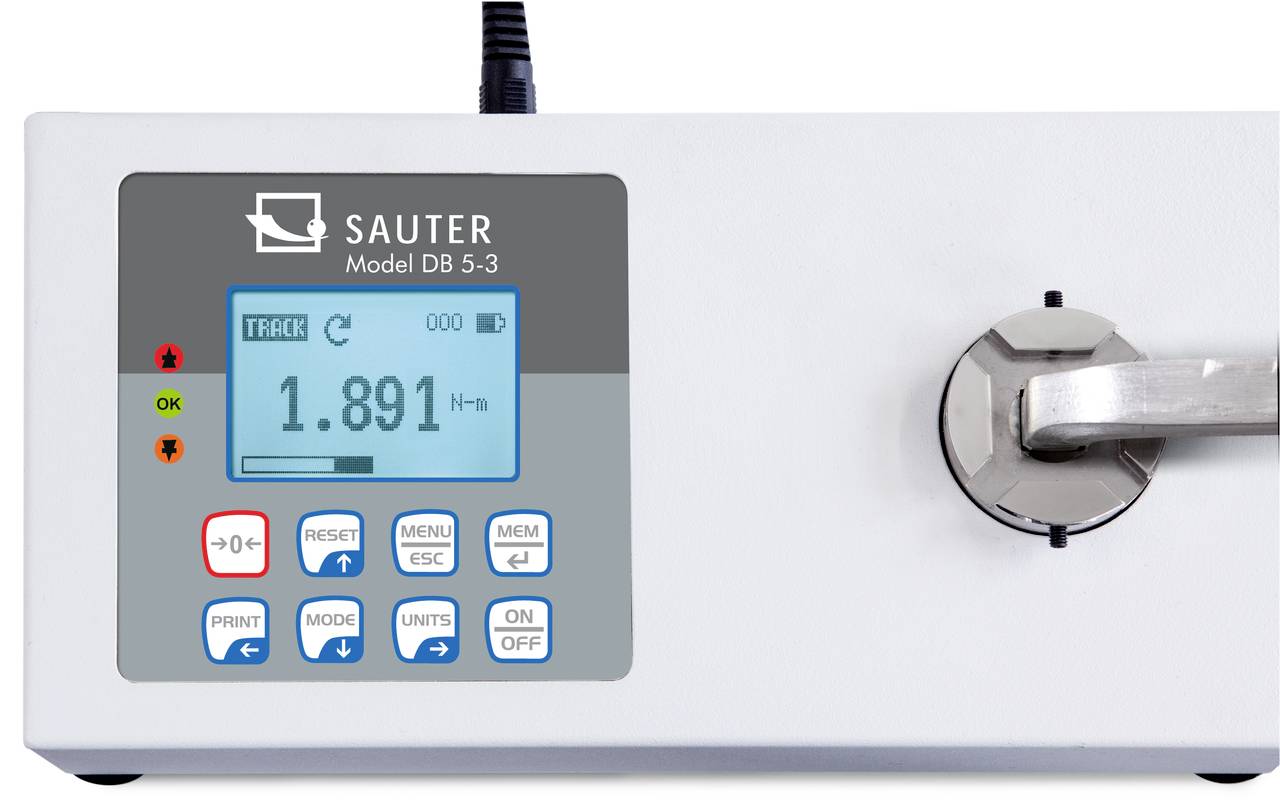

Digital Sauter DB 5-3 torque measuring device, displaying 1.891 Nm on the screen. Device buttons and connection visible.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Torque device DB 200-2

Measurement range 0.05 - 200 Nm
For torque wrench, Electric Hand screwdriver and cordless screwdriver
Rotary transducer system for dynamic testing of electrical screwdrivers

Technical specifications

Measuring range torque: 0.05 - 200 Nm

Product type: Torque tester

Suitable for: tools

Accuracy: +/- 0.5% of [Max]

Weight: 3 kg

Calibration service: 961-120

: Manufacturer's standards (no certificate)

Width: 25 cm

Height: 10 cm

Length: 16 cm

Power supply: Mains

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1551667 Sauter Torque tester DB 200-2

User & Safety Instructions

User & Safety Instructions 1551667 Sauter Torque tester DB 200-2

Information

Information 1551667 Sauter Torque tester DB 200-2

Description

Comfortable Torque testing tools. Ideally suited to torque wrench, Electric Hand screwdriver and cordless screwdriver.

This text is machine translated.

Features

Heavy duty metal casing
Capacity display: an increasing light strip shows the remaining measurement range
Backlit graphical LCD display
Rubber feet with anti-skid function in SAUTER DB 0.5-4 to DB 10-3
Stable mounting plate for solid mounting at SAUTER DB20-3 to DB50-2
Internal data memory stores up to 500 measured data. Memory contents can be transferred to the PC via the optional software
Peak Hold function for capturing the peak value
Can be used in both directions of rotation
Limit value function programming of max/min, in tensile and compressive direction, with output of an acoustic and optical signal. Ideal mode for efficient and error-free testing of serial parts
AUTO-OFF-function for battery protection.
