Buy Sauter Torque tester DB 50-2

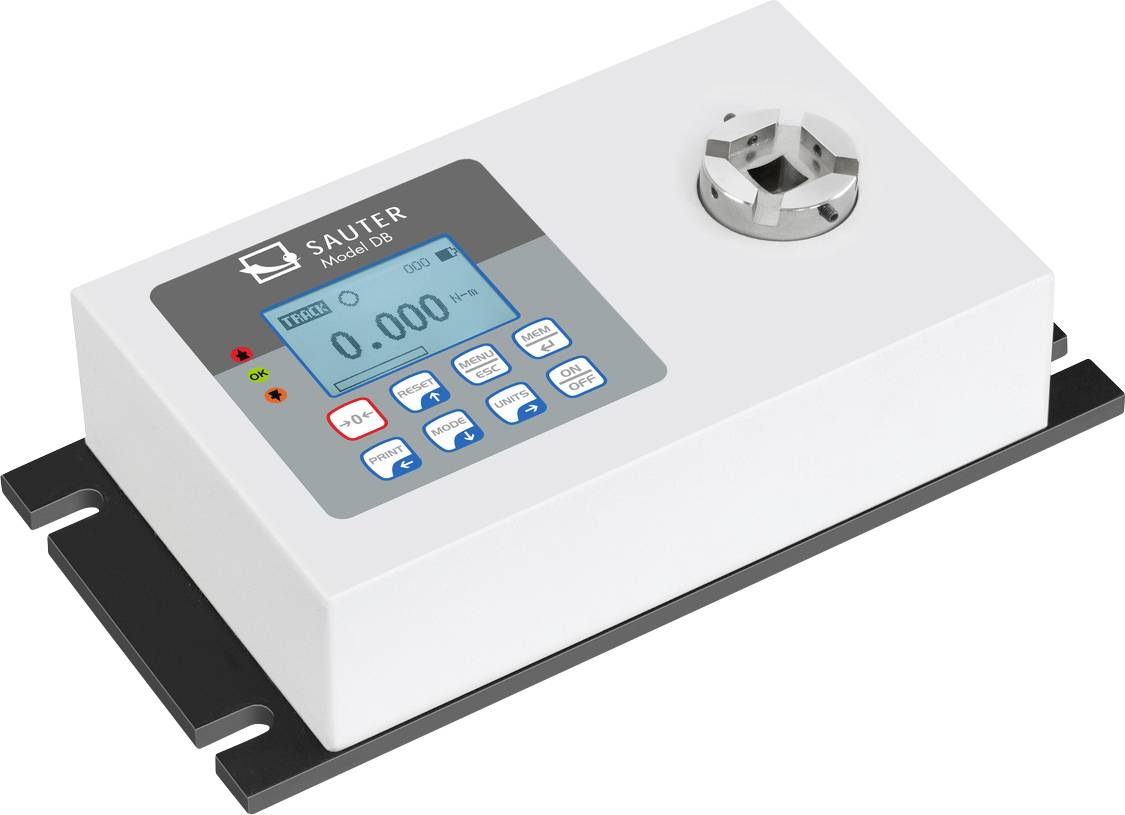

Digital torque measuring device on a white background with display screen for measurement values and control elements.

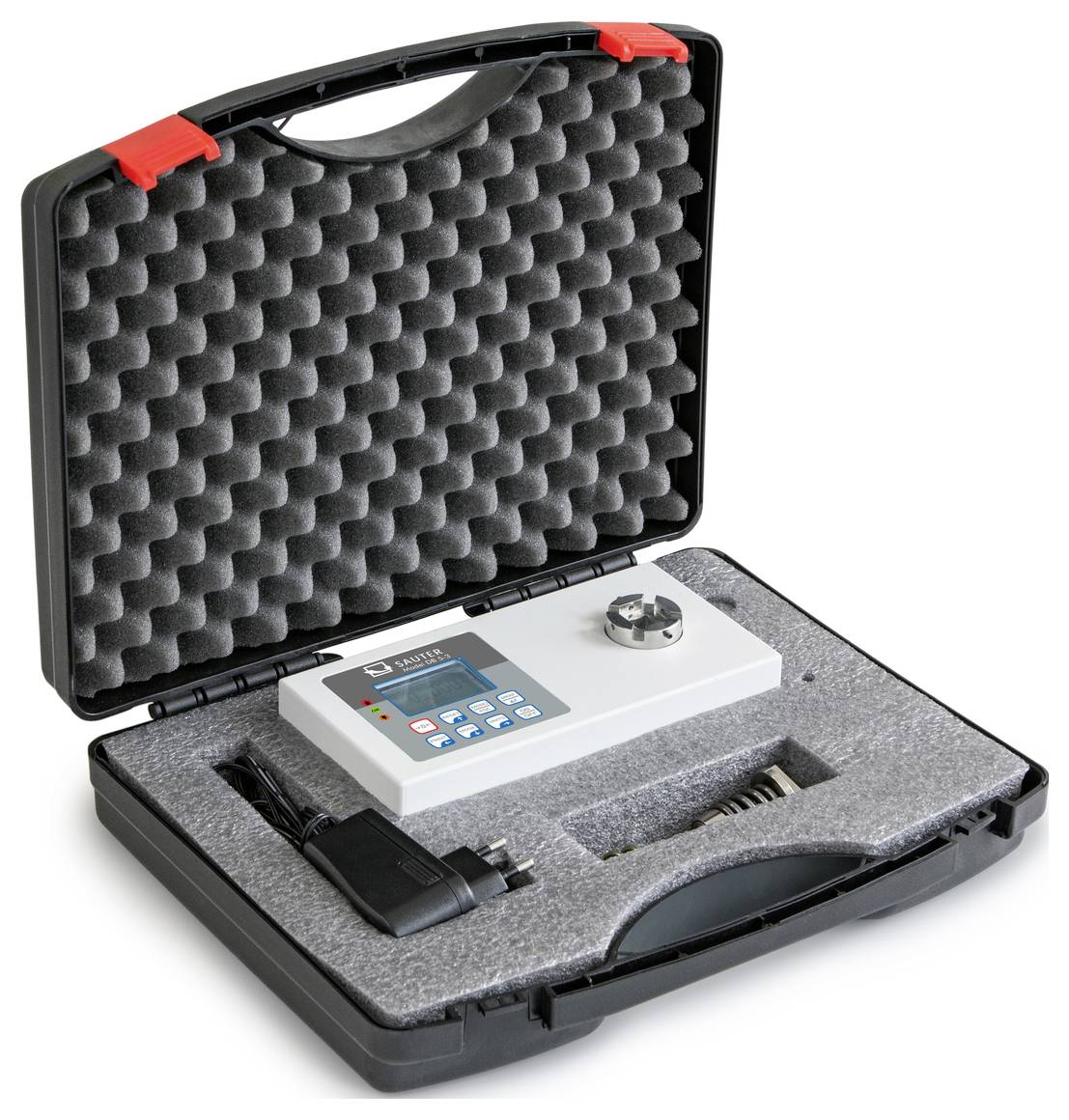

An open suitcase displays a measuring device with a display and buttons, power supply, and accessories, nestled in foam padding.

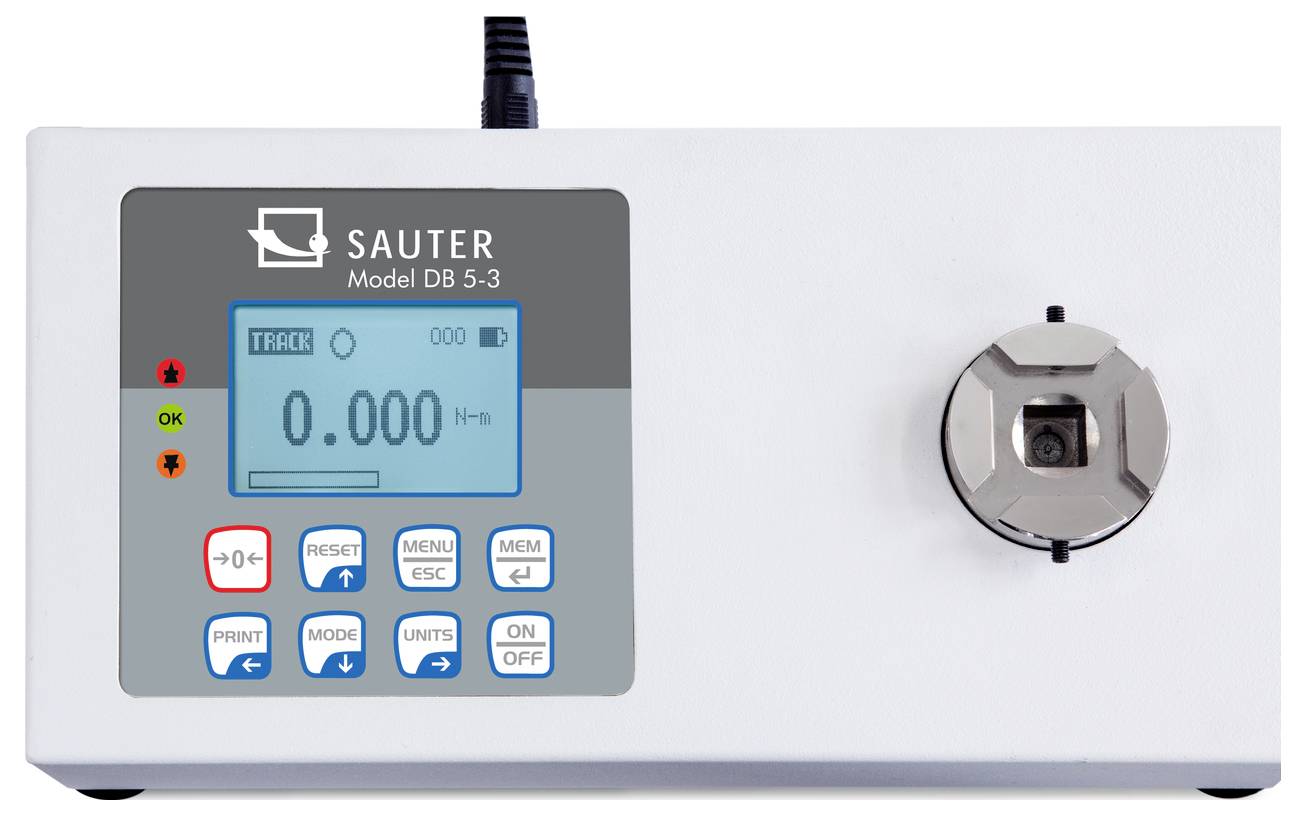

A digital torque measurement device by Sauter. Displays '0.000 N·m' on the screen. Control panel with various function buttons.

Close-up of a torque measuring device with display showing a measurement value of 1.891 N·m. Device buttons for control visible underneath.

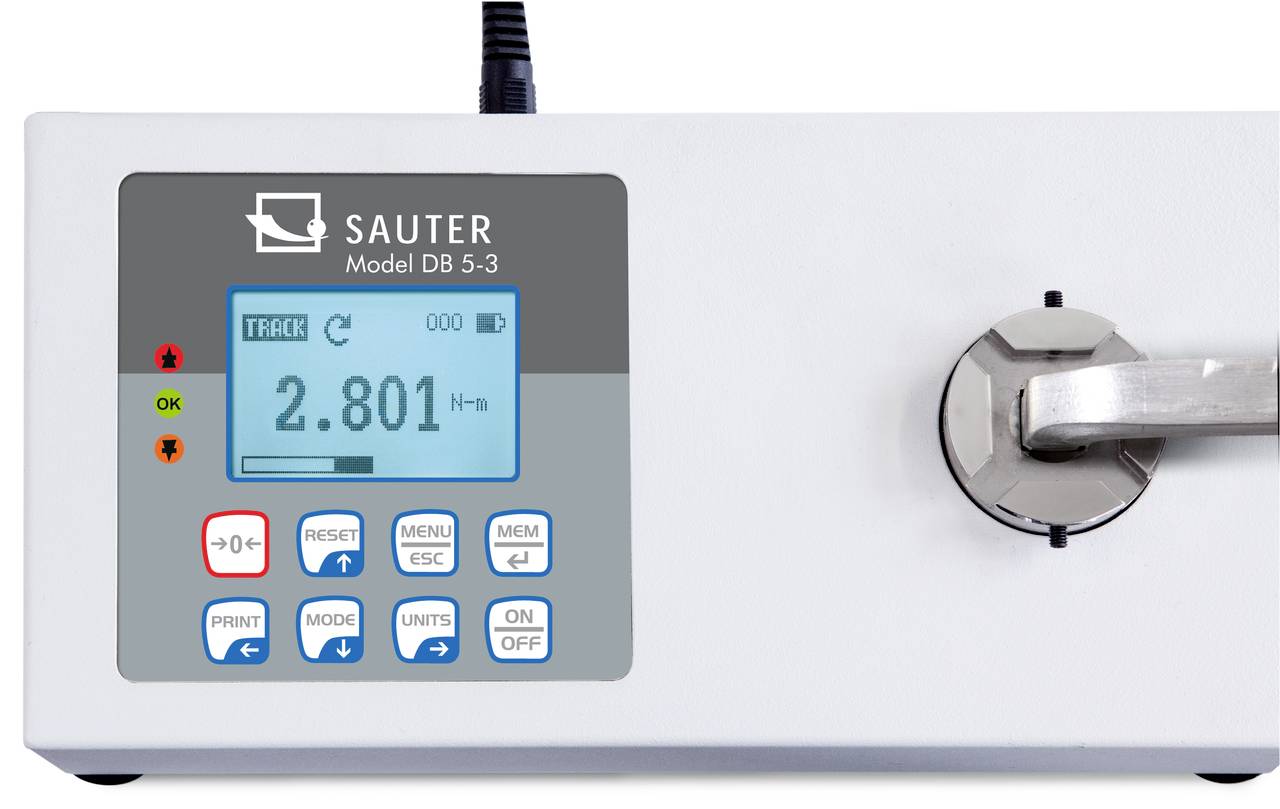

A digital force measuring device by Sauter, model DB 5-3, displays a measurement of 2.801 newton-metres on the screen.

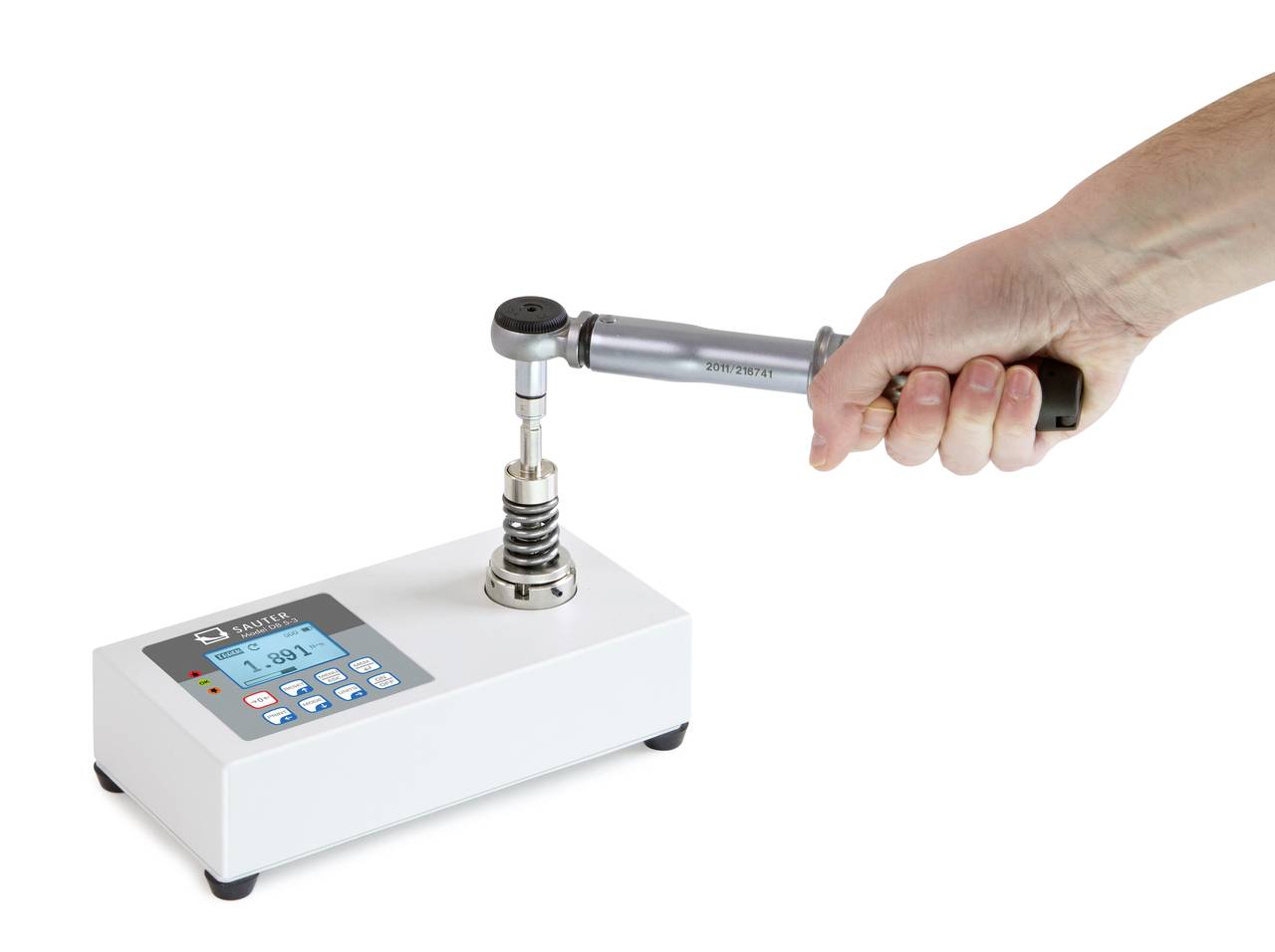

A hand is holding a torque wrench attached to a white device with a digital display.

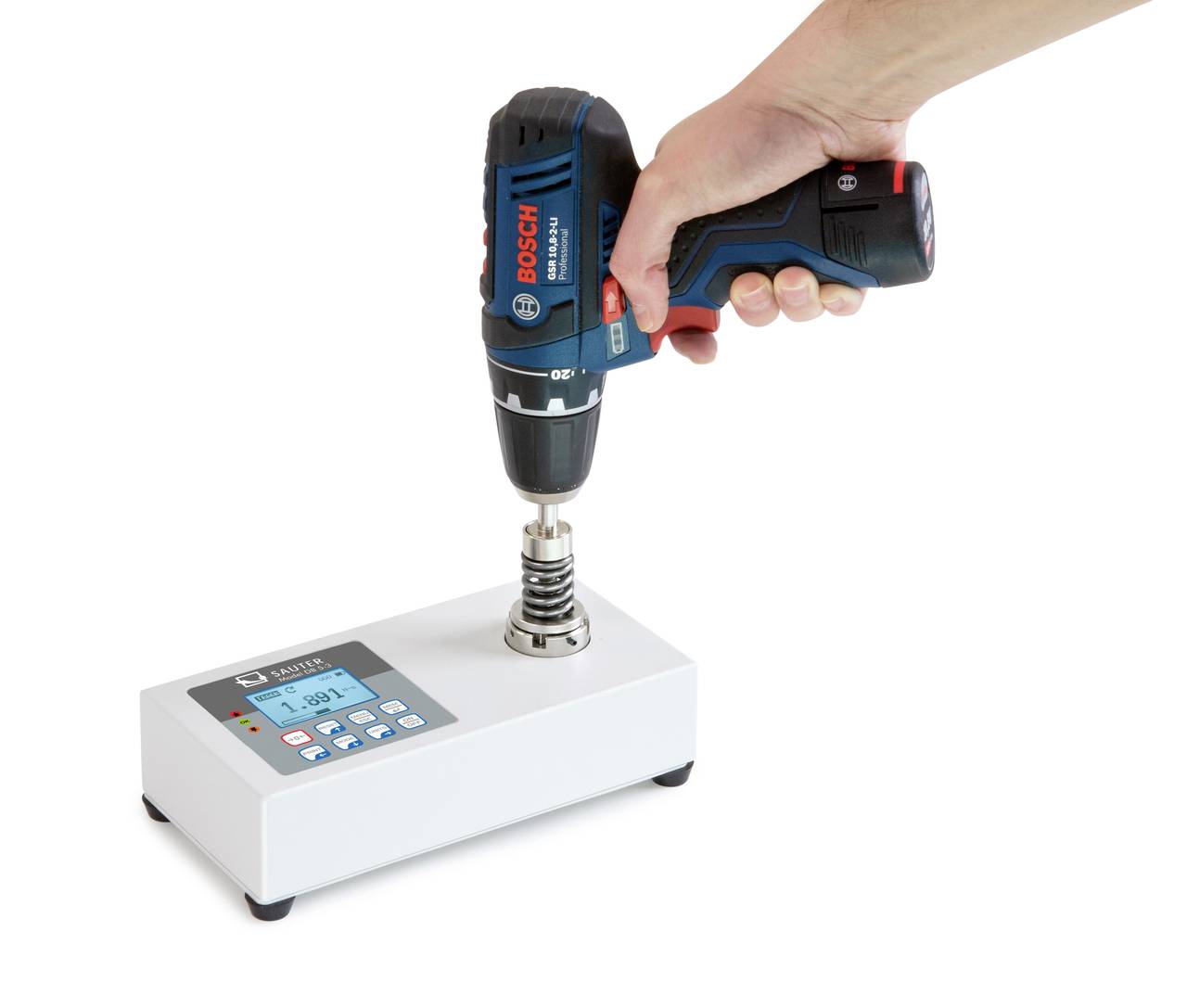

A hand is holding a cordless drill being inserted into a white device with a digital display. The display shows numbers and symbols.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Torque device DB50-2

Measurement range 0.01 - 50 Nm
For torque wrench, Electric Hand screwdriver and cordless screwdriver.
With rotary transducer system for dynamic testing of electrical screwdrivers.

Technical specifications

Measurement range: 0.01 - 50 Nm torque

Product type: Torque tester

Suitable for: tools

Accuracy: +/- 0.5% of [Max]

Weight: 3 kg

Calibration service: 961-120

: Manufacturer's standards (no certificate)

Width: 25 cm

Height: 10 cm

Length: 16 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1552030 Sauter Torque tester DB 50-2

User & Safety Instructions

User & Safety Instructions 1552030 Sauter Torque tester DB 50-2

Information

Information 1552030 Sauter Torque tester DB 50-2

Description

Comfortable Torque testing tools. Ideally suited to torque wrench, Electric Hand screwdriver and cordless screwdriver.

This text is machine translated.

Features

Heavy duty metal casing
Capacity display: an increasing light strip shows the remaining measurement range
Backlit graphical LCD display
Rubber feet with anti-skid function in SAUTER DB 0.5-4 to DB 10-3
Stable mounting plate for solid mounting at SAUTER DB20-3 to DB50-2
Internal data memory stores up to 500 measured data. Memory contents can be transferred to the PC via the optional software
Peak Hold function for capturing the peak value
Can be used in both directions of rotation
Limit value function programming of max/min, in tensile and compressive direction, with output of an acoustic and optical signal. Ideal mode for efficient and error-free testing of serial parts
AUTO-OFF-function for battery protection.
