Sauter TVS 50KN80-LD Test stand set 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

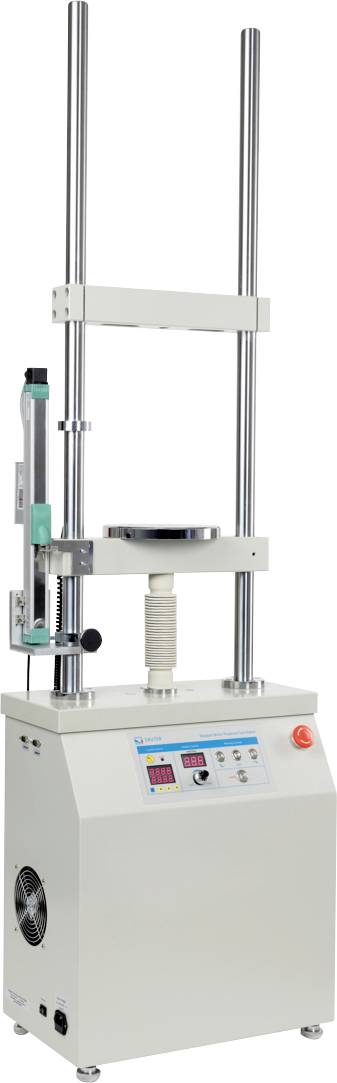

Test stand set including length meter Sauter TVS 50KN80-LD
- Practical set for power-way measurements in the laboratory and industry
- This text is machine translated.
Technical specifications
- Product type
Test stand set
- Compatible with
Sauter
- Compatible with
SAUTER FL
- Width
480 mm
- Height
1670 mm
- Length
1.5 m
- Depth
255 mm
- Type
TVS 50KN80-LD
- Series
TVS-LD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3702103 Sauter TVS 50KN80-LD Test stand set 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3702103 Sauter TVS 50KN80-LD Test stand set 1 pc(s)
Information
Information 3702103 Sauter TVS 50KN80-LD Test stand set 1 pc(s)
Description
Features
- Five in one – motorized premium test bench, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting
- With linear potentiometer for length measurement to create force-path diagrams on the PC, maximum measurement range 210 mm, 0.01 mm readability, 0.5% measurement accuracy of [Max], 1.5 m USB-A cable, high data acquisition speed
- Motorized test stand for track and compression force measurements
- Stepper motor for optimum operation:- for constant speed from minimum to maximum load- enables testing at minimum speed and full load- for higher positioning accuracy. Precise starting and stopping, without lagging, even at high speeds- most accurate setting of traverse speed with display in the display
- Maximum travel path secured by electrical limit switches
- Large working area thanks to standard long guide columns, allows for a variety of mounting options
- Highly flexible mounting options for different force meters, such as Sauter FC, FH, FK, FL:
- - Direct mounting of the external measuring cell from 1000 N Measuring range on the cross traverse
- - Bracket for Sauter FH force gauges with external measuring cell (see accessories);
