Scanstrut Double USB socket Scanstrut Flip Pro Max. load capacity=6 A 10.8 - 32 V / DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Double USB socket Scanstrut Flip Pro
- Input voltage 10 V DC (12 V system)
- Input current max. 6A (10A fuse recommended)
- Power consumption standby: 0.01W
Technical specifications
- Product type
USB socket
- Connection A
Blade terminal
- Connection B
USB A
USB-C®
- Operating voltage
10.8 - 32 V / DC
- Max. load capacity
6 A
- Dim
(L x W) 39 mm x 37.7 mm
- Factory colour
Black
- Width
37.7 mm
- Length
39 mm
IPX4
Documents & Downloads
Datasheet
Datasheet 2873017 Scanstrut Double USB socket Scanstrut Flip Pro Max. load capacity=6 A 10.8 - 32 V / DC
User & Safety Instructions
User & Safety Instructions 2873017 Scanstrut Double USB socket Scanstrut Flip Pro Max. load capacity=6 A 10.8 - 32 V / DC
Description
Flip Prist designed for use with a 12 V or 24 V input and features a USB A and USB-C charging port. This offers the optimum selection of connections for each device and the fastest charging on board for your device.

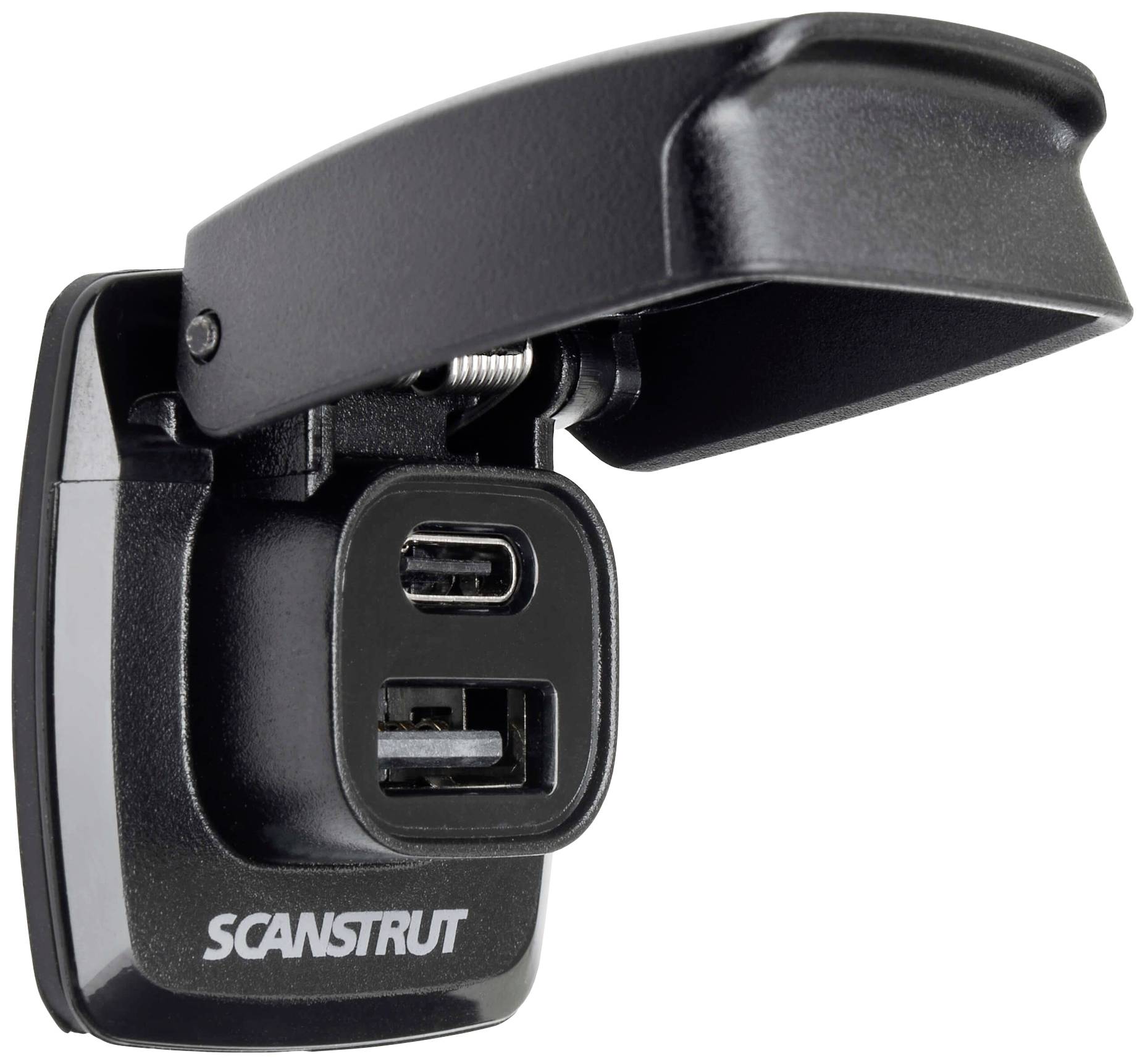

When not in use, the spring-loaded cap remains tightly closed and protects the connections from the elements. During the charging process it can be opened quickly, in order to protect the cables when they are plugged in.
Flip Prohat is a super compact base, made from high-quality, maritime materials and waterproof according to IPX4, i.e. it is completely washable.
Flip Prist FAST! It charges with 36 W with a 12 volt system or up to 60 W with a 24 volt system. This makes it perfect for charging modern laptops via the USB-C port. It is also 2x faster for charging large tablets and was developed to easily charge an iPad PRund an iPhone simultaneously.
This text is machine translated.
When not in use, the spring-loaded cap remains tightly closed and protects the connections from the elements. During the charging process it can be opened quickly, in order to protect the cables when they are plugged in.
Flip Prohat is a super compact base, made from high-quality, maritime materials and waterproof according to IPX4, i.e. it is completely washable.
Flip Prist FAST! It charges with 36 W with a 12 volt system or up to 60 W with a 24 volt system. This makes it perfect for charging modern laptops via the USB-C port. It is also 2x faster for charging large tablets and was developed to easily charge an iPad PRund an iPhone simultaneously.
This text is machine translated.
Features
- IPX4 waterproof with closed lid.
- Marine-ready
- Internal anti-corrosion protective coating
- UV resistant.
- Stainless steel hinge and spring 316.
- USB - C output:
- 60W max on 24V-system
- 36W max. on 12V-system
- USB - A output:
- 36 W max.
- Universal
- Universally suitable for all USB-A- and USB-C ports.
- Simultaneous quick charging (max. 60 W) of up to 2 devices.
- Simple installation, with standard USB mounting hole - 29mm (1 1/8")
Scope of delivery
- USB socket
