Schabus 200361 SHT 8060 Miniature float switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
Highlights & Details

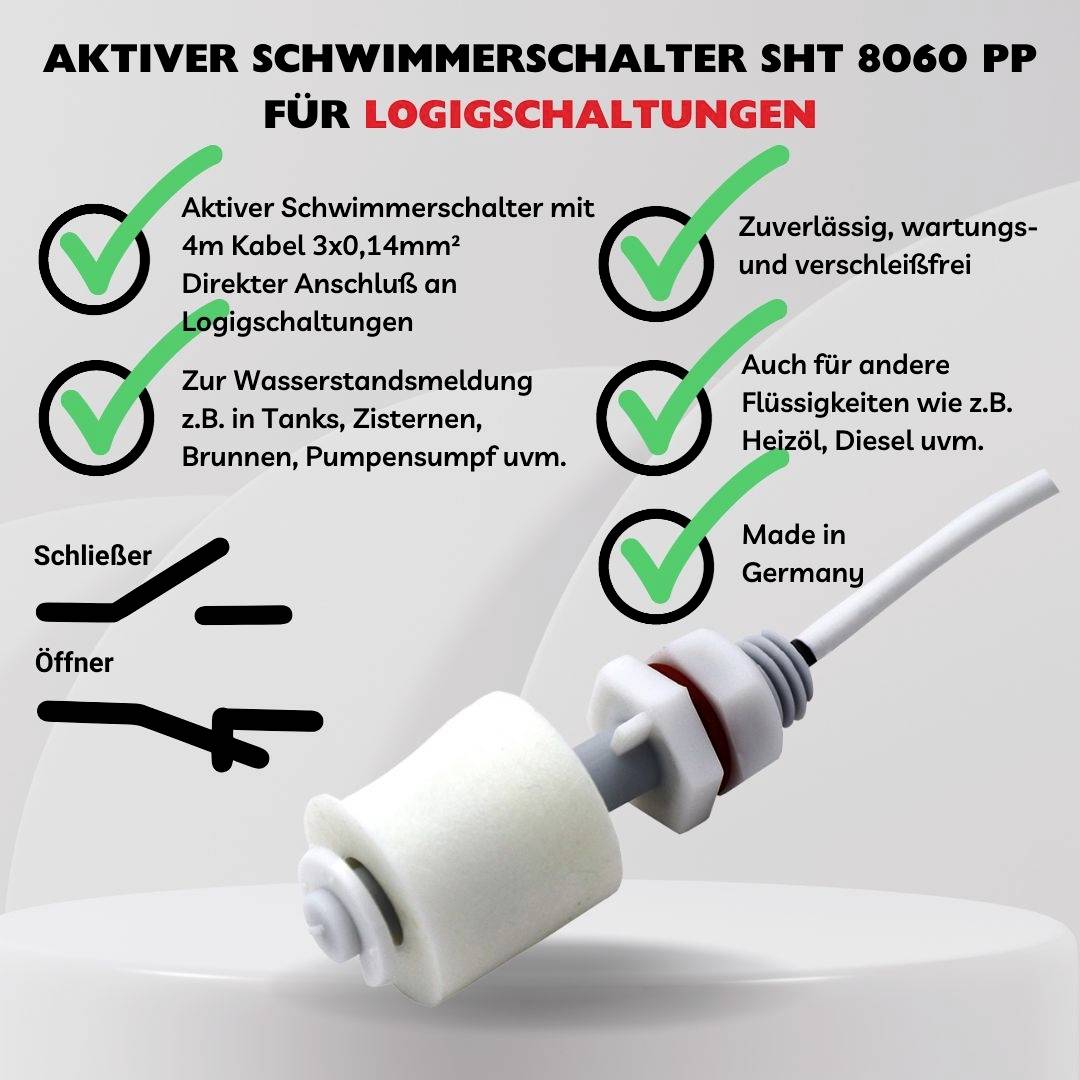

SHT 8060 active mini float switch
Technical specifications
- Operating voltage Ub: 5 … 42 Volt= DC
- Output voltage Lo / Hi: 0 Volt / Ub - 0.1 Volt
- Current limitation: Yes, 1kΩ
- Switching frequency: 1 billion @ 5 V / 1 mA
- Switching principle: Reed contact, changeover contact
- Connection cable: 4 meters, 3-wire, white, Ø 23 mm
- Functional range: -1 °C … max. 6 °C.
- Installation position: Vertical, max. 30° inclination
- Product type
Miniature float switch
IP67

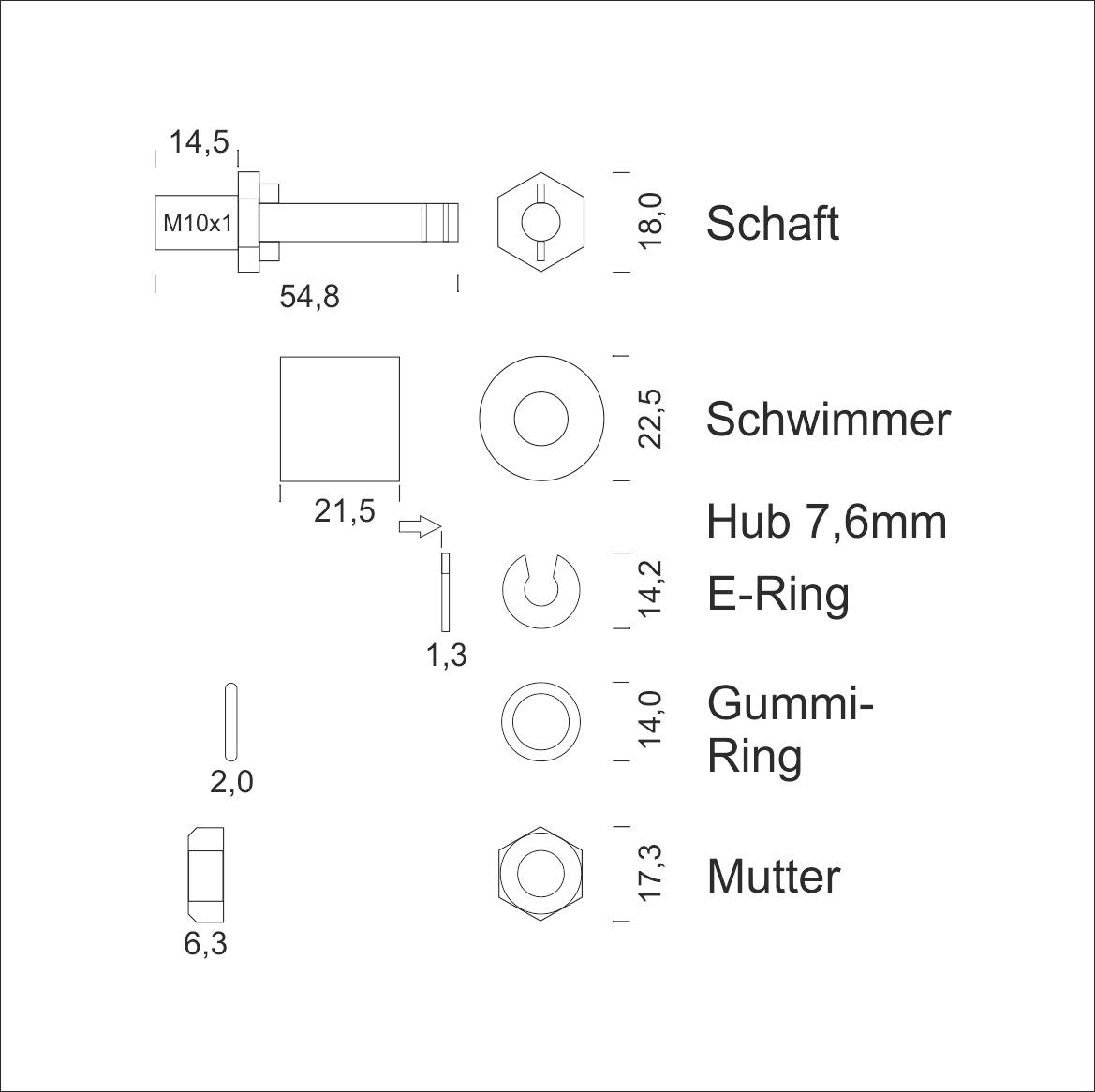

- Dim
(Ø x H) 23 mm x 58 mm
- Height
58 mm
- (Ø)
23 mm
Documents & Downloads
Datasheet
Datasheet 2239463 Schabus 200361 SHT 8060 Miniature float switch
User & Safety Instructions
User & Safety Instructions 2239463 Schabus 200361 SHT 8060 Miniature float switch
Description

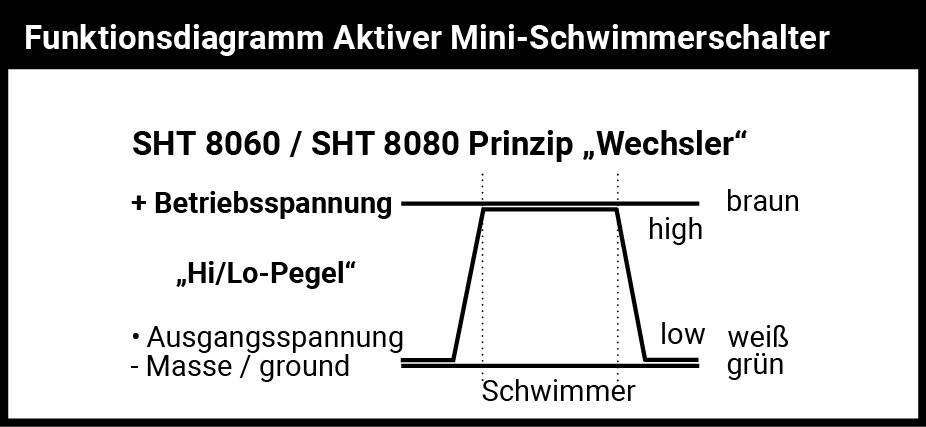

The active plastic miniature float switch is supplied with a DC voltage and returns a current-limited voltage level when activated due to rising water level. Ideal for the assignment of unused analogue inputs in house automation and building control systems.
Not suitable for connection to Schabus water detectors.
