Schabus 201755 Air inlet Suitable for pipe diameter: 150 mm
EAN:
Part number:
Item no:
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Only 2 Piece(s) available
Highlights & Details

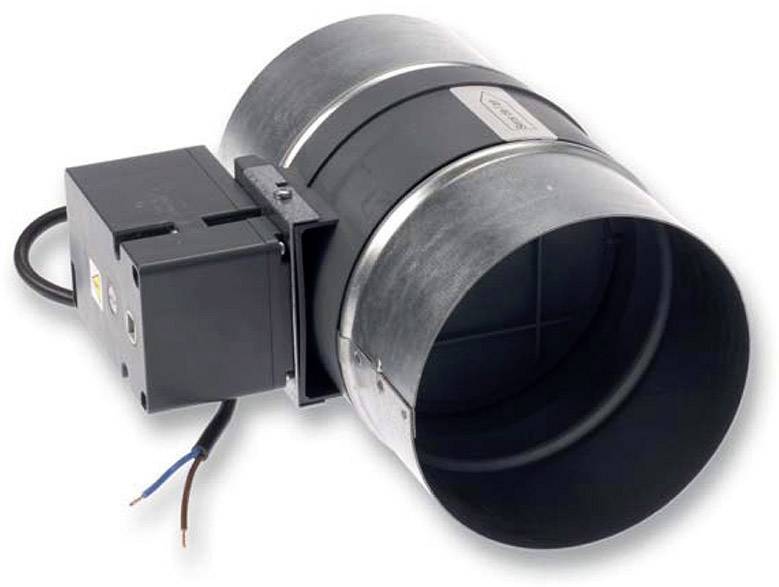

Supply air flap Ø150 mm electrical (servo motor)
- Supply air pipe with electric ventilation flap (servo motor)
- For controlling the air flow in ventilation and air conditioning systems
- No limitation of the time under tension
Technical specifications
- Switching capacity: 30,000 times
- Product type
Air inlet
- Operating voltage
230 V
- Suitable for pipe Ø
150 mm
- Content
1 pc(s)
- Opening time
8 s
- Closing time
8 s
IP20
- Dim
(Ø x L) 150 mm x 200 mm
- Length
200 mm
- (Ø)
150 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2110517 Schabus 201755 Air inlet Suitable for pipe diameter: 150 mm
Description
Supply air pipe with electrical ventilation flap made of fire-retardant plastics. The connections on both sides of the flap are made of galvanized steel. By applying a 230 V mains voltage to the servo motor, the ventilation flap is opened. As soon as no voltage is applied, the flap closes by a return spring. The connection to the 230 V mains voltage is made via a cable with 2 x 0.75 mm².
