Buy Schabus GX-D500P Carbon dioxide detector incl. built-in sensor mains-powered detects Carbon dioxide

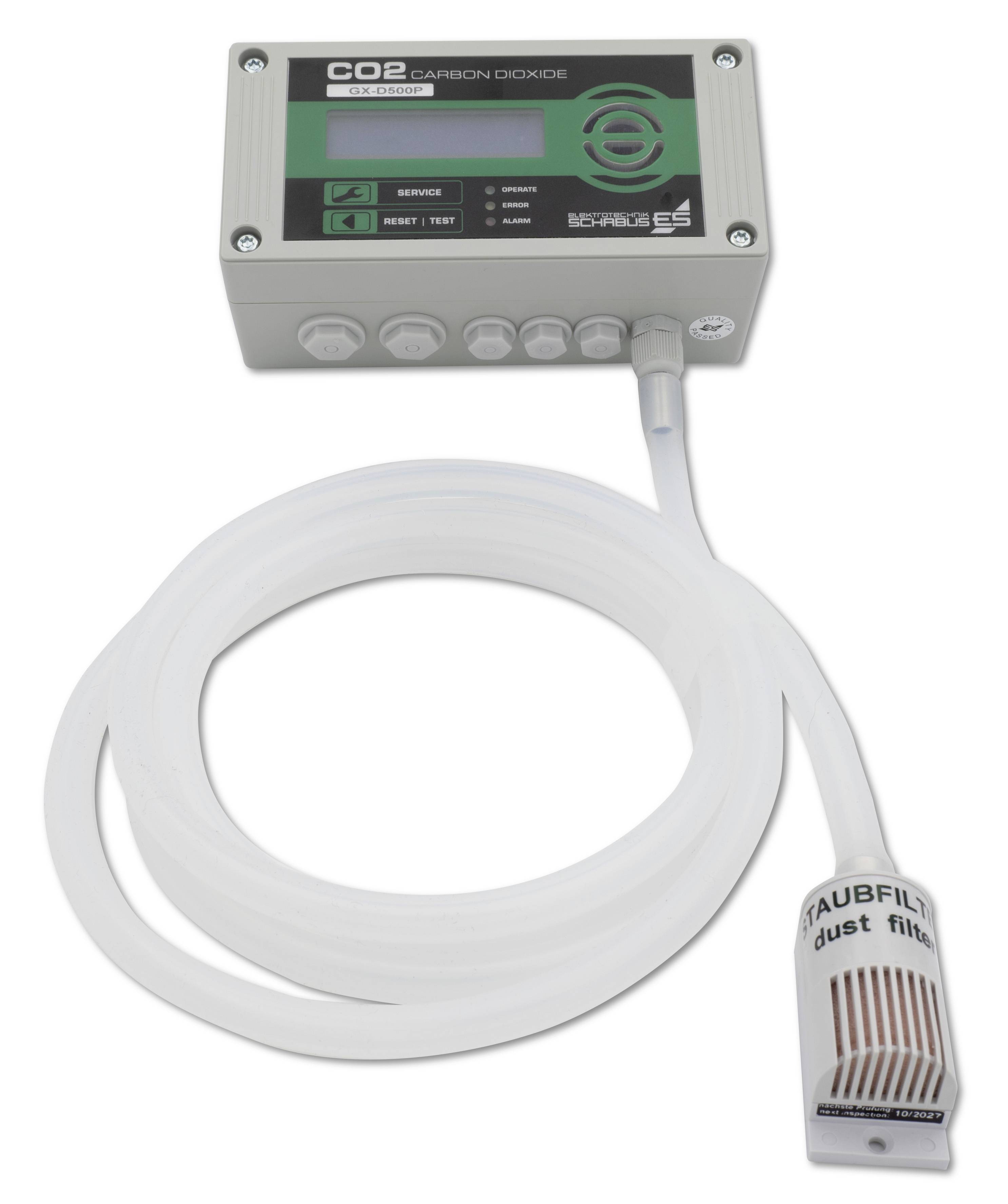

CO2 meter with digital display and dust filter, for monitoring carbon dioxide levels in indoor spaces. Includes control buttons.

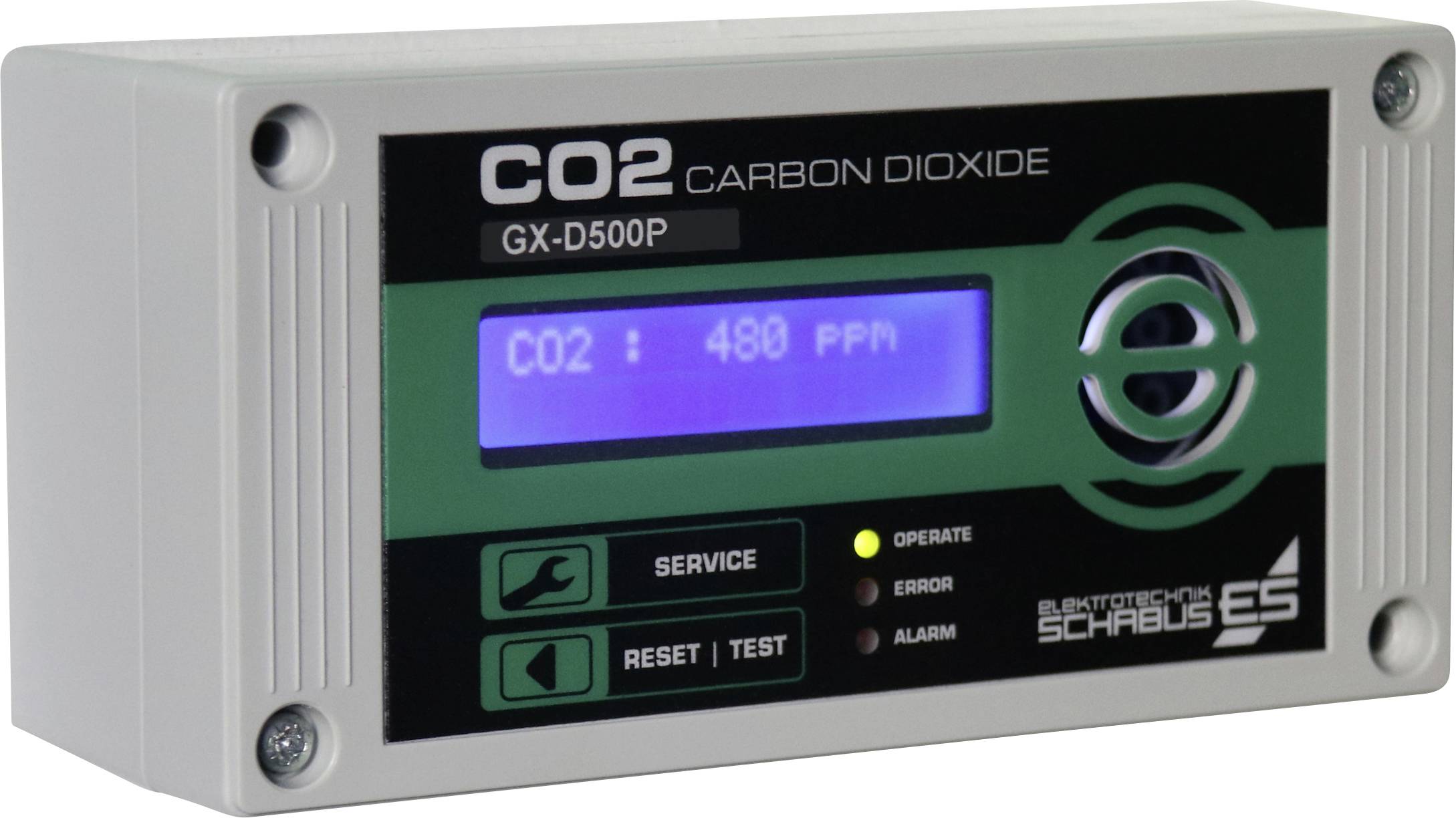

CO2 meter shows 'CO2 = 480 PPM'. Display for operation, error, and alarm. Used for measuring carbon dioxide levels.

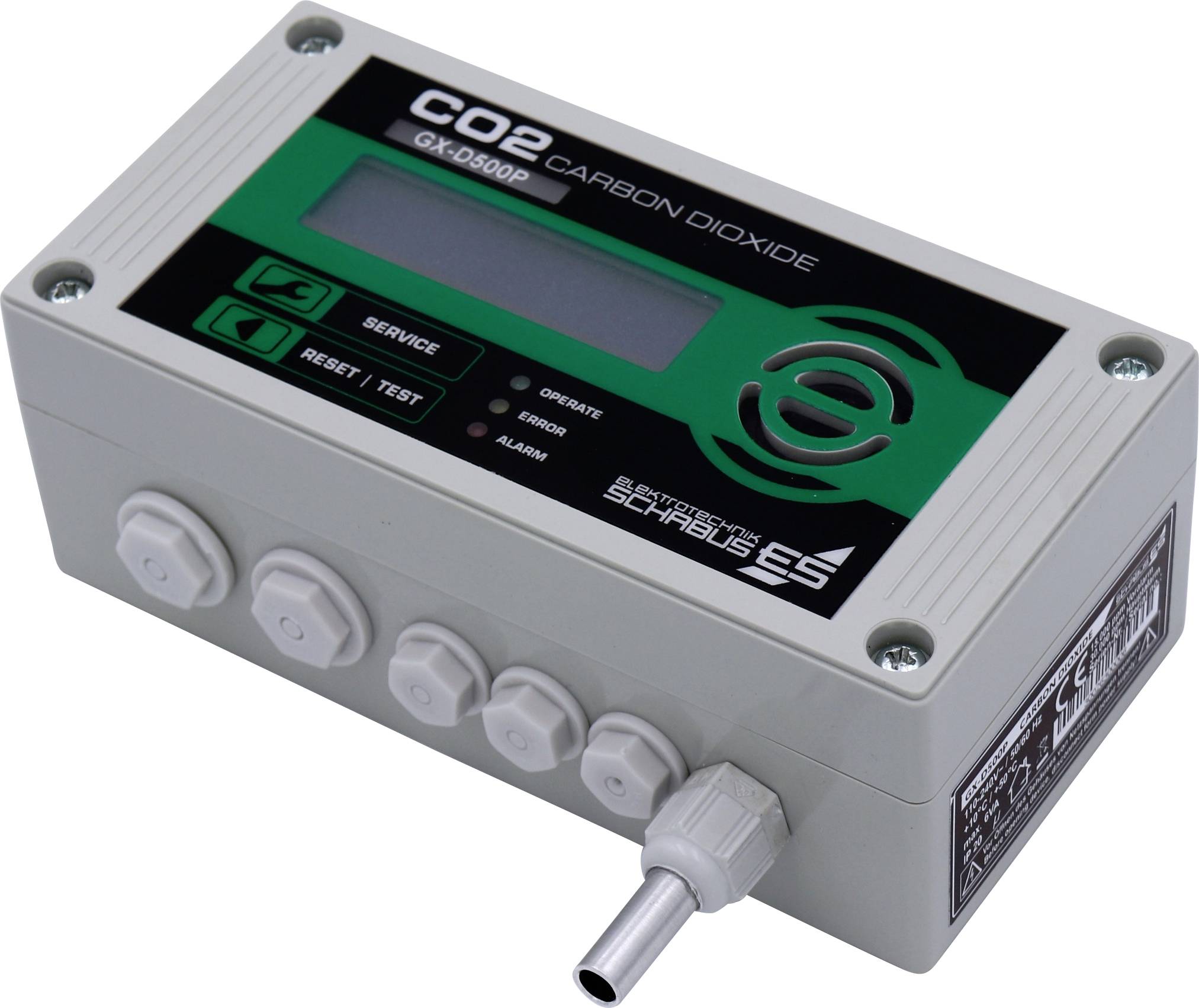

CO2 Gas Detector with LCD Screen and Four Buttons. Displays the carbon dioxide content. Labelled with 'Service' and 'Reset/Test'.

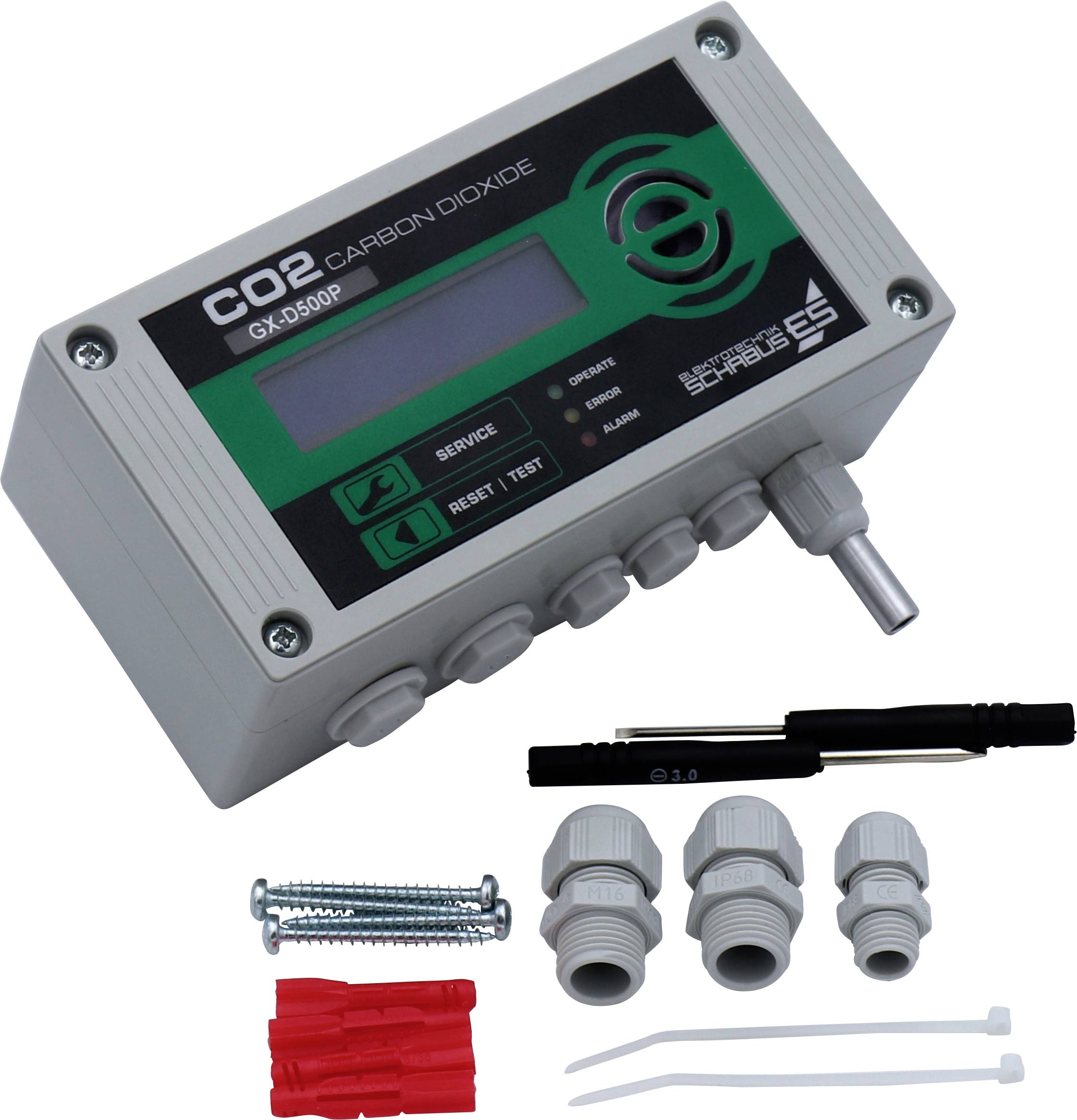

A CO2 detector with an LCD display shows measurement values. Below it are mounting materials: screws, wall plugs, cable glands and cable ties.

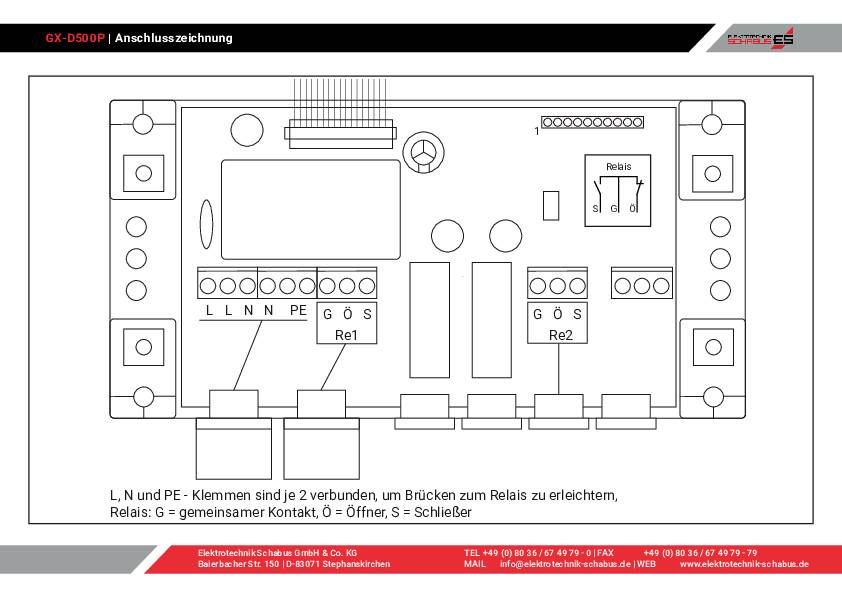

'Connection diagram of an electrical circuit with relays, sensor connections and labels for L, N, PE at two points.'

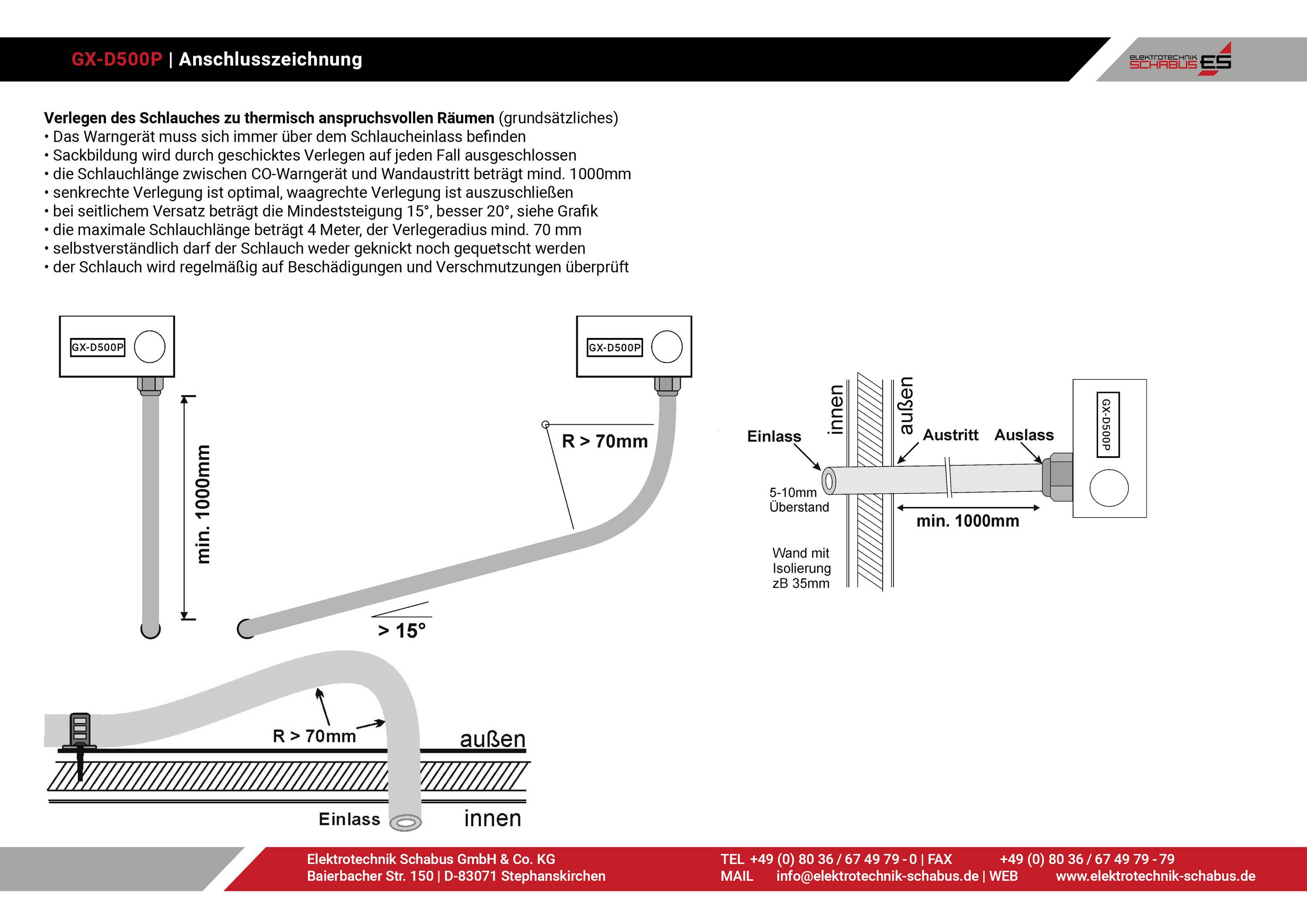

'Connection drawing for the GX-D050P sensor. Distances and orientations for installation in thermally demanding spaces.'

1/6

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 410.92 / piece)

€ 410.92

plus VAT.

Report legal concerns

Highlights & Details

Professional CO2 warning device with suction hose for thermally demanding environments!

Dry ice processing/storage, e.g. vaccination centers
Meat and sausage refrigeration
Automatic forced ventilation
Beverage dispensing systems and greenhouses
Rooms with very hot, cold, moist or dusty air or in ventilation systems with draft air

Technical specifications

Operating voltage 230 V~ (+/- 10%) / max. 8 VA
Switching capacity alarm (max.) 250 V~ / 5 A (changeover contact)
Breaking capacity fault (max.): 60 V= / 5 A (changer)
Installation / socket: Surface-mounted, fixed installation / none
Degree of protection: IP20 / IP65 possible on request
Operating range: 10°C … 50°C / 5 … 90% rel. Hg
Connection: Screw terminals internal, hose plug connection external
Dimensions: (HxWxD) 80x160x55 mm
Display: Illuminated 2×16, display 3 LED (red, green, yellow)
Alarm: Piezo 85 dB(A) @ 1m

Product type: Carbon dioxide detector

Detector features: incl. built-in sensor

Alarm at gas/gas mixture: YES 3% CO2

detects: Carbon dioxide

Current consumption: Max. 8VA

Power supply (LOV): mains-powered

Width: 17 cm

Height: 7 cm

Depth: 28 cm

Weight: 760 g

Content: 1 pc(s)

Dim: (W x H x D) 17 x 7 x 28 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2467780 Schabus GX-D500P Carbon dioxide detector incl. built-in sensor mains-powered detects Carbon dioxide

User & Safety Instructions

User & Safety Instructions 2467780 Schabus GX-D500P Carbon dioxide detector incl. built-in sensor mains-powered detects Carbon dioxide

Description

The GX-D500P is a carbon dioxide warning device with exact measurement and display of all operating parameters on a clear-text display. The NDIR long-life infrared sensor is constantly monitored by two μControllern and delivers precise results with high repeatability. In the event of an alarm, a loud piezo sounds and a changeover relay switches. A further relay switches in the event of detected technical faults. The service life of the sensor depends on temperature and humidity, therefore a fan wheel is installed as a diffusion accelerator in a silicone hose, which sucks in the air to be monitored from a room and is thermally processed. Thus, a service life of 5 to 8 years is possible, a sensor exchange can be done quickly and cost-effectively with electrical engineering Schabus.
The GX-D500P is ideal for detecting defects in technical CO2 systems under pressure in indoor areas before entering the room. The GX-D500P is also ideally suited for monitoring the ventilation in rooms with dry ice processing.

This text is machine translated.

Features

Internal NDIR infrared sensor
μController monitoring and storage of many parameters
Regular self-tests with documentation
Pre-alarm 1.5%vol / Main alarm 3.0%vol
Clear text display, status LEDs, alarm counter, error memory, loud piezo alarm transmitter
