Buy Schabus GX-LNG Gas sensor detects Methane, Butane, Propane, Coolants / freezing agents

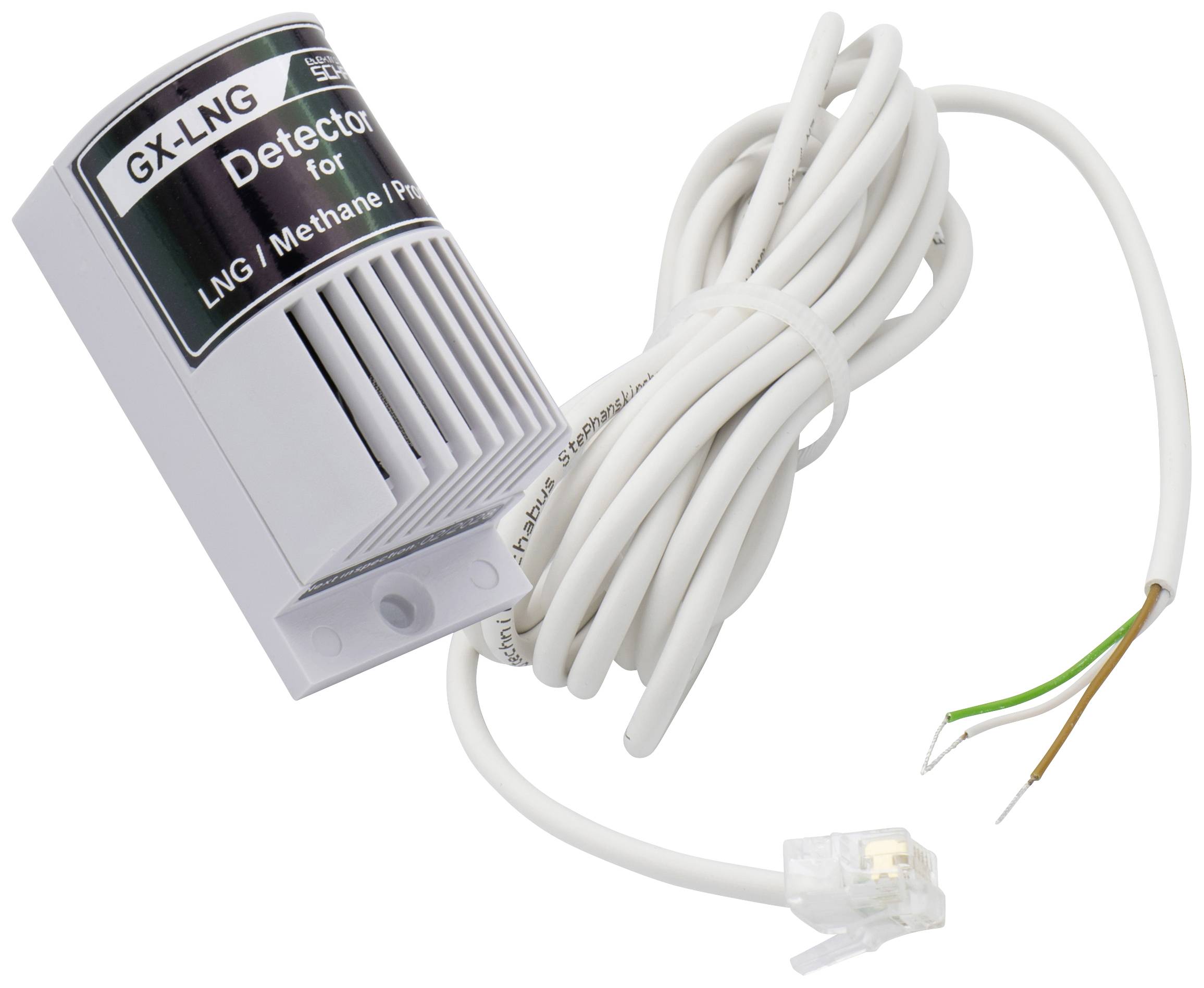

Gas detector with cable for detecting LNG methane. White housing with ventilation slots and cable ends.

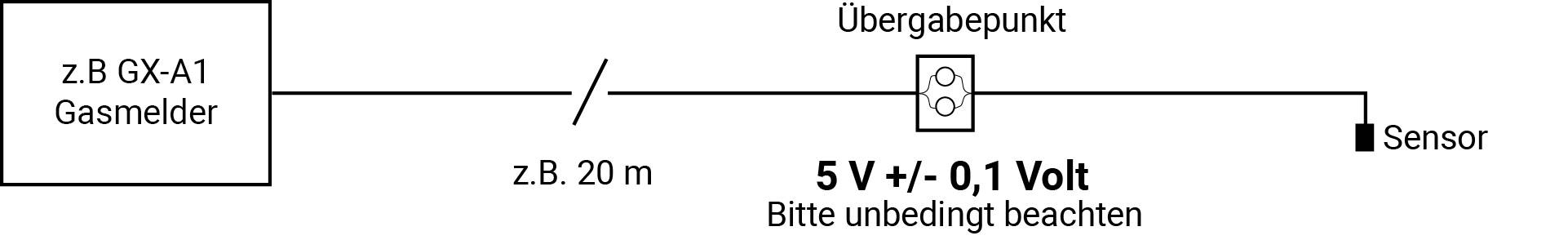

Schematic of a gas detection system: 'e.g. GX-A1 gas detector' connected over 'e.g. 20 m' distance to a transfer point with '5 V +/- 0.1 volts'.

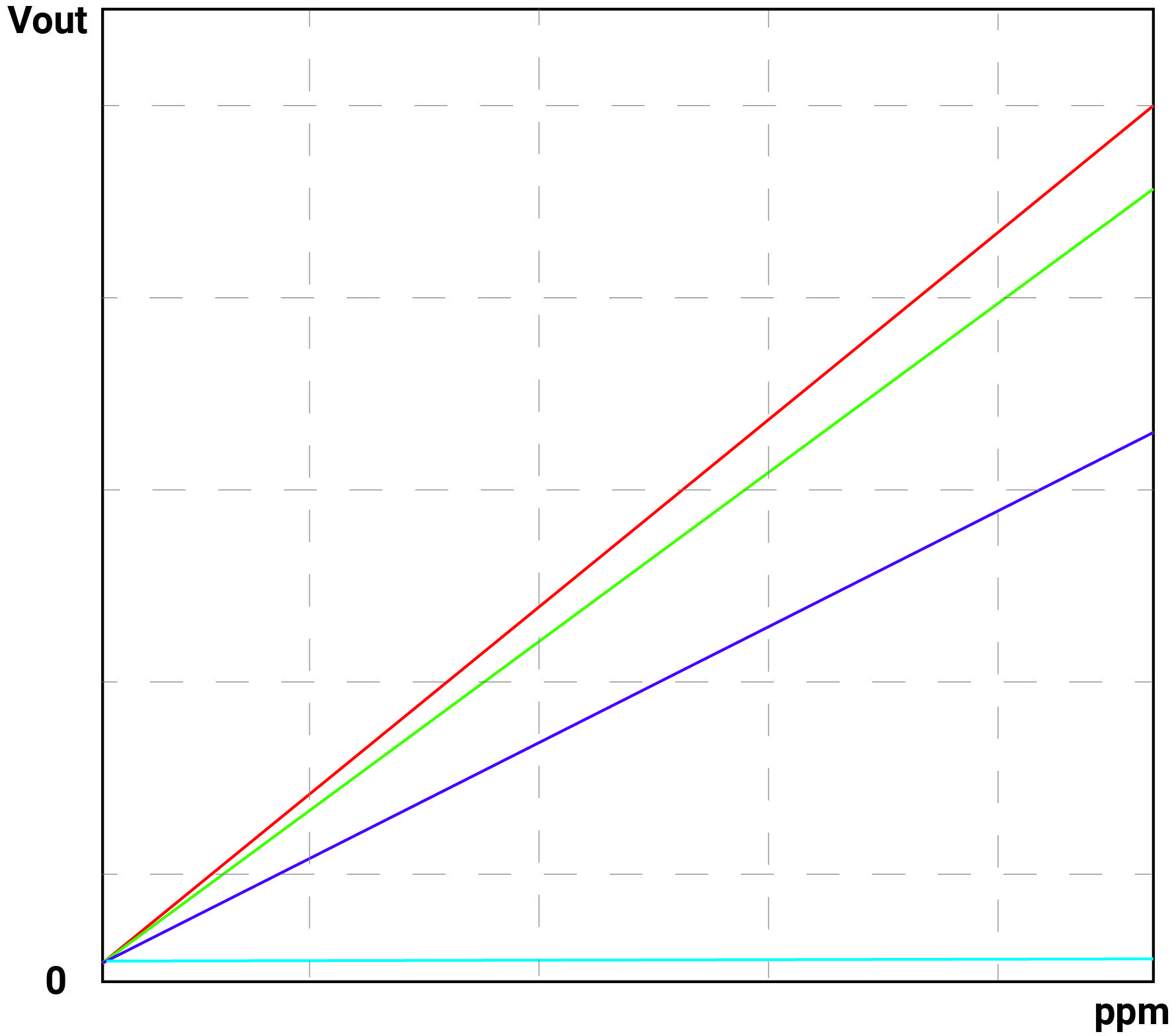

Diagram shows several coloured lines (red, green, blue) on a graph with axes 'Vout' and 'ppm'. Lines demonstrate different gradients.

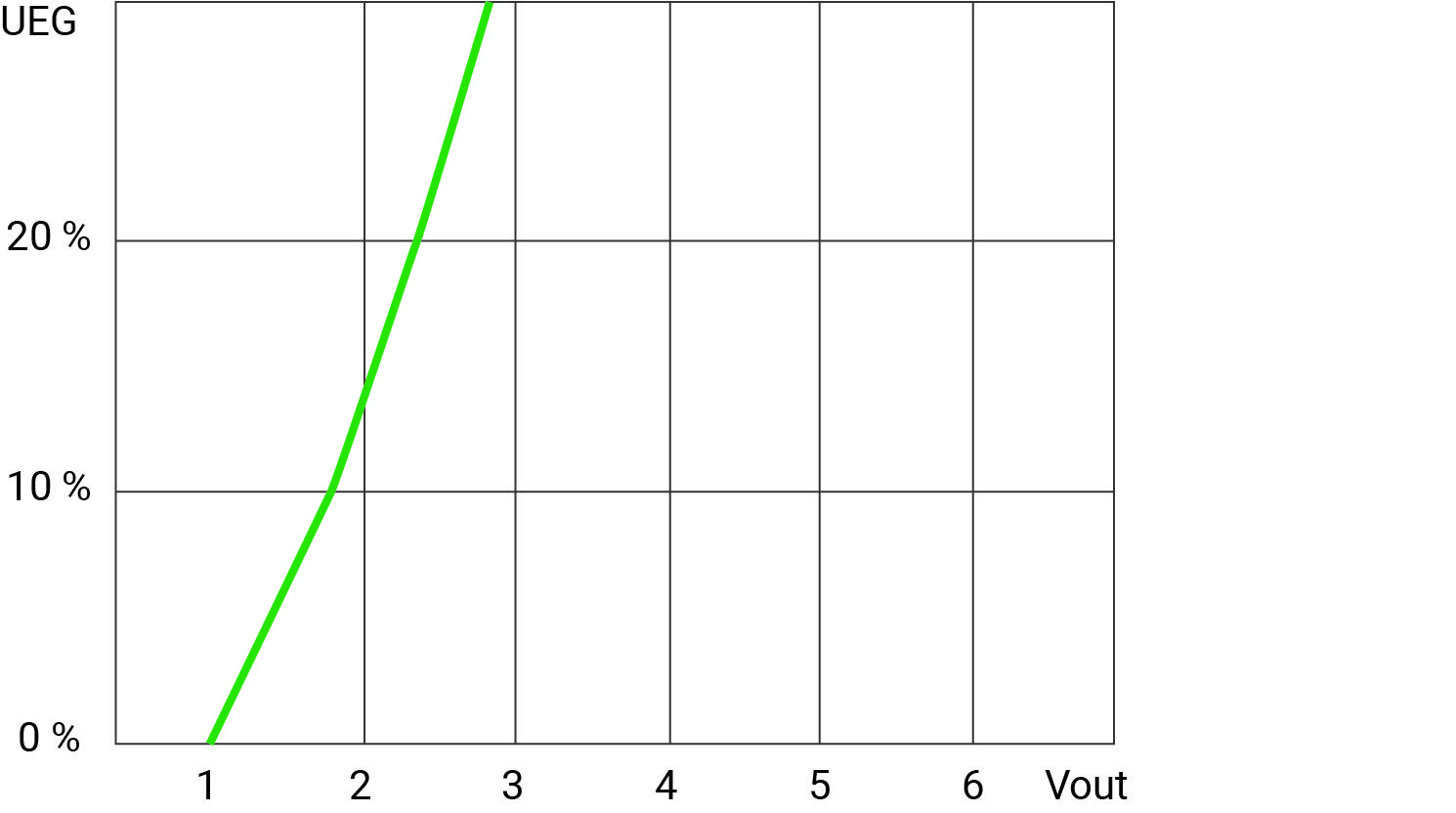

Schabus GX-LNG Gas sensor detects Methane, Butane, Propane, Coolants / freezing agents-3

1/4

Fast track dispatch on Fri, 11 Sep

33 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

Report legal concerns

Highlights & Details

Gas sensor GX-LNG

LNG, methane, propaneExternal LNG, city/natural gas sensor for warning devices GX-A1+ or GX-HSDetects natural gas (methane) from leaks in the house installation or Bottle gas (butane, propane) from leaking fittings

Technical specifications

OPERATING VOLTAGE 5 V DC -24 V.Power consumption maximum 175 mASensor output voltage 1 - 4.5 VHeating current 175 mASensor type: CatalyticHumidity (ambient): 5 - 90% RH (non-condensing)Operating temperature -10 °C /+50 °CStorage temperature: -20 °C…+70 °CService life: Approx. 5 yearsProtection class: IP20Cable length 2.5 m.Cable Ø 3.5 mm

Product type: Gas sensor

detects: Methane
Butane
Propane
Coolants / freezing agents

Width: 27 mm

Height: 52 mm

Depth: 29 mm

Content: 1 pc(s)

Dim: (W x H x D) 27 x 52 x 29 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2852871 Schabus GX-LNG Gas sensor detects Methane, Butane, Propane, Coolants / freezing agents

Description

The Gas Sensor GX-LNG is a sensor for LNG, city gas, natural gas and liquefied gas. It is used as an accessory for the gas detectors in our product range.The sensor may not be used in rooms where there is a risk of explosion.External sensor for the gas warning devices GX-A1 and GX-HSDetection for LNG, city/natural gas, (methane) and liquefied gas (propane/butane), R290The external sensor is suitable for the gas warning devices GX-A1 and GX-HS and is connected to the cable via an RJ connector.The connection cable of the sensor can be extended.The following minimum cross-sections result depending on the length of the cable:Cable cross-section 3 x 0.14 mm²: Maximum length 20 m.Cable cross-section 3 x 0.5 mm²: Maximum length 50 m.

This text is machine translated.
