Buy Schellenberg 22638 RD45 Electric belt winder 23 mm Tensile force (max.) 12 kg Recess-mount

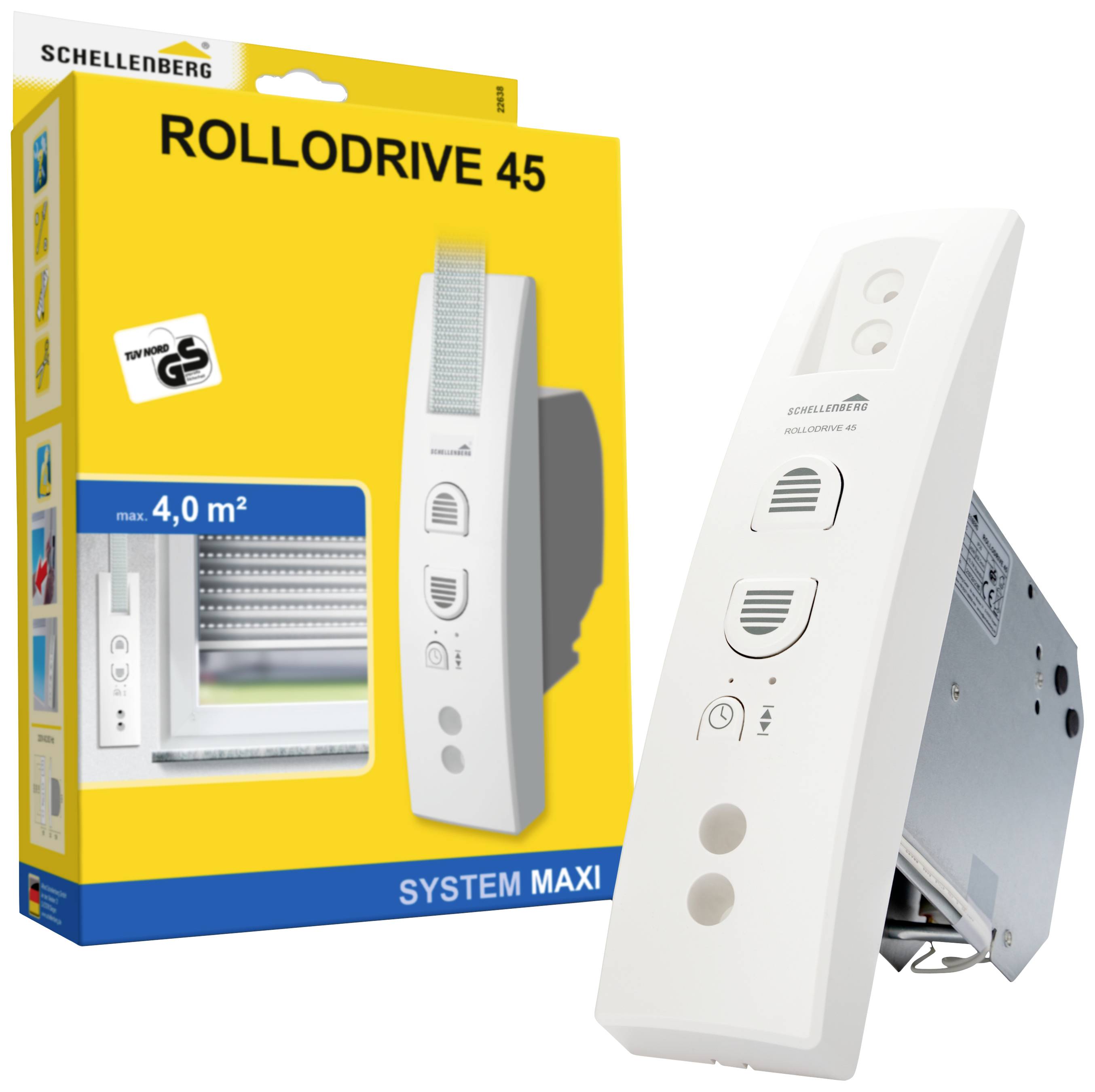

'RolloDrive 45' motorised belt winder by Schellenberg for automatic roller shutter control for areas up to 4.0 m², shown in packaging and unpacked.

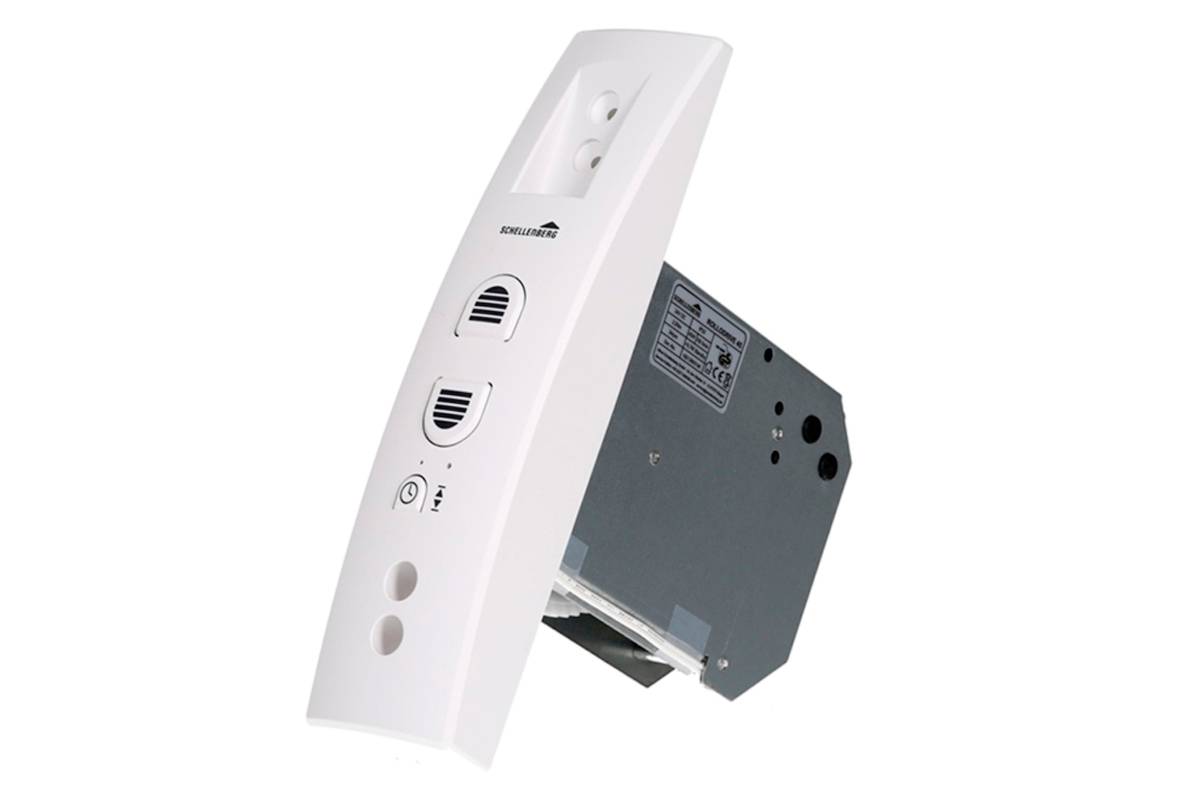

A white doorbell button with two intercom buttons and a microphone. Next to it is the housing that is recessed into the wall.

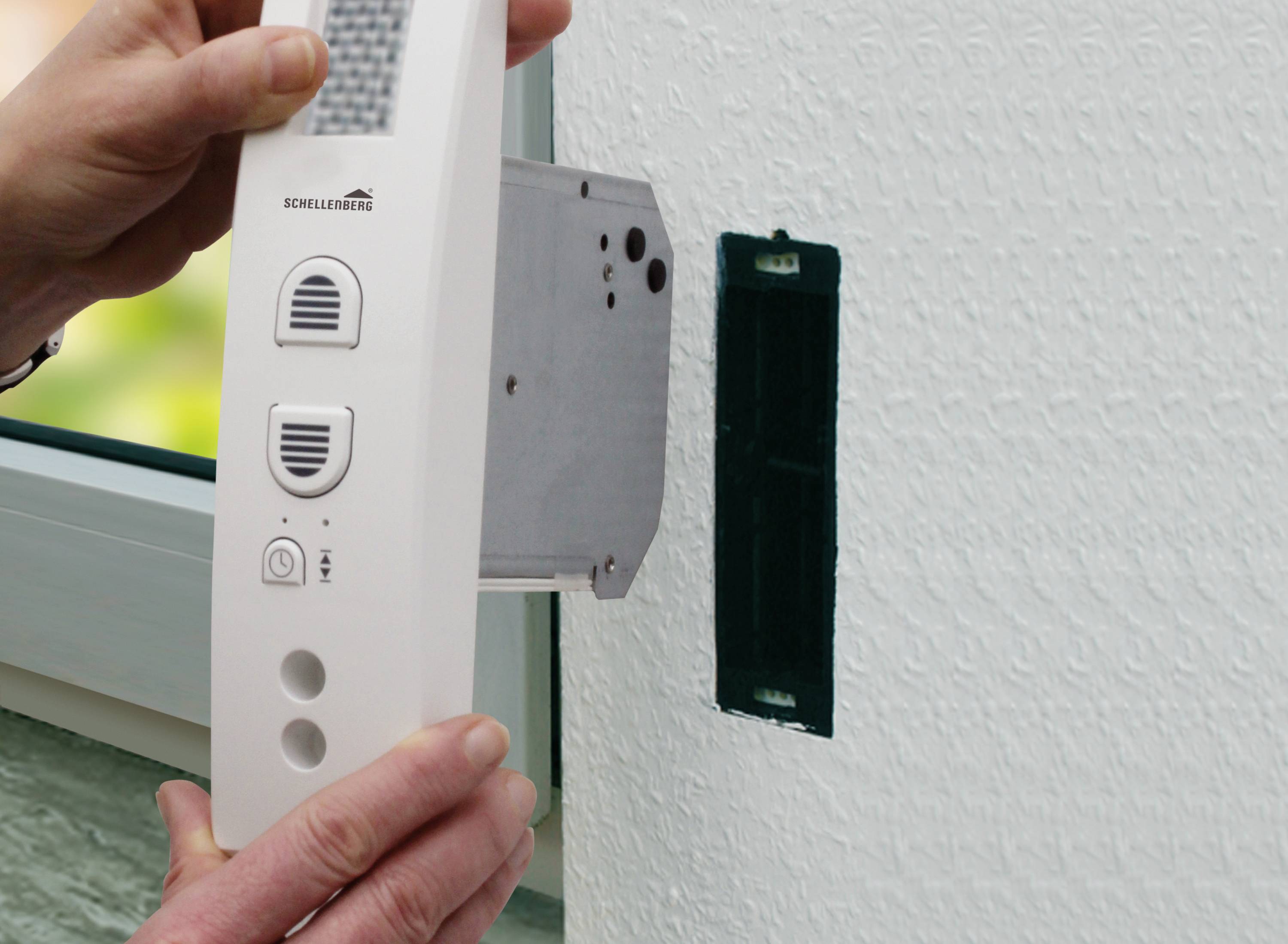

A person is installing a white intercom unit on the wall next to a window. The intercom has buttons and a speaker grille.

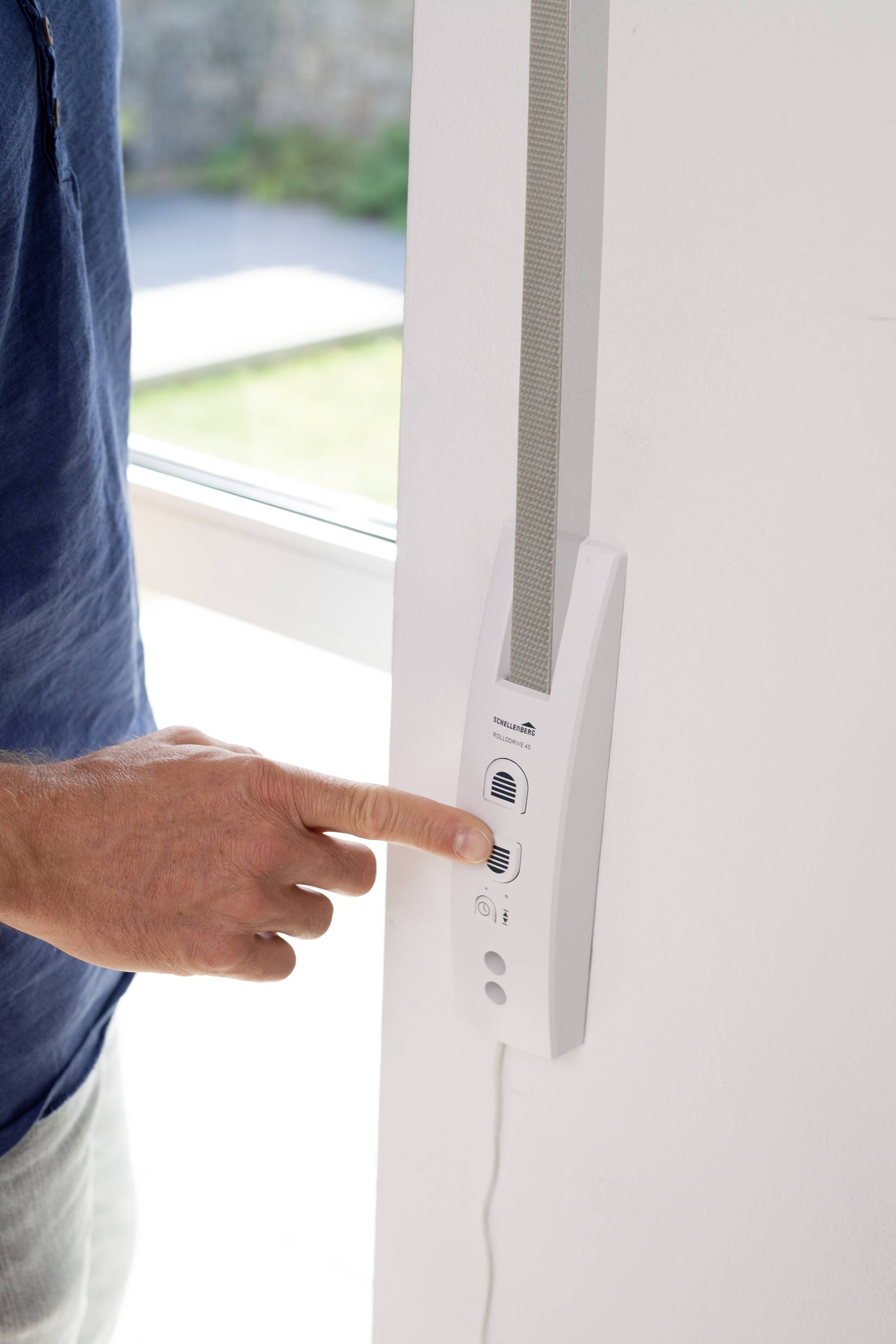

A person is pressing a button on an electric roller shutter control switch mounted on a white wall.

An electronic roller shutter drive set, comprising a motor, control unit, power supply, screws, and installation instructions.

Technical drawing of an electronic module with interfaces and dimensions. Shows front, side, and top views with dimensional specifications.

1/6

Dispatches on Fri, 25 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 80.66 / piece)

€ 80.66

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Schellenberg Electric belt winder RD45 23 mm

Motorized inlet winderFor plastic shutters up to 4 m² areaWith timer and safety cut-offMaxi roller shutter system with 23 mm belt width, hole spacing 135 or 165 mmPower supply via mains cable, end-position protection in case of power failure

Technical specifications

Hole spacing 135 mm or 165 mmRoller shutter system: MaxiShutter surface: Max. 4.0 m²Surface area for plastic roller shutters: Max. 4.0 m²Surface area for aluminum/wood shutters: Max. 2.0 m²Belt width 23 mmBelt length at 23 mm Width: 5.5 m at 1.0 mm Belt thickness, 4.3 m at 1.3 mm Belt thicknessPower cable length 1.9 mPower standby: Less than 0.7 W.POWER CABLE 24 V DC/1.2 ASpeed: Max. 34 rpmTensile force/initial tensile force: Max. 12 kgEnd tensile force: 7 kg on belt strapShort-term operation: 5 minutesProtection class IIIProtection class: IP20, only for dry roomsPosition accuracy 5 mmNumber of switching times: 2 (up and down)Setting range for automatic sun system: 3,000 to 10,000 LuxPermissible ambient temperature: 0 °C to +40 °C.Accuracy of the clock: Approx. +/- 1 minute/month

Product type: Electric belt winder

Belt width: 23 mm

Nominal torque: 2.5 Nm

Mounting type: Recess-mount

Nominal power: 29 W

Operating voltage: 230 V

Factory colour: White

Assembly dimensions: 129 x 101 mm

Dim: (W x H x D) 55 x 220 x 32 mm

Hub: Not required

Width: 55 mm

Height: 220 mm

Depth: 32 mm

Tensile force (max.): 12 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2624175 Schellenberg 22638 RD45 Electric belt winder 23 mm Tensile force (max.) 12 kg Recess-mount

Description

The Schellenberg RolloDrive 45 enables the operation of a roller shutter comfortably by pressing a button or automatic timer. The electric belt winder is suitable for plastic shutters up to a surface of 4 m² and is compatible with the Maxi roller shutter system with a belt width of 23 mm. It completely replaces an existing mechanical belt winder. The ROLLODRIVE 45 can be installed in all common wall boxes with an opening width of at least 35 mm and a height of at least 103 mm. It has two hole spacing of 135 mm or 165 mm. The electric belt winder is ideal for rental objects, as the opening of the roller shutter box is not necessary for installation.The built-in timer makes it possible to have the shutter automatically up or down at the desired times. For this purpose, an up or down ramp can be programd. If the roller shutter blocks or hits an obstacle, the electric belt winder stops automatically. Large buttons on the RolloDrive 45 make it easy to operate and adjust the end positions. The power is supplied via a mains cable.As an extension, the roller shutter can be controlled according to the position of the sun with a separately available sun sensor. This means, for example, that Furniture and plants are protected from excessive sunlight.
