Highlights & Details

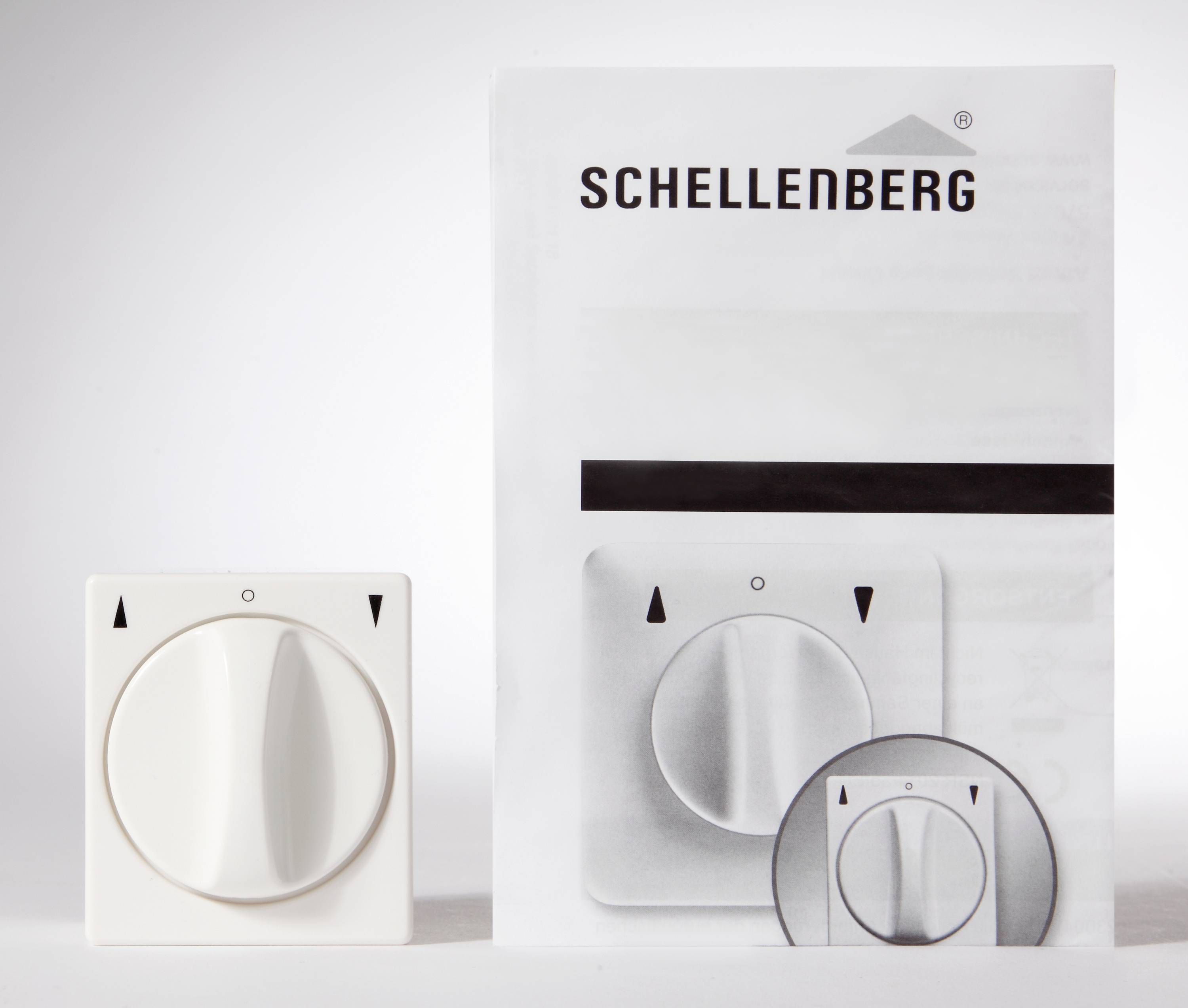

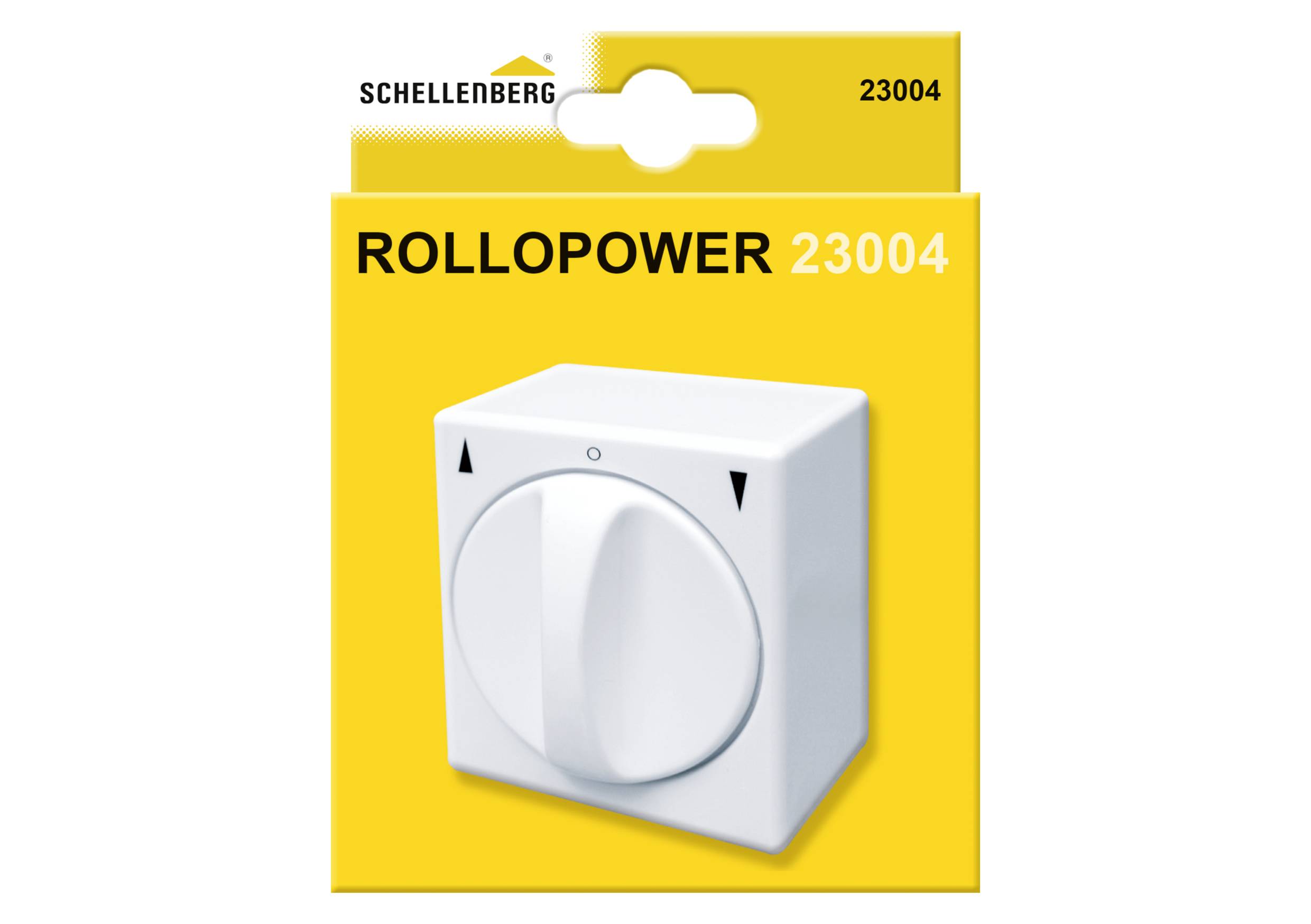

Schellenberg 23004 switch button, momentary/toggle/toggle AP white

For manual up and down control of a roller shutter motorToggle switch with easy conversion of button and latch functionSimple surface mountingRetrofittable installation possibleCompatible with most mechanical roller shutter motors

Technical specifications

Nominal current 10 AConnections: Max. 1.5 mmSwitch contact: Max. 8 A (4 A ind.)Ambient temperature -30 °C to +50 °CDesign: Changeover contactNumber of connection poles: 5

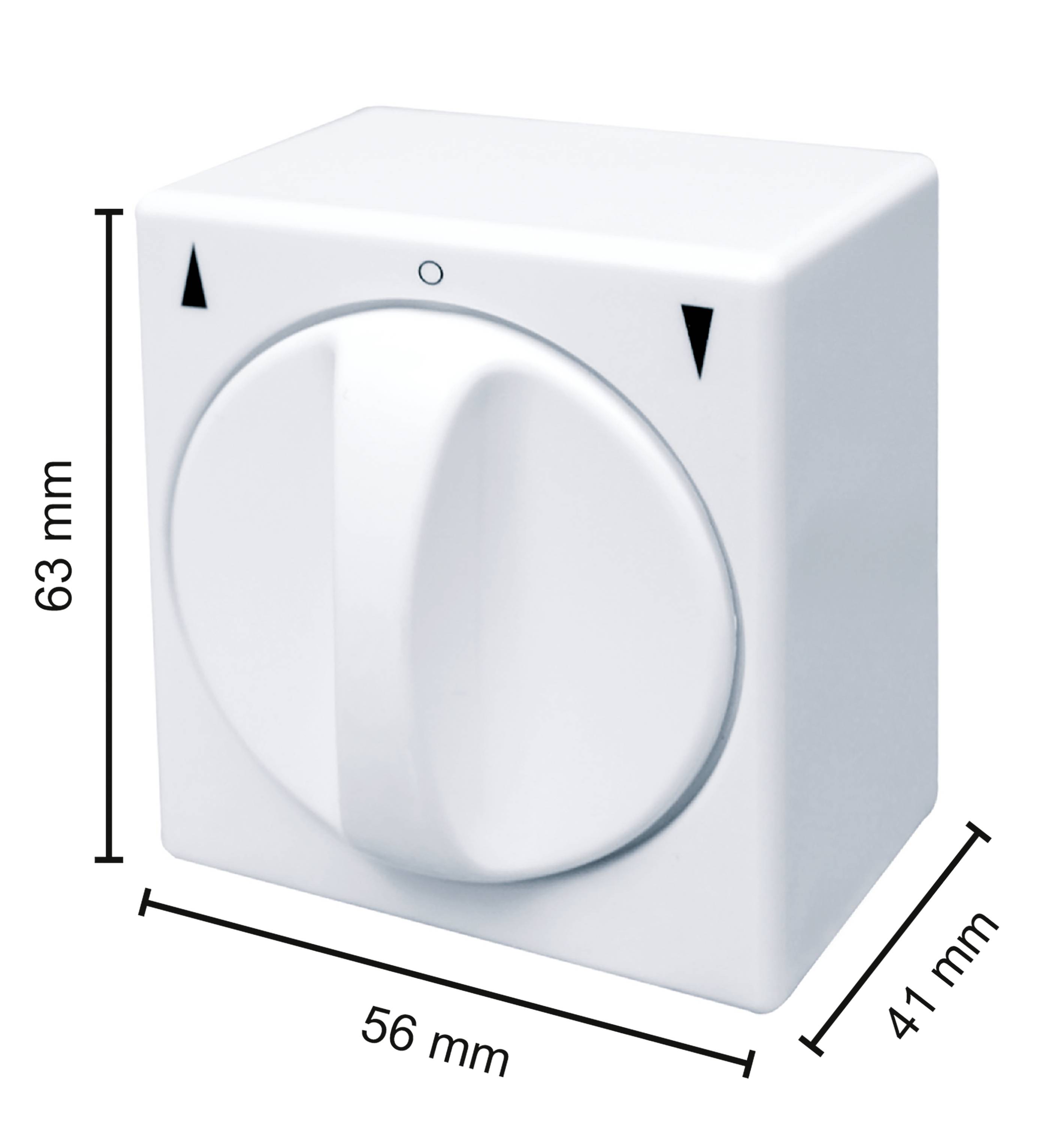

Dim: (W x H x D) 56 x 63 x 41 mm

Product type: Rotary switch

Mounting type: Surface-mount

: IP20

Operating voltage: 230 V

Width: 56 mm

Height: 63 mm

Depth: 41 mm

Use: Lighting and appliance control

Factory colour: White

Hub: Not required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2624134 Schellenberg 23004 IP20 Surface-mount

Description

The roller shutter switch enables the manual up and down control of a roller shutter with motor. Using an adapter inside the shutter switch, the shutter switch can be switched from a momentary to a latching function. The button function provides that the shutter switch must be held in place to reach the desired end position. In the latching function, on the other hand, the switch engages and moves to the desired end position.The roller shutter switch is suitable for dry indoor areas according to protection class IP20 and is surface-mounted. It is an ideal control element for THE STANDARD and PLUS models of the Schellenberg roller shutter motors and is compatible with most mechanical roller shutter motors of other manufacturers.
