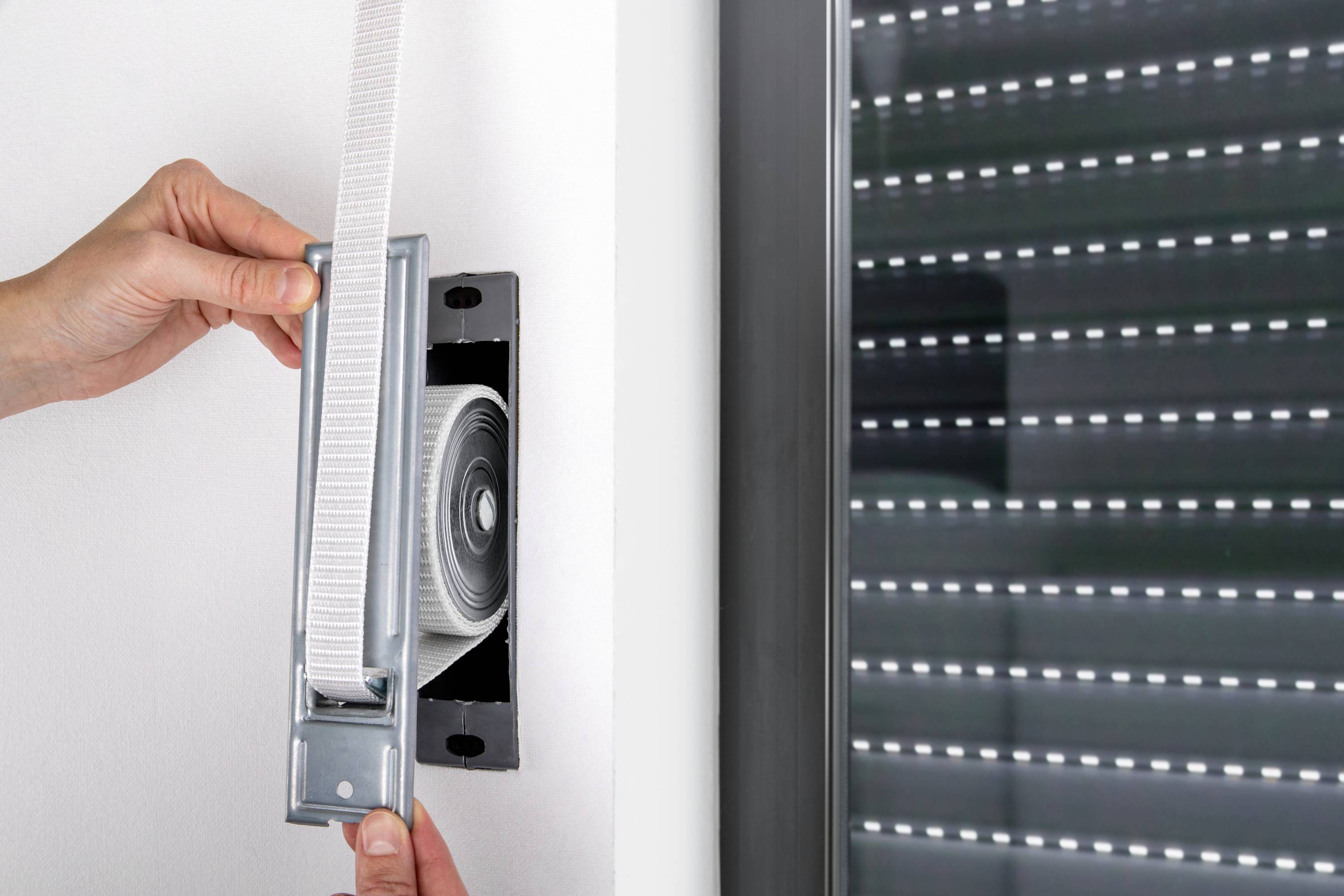

Hands are installing or adjusting a roller shutter strap at a window that is partially covered by a closed roller blind.

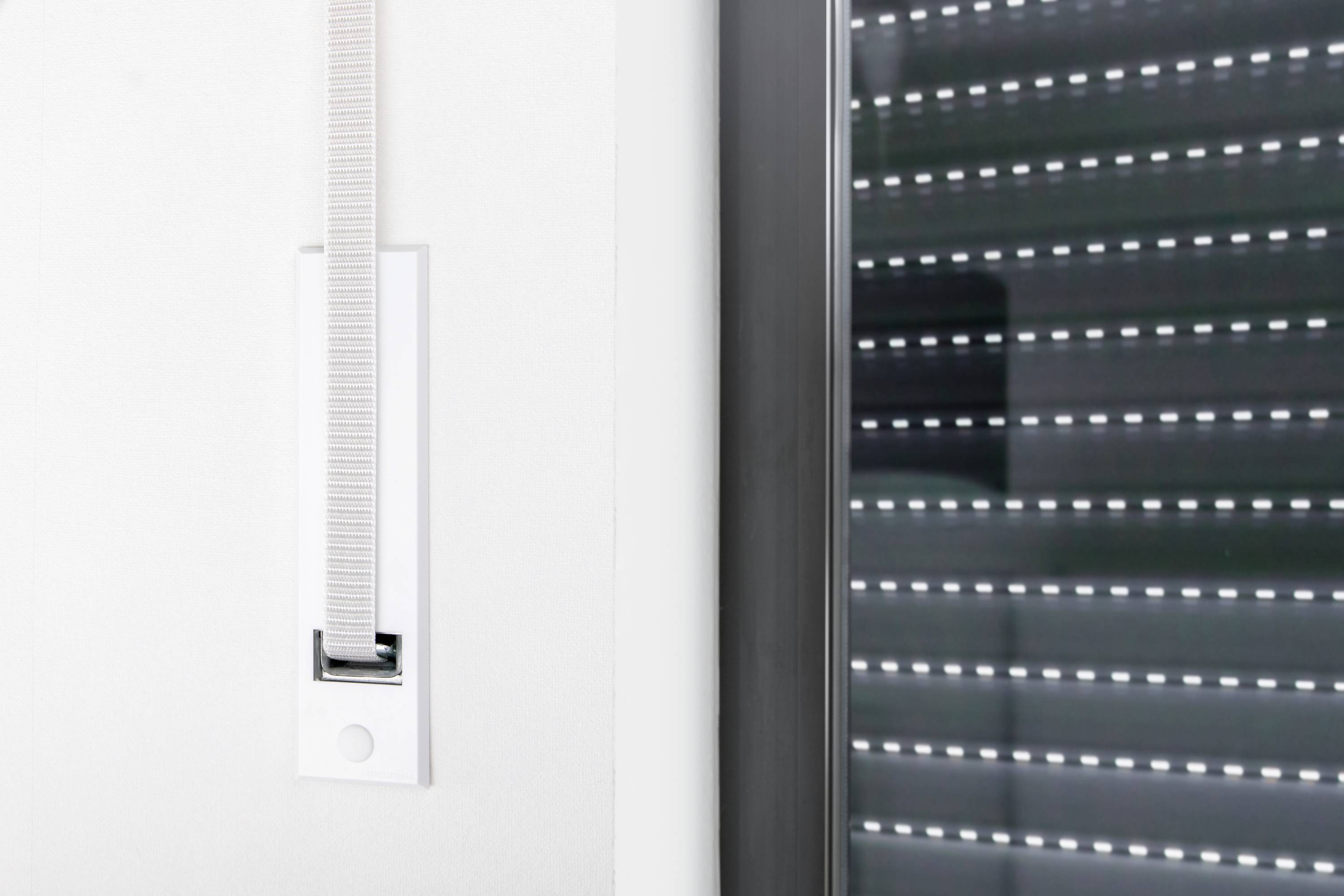

A window with a closed roller shutter and a strap winder on the wall beside it. The roller shutter is made of metal with narrow slits.

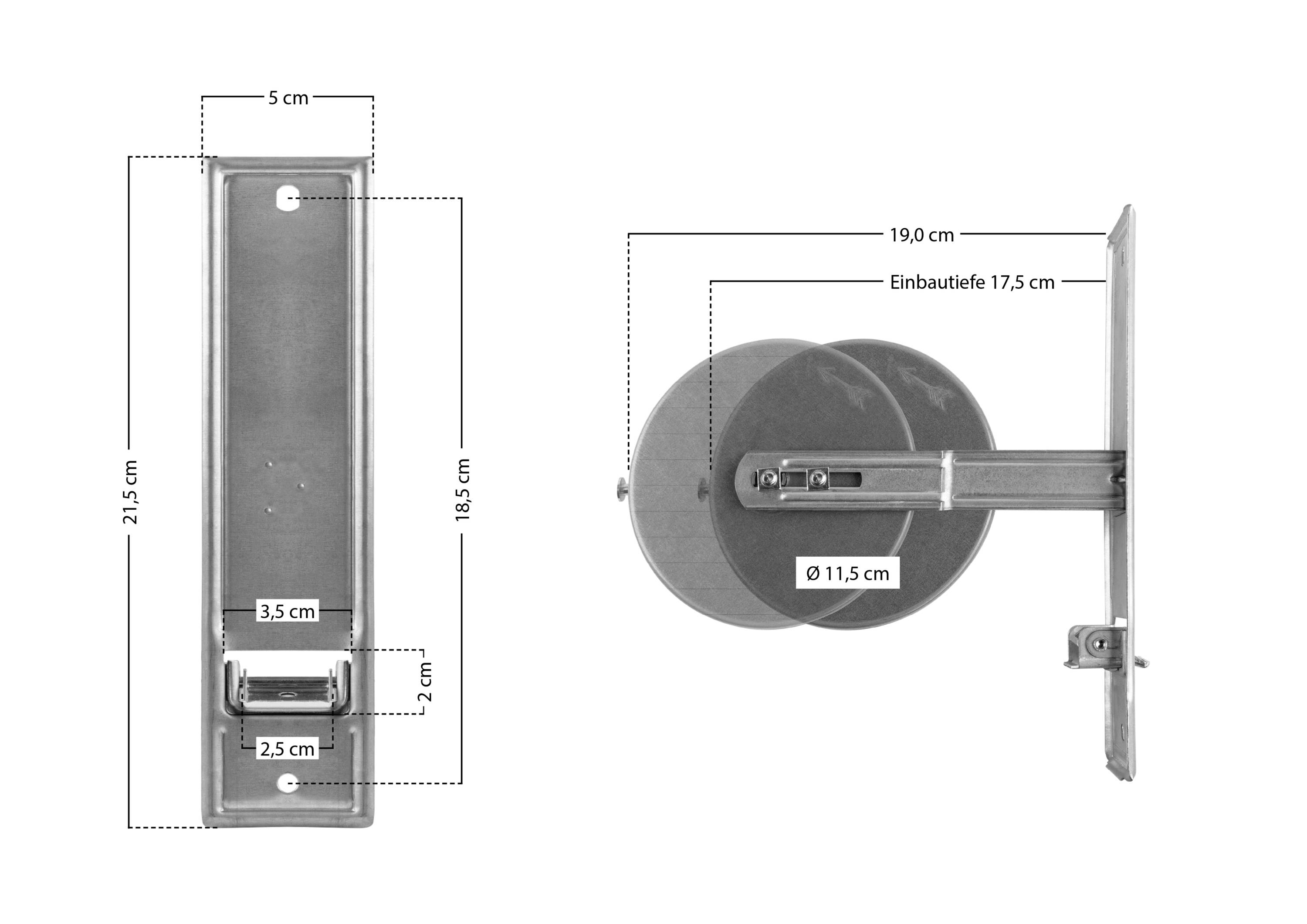

Technical drawing of a wall-mounted roller holder with dimensions: Height 21.5 cm, Width 3.5 cm. Two rollers with diameter 11.5 cm, Installation depth 17.5 cm.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Schellenberg inlet winder, Maxi, 185 mm - max. 12 m length of belt

Robust and high-quality inlet wrapper for shutters at windows and doors
For shutter straps with 23 mm width (MAXI) and max. 12 m length
Hole spacing: 18.5 cm

Technical specifications

Product type: Belt winder (flush-mount)

Compatible with: Schellenberg Maxi

Factory colour: Aluminium

Weight: 136 g

Width: 50 mm

Height: 175 mm

Depth: 208 mm

Dim: (W x H x D) 50 x 175 x 208 mm

Hub: Not required

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1229050 Schellenberg 50300 Belt winder (flush-mount) Compatible with Schellenberg Maxi

Description

The schellenberg inlet Wrapper system MAXI (23 mm) is suitable for window and Turrollladen. The technically robust and high-quality processed winder with hole spacing 185 mm is simply inserted in the wall box. All Schellenberg inlet wrapper are pre-tensioned to the winding of the roller shutter belt during installation much more comfortable. With especially low mounting form, so that roller shutter straps with up to 12.0 m be wound up.
Tip: belt winder, cover plates and wall box are the mechanical heart of a roller shutter. They differ by the hole spacing. Therefore, make sure that when buying all on the same hole spacing.
