Schellenberg Smart DRIVE XL 60924 Garage door opener 100 kg

The new generation of Schellenberg smart garage door drive

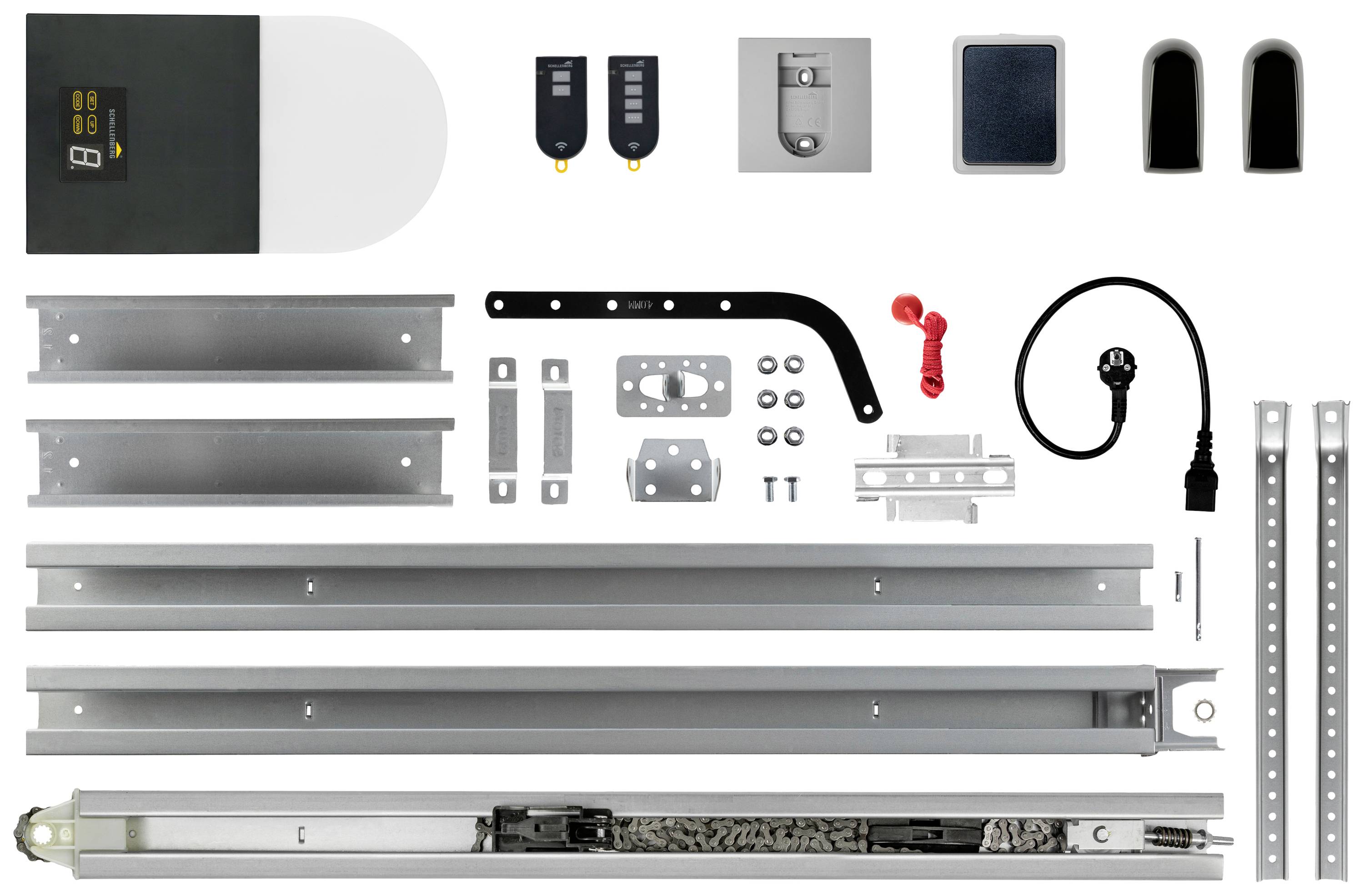

The smart drive XL garage door motor with extensive scope of delivery enables the radio-controlled operation of rail-guided swing and sectional doors with a surface area of up to 14 m². It is compatible with smart friends' smart home system, which allows additional control via smart friends app or was combined with other smart products. The delivery includes a 2-channel and a 4-channel hand-held transmitter, a wall bracket for hand-held transmitters, an indoor button and a light barrier. The high wireless security level, the simple programming and the possible extension with extensive accessories make the smart drive XL a powerful model with many extras. The garage door motor has a pulling force of 1000 N and is suitable for garage doors with a weight of up to 100 kg. A gate height of 2.35 m should not be exceeded.

The smart drive XL is ready for use in a short time thanks to the simple one-person mounting and semi-automatic end position setting. The smart drive XL 3-piece guide rail is mounted to the ceiling with a minimum clearance of 35 mm and is made of galvanized, torsion-resistant steel. When the set end points are reached, the motor switches off precisely through the electronic path detection.

The motor head is mounted on a galvanized sheet steel, which was designed to give the garage door motor more stability. The control panel and LED indicator are located under the motor head. Additional connection options are located at the rear of the drive, where for example an additional LED garage lighting or a slip door contact can be connected. smart DRIVE XL also has an integrated LED lamp and a cold plug connection to which the Schellenberg spiral cable can be connected as a practical additional socket for the garage. Both the integrated and the additionally connected light switch on automatically when the garage door is opened and off automatically after three minutes. It is also convenient that the light can be switched on or off independantly of the garage door using the hand-held transmitter. Further extensive accessories from Schellenberg are available separately.

To ensure that your home is safe at all times, we at Schellenberg place great importance on your safety when developing all garage door motors. For this reason, all garage door drive models have automatic obstacle detection, overheating protection of the motor, data retention in the event of a power failure, an emergency release for the inside as well as a tamper-proof radio transmission. Our proprietary Schellenberg wireless protocol was developed at the highest security level, so that the garage door drive cannot be controlled by unauthorized persons. The innovative, bi-directional radio transmission takes place with a frequency of 868.4 MHz and enables the smart drive XL to receive and also send signals.

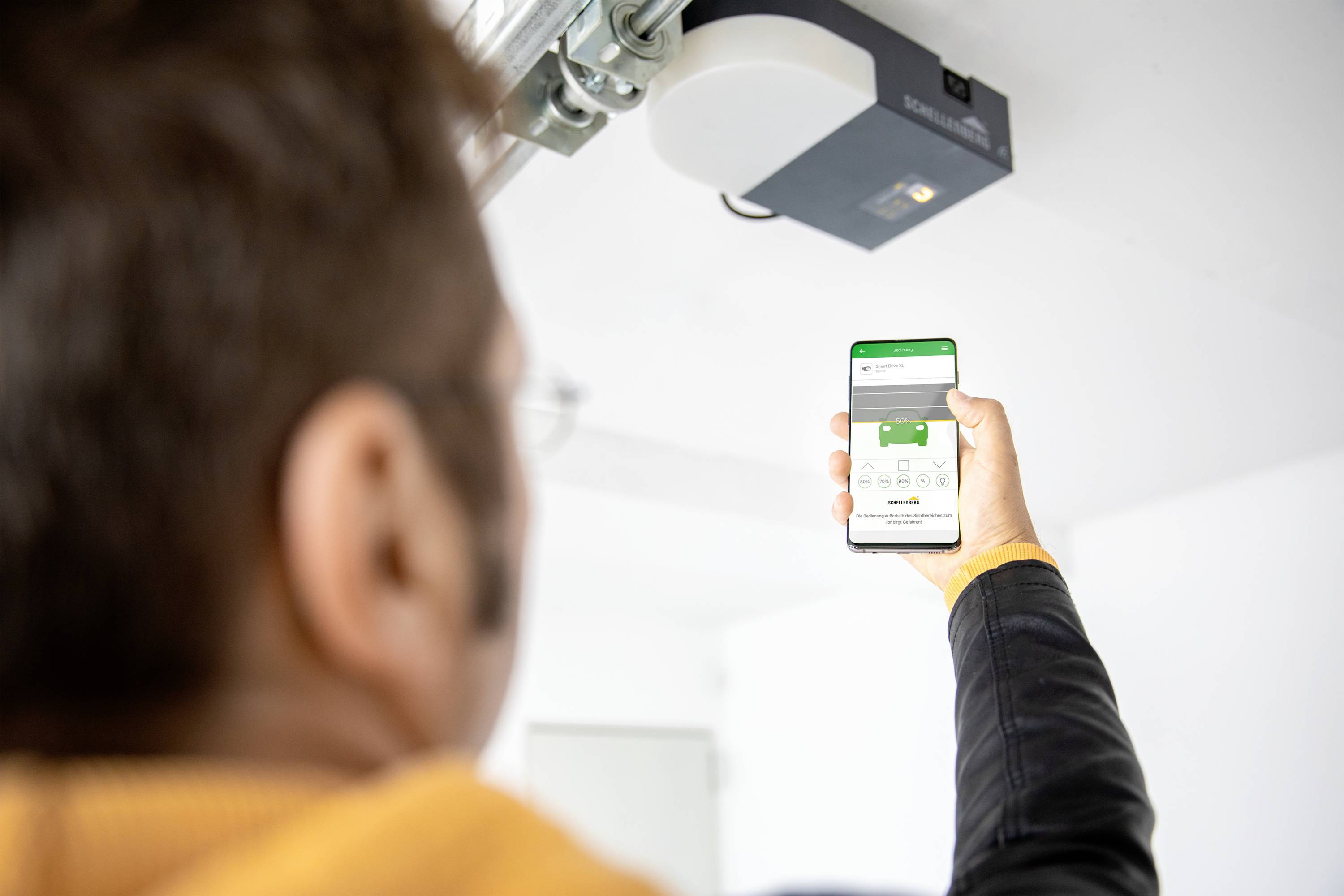

Because Schellenberg believes that smart home will become increasingly important in the future, the new garage door motors of the smart drive series can be integrated into the versatile smart home system of smart friends. This provides countless possibilities to link the garage door drive with other smart products and, for example, to control it automatically.

This text is machine translated.
