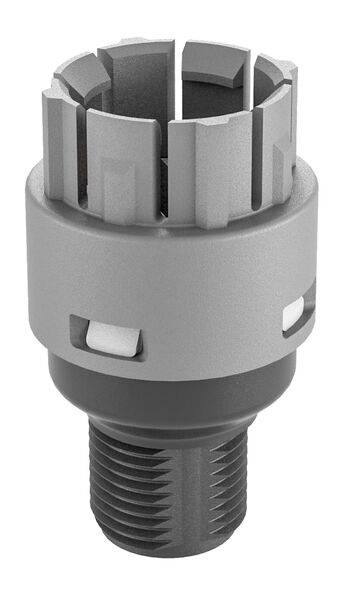

A grey tool component with a cylindrical body and toothed apertures at the top and a ribbed lower end.

Image similar

A grey tool component with a cylindrical body and toothed apertures at the top and a ribbed lower end.

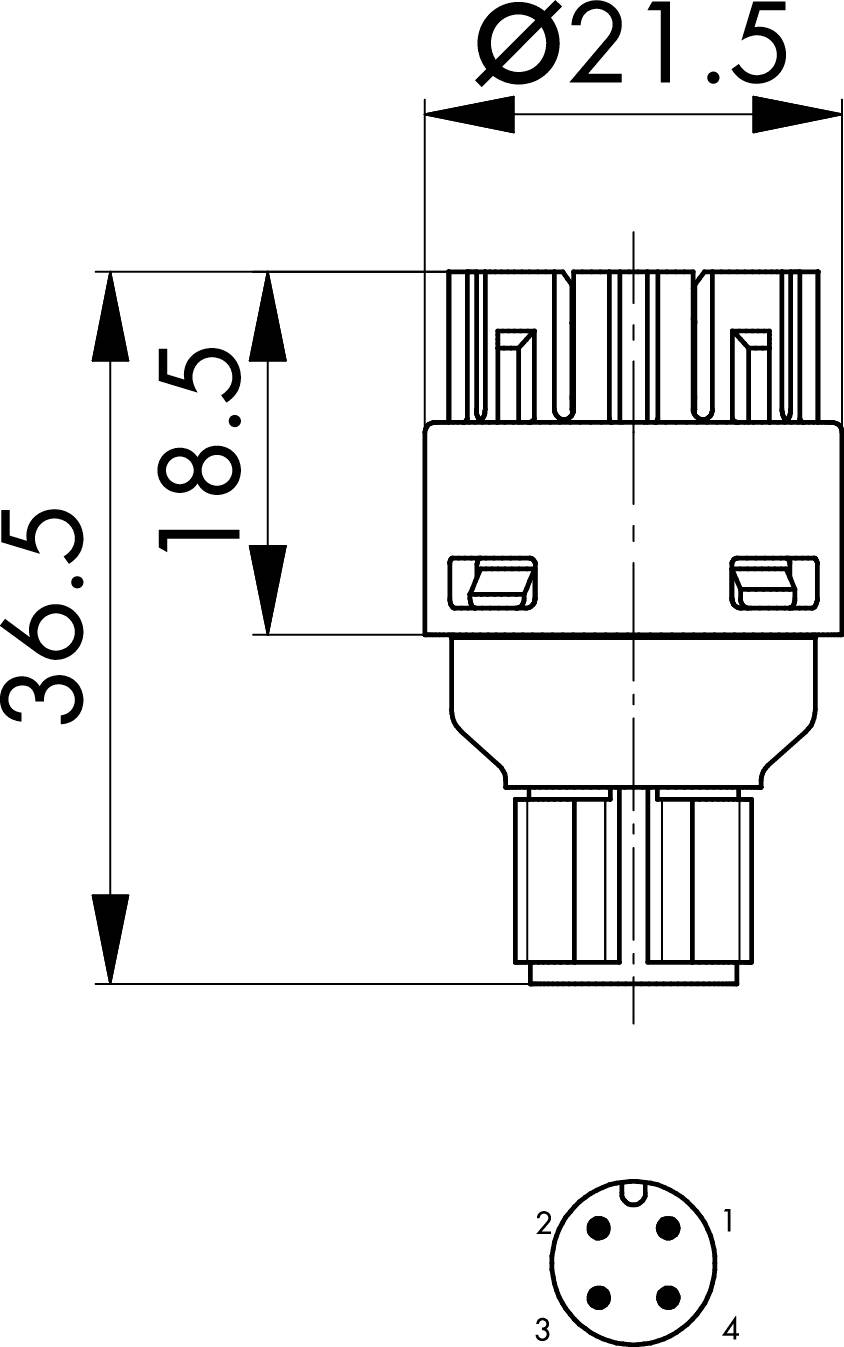

Technical drawing of a round connector with external dimensions: Diameter 21.5 mm, height 36.5 mm. Two arrows indicate 18.5 mm. Pin assignment coding below.

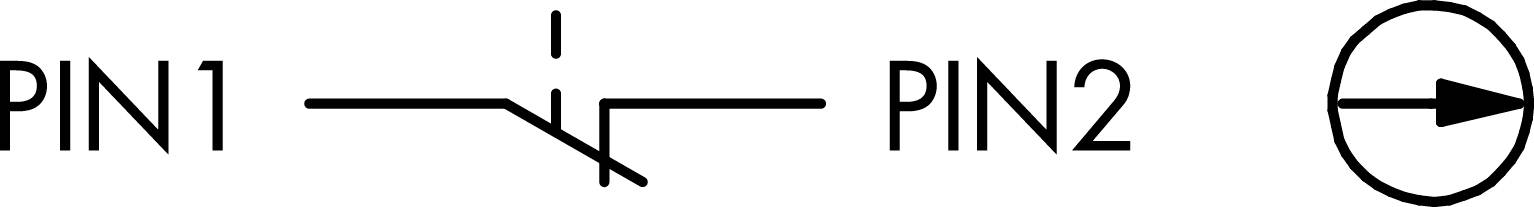

'Circuit diagram symbol for a transistor: PIN 1 and PIN 2 connected with an arrow in a circle, indicating current flow direction.'

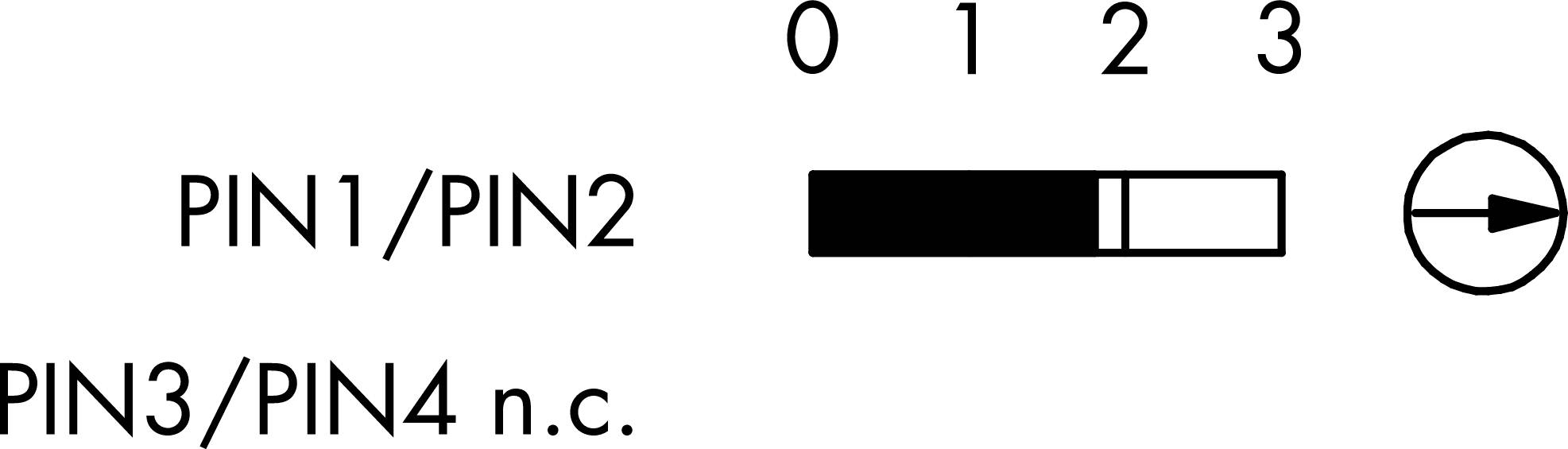

'PIN1/PIN2' are active, 'PIN3/PIN4 n.c.' The colour gradient from black to white shows a progression from 0 to 3. An arrow is visible.

1/4

Image similar

Schlegel

Datasheet (PDF)

Deutsch (Deutschland)

Fast track dispatch on Wed, 23 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 21.00 / piece)

€ 21.00

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Category: Contact providerSeries: FRT connect contact transmitterIP00 protectionLighting: No.Contact material AgNiStandards IEC/EN 60947-5-1Contact type 1NCM12-4-pin, A-coded connectionProtection class II (protective insulation)Accessory type: Contact donorsSwitching function: Key functionStroke: 2.3 mmForced opening: Acc. To EN60947-5-1, Anh K

Product type: Contact

Connection: M12 plug

Functions: momentary

Contact type: 1 breaker

Contact material: AgNi

: IP00

Content: 1 pc(s)

Type: FRTO_C006

Lighting type: None

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2865206 Schlegel Contact 1 breaker momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865206 Schlegel Contact 1 breaker momentary 1 pc(s)

Description

Contact maker FRT connect contact pins 1 Ö M12-connector 5-pin, AIDA
