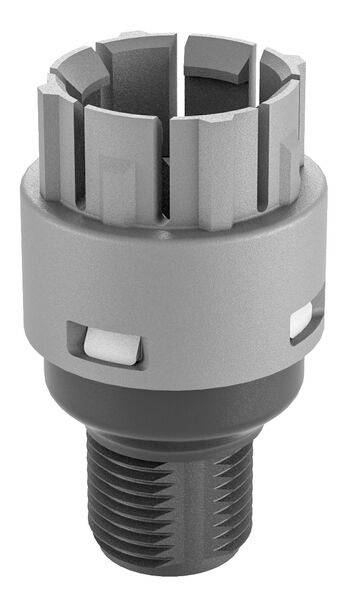

A silver mechanical engineering component with a cylindrical shape and multiple rectangular recesses on the top surface.

Image similar

A silver mechanical engineering component with a cylindrical shape and multiple rectangular recesses on the top surface.

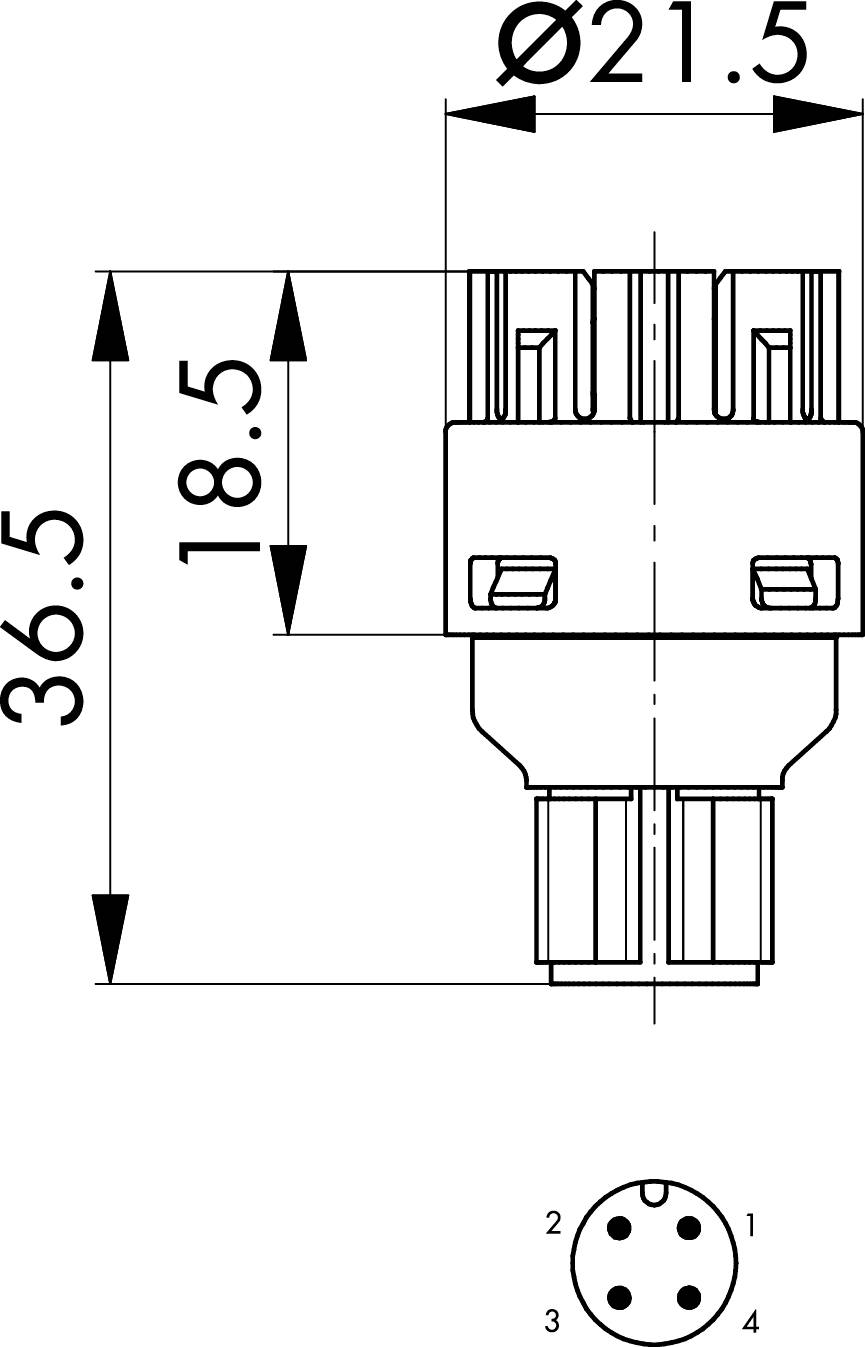

Technical drawing of a round plug with dimensions: diameter 21.5 mm, height 36.5 mm, connection details below.

'Electrical Switch' Symbol: Position between two pins 'PIN1' and 'PIN2', open. Switches electrical current flow between the two pins.

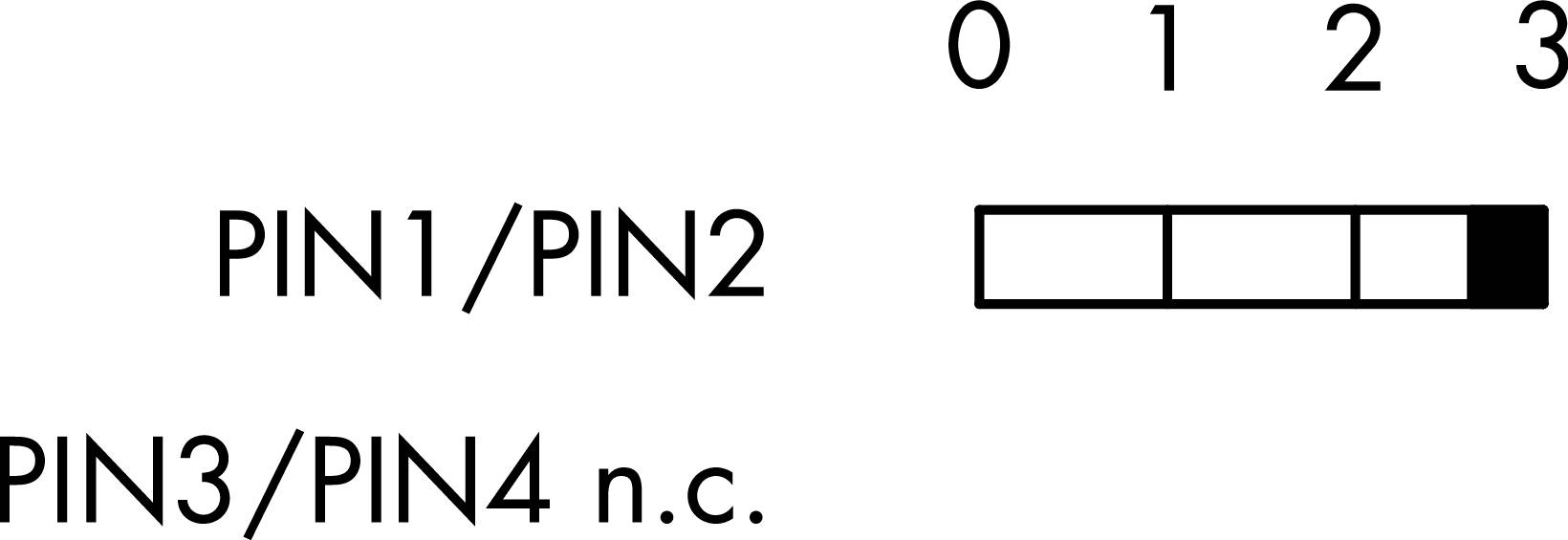

'PIN1/PIN2' and 'PIN3/PIN4 n.c.' switch labelling with numbered scale from 0 to 3. Rectangular boxes indicate switch positions.

1/4

Image similar

Schlegel

Datasheet (PDF)

Deutsch (Deutschland)

Fast track dispatch on Tue, 15 Sep

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 9.24 / piece)

€ 9.24

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Category: Contact providerSeries: FRT connect contact transmitterIP00 protectionLighting: No.Contact material AgNiStandards IEC/EN 60947-5-1Contact type 1SM12-4-pin, A-coded connectionProtection class II (protective insulation)Accessory type: Contact donorsSwitching function: Key functionStroke: 2.3 mm

Product type: Contact

Connection: M12 plug

Functions: momentary

Contact type: 1 maker

Contact material: AgNi

: IP00

Content: 1 pc(s)

Type: FRTI_C007

Lighting type: None

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2865198 Schlegel Contact 1 maker momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865198 Schlegel Contact 1 maker momentary 1 pc(s)

Description

Contact maker FRT connect contact pins 1 S M12 connection 5-pin, AIDA

This text is machine translated.
