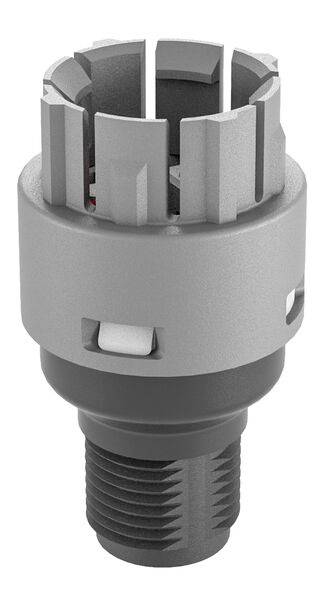

Grey, cylindrical metal insert with threaded ridges and multiple slots at the tip, presumably a technical component.

Image similar

Grey, cylindrical metal insert with threaded ridges and multiple slots at the tip, presumably a technical component.

Electronic plug with technical dimensions: Height 38 mm, Width 21.5 mm. Two pins on top surface, five pins below in a circular arrangement.

'Circuit symbol diagram with PIN1 connected to PIN4 and PIN2 connected to PIN5, indicator lights at each end.'

Diagram shows symbol of a resistance network with two diodes! 'PIN1/PIN4' and 'PIN2/PIN5' have diode connection; 'PIN3 n.c.'

1/4

Image similar

Schlegel

Datasheet (PDF)

Deutsch (Deutschland)

Fast track dispatch on Tue, 15 Sep

5 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 19.32 / piece)

€ 19.32

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Technical specifications

Category: Contact providerSeries: FRT connect contact transmitterIP00 protectionLighting: No.Contact material AgNiStandards IEC/EN 60947-5-1Contact type: 2ÖM12-5-pin, A-coded, AIDA connectionProtection class II (protective insulation)Accessory type: Contact donorsSwitching function: Key functionStroke: 2.3 mmForced opening: Acc. To EN60947-5-1, Anh K

Product type: Contact

Connection: M12 plug

Functions: momentary

Contact type: 2 breakers

Contact material: AgNi

: IP00

Content: 1 pc(s)

Type: FRTOO_C111

Lighting type: None

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2865209 Schlegel Contact 2 breakers momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865209 Schlegel Contact 2 breakers momentary 1 pc(s)

Description

Contact maker FRT connect lamp, LED M12 connection 4-pin

This text is machine translated.
