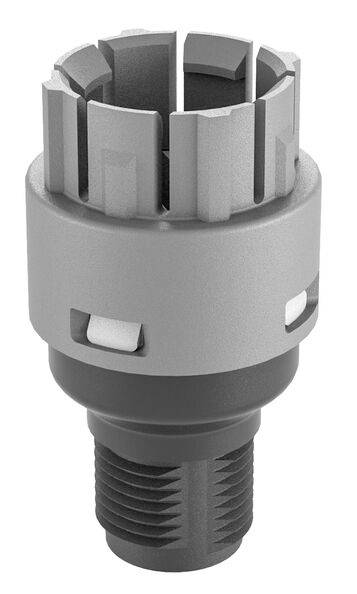

Metallic toothed ring coupling component with a serrated external housing. Used for industrial applications in mechanical systems.

Image similar

Metallic toothed ring coupling component with a serrated external housing. Used for industrial applications in mechanical systems.

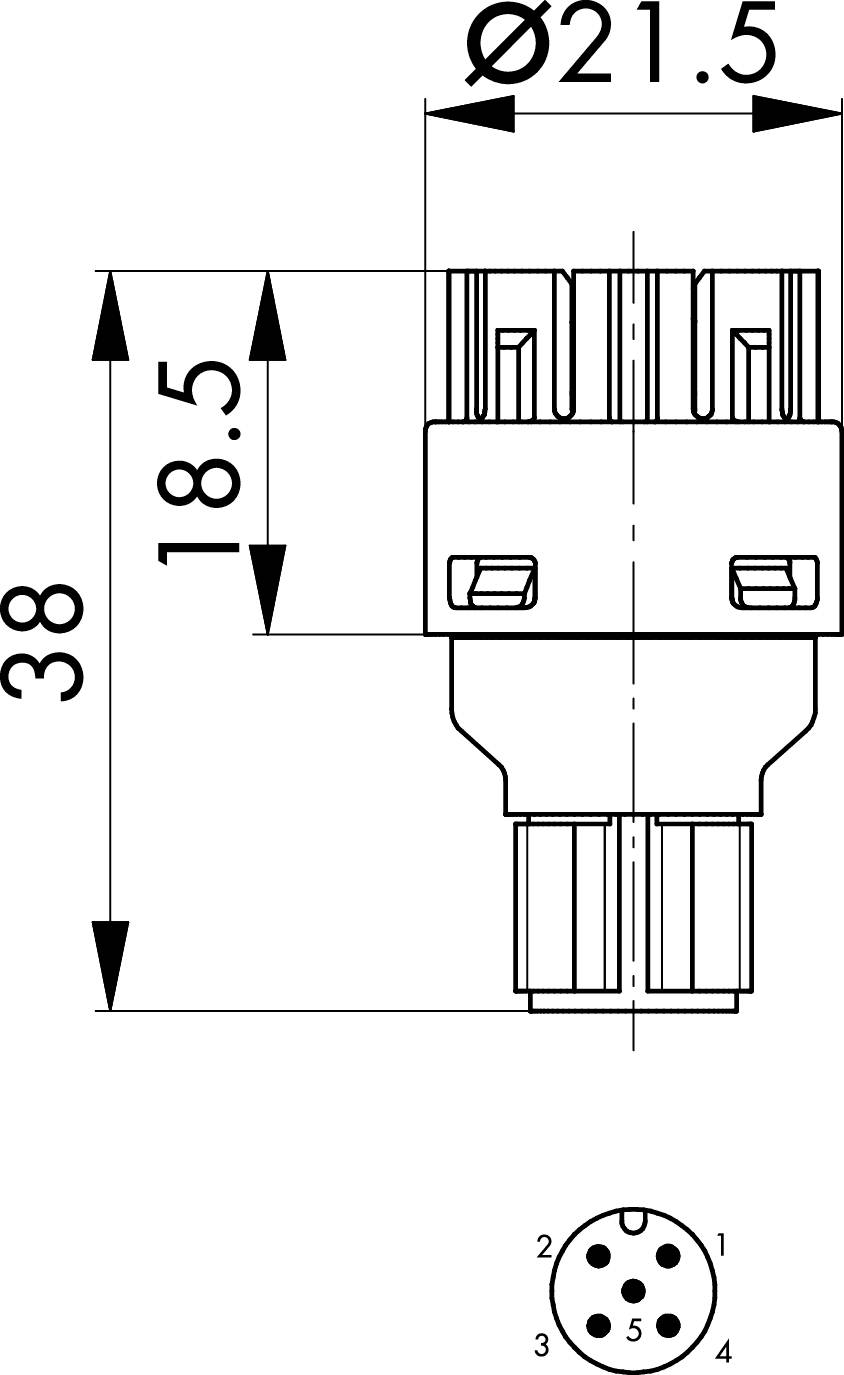

Technical drawing of a connector. Dimensions: Diameter 21.5 mm, height 38 mm. Detailed view with pin layout.

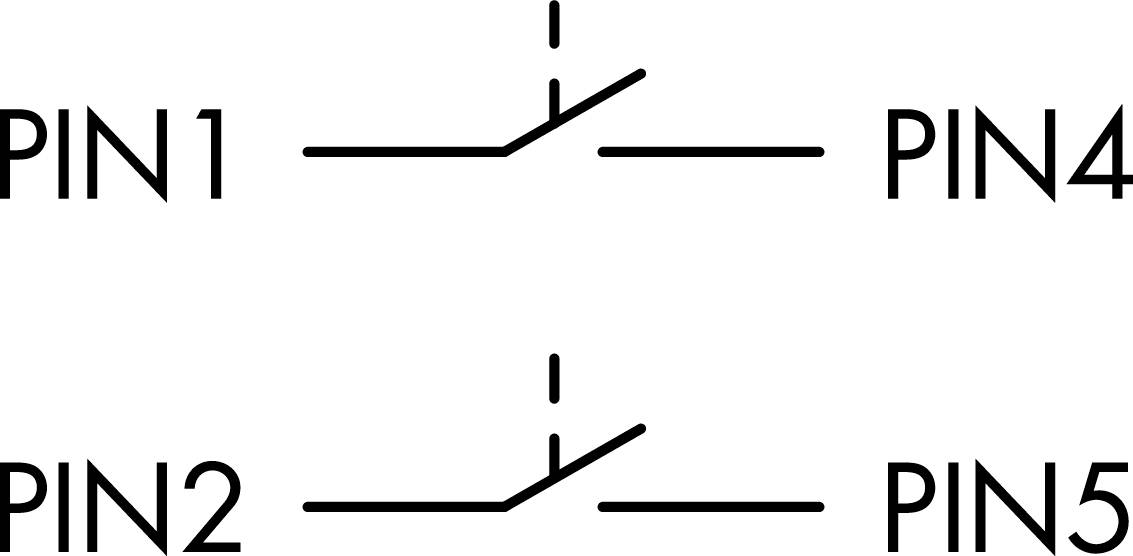

Schematic of a two-pole switch: 'PIN1' connected to 'PIN4', 'PIN2' connected to 'PIN5'. Lines show switching connections.

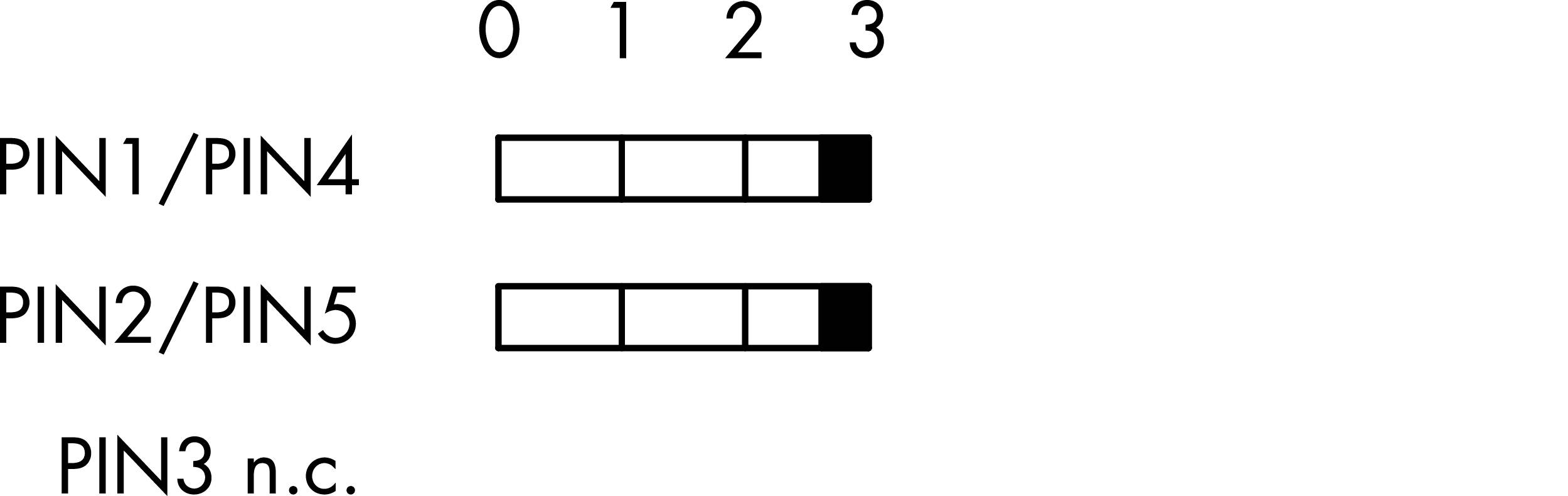

Diagram of PIN configuration: 'PIN1/PIN4' and 'PIN2/PIN5' each have three squares, with the fourth square being black; 'PIN3' is n.c. (not connected).

1/4

Image similar

Schlegel

Datasheet (PDF)

Deutsch (Deutschland)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 21.84 / piece)

€ 21.84

plus VAT.

Report legal concerns

Technical specifications

Category: Contact providerSeries: FRT connect contact transmitterIP00 protectionLighting: No.Contact material AgNiStandards IEC/EN 60947-5-1Contact type 2SM12-5-pin, A-coded, AIDA connectionProtection class II (protective insulation)Accessory type: Contact donorsSwitching function: Key functionStroke: 2.3 mm

Product type: Contact

Connection: M12 plug

Functions: momentary

Contact type: 2 makers

Contact material: AgNi

: IP00

Content: 1 pc(s)

Type: FRTII_C119

Lighting type: None

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2865202 Schlegel Contact 2 makers momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865202 Schlegel Contact 2 makers momentary 1 pc(s)

Description

Contact maker FRT connect illuminated contact switches 1 Ö M12-connector 4-pin
