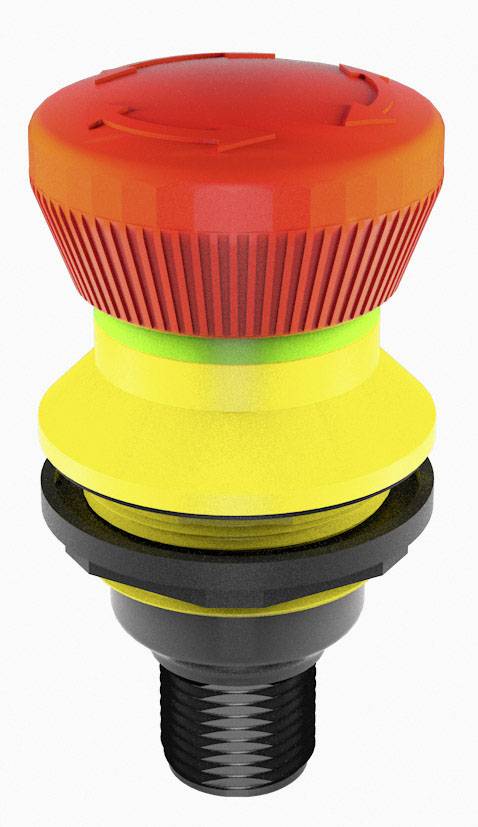

Emergency stop button in luminous red and yellow. The switch is designed for rapid activation during emergencies and serves safety purposes.

Emergency stop button in luminous red and yellow. The switch is designed for rapid activation during emergencies and serves safety purposes.

Circuit diagram of an optocoupler: Input on PIN 1 and 2, LED, transistor output on PIN 3 and 4, arrows indicate current direction.

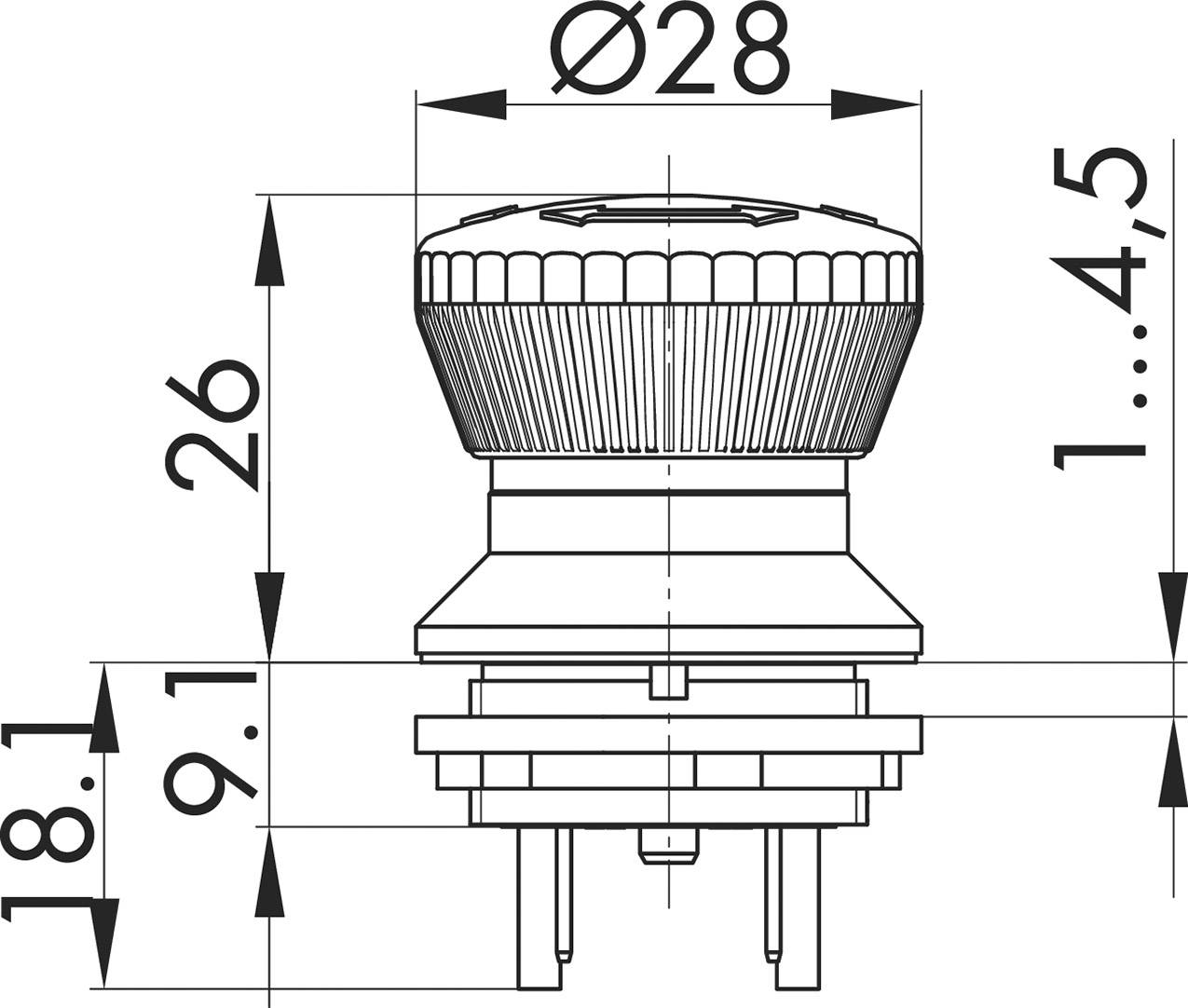

Technical drawing of a round switch with dimensions: Diameter 28 mm, height 1 to 4.5 mm, overall height 26 mm, connection pins at the bottom.

1/3

Schlegel

Our service for you

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Lighting: no.Writable: no.Front frame: YellowShape: RoundTamper-proof: YesAnti-blocking collar: no.Switch position indicator: YesUnlocking: Clockwise and anti-clockwise rotationSTANDARDS: IEC/EN 60947-5-1, IEC/EN 60947-5-5, EN ISO 13850Forced opening: According to EN60947-5-1, no. K

Product type: EPO switch

Unlocking mechanism: Turn

Print motif: Blank

Lighting type: None

Contact type: 2 breakers

Factory colour: Red

Connection: M12 plug

Recess diameter: 22.3 mm

Durability: 50000

Length: 52.7 mm

Width: 28 mm

Height: 28 mm

: IP65
IP67

Compatible with (details): SHORTRON® connect

Type: FRVKOO_C001

Content: 1 pc(s)

Dim: (L x W x H) 52.7 x 28 x 28 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2238599 Schlegel FRVKOO_C001 EPO switch 2 breakers IP65, IP67 1 pc(s)
