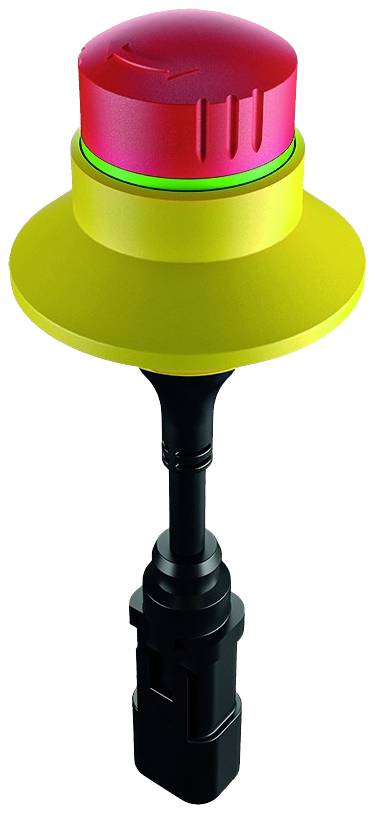

A red emergency stop button with a yellow housing and green LED indicator. For immediate machine shutdown in emergency situations.

Image similar

A red emergency stop button with a yellow housing and green LED indicator. For immediate machine shutdown in emergency situations.

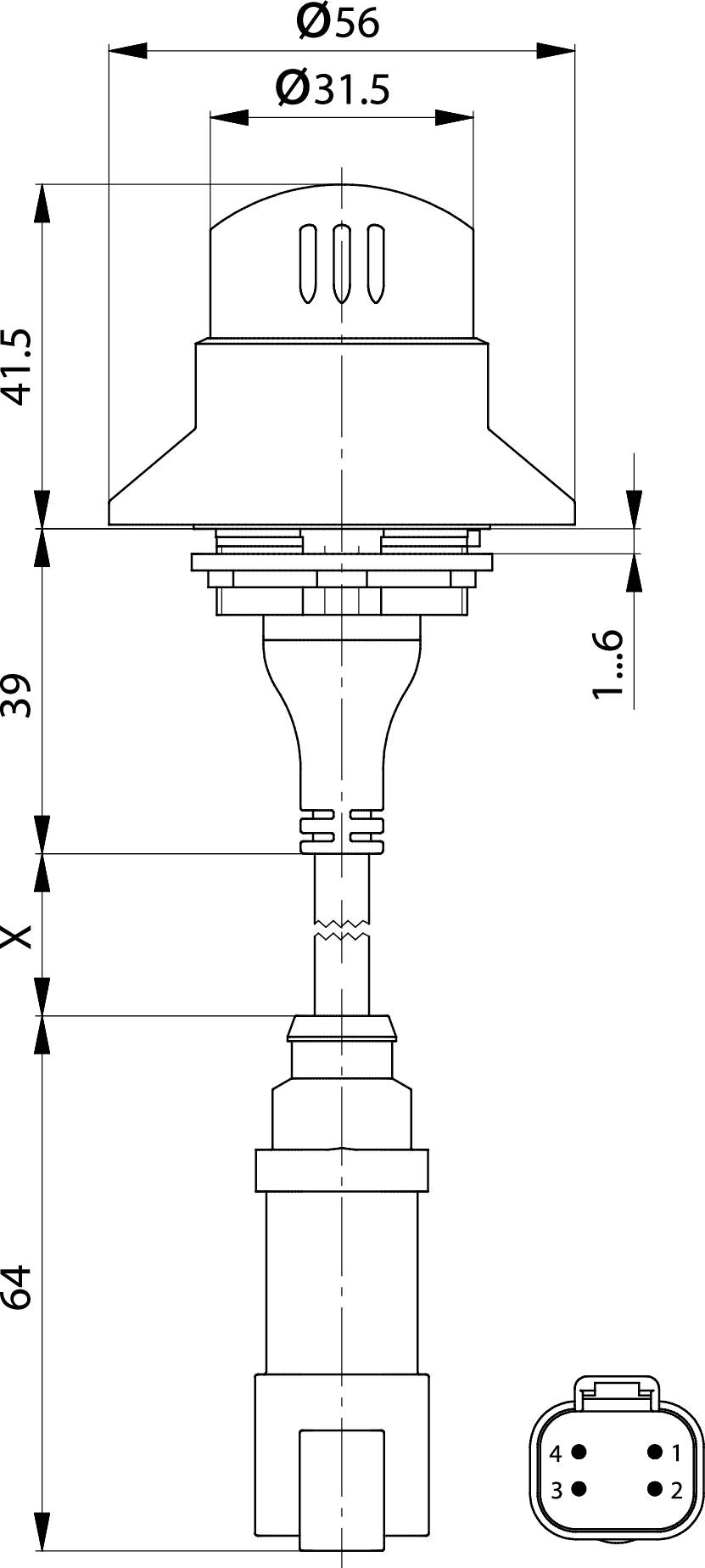

Technical drawing of an electrical component with the following dimensions: diameter 56 mm, height 41.5 mm, further details illustrated in detail.

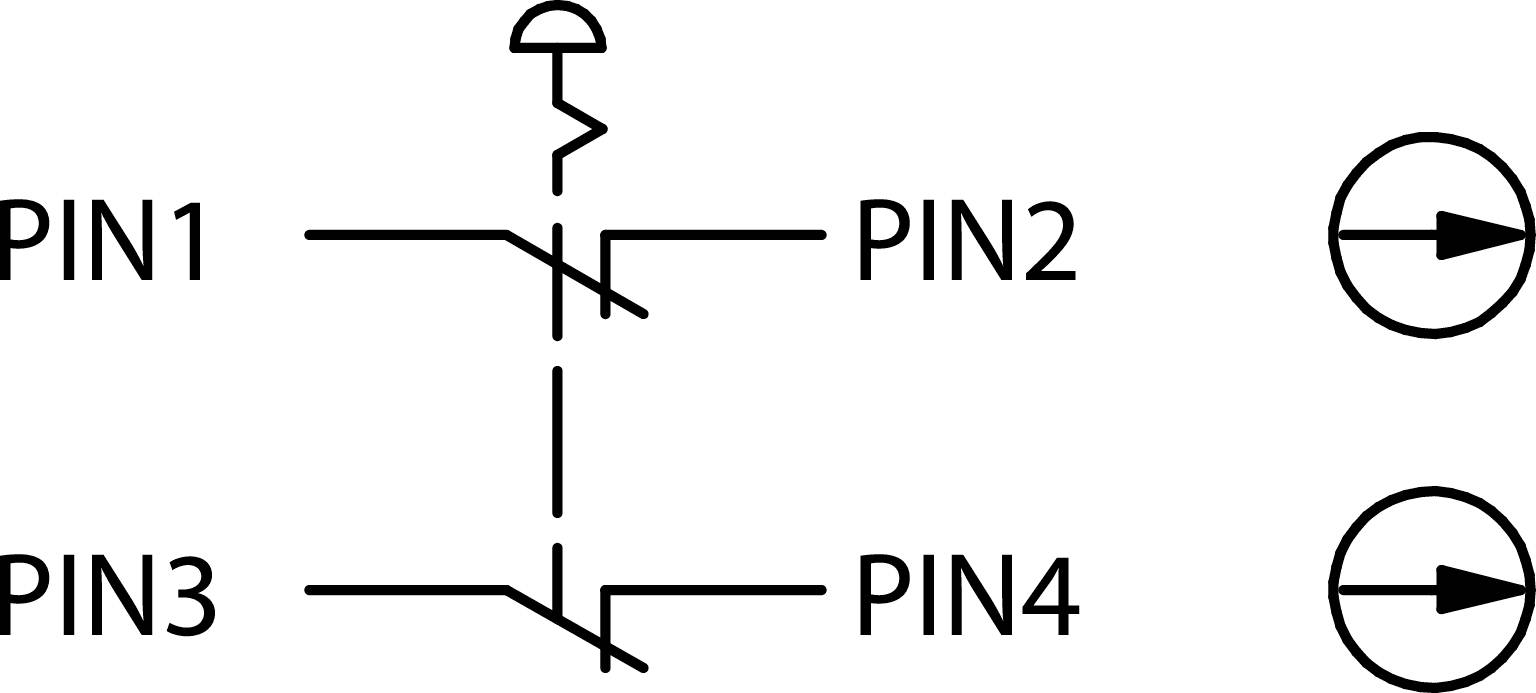

Circuit symbol of a photo-MOS-FET relay with four pins: PIN1 and PIN2 for control circuit, PIN3 and PIN4 for load circuit. Arrow symbols indicate current direction.

1/3

Image similar

Schlegel

Datasheet (PDF)

Deutsch (Deutschland)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Multiple: 5

Total (€ 96.63 / piece)

€ 483.15

plus VAT.

Report legal concerns

Technical specifications

Category: Emergency stop buttonSeries: COMBI-AST® M12Protection class IP65, IP69k (from front); IP65, IP67 (from rear)Lighting: No.Can be labeled: No.Contact material AgNiBlocking collar: YesUnlocking mechanism: Clockwise and anti-clockwise rotationSwitching position display: YesTamper-proof: YesSTANDARDS: EN 60947-5-1, EN 60947-5-5, EN ISO 13850Contact type: 2ÖApproval function: No.Connection type: German DT04-4P, 4-pinProtection class II (protective insulation)Switching function: Latching functionForced opening: Acc. To EN60947-5-1, Anh KElectrical life: 50,000 cycles at nominal loadMechanical life 50,000 switching cyclesMounting hole dia. 30.5 mm.Front frame: YellowShape: RoundMushroom button: Red

Product type: Kill switch

Unlocking mechanism: Turn

Lighting type: None

Contact material: AgNi

Contact type: 2 breakers

Connection: Deutsch DT04-4P

Recess diameter: 30.5 mm

Functions: latch

Durability: 50000 switching game

Electrical lifespan: 50,000 cycles at nominal load

: IP65
IP69K
IP67

Type: KRBUVOO_KD11

Content: 1 pc(s)

Casing/button colour: Yellow

Shape: Round

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2865181 Schlegel Kill switch 2 breakers IP65, IP69K, IP67 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2865181 Schlegel Kill switch 2 breakers IP65, IP69K, IP67 1 pc(s)

Description

COMBI-AST® M12 pushbutton 1NC+1NO+cable cable cable cable length 25CM molded

This text is machine translated.
