Schmelter LED Technology Diluvis 3.1 100 W 6000K S-FL3.1-100W6 LED floodlight EEC: D (A - G) 100 W Colours (LEDs): Cool
EAN:
Part number:
Item no:
Highlights & Details
Diluvis floodlight 3.1 100 W 6000K
- Power= 100 W
- Total luminous flux= 13500 lm
- Colour temperature= 6000 K
- Cool white
Technical specifications
- Product type
LED floodlight
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
100 W
6000 K
- Colour
Cool white
- Total luminous flux
13500 lm
- Radiation angle
120°
IP65
- Factory colour
Black
- Material
Aluminium (die-cast)
- Weight
2000 g
- Dim
(L x W x H) 310 x 260 x 70 mm
- Feed length
0.5 m
D (A - G)
- Type
Rectangular
- Light bulb included
Yes
- Width
260 mm
- Height
70 mm
- Length
310 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2826931 Schmelter LED Technology Diluvis 3.1 100 W 6000K S-FL3.1-100W6 LED floodlight EEC: D (A - G) 100 W Colours (LEDs): Cool
Conformity certificate
Conformity certificate 2826931 Schmelter LED Technology Diluvis 3.1 100 W 6000K S-FL3.1-100W6 LED floodlight EEC: D (A - G) 100 W Colours (LEDs): Cool
Description

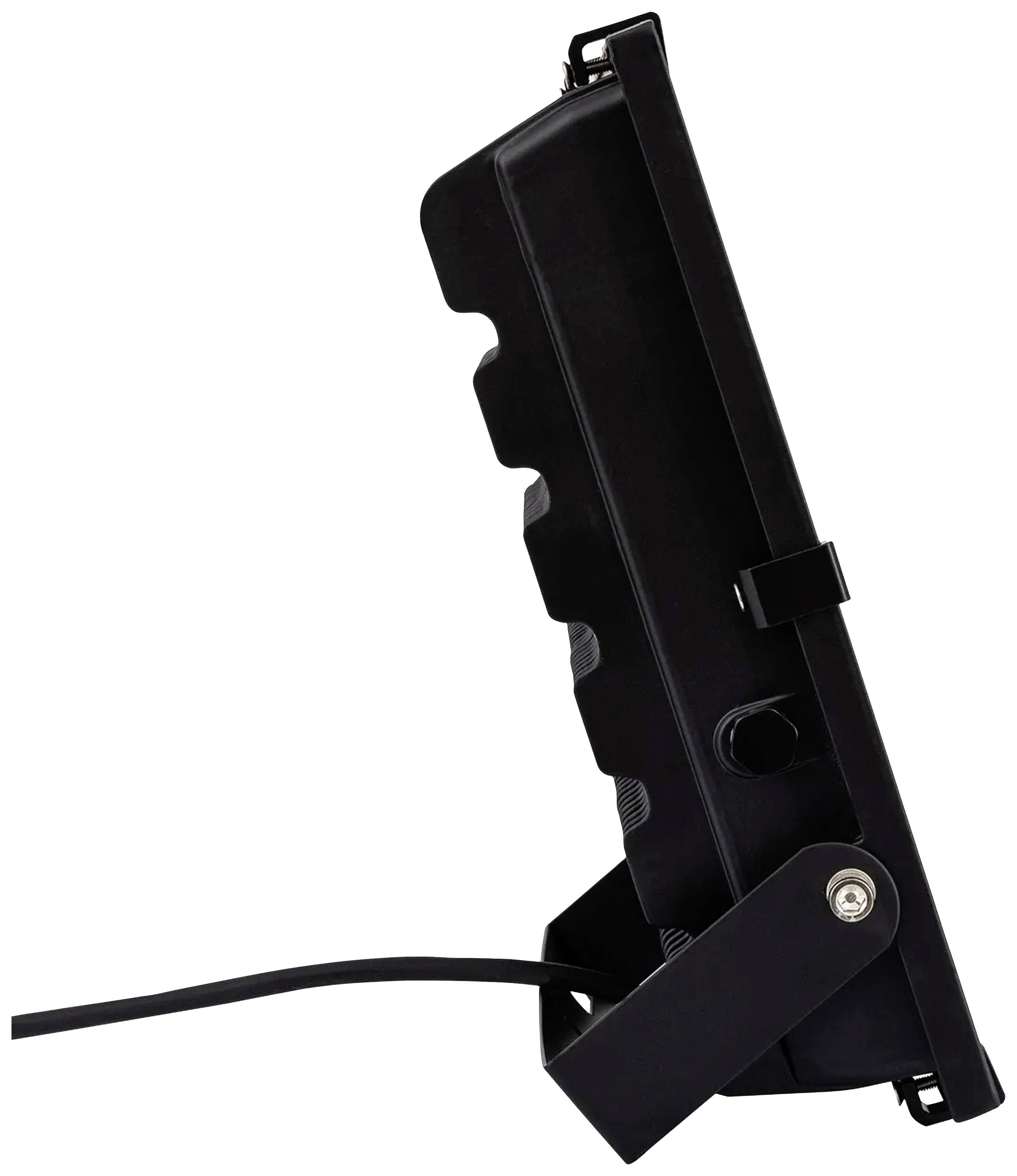

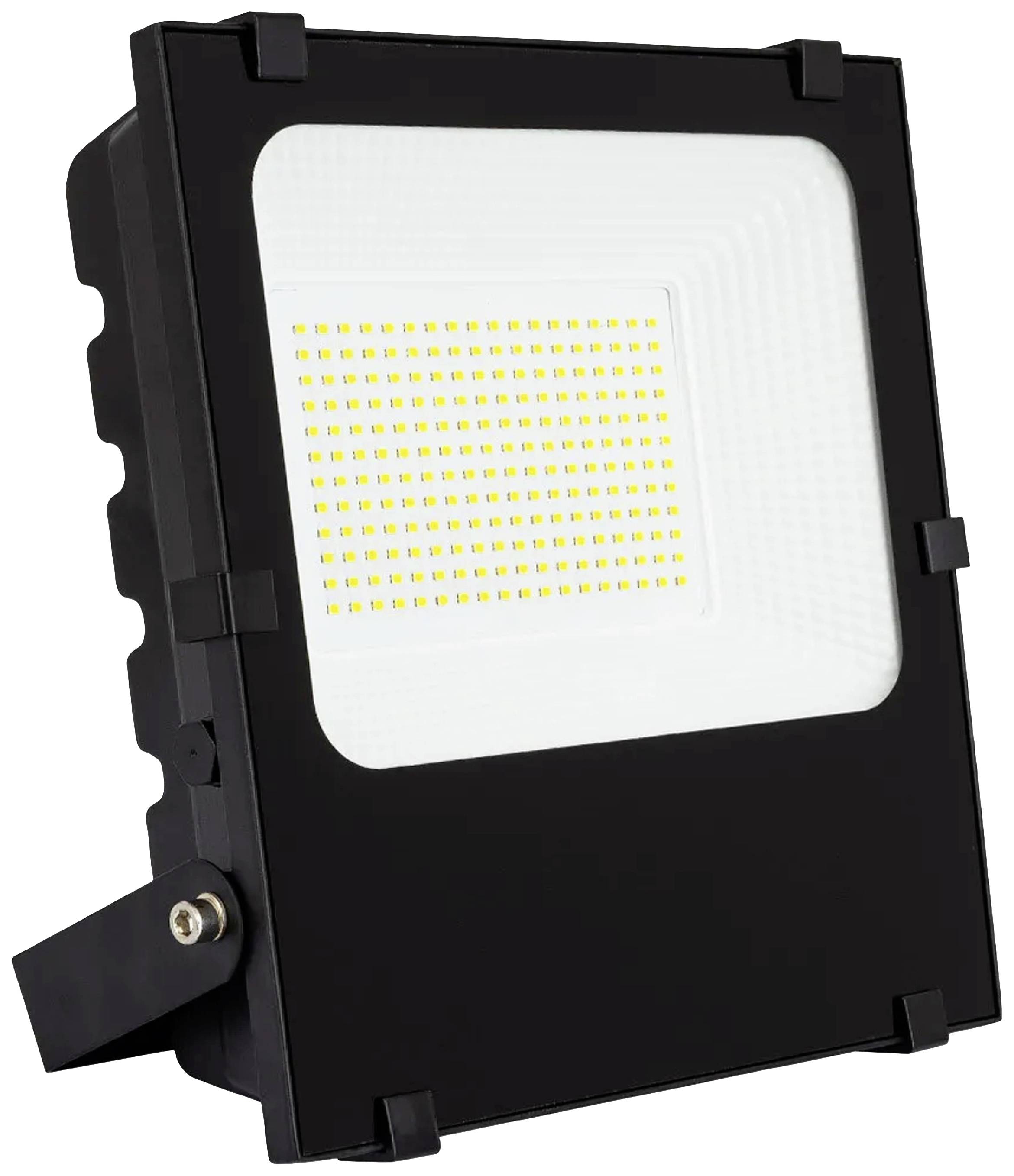

The LED floodlight 100W 135 lm/W DILUVIS 3.1 is Ideal for use in outdoor areas, where it effectively replaces conventional spotlights up to 1000W. It can be aligned in many positions, thanks to its retaining bracket.Features of the LED floodlight 100W diLUVIS 3.1The light source LUMILEDS SMD 2835 in LED technology, which emit an angle of 120°. The light produced is of high quality, as the color rendering index of more than 80 shows. Input voltage is 190-260V AC 50-60Hz. DILUVIS 3.1 consists of aluminum, a solid and durable material, which provides for long life. The built-in cooler guarantees optimal heat dissipation. The protection class IP65 makes outdoor use possible.Advantages of the LED floodlight 100W DILUVIS 3.1:Long life (approx. 50,000 hours), virtually maintenance-free, instant start and no flickering, immediate restoration of the light conditions after a power failure and of course considerable energy savings due to low consumption.The LED floodlight 100W DILUVIS 3.1 is without any doubt a high-performance product with maximum energy efficiency.
This text is machine translated.
This text is machine translated.
Features
- Die-cast aluminum housing with powder coating provided. Hardened glass cover with black screen printingIP65 waterproof, suitable for a variety of environments.PG 11 screwed cable gland with humidity protection Aluminium reflector.Branded LED driver, flicker-freeInput voltage 190-260V AC input voltage 190-260V ACInstallation via mounted bracket, inclination adjustable. Integrated overheat protection
Hints

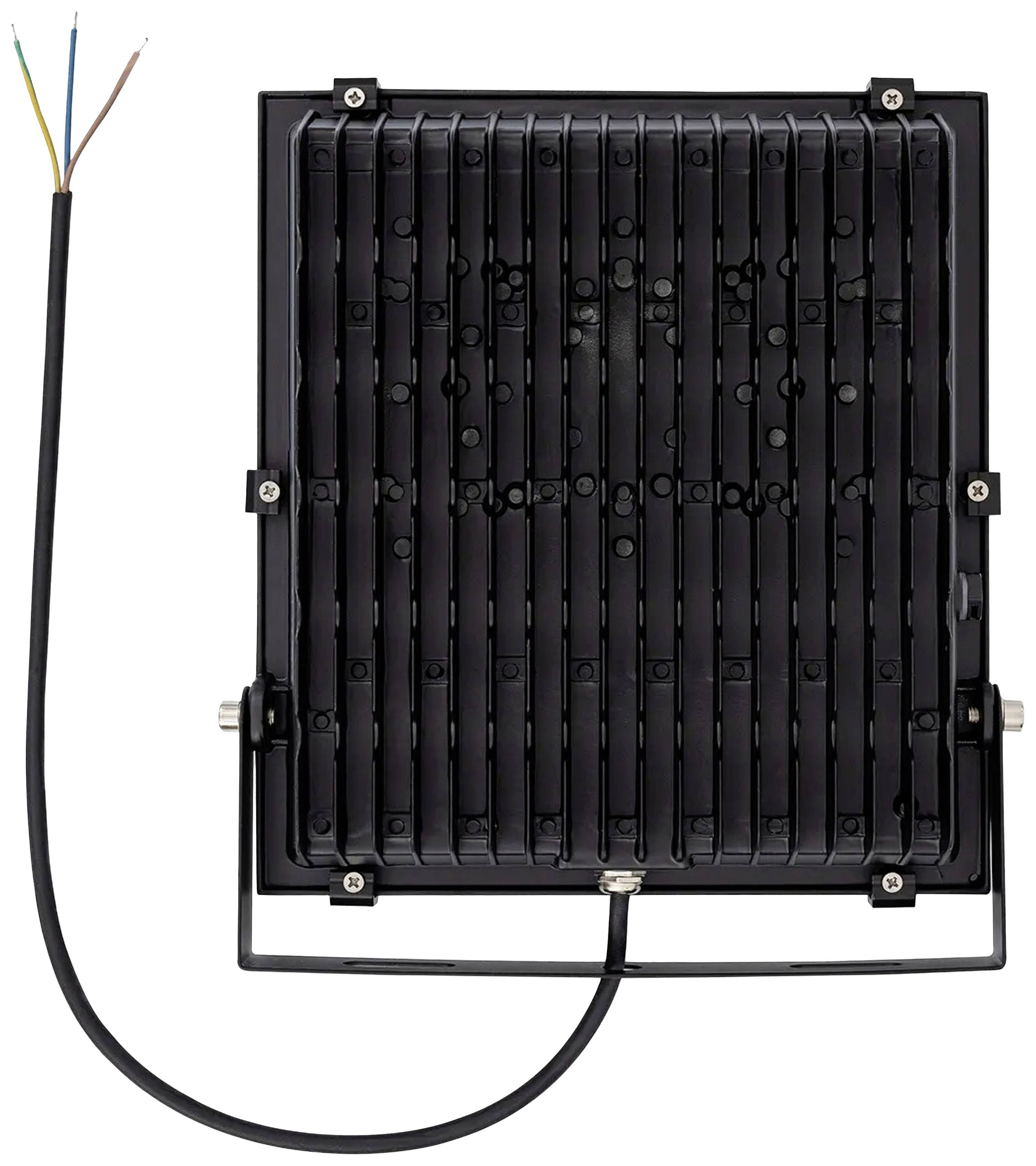

Please observe, the article is delivered with short extension cable and without connector plugs. These are open cable ends. Safety note: The lamp may only be connected by a qualified electrician!
