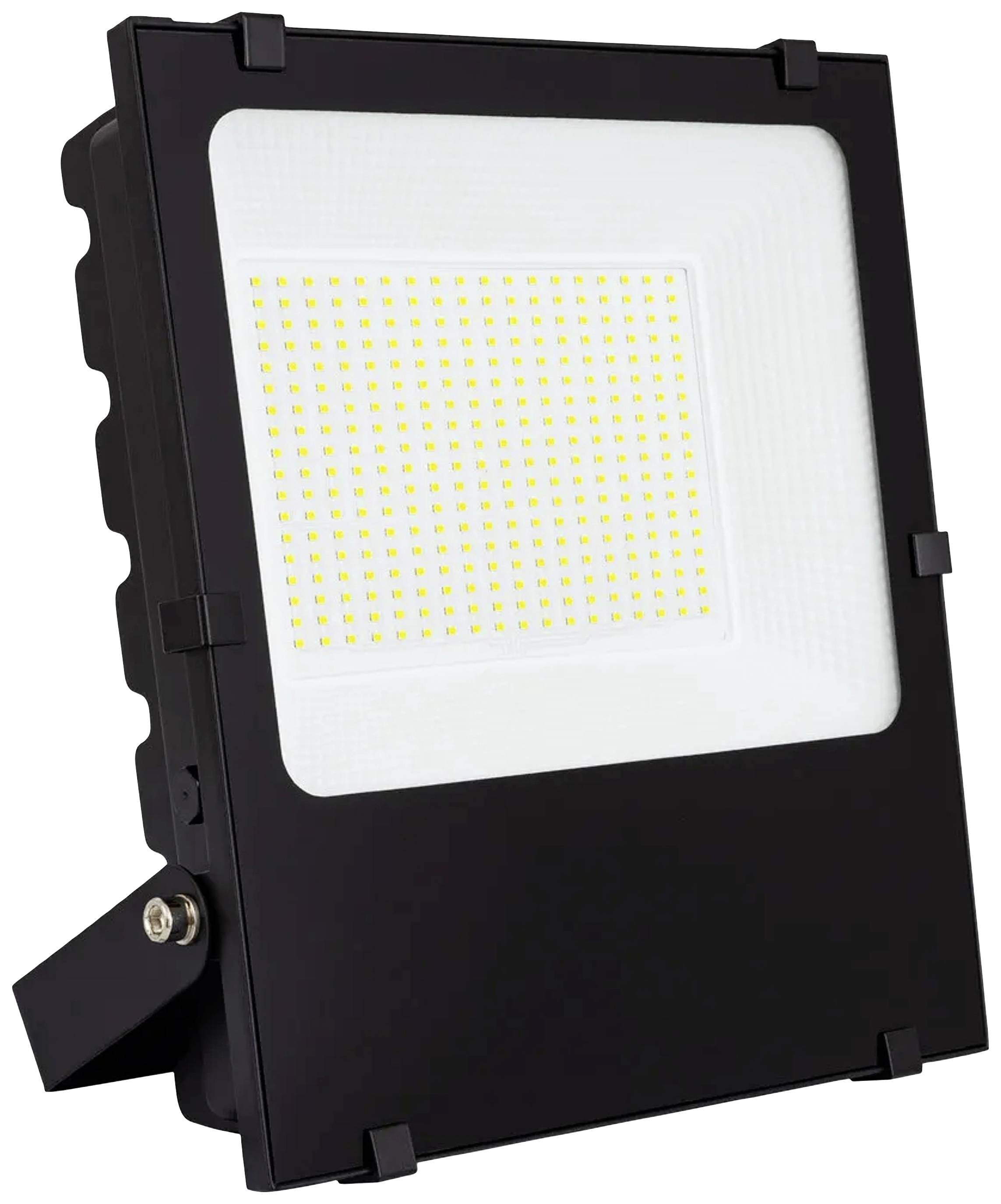

Schmelter LED Technology Diluvis 3.1 150 W 6000K S-FL3.1-150W6 LED floodlight EEC: D (A - G) 150 W Colours (LEDs): Cool
EAN:
Part number:
Item no:
Highlights & Details
Diluvis floodlight 3.1 150 W 6000K
- Power= 150 W
- Total luminous flux= 20500 lm
- Colour temperature= 6000 K
- Cool white
Technical specifications
- Product type
LED floodlight
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
150 W
150 W
6000 K
- Colour
Cool white
- Total luminous flux
20500 lm
- Light features
Swivelling
- Radiation angle
120°
- Protection class
IP65
IP65
- Factory colour
Black
- Material
Aluminium (die-cast)
- Weight
3350 g
- Dim
(L x W x H) 365 x 335 x 85 mm
- Feed length
0.5 m
D (A - G)
- Type
Rectangular
- Colour rendering index
mehr als 80
- Light bulb included
Yes
- Width
335 mm
- Height
85 mm
- Length
365 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2826932 Schmelter LED Technology Diluvis 3.1 150 W 6000K S-FL3.1-150W6 LED floodlight EEC: D (A - G) 150 W Colours (LEDs): Cool
Conformity certificate
Conformity certificate 2826932 Schmelter LED Technology Diluvis 3.1 150 W 6000K S-FL3.1-150W6 LED floodlight EEC: D (A - G) 150 W Colours (LEDs): Cool
Description
The LED floodlight 150W 135 lm/W DILUVIS 3.1 is Ideal for outdoor use, where it effectively replaces conventional emitters up to 1500W. It can be aligned in many positions, thanks to its retaining bracket.Features of the LED floodlight 1 50W diLUVIS 3.1The light source LUMILEDS SMD 2835 in LED technology, which emit an angle of 120°. The light produced is of high quality, as the color rendering index of more than 80 shows. Input voltage is 190-260V AC 50-60Hz. DILUVIS 3.1 consists of aluminum, a solid and durable material, which provides for long life. The built-in cooler guarantees optimal heat dissipation. The protection class IP65 makes outdoor use possible.Advantages of the LED floodlight 150W DILUVIS 3.1:Long life (approx. 50,000 hours), virtually maintenance-free, instant start and no flickering, immediate restoration of the light conditions after a power failure and of course considerable energy savings due to low consumption.The LED floodlight 150W DILUVIS 3.1 is undoubtedly a high-performance product with maximum energy efficiency.
This text is machine translated.
This text is machine translated.
Features

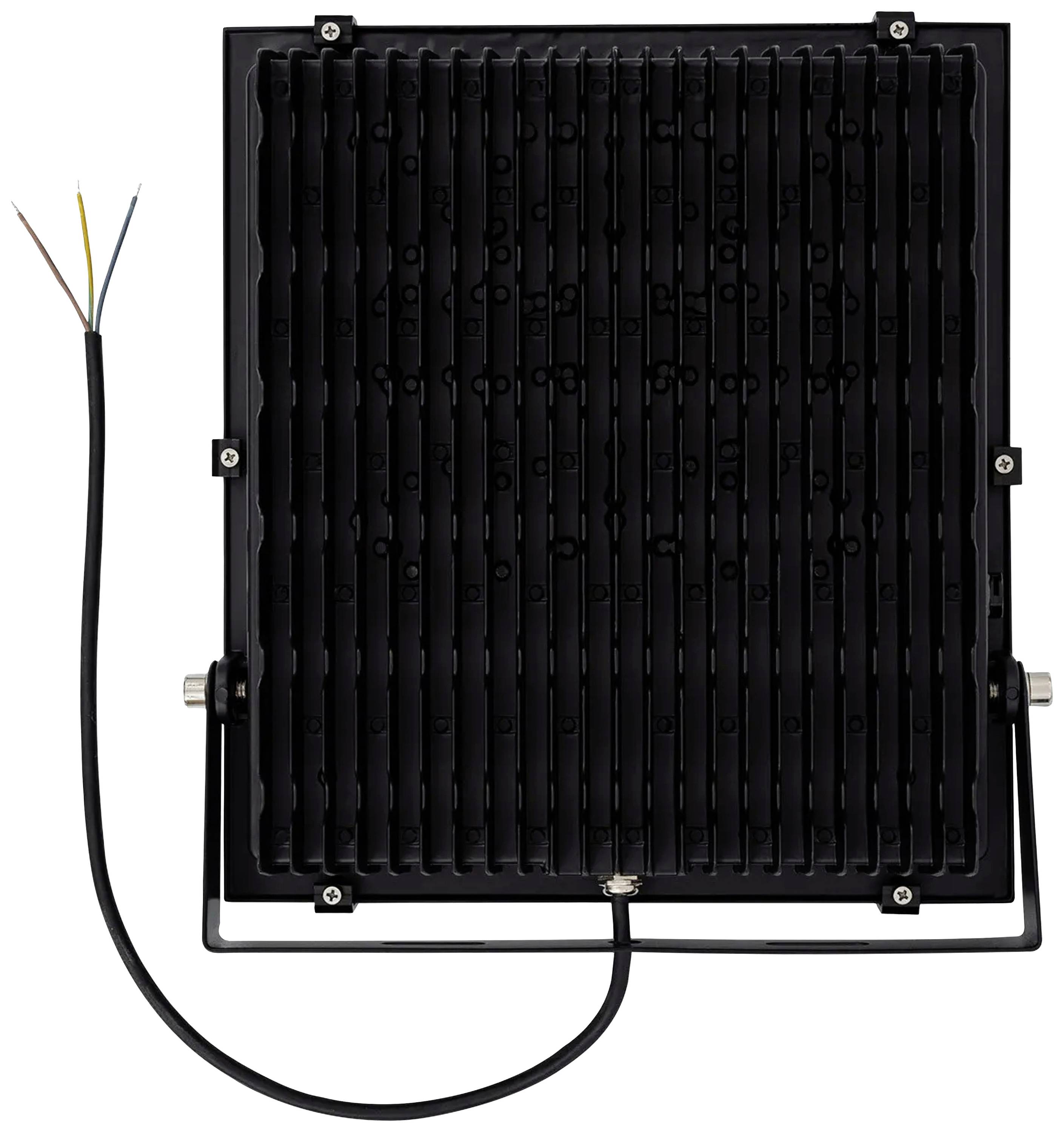

- Die-cast aluminum housing with powder coating provided. Hardened glass cover with black screen printingIP65 waterproof, suitable for a variety of environments.PG 11 screwed cable gland with humidity protection Aluminium reflector.Branded LED driver, flicker-freeInput voltage 190-260V AC input voltage 190-260V ACInstallation via mounted bracket, inclination adjustable. Integrated overheat protection
Hints
Please observe, the article is delivered with short extension cable and without connector plugs. These are open cable ends. Safety note: The lamp may only be connected by a qualified electrician!
