Schmelter LED Technology Industrial LED indicator light Workis 11 2,5 W, 24V, 6000K, 5° EEC: E (A - G) Black 2.5 W 5 °,
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Operating voltage
24 V
Power
2.5 W
Colour temperature type
6000 K
IP rating
IP65
Highlights & Details

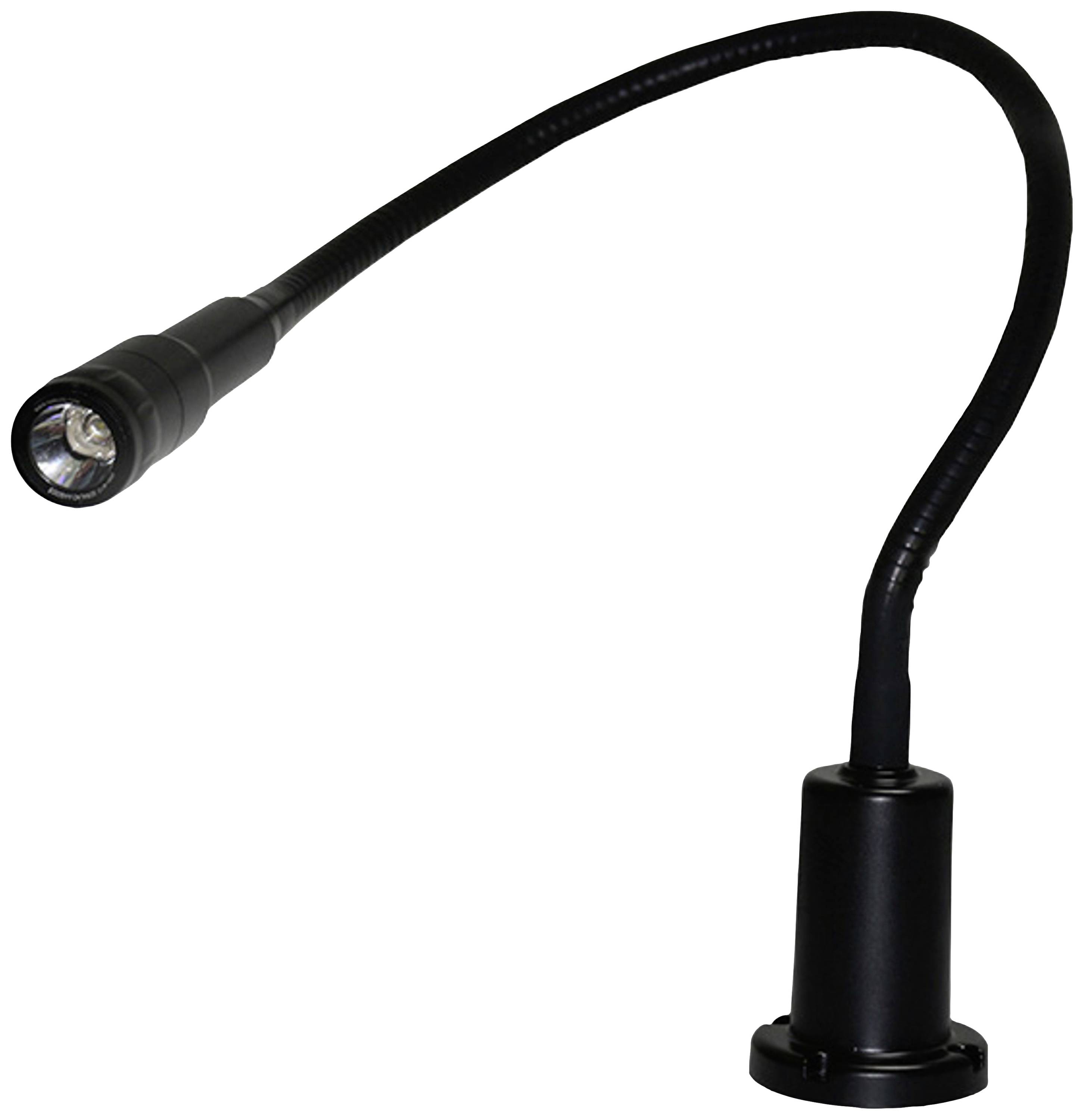

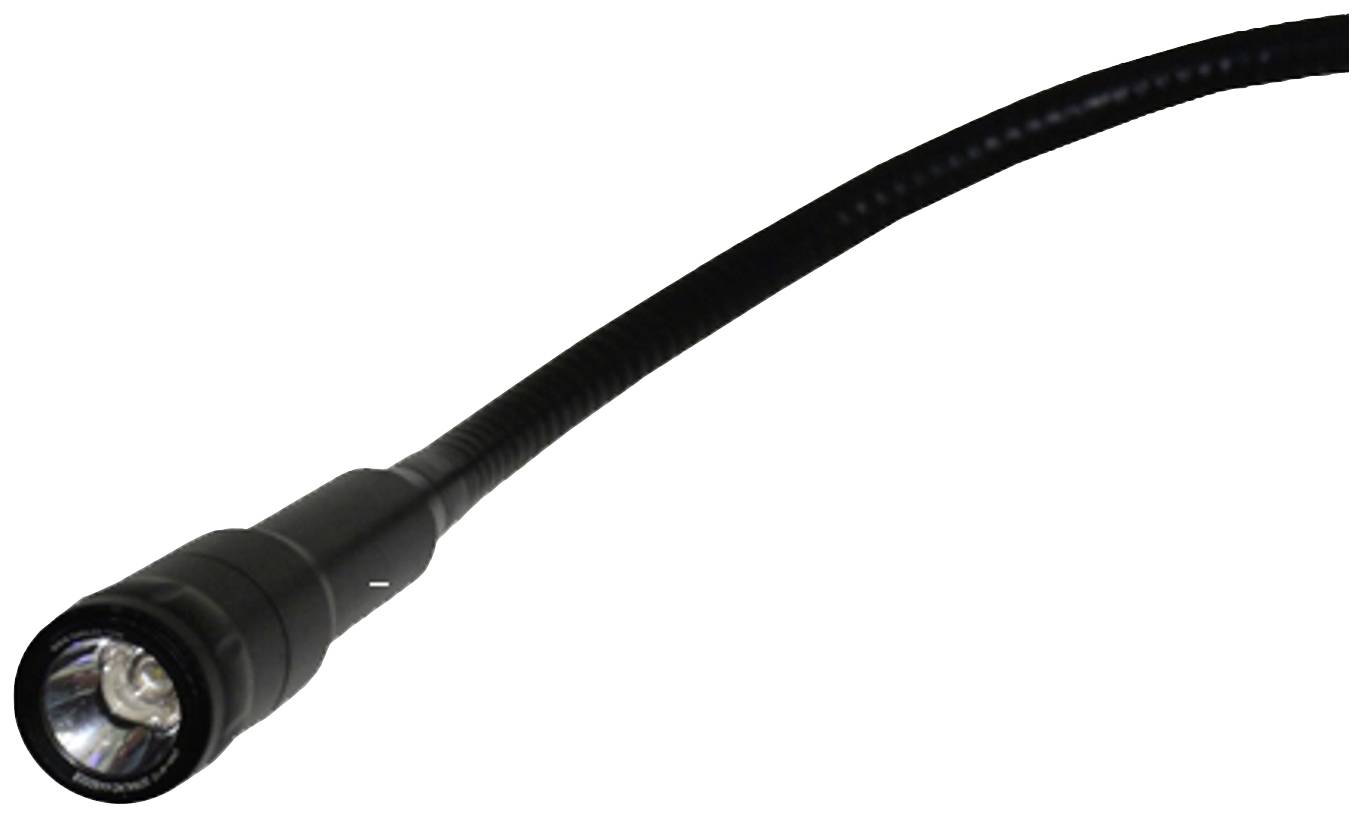

Work lamp Workis 11 2.5 W, 5° angle of radiation
- Spot-accurate lightingFlexible gooseneckCREE chipset of the latest generationIncl. Magnetic base
Technical specifications
- Product type
Industrial LED indicator light
- Type
Workis 11 2,5 W, 24V, 6000K, 5°
- Features
waterproof
- LED features
highly-flexible
- Operating voltage
24 V
2.5 W
- Factory colour
Black
- Colour temperature type
6000 K
- Radiation angle
5°
15°
- Material
Aluminium
PA
IP65
- Protection class
IP65
- Length
659 mm
- RoHS-compliant
Yes
E (A - G)
- No. of bulbs
1
- Type
Circular
- Colour
Cool white
- Total luminous flux
100 lm
5500 K
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2826928 Schmelter LED Technology Industrial LED indicator light Workis 11 2,5 W, 24V, 6000K, 5° EEC: E (A - G) Black 2.5 W 5 °,
Description
WORKIS 11 sets standards in the area of gooseneck lamps. The high-quality flexible hose with a good hardness allows fast and precise positioning as required. WORKIS 11 is the solution when precise light is required e.g. in fine mechanics tasks and the lamp should be easily adjustable. At 70cm distance, more than 4000lx are obtained. The light is balanced and soft. Various options of selection are possible with narrow and wide illumination angles. At the same time, the flexible adjustment also allows to minimize glare. The WORKIS 11 is water- and oil-resistant WAS makes it an ideal lamp in automotive, mechanical engineering and workshop area.The magnet built into the base allows the fixed adjustment and also has 4 screw holes to ensure a stable base even on non-magnetic surfaces. The WORKIS 11 requires a 24V AC/DC supply voltage which is simply connected to the open cable ends.
This text is machine translated.
This text is machine translated.
Features
- Anodized aluminum and hardened glass, corrosion and high temperature resistant.IP65 waterproof, suitable for a variety of environments.Highly efficient CREE® LED chip with PC lens, high lumen output and uniform lighting.Arm with flexible neck (swan neck) to position the lamp comfortably and to control the illumination direction.Input voltage 24V AC/DC input voltage 24V AC/DCMagnetic base with 1 pcs. Core magnet alt screws possible
Hints
Please observe, the article is delivered with short extension cable and without connector plugs. These are open cable ends. Safety note: The lamp may only be connected by a qualified electrician!
