Buy Schneider Electric 13433DE Mureva Wetroom distributor Surface-mount No. of partitions = 24 No. of rows = 2 Content 1 pc(

White plastic wall mounting with a transparent green cover that protects control panels or switches.

In the picture, an electrical distribution enclosure with its cover removed is visible. The interior is discernible and divided into two levels.

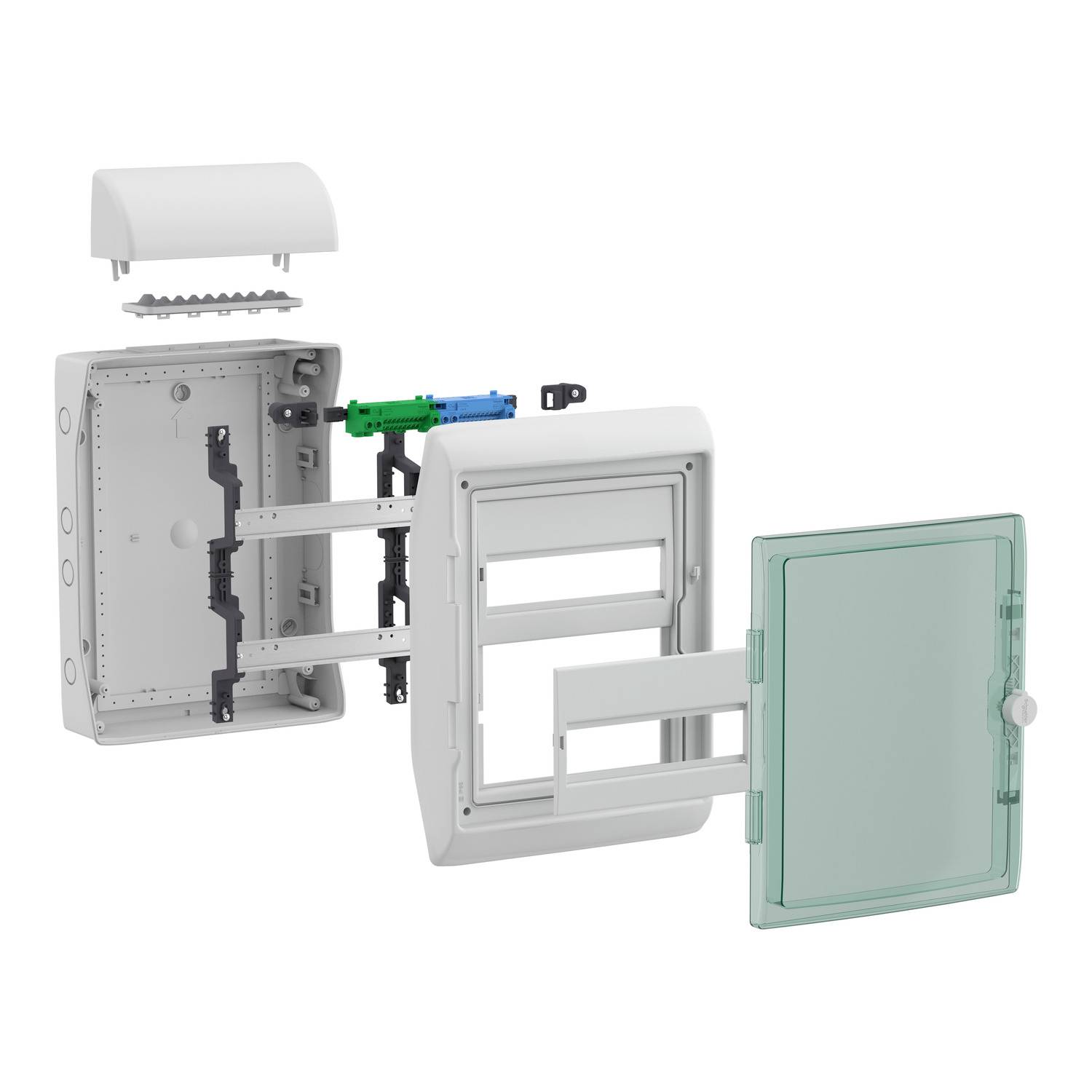

A dismantled electrical fuse box with multiple levels, illustrating the internal structure and positioning of the components.

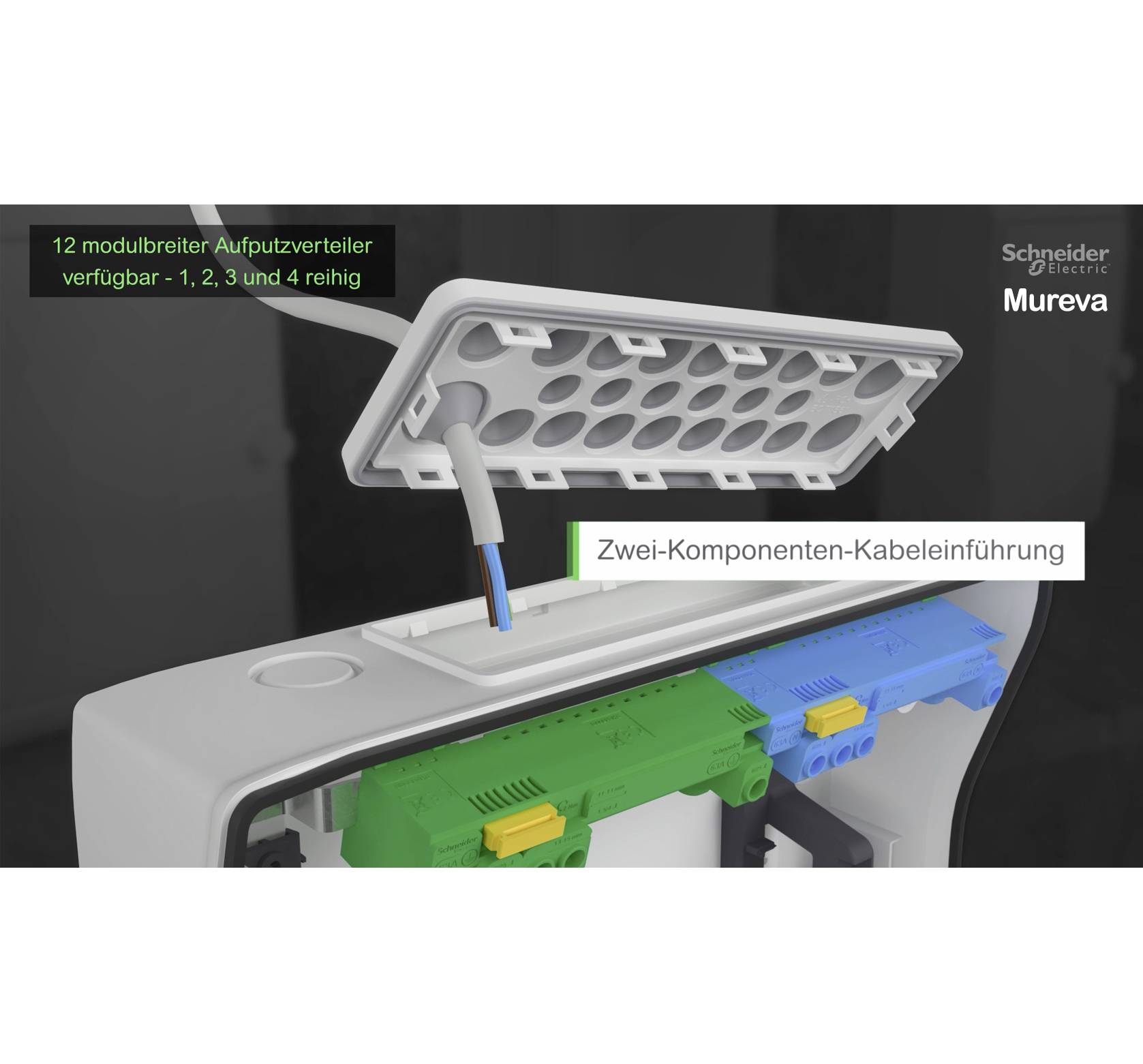

A surface-mounted distribution board with an open cover shows a two-component cable entry. Available options: 1, 2, 3 and 4-row configurations.

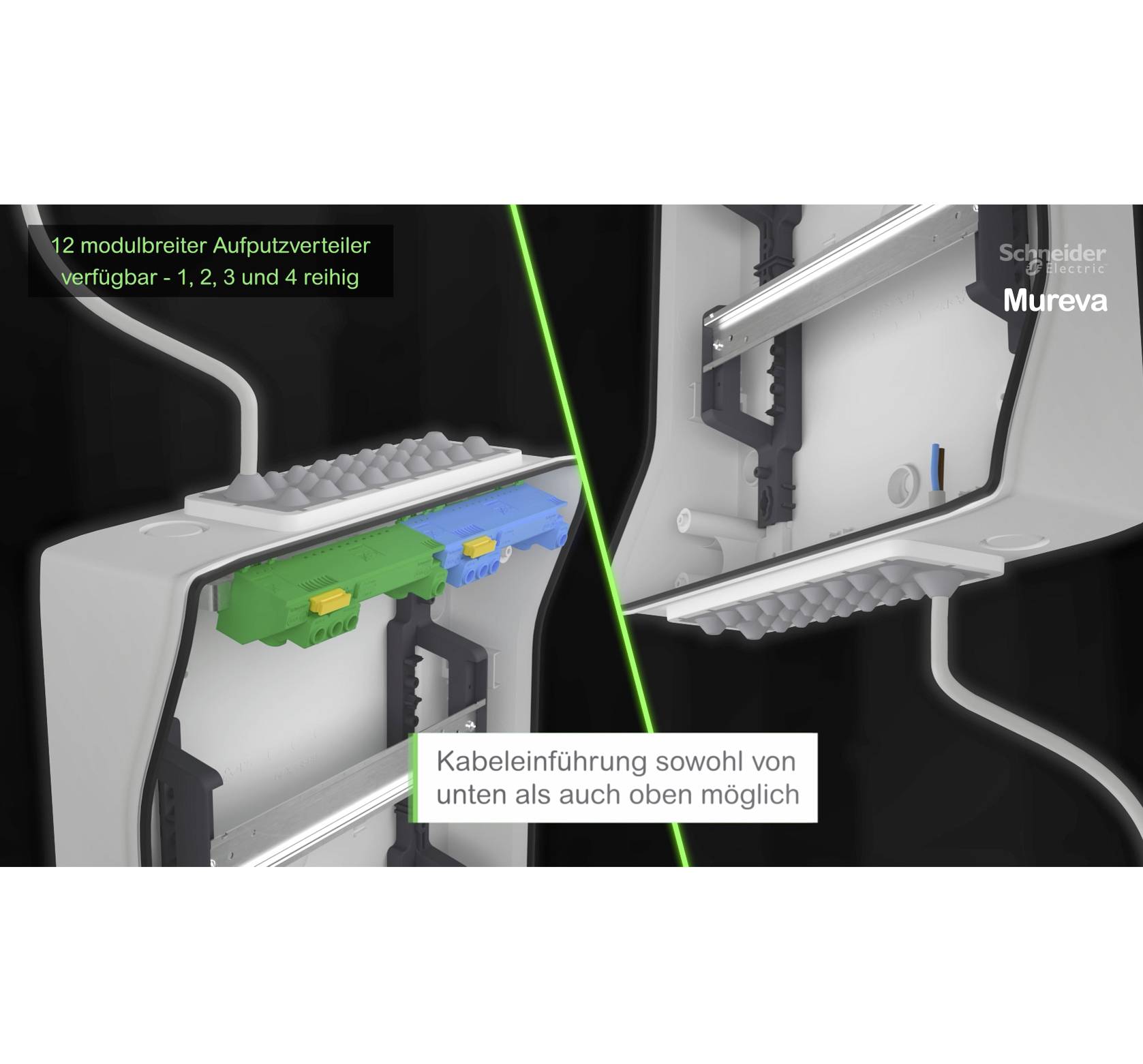

In the image, an electrical surface-mounted distribution board is shown. Text explains: 'Cable entry possible from both bottom and top'. Top left: '12-module surface-mounted distribution board available - 1, 2, 3 and 4 rows'.

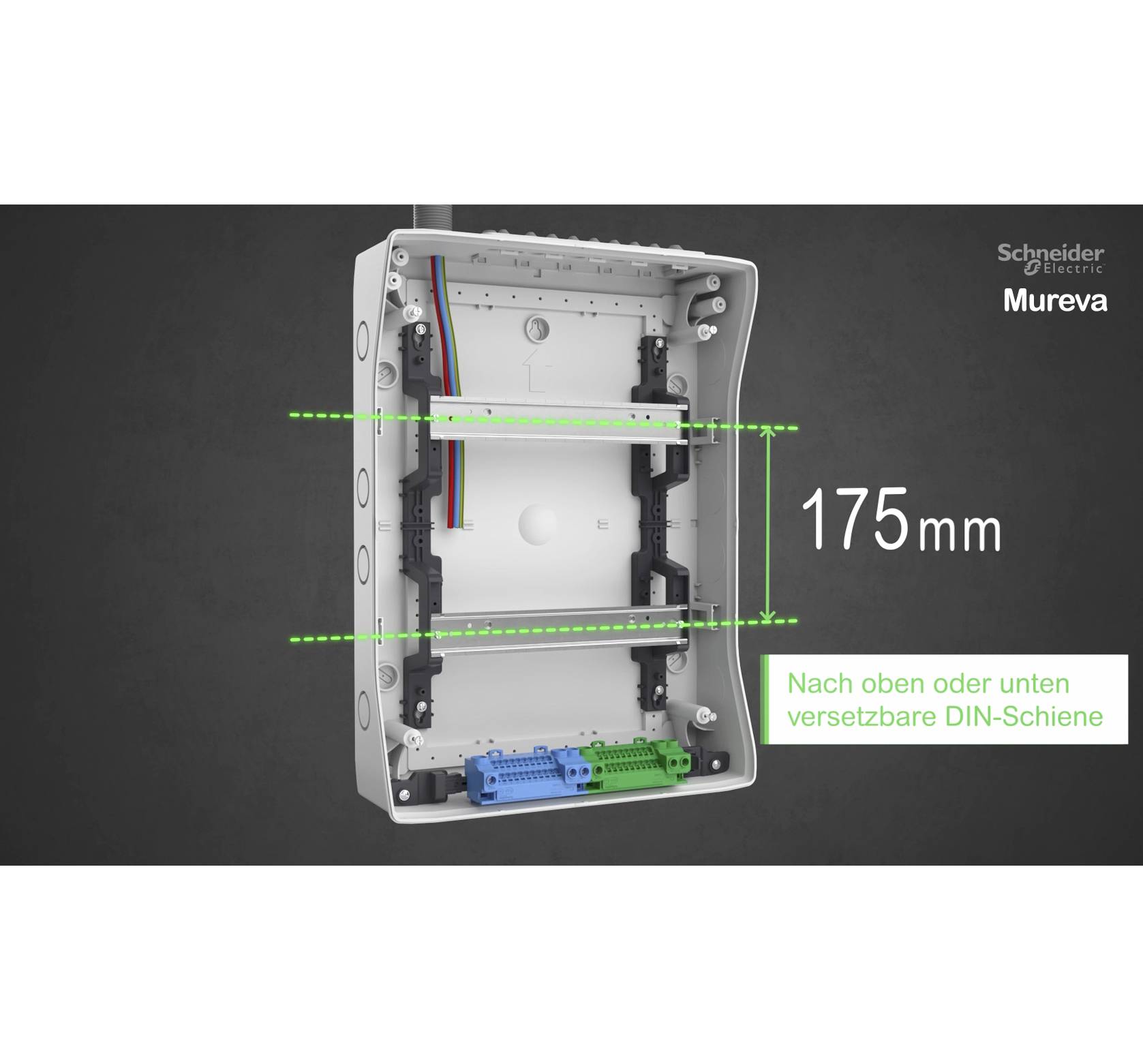

Electrical consumer unit with removable DIN rail, 175 mm spacing. The image shows the adjustment of the rail position.

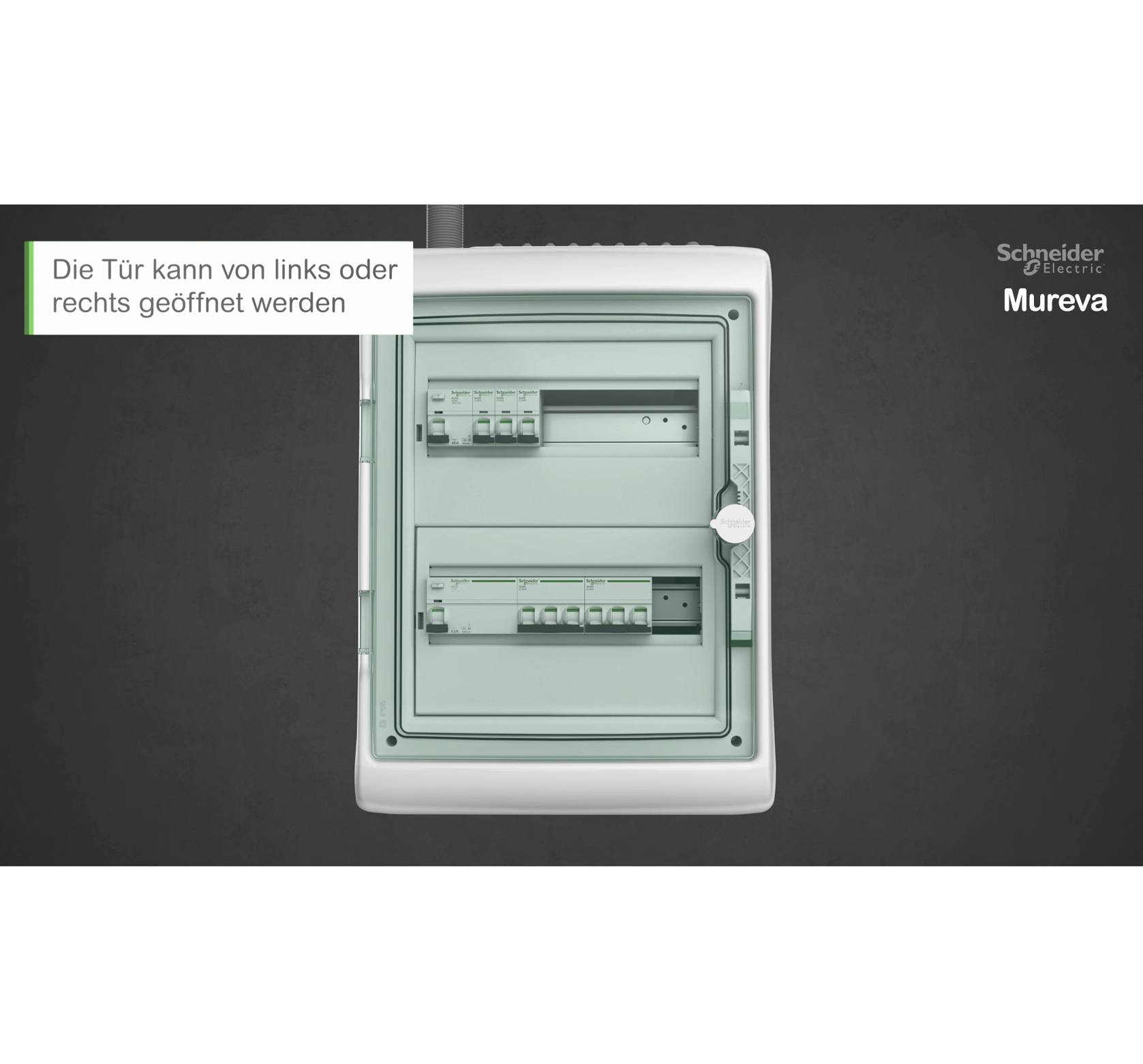

Electrical switch cabinet with the note 'The door can be opened from the left or right side'.

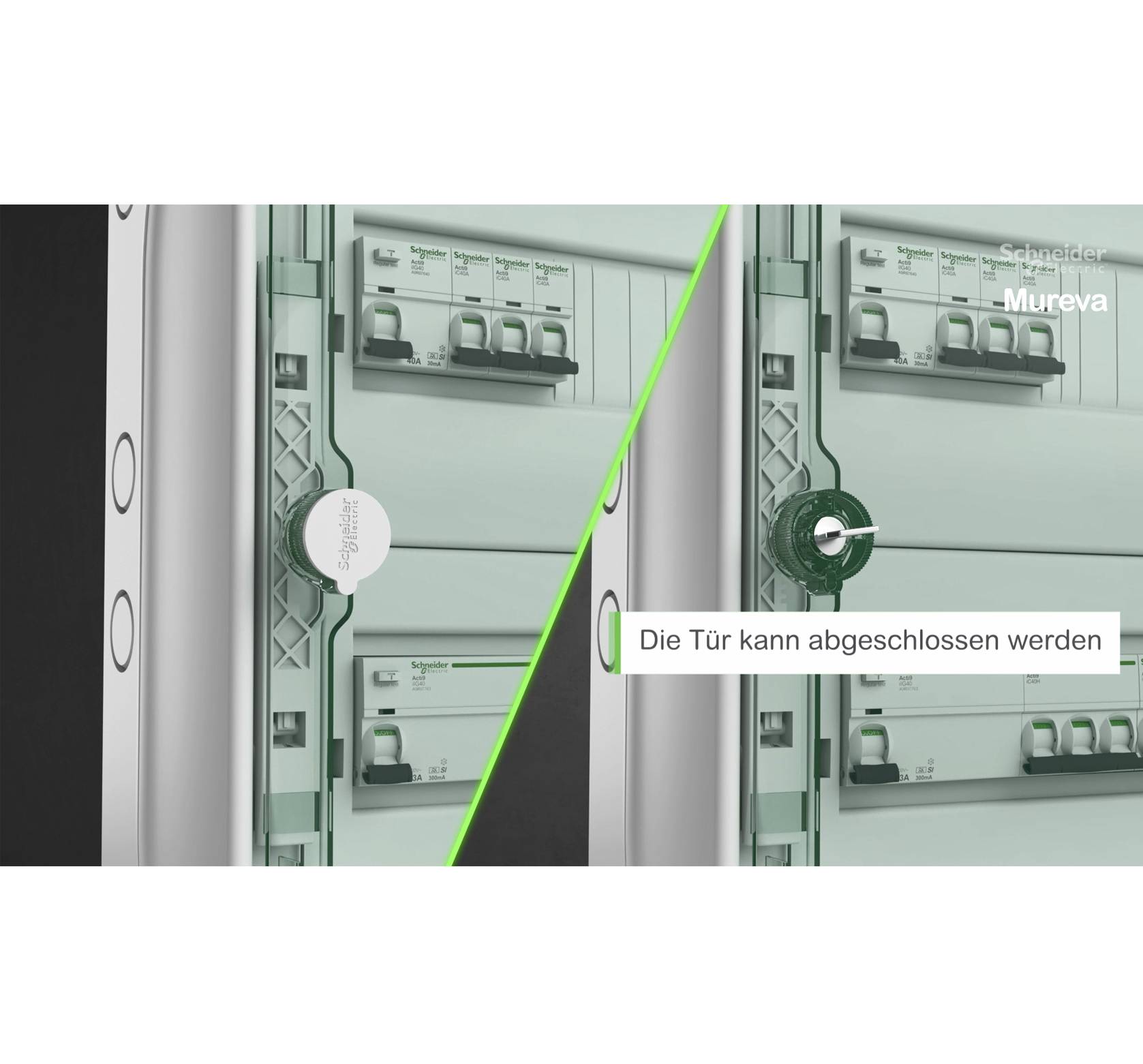

A cabinet with fuse switches, left open, right closed, displays 'The door can be locked' as a safety feature.

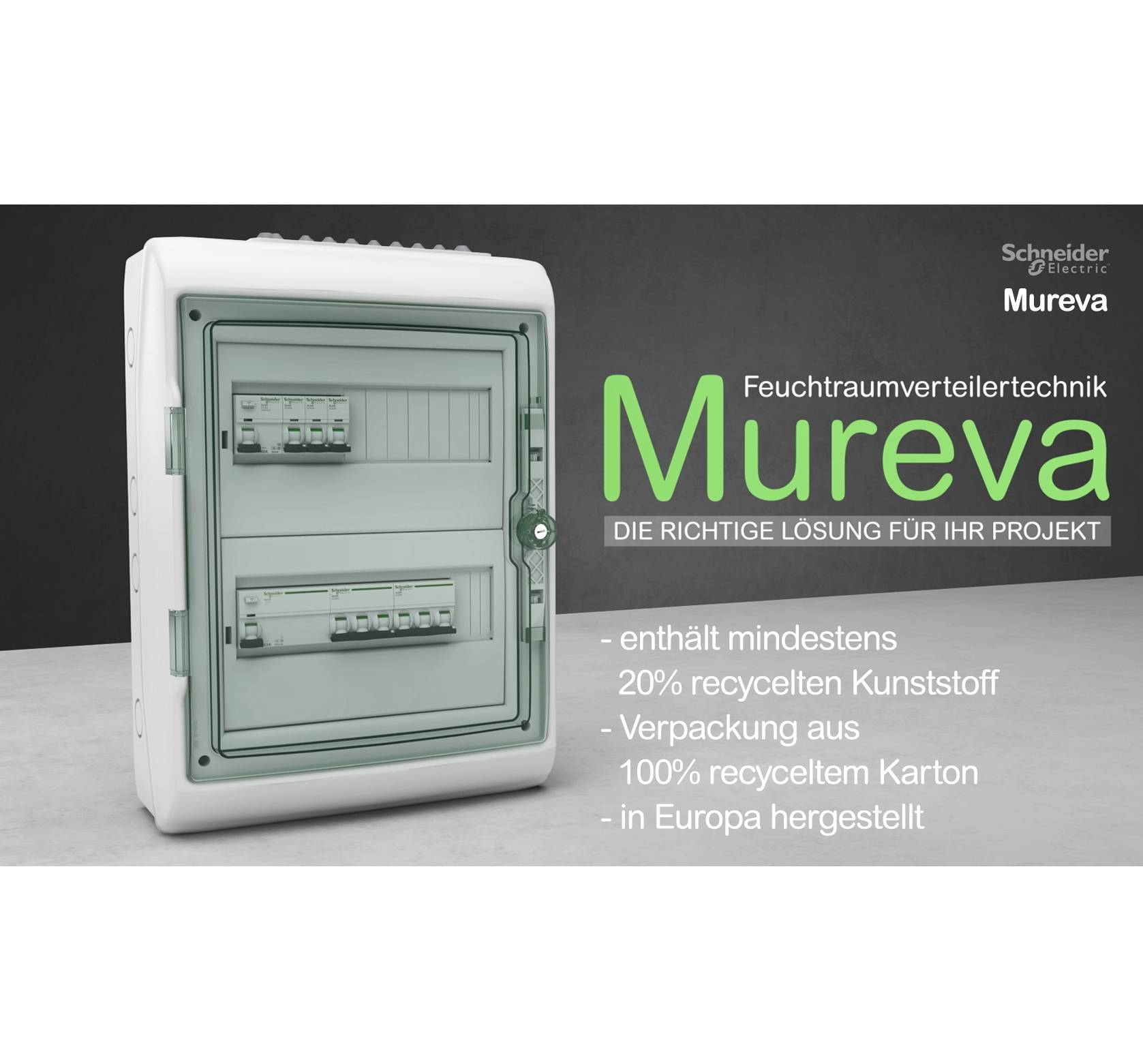

A distribution box with the inscription 'Mureva Wet Area Distribution Technology - The Right Solution for Your Project'. Contains information about recycled material and European manufacturing.

1/9

Product type

Wetroom distributor

No. of partitions

No. of rows

Mounting type

Surface-mount

Width

340 mm

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 73.94 / piece)

€ 73.94

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Mureva Wet Room Distributor, Surface-mounted, 2-row, 24 TE, IP65, Plug terminals

Protection class IP65 for dusty or humid environments, both indoors and outdoors
Cable entry above/below/lateral via cable entry flange as well as via two component entry
Plug-in terminals - 1 earth and neutral terminals (3x25 mm² + 11x4 mm²) - are included in the delivery
DIN-rail can be mounted flexibly upward/downward/rear
Heat-resistant up to 750 °C
Housing made of self-extinguishing plastic

Technical specifications

Door: Green transparent
Housing: Light gray (RAL 7035)
Internal depth 88 mm
Protection class IP65/IK09

Product type: Wetroom distributor

No. of partitions: 24

No. of rows: 2

Mounting type: Surface-mount

Factory colour: Green (transparent)
Light grey

Width: 340 mm

Height: 556 mm

Dim: (W x H x D) 340 x 556 x 164 mm

Depth: 164 mm

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3398125 Schneider Electric 13433DE Mureva Wetroom distributor Surface-mount No. of partitions = 24 No. of rows = 2 Content 1 pc(

User & Safety Instructions

User & Safety Instructions 3398125 Schneider Electric 13433DE Mureva Wetroom distributor Surface-mount No. of partitions = 24 No. of rows = 2 Content 1 pc(

Description

The Schneider Electric Mureva wet room distribution system offers space for 24 module width DIN devices in a row. This distributor is supplied with a transparent door and, if desired, with a cable cover. Suitable for indoor and outdoor installations. Space for 24 module width DIN devices. Cables can be inserted above/below/at the side via cable entry flange and additionally via a 2 component feed. New plug-in terminals - 1 grounding and neutral terminals (3x25mm² + 11x4mm²) - are included in the delivery.
Dimensions incl. cable cover (W) 340 mm x (H) 556 mm x (D) 164 mm. Rated current up to 63 A. The insulation class is class 2. According to IEC 60529 the protection class is IP65. The distributor is light gray (RAL 7035) and has a green-transparent door. The shock resistance is IK09 according to EN 50102. The operating temperature is between -25°C to 60°C. This distributor complies with the standards IEC 60670, IEC 61439-3 and the standard EN 50262. The overvoltage protection class is II. This distributor is made of self-extinguishing plastic. The DIN rail can be mounted flexibly upward/downward/rear. In addition, a cover and a terminal block holder are included.
