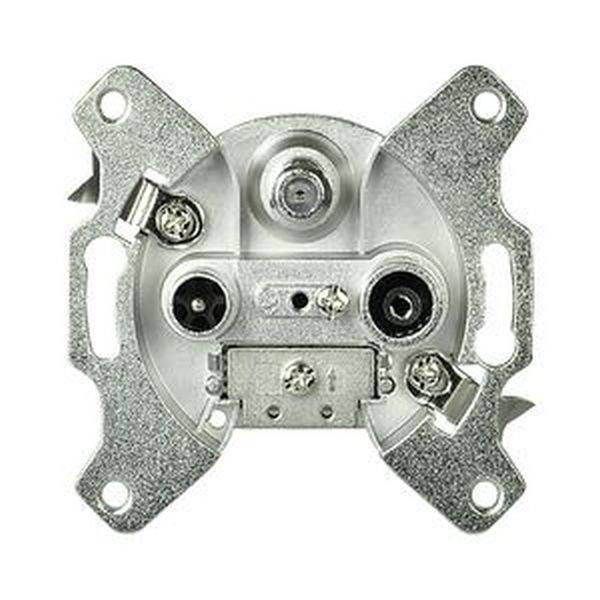

Schneider Electric 162310 Antenna socket SAT Terminated
EAN:
Part number:
Item no:
Technical specifications
- Type
Terminated
- Product type
Antenna socket
- Suitable for
SAT
- SAT frequency (max.)
2400 MHz
- No. of FMs
1 x
- No. of TVs
1 x
- No. of SATs
1 x
- Factory colour
Black
- Suitable for class A
Yes
- DC outlet
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3020746 Schneider Electric 162310 Antenna socket SAT Terminated
Description
Terminated cable (single socket) this socket is remote-feed enabled via the F-socket. Max. 24 V / 500 mA with very low connection attenuation (average 2 dB). (Corresponds WELL to 300) Inserts up to 2400MHz each Astro (name each in brackets) with socket (RF). Plug (TV) and F socket (SAT) for connection of an audio radio receiver. A TV broadcast receiver and a satellite receiver For coaxial cable with external conductor up to o 5.5 mm The antenna sockets are suitable for the connection of a SAT receiver system and - a terrestrial reception system. OR - a BK connection The antenna sockets are DBP-approved according to 1 R8- 15. Generally - stub-line sockets for a star wiring only - at the end of a main line a master-line socket with terminating resistor should be used. Shielding measure > 85 dB Equivalent to class A.
