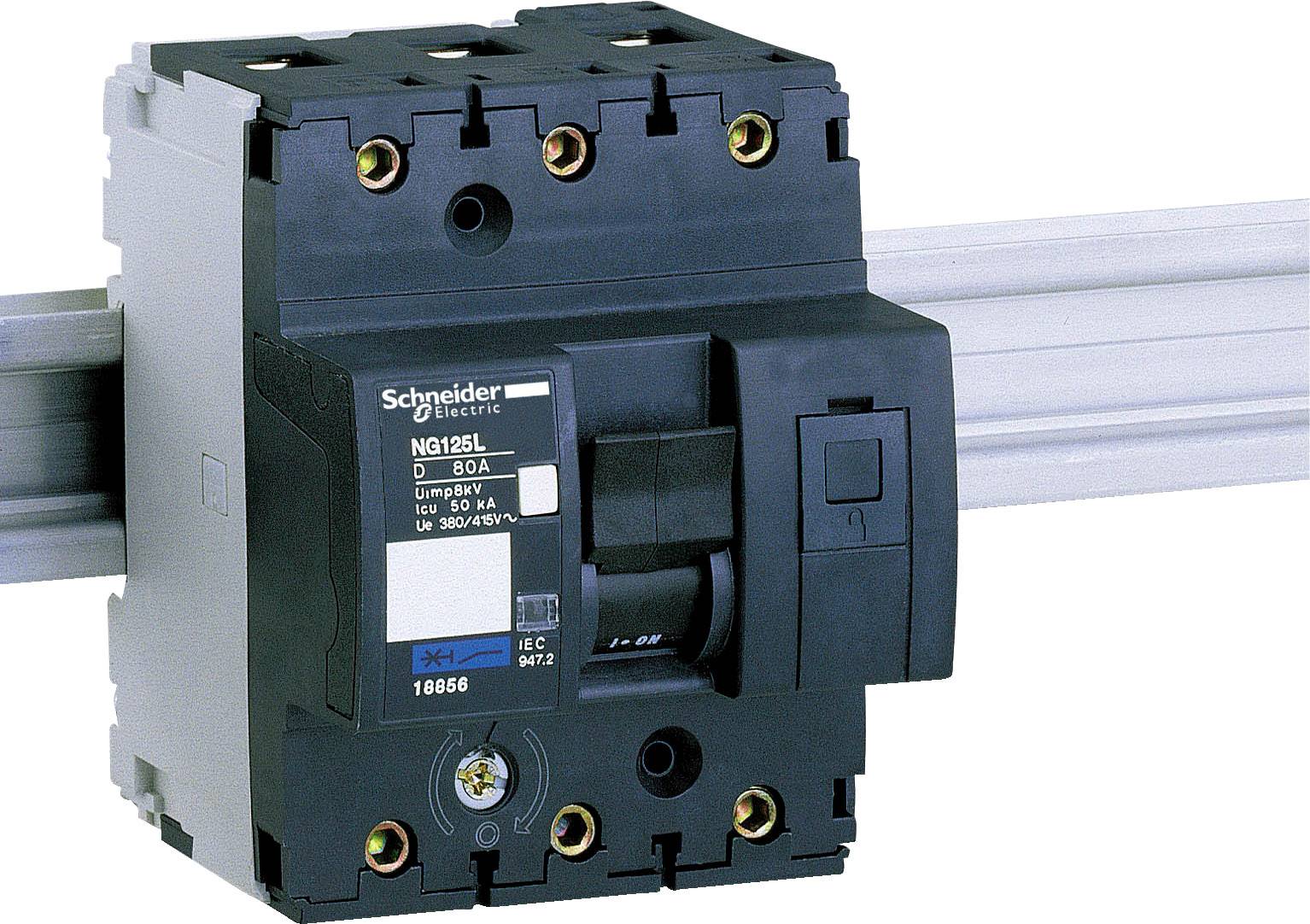

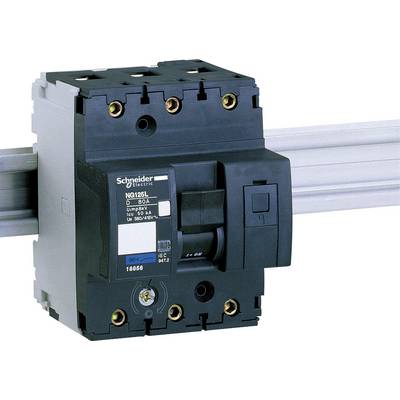

Schneider Electric 18856 18856 Circuit breaker
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
D
Dim
(L x W x H) 81 x 81 x 103 mm
Content
1 pc(s)
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
D
- Dim
(L x W x H) 81 x 81 x 103 mm
- Content
1 pc(s)
- Switch-off capacity
100 kA
- Width
81 mm
- Height
103 mm
- Length
81 mm
IP20
- Connection
Clamp
- Switching current (max.)
80 A
- Switching voltage
375 V DC
240 V AC
415 V AC
440 V AC
500 V AC
- Durability
20000 cycles
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1859586 Schneider Electric 18856 18856 Circuit breaker
Description
Power Switch NG 125 L, 3P, 80A, D-Charaktersitik. Product range: NG 125-series: Activsense 9-product or component type: power switch - short description of the device: NG 125 L-Type: AC, DC technology of the trip unit: thermal-magnetic circuit capacity: 100 kA Icu gema? EN/IEC 60947-2 - 220 ... 240 V AC 50/60Hz, 15 kA Icu gema? EN/IEC 60947-2 - 500 V AC 50/60 Hz, 36 kA Icu gema? EN/IEC 60947-2-<= 375 V DC, 40 kA Icu gema? EN/IEC 60947-2 - 440 V AC 50/60 Hz, 50 kA Icu gema? EN/IEC 60947-2 - 380...415 V AC 50/60 Hz.
