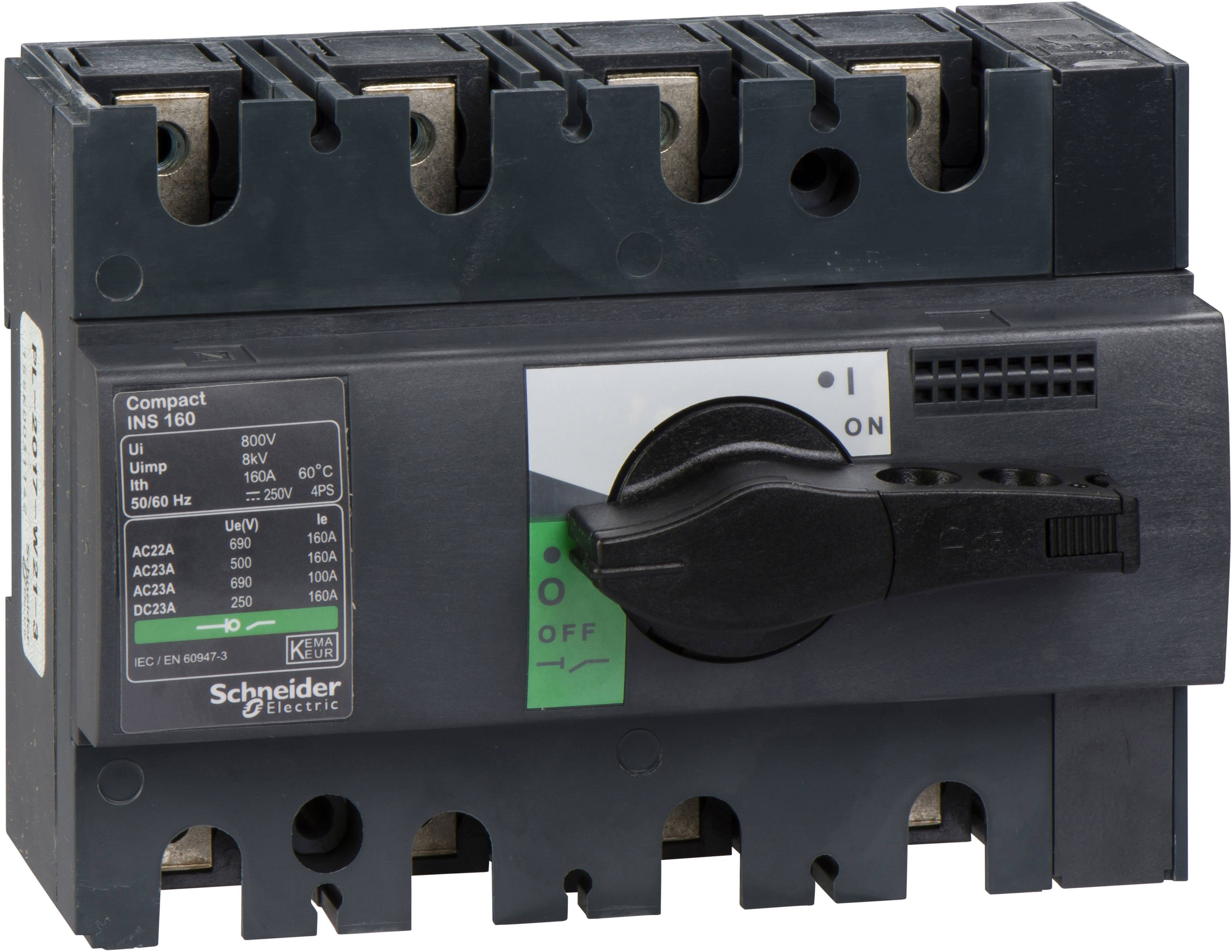

Schneider Electric 28913 Isolator switch 160 A 250 V DC, 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Mounting type
Recess-mount
Switching voltage
250 V DC
690 V AC
Switching current (max.)
160 A
Number of pins
4
Technical specifications
- Product type
Isolator switch
- Mounting type
Recess-mount
- Number of pins
4
- Switching voltage
250 V DC
690 V AC
- Switching current (max.)
160 A
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
62.5 mm
- Width
135 mm
- Height
100 mm
IP40
- Content
1 pc(s)
- Type
28913
- Dim
(L x W x H) 62.5 x 135 x 100 mm
- Factory colour
Black
- Durability
15000 cycles
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1858946 Schneider Electric 28913 Isolator switch 160 A 250 V DC, 690 V AC 1 pc(s)
Description
Cutter 28913 power cut-off switch INTER PACT INTO THE 160 4p 160 A fixed installation/VA
This text is machine translated.
This text is machine translated.
