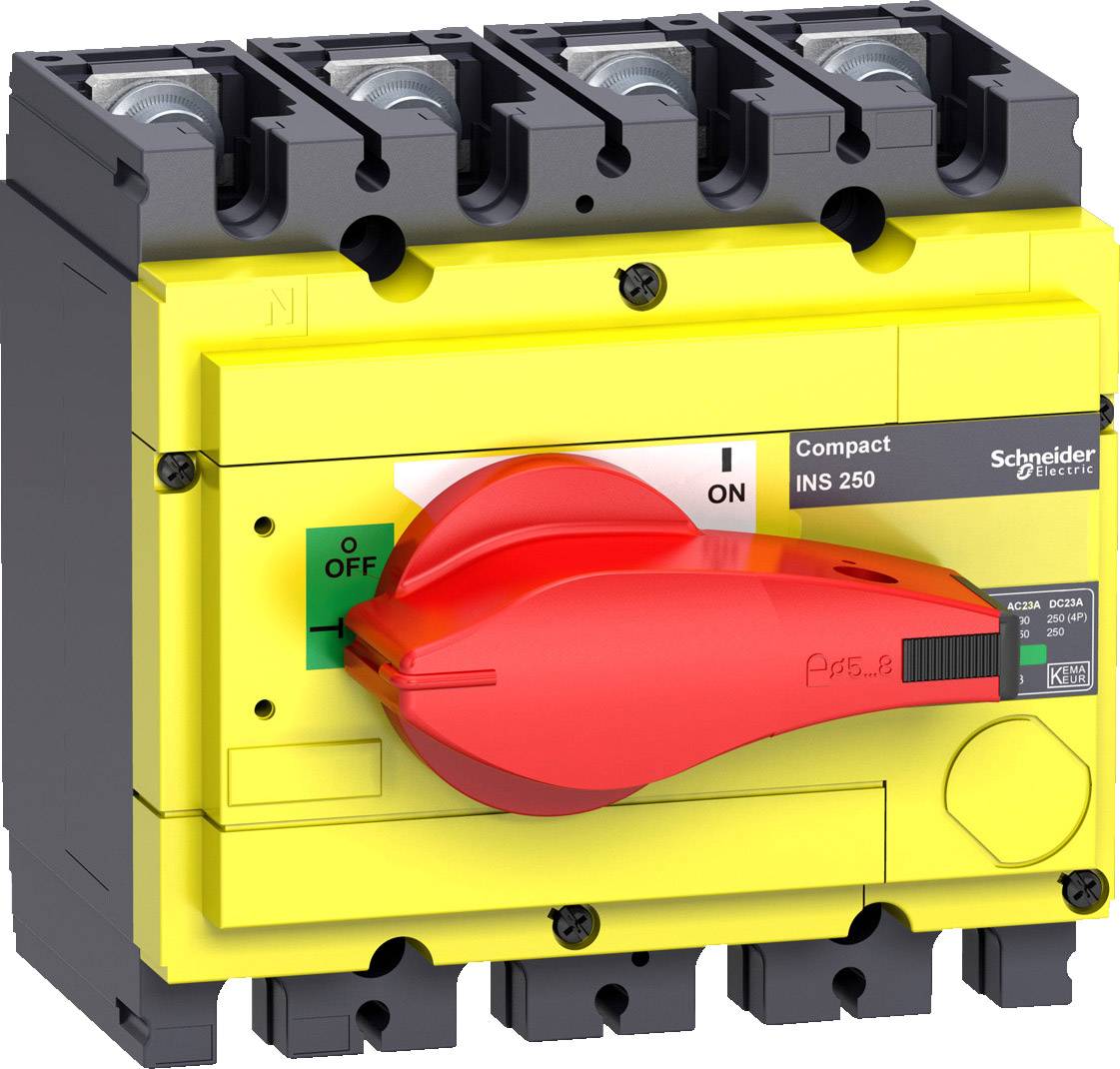

Schneider Electric 31125 Isolator switch 160 A 250 V DC, 690 V AC Red 1 pc(s)

Lasttrennsch. The 250, 4P, 160 A/690 V DC/AC, red rotary lever/yellow background. Series: Compact-product or component type: Switch Disconnectors Product Name: The 250-Description of Poles: 4P-network connection: AC, DC-network frequency: 50/60 Hz-rated operational current Ie: DC-23 A: 160 A DC 125 V 2 poles in series, AC-23A: 160 A AC 50/60 Hz 480 V NEMA, AC-22A: 160 A AC 50/60 Hz 660/690 V, AC-22A: 160 A AC 50/60 Hz 220/240 V, AC-23A: 160 A AC 50/60 Hz 380/415 V, AC-23A: 160 A AC 50/60 Hz 440/480 V, AC-22A: 160 A AC 50/60 Hz 500/525 V, AC-23A: 160 A AC 50/60 Hz 660/690 V, AC-22A: 160 A AC 50/60 Hz 380/415 V, DC-22 A: 160 A DC 250 V 4 pole in Series, AC-22A: 160 A AC 50/60 Hz 480 V NEMA, DC-22 A: 160 A DC 125 V 2 poles in series, AC-22A: 160 A AC 50/60 Hz 440/480 V, AC-23A: 160 A AC 50/60 Hz 500/525 V, AC-23A: 160 A AC 50/60 Hz 220/240 V, DC-23 A: 160 A DC 250 V 4 poles in series - Nominal short-circuit jack-breaking capacity. Icm: 30 kA 690 V AC 50/60 Hz cut-off switch alone, 330 kA 690 V AC 50/60 Hz with an upstream protective circuit breaker-rated operational voltage Ue: 250V DC, 690 V AC 50/60 Hz-plus contact display: Yes - visible break: no.

This text is machine translated.
