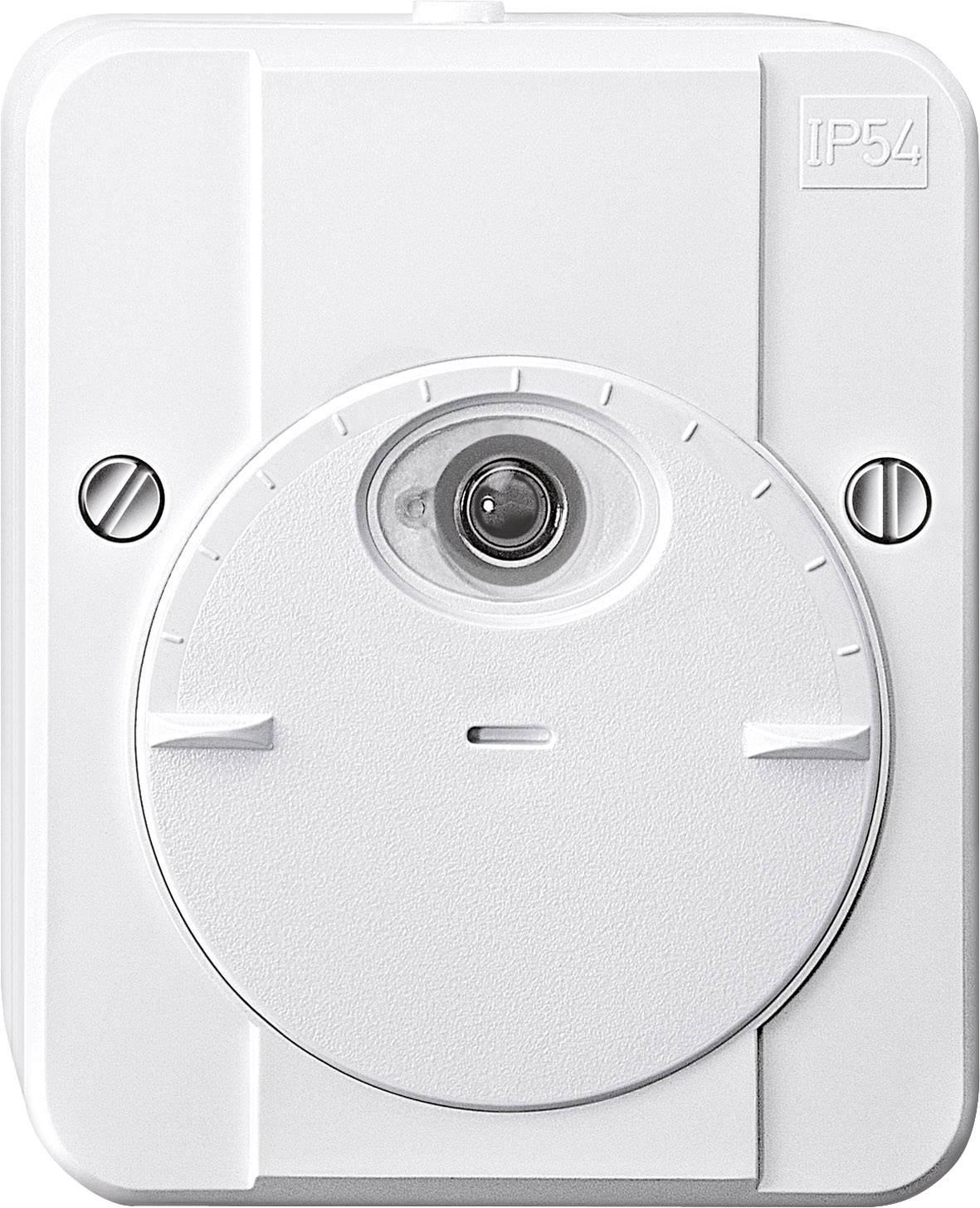

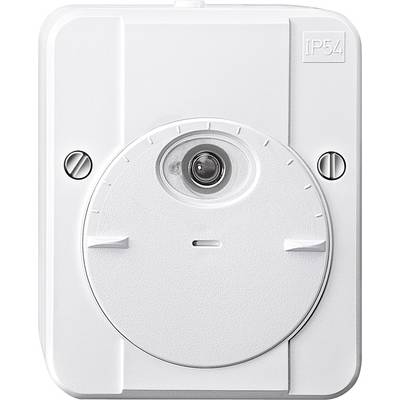

Schneider Electric 544819 Twilight switch Polar white 230 V 1 maker
EAN:
Part number:
Item no:
Highlights & Details
ARGUS twilight switch, with time delay
- Reinforced Relay
- High light sensitivity
- Large connection space.
Technical specifications
- Setting range/switching threshold: 3 to 2000 Lux, adjustable
- Switching delay: when turning the device on: approx. 40 s, when the device is switched off: approx. 100 s.
- Product type
Twilight switch
- Twilight settings
With switching delay
- Operating voltage
230 V
- Contact type
1 maker
- Max. switching capacity
2300 W
- Switching capacity (light bulbs)
2300 W
- Switching capacity (halogen bulbs)
2000 W
IP54
- Factory colour
Polar white
- Dim
(W x H x D) 80 x 97 x 47 mm
- Width
80 mm
- Height
97 mm
- Depth
47 mm
- Mounting type
Surface-mount
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1629138 Schneider Electric 544819 Twilight switch Polar white 230 V 1 maker
Description
To the ARGUS twilight switch with or without switching delay can be set resistive, inductive or capacitive loads (incandescent lamps, 230 V halogen lamps, NV-Halogen lamps with wound transformer, loads with electronic transformer). As soon as
The Outdoor Brightness adjustable value (twilight threshold) falls below one of them, the twilight switch switches the connected consumer. When the outdoor light again increases and the set twilight threshold exceeds
The consumer will be switched off again.
This text is machine translated.
The Outdoor Brightness adjustable value (twilight threshold) falls below one of them, the twilight switch switches the connected consumer. When the outdoor light again increases and the set twilight threshold exceeds
The consumer will be switched off again.
This text is machine translated.
Features
- Connection terminals for 2.5 mm² rigid conductor
- Water-proof surface-mounted device with impact-resistant housing.
