Schneider Electric 56170 56170 Safety relay
EAN:
Part number:
Item no:
Product type
Safety relay
Type
56170
Width
54
Function
For three-phase supply system
Height
97 mm
Datasheet (PDF)
Number
Total (€ 654.62 / piece)
€ 654.62
plus VAT.
14-day return policy included
Technical specifications
- Type
56170
- Product type
Safety relay
54
For three-phase supply system
97 mm
74 mm
FALSE
FALSE
FALSE
Screw connection
4.5 s
0 s
AC/DC
1
1
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2913602 Schneider Electric 56170 56170 Safety relay
User & Safety Instructions
User & Safety Instructions 2913602 Schneider Electric 56170 56170 Safety relay
Information
Information 2913602 Schneider Electric 56170 56170 Safety relay
Information 2913602 Schneider Electric 56170 56170 Safety relay
Description

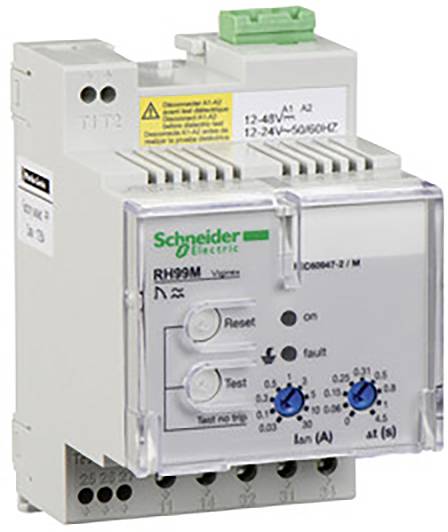

VigiPacT RH99M is a fault current protection relay for mounting on DIN rails. It protects against direct or indirect contact with persons, fire hazards and motors. It measures the leakage current in an electrical system via its associated toroidal transformer. It triggers the corresponding circuit breaker if the set fault current is exceeded. The operating voltage is 12 VAC 50 Hz or 12 VDC. The current sensitivity can be selected with 9 thresholds from 30 mA to 30 A. The time delay can be selected with three settings from immediately up to 9 seconds. A local manual reset is required after troubleshooting. The monitored voltage of the distribution network is up to 1000 VAC 50/60/400 Hz. It is installed on a DIN rail in a control cabinet and has the protection class IP40. It must be connected to a compatible Schneider Electric type A toroidal or rectangular sensor.
