Schneider Electric 56517 56517 Safety relay

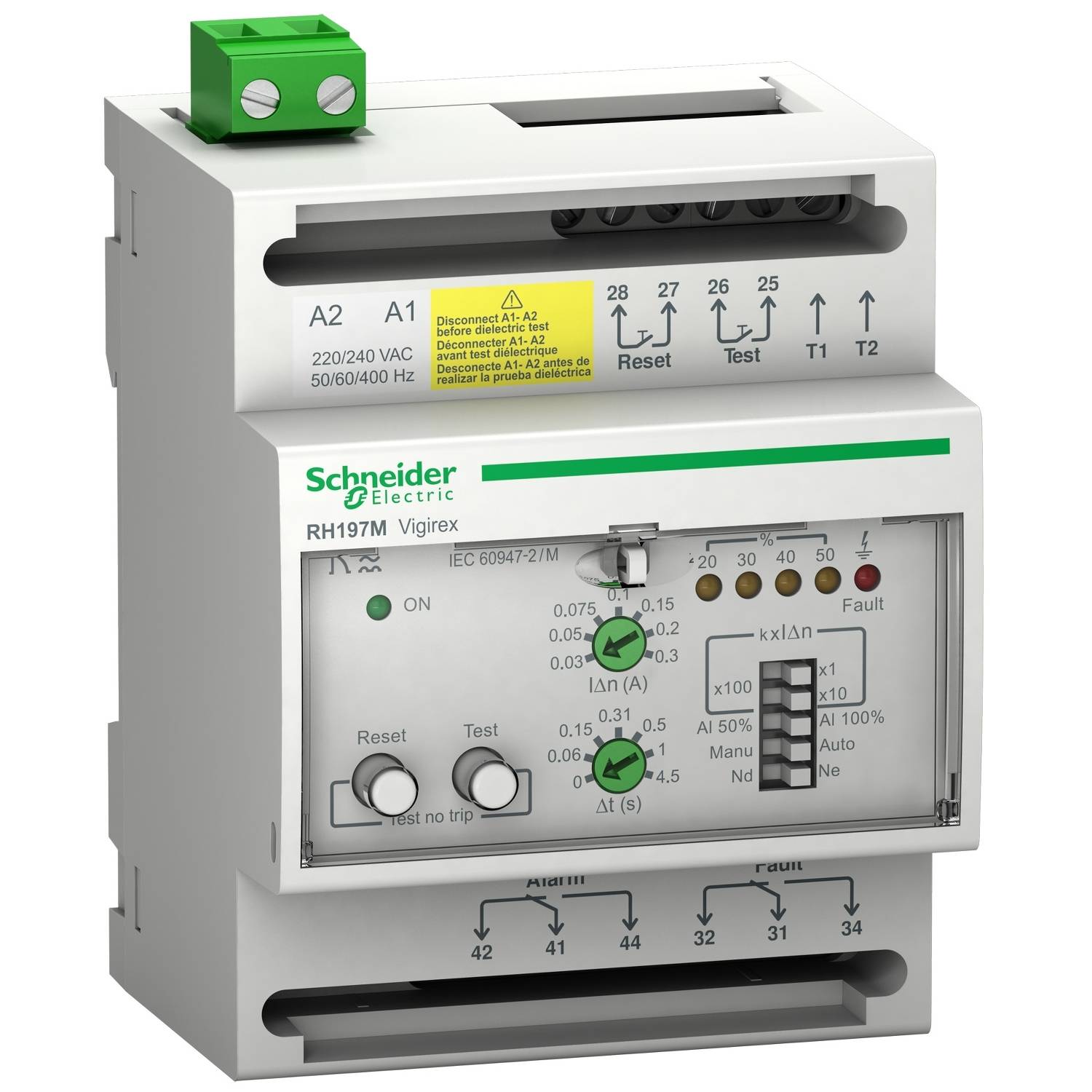

The VigiPacT RH197M is a fault current protection relay for DIN rail mounting. It protects against direct or indirect contact with persons, fire hazards and motors. It measures the ground fault current in an electrical system via its associated toroidal transformer. It triggers the associated circuit breaker when the set residual current is exceeded. The operating voltage is 220/240V AC 50/60Hz. It is a type A ground fault protection. The current sensitivity can be selected with 19 threshold values from 30 mA to 30 A. The time delay can be selected with three settings from immediately up to 7 seconds. The alarm is set by DIP switch to 50% or 100% of IDN. A switch allows you to choose between manual on-site reset or automatic reset after troubleshooting. The monitored voltage of the distribution system is up to 1000V AC 50/60/400Hz. It is installed on a DIN rail in a control panel and has the protection class IP40. It must be connected to a compatible Schneider Electric type A toroidal or rectangular sensor.

This text is machine translated.
